Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
R290L-7

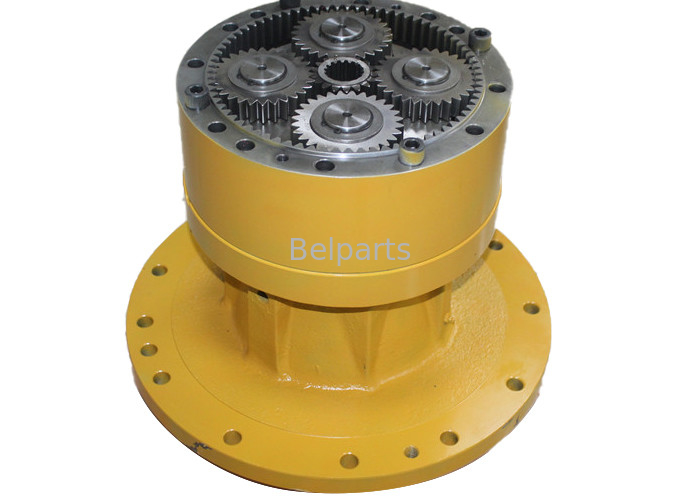

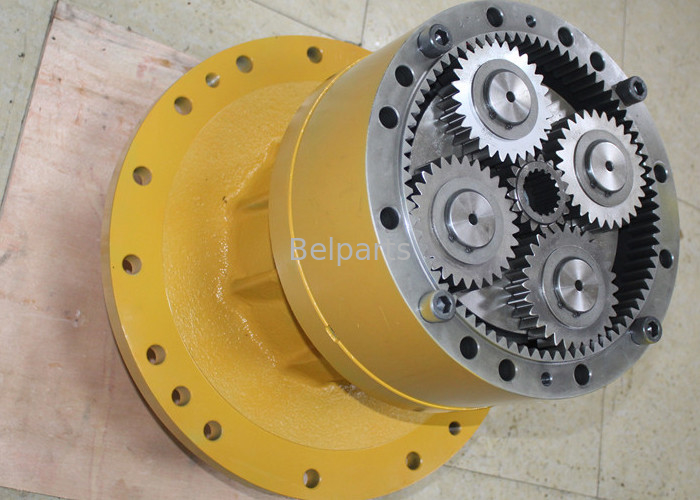

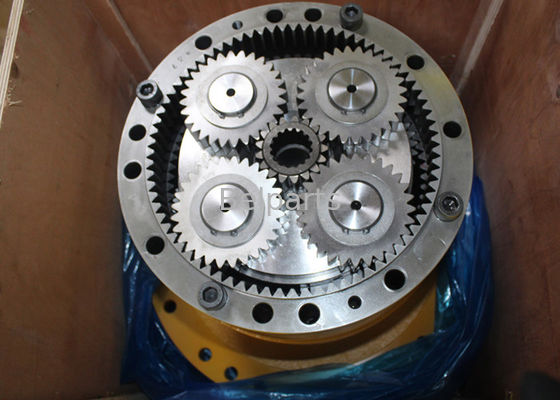

Excavator R290L-7 slewing gearbox R290 swing reduction 31N8 10180 swing gearbox
| Product name | R290L-7 Swing gearbox |
| Place of Origin: | China(mainland) |
| Model: | R290L-7 |
| Part number: | 31N8 10180 |
| MOQ: | 1 PCS |
| Payment term: | T/T & Alibaba& Paypal |
| Delivery time: | Within 2 days after receiving the payment |
| Packing: | Standard exporting packing or as required |
Parts on group
| Pos. | Part No | Qty | Parts name |
|---|---|---|---|
| *. | @ | [1] | SWING MOTOR ASSY |
| *-2. | 31N8-10180 | [1] | SWING REDUCTION GEAR |
| 1. | XKAQ-00427 | [1] | CASING |
| 2. | XKAQ-00428 | [1] | SHAFT-DRIVE |
| 3. | XKAQ-00117 | [1] | BEARING-ROLLER |
| 4. | XKAQ-00119 | [1] | SEAL-OIL |
| 5. | XKAQ-00120 | [1] | BEARING-ROLLER |
| 6. | XKAQ-00429 | [1] | CARRIER ASSY-2 |
| 7. | XKAQ-00430 | [1] | CARRIER-2 |
| 8. | XKAQ-00431 | [4] | GEAR-PLANET-2 |
| 9. | XKAQ-00432 | [4] | PIN ASSY-2 |
| N10. | XKAQ-00433 | [1] | PIN-2 |
| N11. | XKAQ-00434 | [1] | BUSHING-2 |
| 12. | XKAQ-00435 | [8] | WASHER-THRUST |
| 13. | XKAQ-00050 | [4] | PIN-SPRING |
| 14. | XKAQ-00436 | [1] | GEAR-SUN,2 |
| 15. | XKAQ-00437 | [1] | CARRIER ASSY-1 |
| 16. | XKAQ-00438 | [1] | CARRIER-1 |
| 17. | XKAQ-00439 | [4] | GEAR-PLANET-1 |
| 18. | XKAQ-00440 | [4] | PIN ASSY-1 |
| N19. | XKAQ-00441 | [1] | PIN-1 |
| N20. | XKAQ-00079 | [1] | BUSHING-1 |
| 21. | XKAQ-00417 | [4] | PLATE-SIDE-1 |
| 22. | XKAQ-00416 | [4] | PLATE-SIDE-2 |
| 23. | XKAQ-00041 | [4] | RING-STOP |
| 24. | XKAQ-00048 | [4] | PIN-SPRING |
| 25. | XKAQ-00442 | [1] | GEAR-SUN-1 |
| 26. | XKAQ-00444 | [1] | GEAR-RING |
| 27. | XKAQ-00443 | [1] | PLATE-COVER |
| 28. | XKAQ-00445 | [1] | SPACER |
| 29. | XKAQ-00446 | [1] | RING-SPACER |
| 30. | XKAQ-00072 | [2] | PIN-KNOCK |
| 31. | XKAQ-00447 | [1] | PLATE-THRUST-3 |
| 32. | XKAQ-00013 | [1] | GEAR-PINION |
| 33. | XKAQ-00043 | [1] | PLATE-LOCK |
| 34. | XKAQ-00064 | [8] | BOLT-HEX |
| 35. | XKAQ-00042 | [2] | BOLT-HEX |
| 36. | XKAQ-00292 | [1] | WASHER-LOCK |
| 37. | XKAQ-00448 | [12] | BOLT-SOCKET |
| 38. | XKAQ-00049 | [1] | PLUG |
| 39. | XKAQ-00066 | [2] | PLUG |
| 40. | XKAQ-00167 | [1] | PIPE-GAUGE |
| 41. | XKAQ-00449 | [1] | BAR-GAGE |
| 42. | XKAQ-00143 | [1] | AIR BREATHER ASSY |
