Excavator SK75UR SK75 Slewing Gearbox 24100J11943F1 Swing Gear Box

Excavator SK75UR SK75 Slewing Gearbox 24100J11943F1 Swing Gear Box

SK75 Slewing Gearbox

SK75UR Slewing Gearbox

24100J11943F1 Slewing Gearbox

Place of Origin:

Made in China

Brand Name:

Belparts

Model Number:

SK75UR

Contact Us
Request A Quote
Product Details
Model Name:
SK75UR
Part Name:
24100J11943F1
Brand Name:
Belparts
Material:
Steel
Price:
Negotiable Price
MOQ:
1PC
After-sales Services:
Online
Condition:
New
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable price
Packaging Details
Wooden packing
Delivery Time
1-7days
Payment Terms
T/T, Paypal and Alibaba Trade Assurance
Supply Ability
1000pieces
Product Description

Excavator SK75UR swing reduction SK75 Slewing gearbox 24100J11943F1 swing gearbox



Appliion Excavator
Part name Belparts swing gearbox
Material Steel
Model SK75UR
MOQ 1PC
Payment term T/T, Paypal, Trade assurance, or as required
Delivery 2 days after the payment received
Shipment by sea, by air, by express, or as required

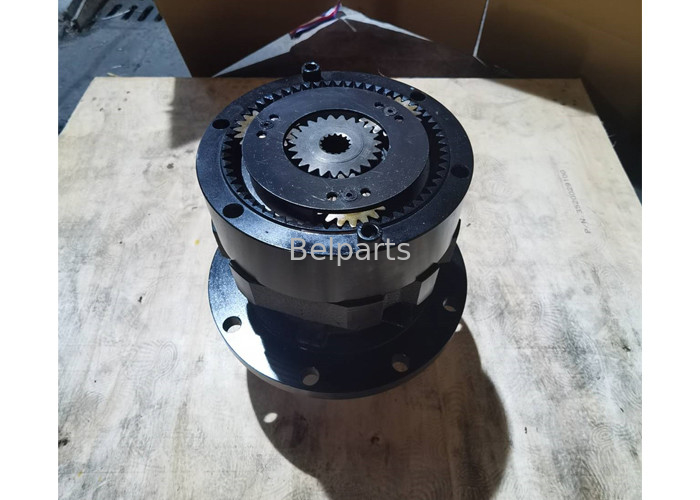

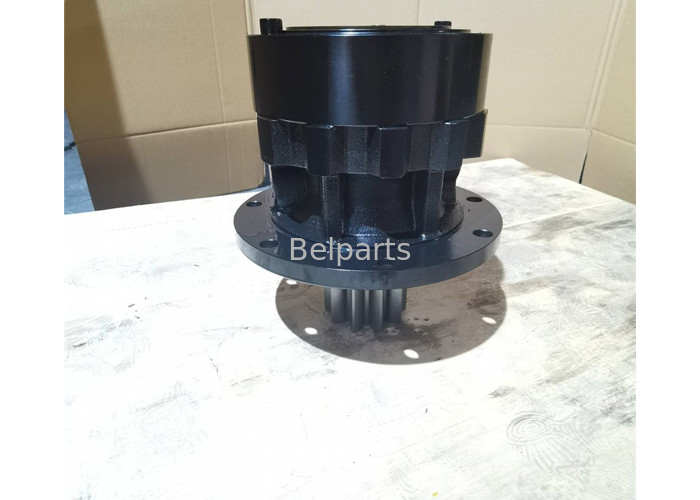

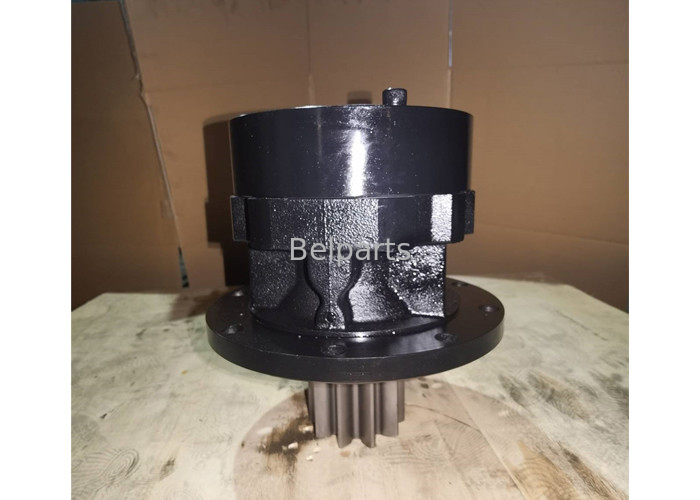

Excavator SK75UR SK75 Slewing Gearbox 24100J11943F1 Swing Gear Box 0





Excavator SK75UR SK75 Slewing Gearbox 24100J11943F1 Swing Gear Box 1





Parts on group


Pos. Part No Qty Parts name Comments
. . 24100J11943F1 [1] HYDRAULIC MOTOR KOB Superseded by part number: 24100J11943F2
1. 2401N559 [1] FINGER ASSY. KOB
2. 2418T8471 [1] SLEEVE KOB
3. 2418N1914 [1] RETAINER KOB
4. 2414J1304 [1] HOUSING KOB
5. R25P0046D1 [1] ROLLER BEARING KOB
6. 25Z627D9 [1] BEARING KOB ROLLER
7. 2413N460 [1] DIFF. SPIDER KOB SPIDER
8. 2413N459F1 [1] SPIDER KOB
9. 2401N476 [1] RING GEAR KOB
10. 2425Z543 [3] NEEDLE BEARING KOB
11. ZS23C10110 [8] SCREW,Hex Socket Head, M10 x 110mm KOB M10x1.50x110mm
12. 2401P1319 [1] SUN GEAR KOB
13. 2425Z544 [4] NEEDLE BEARING KOB
14. 2401P1320 [3] PINION KOB
15. 2401P1322 [4] PINION KOB
16. ZD11G07000 [1] O-RING,69.40mm ID x 75.60mm OD x 3.10mm KOB ID 69.40 ± 0.61 x OD 75mm
17. ZS23C08025 [8] SCREW,Hex Socket Head, M8 x 25mm KOB M08x1.25x25mm
18. ZD21T10500 [1] OIL SEAL KOB Superseded by part number: 2418R7D6
19. 2418T8472 [1] SPACER KOB
20. 2418T8473 [2] SPACER KOB
21. 2401P1321 [1] SUN GEAR KOB
22. 2418T20860 [3] LOCKING RING KOB
23. 2418T20857 [6] THRUST WASHER KOB
24. ZR16X05500 [1] RING KOB SNAP
25. ZP26D08016 [4] ROLL PIN KOB SPRING
26. ZS83C16018 [2] SCREW KOB M16x2.0x18mm
27. 2418T20856 [8] THRUST WASHER KOB
28. 2410T359 [4] SHAFT KOB
29. 2441U834P1 [1] MOTOR
29-1. 2436U1431F1 [1] CONTROL VALVE KOB Superseded by part number: 2436U1431F5
29-2. 2441U814F1 [1] HYDRAULIC MOTOR KOB SEE(C.P.M)
29-3. 2436U1283F1 [1] VALVE PRESSURE RELIE KOB BREAKE
29-4. ZS23C12135 [6] SCREW,Hex Socket Head, M12 x 135mm KOB M12x1.75x135mm
29-5. ZD12G03500 [2] O-RING,34.40mm ID x 40.60mm OD x 3.10mm KOB ID 34.40 ± 0.33 x OD 40mm
30. 2420T6698D2 [1] PIPE KOB
31. ZE82T12000 [1] PLUG KOB 3/4" PT
32. ZR16X03000 [1] SNAP RING KOB SNAP
33. ZG31U12000 [1] ELBOW KOB 90°
. . 24010P3F16 [1] KIT, SHAFT CONSISTS OF REF 28 KIT, SHAFT CONSISTS OF REF 28
