R140-9 Excavator Swing Gearbox
,R140 Excavator Swing Gearbox
,31Q4-11141 Excavator Swing Gearbox

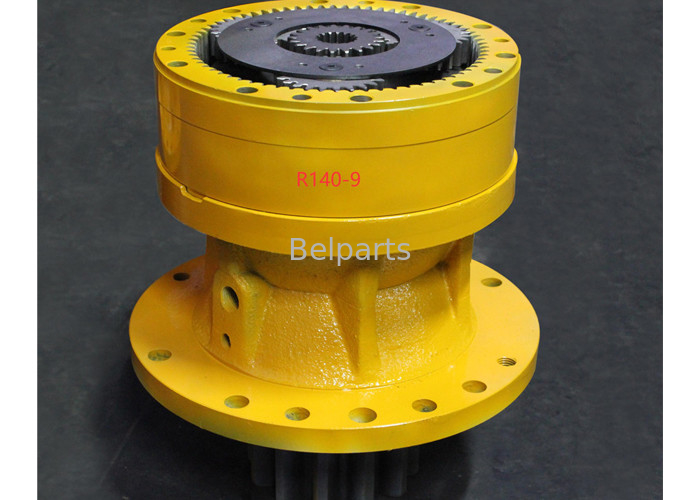

Excavator R140-9 swing reduction R140 Slewing gearbox 31Q4-11141 swing gearbox
| Appliion | Excavator |
| Part name | Belparts swing gearbox |
| Material | Steel |
| Model | R140-9 |
| MOQ | 1PC |
| Payment term | T/T, Paypal, Trade assurance, or as required |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express, or as required |
Parts on group
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| N*. | @ | [1] | SWING MOTOR ASSY | *-1,*-2 |
| *-2. | 31Q4-11140 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31Q4-11141 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31Q4-11142 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31Q4-11142AR | [1] | SWING REDUCTION GEAR | |
| 1. | XKAQ-00511 | [1] | CASING | |
| 2. | XKAQ-00512 | [1] | SHAFT-DRIVE | |
| 3. | XKAQ-00513 | [1] | PLATE-COVER | |
| 4. | XKAQ-00514 | [1] | SPACER | |
| 5. | XKAQ-00515 | [1] | BEARING-SPH ROLLER | |
| 6. | XKAQ-00089 | [1] | BEARING-CYL ROLLER | |
| 7. | XKAQ-00087 | [1] | SEAL-OIL | |
| 8. | XKAQ-00809 | [1] | CARRIER ASSY 2 | |
| 9. | XKAQ-00516 | [1] | CARRIER 2 | |
| 10. | XKAQ-00517 | [4] | GEAR-PLANET 2 | |
| 10. | XKAQ-00810 | [4] | GEAR-PLANET 2 | |
| 11. | XKAQ-00518 | [4] | PIN ASSY 2 | |
| 11. | XKAQ-00811 | [4] | PIN ASSY 2 | |
| N12. | XKAQ-00812 | [1] | PIN 2 | |
| N13. | XKAQ-00813 | [1] | BUSHING 2 | |
| 21. | XKAQ-00093 | [4] | WASHER-THRUST(B) | |
| 22. | XKAQ-00086 | [4] | PIN-SPRING | |
| 14. | XKAQ-00519 | [1] | GEAR-SUN 2 | |
| 15. | XKAQ-00814 | [1] | CARRIER ASSY 1 | |
| 16. | XKAQ-00520 | [1] | CARRIER 1 | |
| 17. | XKAQ-00521 | [3] | GEAR-PLANET 1 | |
| 17. | XKAQ-00815 | [3] | GEAR-PLANET 1 | |
| 18. | XKAQ-00522 | [3] | PIN ASSY 1 | |
| 18. | XKAQ-00816 | [3] | PIN ASSY 1 | |
| N19. | XKAQ-00817 | [1] | PIN 1 | |
| N20. | XKAQ-00818 | [1] | BUSHING 1 | |
| 21. | XKAQ-00093 | [3] | WASHER-THRUST(B) | |
| 22. | XKAQ-00086 | [3] | PIN-SPRING | |
| 23. | XKAQ-00085 | [3] | RING-STOP | |
| 24. | XKAQ-00523 | [1] | GEAR-SUN 1 | |
| 25. | XKAQ-00084 | [1] | RING-STOP | |
| 26. | XKAQ-00524 | [1] | PLATE-SIDE 1 | |
| 27. | XKAQ-00525 | [1] | GEAR-RING | |
| 27. | XKAQ-00782 | [1] | GEAR-RING | |
| 28. | XKAQ-00091 | [4] | PIN-KNOCK | |
| 29. | XKAQ-00526 | [9] | BOLT-HEX | |
| 30. | XKAQ-00527 | [10] | BOLT-SOCKET | |
| 31. | XKAQ-00049 | [1] | PLUG | |
| 32. | XKAQ-00066 | [2] | PLUG | |
| *-1. | @ | [1] | SWING MOTOR UNIT | SEE 4100 |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
