SK200-3 Excavator Swing Gearbox SK200 24100J11091F2

SK200-3 Excavator Swing Gearbox SK200 24100J11091F2

SK200-3 Excavator Swing Gearbox

24100J11091F2 Excavator Swing Gearbox

SK200 Swing Reduction

Place of Origin:

Made in China

Brand Name:

Belparts

Model Number:

SK200-3

Contact Us
Request A Quote
Product Details
Model Name:
SK200-3
Part Name:
24100J11091F2
Brand Name:
Belparts
Material:
Steel
Price:
Negotiable Price
MOQ:
1PC
After-sales Services:
Online
Condition:
New
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable price
Packaging Details
Wooden packing
Delivery Time
1-7days
Payment Terms
T/T, Paypal and Alibaba Trade Assurance
Supply Ability
1000pieces
Product Description

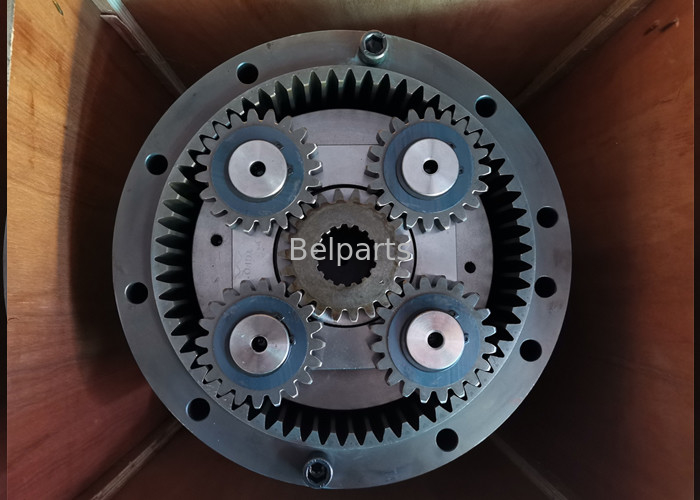

Excavator SK200-3 SK200 Slewing gearbox 24100J11091F2 Swing Gearbox



Appliion Excavator
Part name Belparts swing gearbox
Material Steel
Model SK200-3
MOQ 1PC
Payment term T/T, Paypal, Trade assurance, or as required
Delivery 2 days after the payment received
Shipment by sea, by air, by express, or as required

SK200-3 Excavator Swing Gearbox SK200 24100J11091F2 0



SK200-3 Excavator Swing Gearbox SK200 24100J11091F2 1







Parts on group


Pos. Part No Qty Parts name Comments
. . 24100J11091F2 [1] HYDRAULIC MOTOR KOB SWING YQ01101, Serial Range: -YQ01458 Superseded by part number: 24100J11091F10
5. R25P0047D8 [1] BEARING KOB ROLLER
. . 24100J11091F3 [1] MOTOR ASSY, SWING, Start Serial: YQ01458- MOTOR ASSY, SWING, Start Serial: YQ01458-
6. 25Z494D11 [1] BEARING KOB
9. 2410T340 [4] ROLLER SHAFT KOB
10. 2401N468 [1] RING GEAR KOB
11. 2401P1276 [1] SUN GEAR KOB
12. 2401P1277 [4] PINION KOB
13. 2401P1279 [4] KIT KOB RY Superseded by part number: 24001T71F2
15. ZS23C08030 [12] SCREW,Hex Socket Head, M8 x 30mm KOB M08x1.25x30mm Superseded by part number: ZS28C08030
18. 2418P20198D3 [2] SPACER KOB (4.0)
19. 2401P1278 [1] SUN GEAR KOB Superseded by part number: 2401P1434
20. ZR16X04500 [1] RING KOB Retaining -- ID 45 x OD 58 x Th 1.8mm
23. 2425T383 [76] PLUG WRENCH PLUG WRENCH
24. 2425T384 [140] NEEDLE BEARING KOB
25. ZR16X08500 [1] LOCKING RING KOB
26. ZS83C20020 [2] SCREW KOB Set -- M20x2.50x20mm
28. 2420T6698D3 [1] RIGID TUBE KOB
29. ZG31U12000 [1] ELBOW KOB 90°
30. ZE82T12000 [1] PLUG KOB 3/4" PT
33. ZS23C14140 [10] SCREW,Hex Socket Head, M14 x 140mm KOB M14x2.0x140mm
34. ZR16X04000 [4] RING KOB Retaining -- ID 37 x OD 40 x Th 1.8mm
37. 2410N519 [1] FINGER ASSY. KOB
38. 2418P22798 [1] SLEEVE, Serial Range: YN06501--YN06503
39. ZD11P09500 [1] O-RING KOB ID 94.6 ± 0.81 x OD 105mm
40. 2418R259 [1] OIL SEAL KOB
. . 2418P23538 [1] HOSE KOB , Start Serial: YQ01101-
41. 2418R2D60 [1] SNAP RING KOB SNAP
43. 2418T20987 [1] PLATE KOB
42. 2418T20985 [1] PLATE YN06501-, Serial Range: -YN06503
44. 2418T20986 [1] PLATE KOB
45. 2418P22799 [1] RETAINER KOB
42. 2418T21667 [1] PLATE KOB , Start Serial: YQ01101-
46. 2418T20988 [1] SPACER KOB (4.0)
47. 2414J2298 [1] HOUSING KOB
48. 2418T20989 [1] SPACER KOB
49. 2413J381 [1] DIFF. SPIDER KOB
50. ZP26D08025 [4] PIN KOB Roll -- OD 08 x 25mm Long
51. 2418T20963 [8] THRUST WASHER KOB Superseded by part number: 2418T25314
52. 2413N462F1 [1] SPIDER KOB
53. 2418T20962 [4] THRUST WASHER KOB
54. 2418T19775D3 [4] THRUST WASHER KOB
55-1. 2436U1431F2 [1] VALVE, CONTROL VALVE, CONTROL
55. 2441U819F1 [1] MOTOR SWING, Serial Range: YQ01101-YQ01458 MOTOR SWING, Serial Range: YQ01101-YQ01458
55-2. 2441U804F1 [1] HYDRAULIC MOTOR KOB
55-3. 2436U1283F1 [1] VALVE PRESSURE RELIE KOB
55-4. 2420T4473D1 [6] SCREW KOB BOLT
55-5. ZD12G03500 [2] O-RING,34.40mm ID x 40.60mm OD x 3.10mm KOB ID 34.40 ± 0.33 x OD 40mm
56. 2441U819F2 [1] HYDRAULIC MOTOR KOB MOTOR, SWING, Start Serial: YQ01458- Superseded by part number: 2441U819F3
56-2. 2441U804F1 [1] HYDRAULIC MOTOR KOB
56-3. 2436U1283F1 [1] VALVE PRESSURE RELIE KOB
56-6. 2436U1431F4 [1] CONTROL VALVE KOB VALVE, CONTROL Superseded by part number: 2436U1431F6
. . 24100J13639F1 [1] HYDRAULIC MOTOR KOB CONSISTS OF REF 5,6,9 TO 13,15,18,19 TO 23,26,30,33,34,37 TO 54 Superseded by part number: 24100J13639F4
. . 24025T2F1 [19] KIT SERVICE CONSISTS OF REF NO 23
. . 24025T2F2 [35] SERVICE KIT KOB KIT SERVICE CONSISTS OF REF NO 24
60. 2418T23087 [1] SPACER
61. 2418T5028 [1] PLATE COVER PLATE COVER
