Product Details
Highlight:

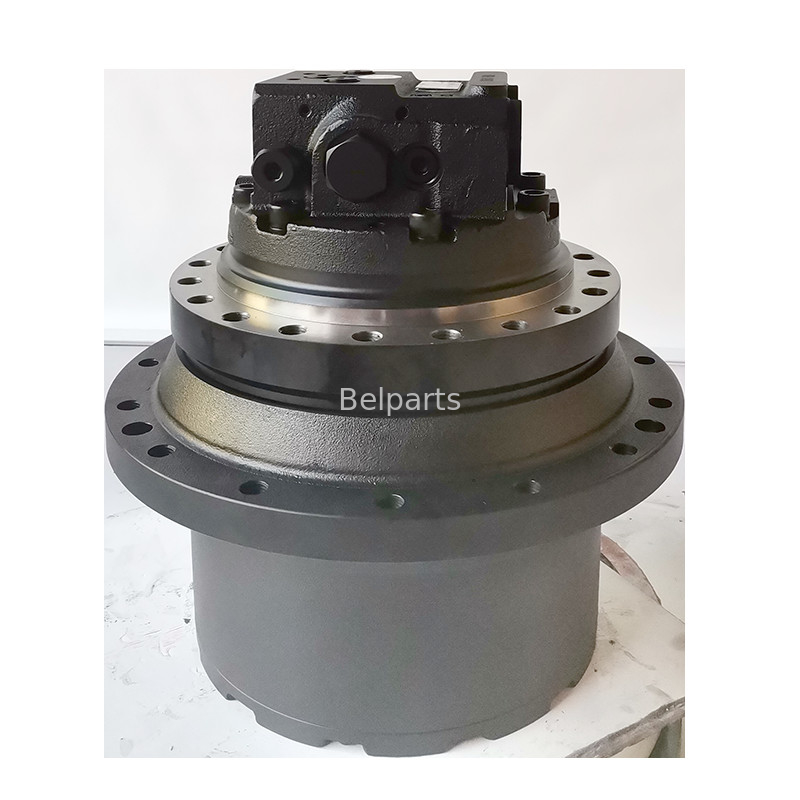

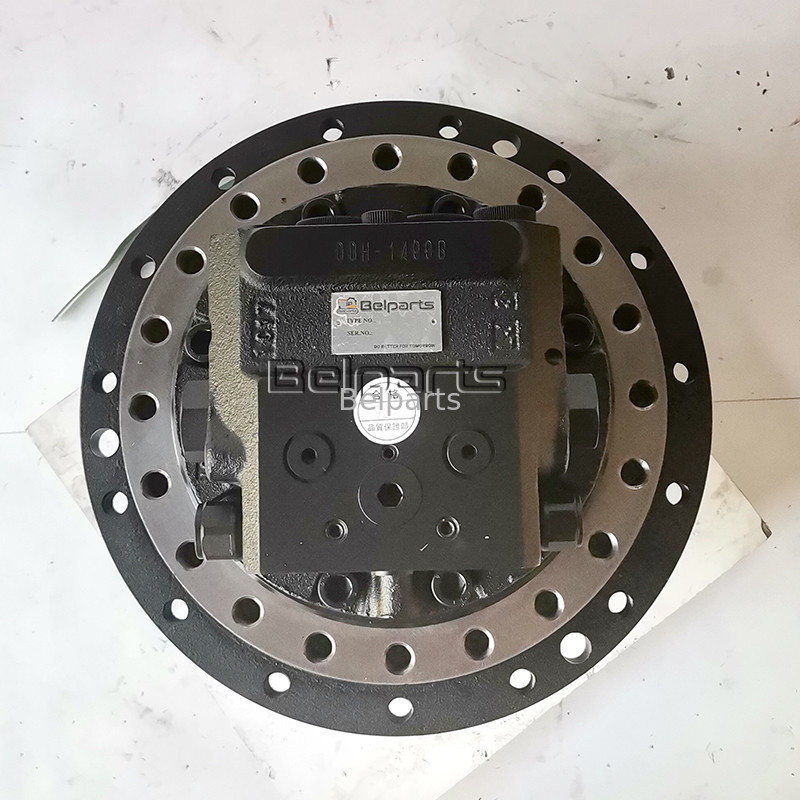

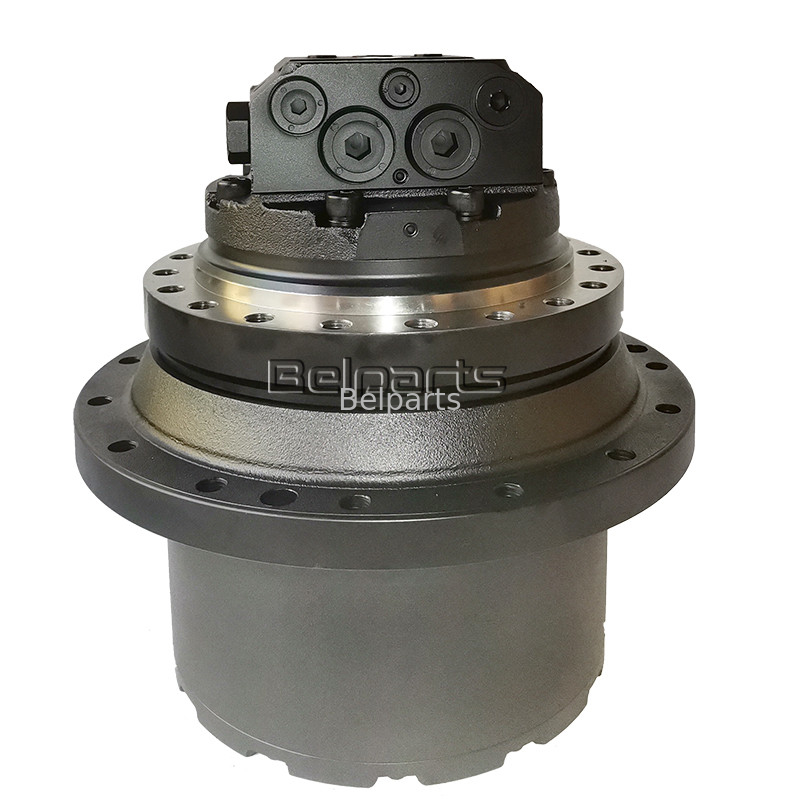

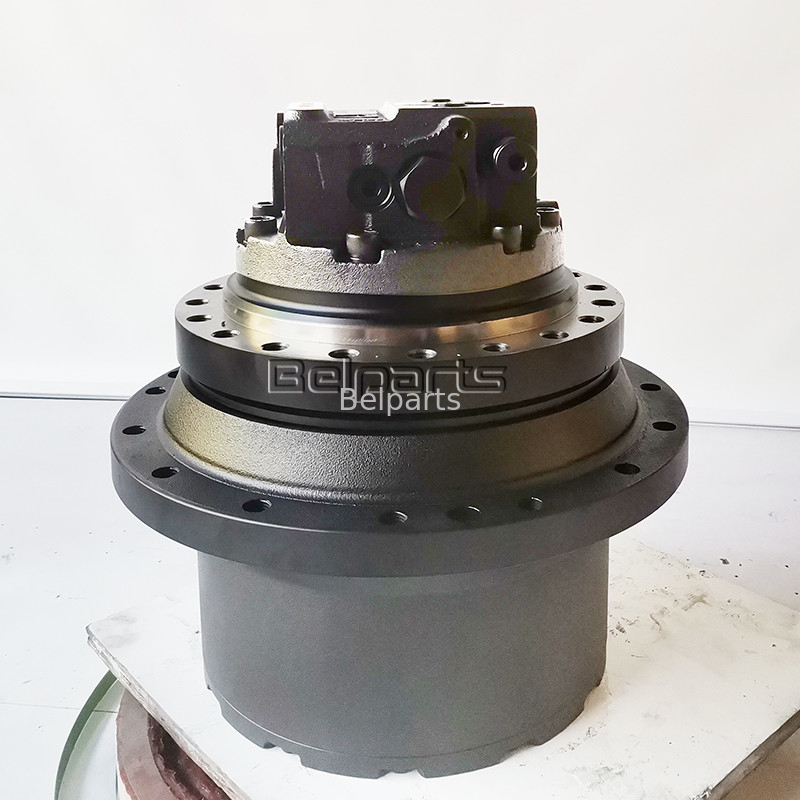

S140LC-V Travel Motor Assy
,TM18B Travel Motor Assy
,263B2070-00 Travel Motor Assy
Model:
S140LC-V
Part Name:
Final Drive
Weight:
140 Kg
Part Number:
263B2070-00
Texture:
Steel
Brand:
Doosan
Motor Number:
TM18B
Packing:
46*46*57
Product Description
Original Excavator hyundai R480LC-9 39QB-40101 39QB-41100 final drive travel motor
| Part name | Final drive |
| Brand | Doosan |
| Model | S140LC-V |
| Part number | 263B2070-00 |
| Material | Alloy Steel |
| Weight | 140 Kg |
| Package | 46*46*57 |
| Motor number | TM18B |
List of spare parts
| # | Part No | Part Name | Comment | Qty. | Price request |
|---|---|---|---|---|---|
| - | 246B3103-00 | VALVE, SLEEVE | 1 | ||
| 201 | 247B3002-00 | 247B3000-0001 VALVE | 1 | ||
| 202 | 246B3003-00 | 247B3000-0001 SLEEVE | 1 | ||
| 203 | 247B3004-00 | RETAINER, SPRING | 1 | ||
| 204 | 247B3005-00 | PLUG | 1 | ||
| 205 | 247B3006-00 | SHIM | 1 | ||
| 206 | 247B3008-00 | SPRING | 1 | ||
| 208 | JISB2401-P14-90 | O-RING | 2 | ||
| 209 | JISB2401-P20-90 | O-RING | 2 | ||
| 210 | JISB2401-P16-90 | O-RING | 1 | ||
| 211 | JISB2407-T2-P14 | RING, BACK-UP | 2 | ||
| * | 249B3200-01 | KIT, BODY(558~) | 1 | ||
| - | 249B3201-01 | KIT, BODY PISTON | 1 | ||
| 212 | 249B3001-01 | BODY, VALVE | 1 | ||
| 213 | 247B3007-00 | 247B3000-0001 PISTON | 1 | ||
| 209 | JISB2401-P20-90 | O-RING | 2 | ||
| 214 | 610B2021-00 | PLUG | 1 | ||
| 215 | 512B2021-00 | PLUG | 2 | ||
| 216 | JISB1501-3/8 | BALL, STEEL | 4 kg | 2 | |
| 217 | JISB2407-T3-P20 | RING, BACK-UP | 4 | ||
| 218 | GDL-1/16-S | PLUG, HEX. SOCKET | 5 | ||
| 219 | S0808 | 247B3000-0001 ORIFICE | 2 | ||
| 220 | JISB2401-P11-90 | O-RING | 2 | ||
| 221 | JISB2401-P18-90 | O-RING | 1 | ||
| * | 2401-9121AKT | SEAL KIT, TRAVEL MOTOR | 1 KIT | ||
| 150 | 263B2049-00 | BEARING, BALL | 1 | ||
| 151 | 263B2098-00 | BEARING, ROLLER | 3 | ||
| 167 | 263B2076-02 | PIVOT | 2 | ||
| 169 | 263B2014-00 | COLLAR | 1 | ||
| 170 | JISB1176-M8X65 | BOLT, HEX. SOCKET | 4 | ||
| 171 | 263B2077-01 | PIN, PARELLEL | 2 | ||
| 173 | JISB2401-P18-90 | O-RING | 1 | ||
| 174 | SW-M8 | WASHER, SUPER LOCK | 4 | ||
| 191 | 263B2090-00 | SPRING | 1 | ||
| 193 | JISB2401-P11-90 | O-RING | 2 | ||
| * | 263B2105-00 | KIT, PISTON | 1 | ||
| - | 263B2040-01 | PISTON ASS'Y | 9 | ||
| 105 | 263B2005-01 | PISTON | 1 | ||
| 106 | 263B2006-02 | SHOE, TRACK | 1 | ||
| - | 263B2070-00 | PISTON ASS'Y | 1 | ||
| 161 | 263B2071-00 | PISTON | 1 | ||
| 162 | 263B2072-00 | SHOE, TRACK | 1 | ||
| * | 247B3000-01-0C | MOTOR, SERVO | 3 kg | 1 | |
| - | 247B3100-00-0B | KIT, VALVE | 2 | ||
| - | 269B2000-01-HE | TRAVEL MOTOR | 20 kg | 2 | |
| * | 269B2100-00-E | REAR FLANGE ASS'Y | 13 kg | 1 | |
| - | 269B2101-00-E | KIT REAR FLANGE(558~) | 1 | ||
| 101 | 269B2001-00 | FLANGE, REAR | 1 | ||
| 123 | 266B2050-00-E | SPOOL | 1 | ||
| 146 | GM-1/8 | PLUG, HEX. SOCKET | 75 kg | 3 | |
| 154 | GDL-1/16-S | PLUG, HEX. SOCKET | 6 | ||
| 179 | 263B2079-00 | FILTER | 1 | ||
| 190 | 121F2070-00 | ORIFICE | 1 | ||
| 124 | 860A2051-00 | PLUG | 2 | ||
| 125 | 869A2052-00 | RETAINER, SPRING | 2 | ||
| 126 | 860A2053-02 | PLUG | 2 | ||
| 127 | 860A2054-01 | VALVE, CHECK | 2 | ||
| 128 | 860A2056-00 | SPRING | 2 | ||
| 130 | 860A2055-01 | SPRING | 2 | ||
| 136 | JISB2401-P26-90 | O-RING 1BP-26 | 2 | ||
| 137 | JISB2401-P16-90 | O-RING | 2 | ||
| 163 | 200B2073-00 | VALVE | 1 | ||
| 164 | 300B2039-00 | STOPPER | 1 | ||
| 165 | 300B2042-00 | RING | 1 | ||
| 166 | 300B2043-01 | SPRING | 1 | ||
| 168 | JISB1501-3/8 | BALL, STEEL | 4 kg | 2 | |
| 192 | 512B2021-00 | PLUG | 2 | ||
| 102 | 269B2002-00 | SHAFT | 1 kg | 1 | |
| 103 | 263B2003-01-H | PLATE, SWASH | 2 kg | 1 | |
| 104 | 263B2004-04 | BLOCK, CYLINDER | 1 kg | 1 | |
| 107 | 263B2007-00 | PLATE, RETAINER(558~) | 1 | ||
| 108 | 263B2008-00 | BALL, THRUST | 1 | ||
| 109 | 263B2009-01 | PLATE, TIMING | 1 | ||
| 110 | 880A2010-00 | WASHER | 2 | ||
| 111 | 263B2011-03 | WASHER | 1 | ||
| 112 | 266B2012-00 | PISTON | 1 | ||
| 113 | 800A2013-00 | SPRING | 8 | ||
| 114 | 263B2093-01 | SPRING | 1 | ||
| 115 | 800A2015-00 | PLATE, FRICTION | 2 | ||
| 116 | 800A2016-00 | PLATE, MATING | 2 | ||
| 117 | 263B2074-00 | PLATE MATING, TR MOT(TEIJ | 1 | ||
| 121 | 610B2021-00 | PLUG | 1 | ||
| 132 | 15Z-25X42X10 | SEAL, OIL | 1 | ||
| 135 | 266B2035-00 | O-RING | 1 | ||
| 138 | JISB2401-P18-90 | O-RING | 2 | ||
| 139 | 266B2039-00 | O-RING | 1 | ||
| 141 | JISB1354-4X10 | PIN, PARALLEL | 1 | ||
| 142 | JISB1354-10X25 | PIN, PARALLEL | 2 | ||
| 143 | JISB1176-M10X30 | BOLT, HEX. SOCKET | 8 | ||
| 145 | TH-R-42 | RING, SNAP | 1 | ||
| 149 | 263B2048-00 | BEARING, ROLLER | 1 |
