Place of Origin:
Made in China
Model Number:
374DL 374D

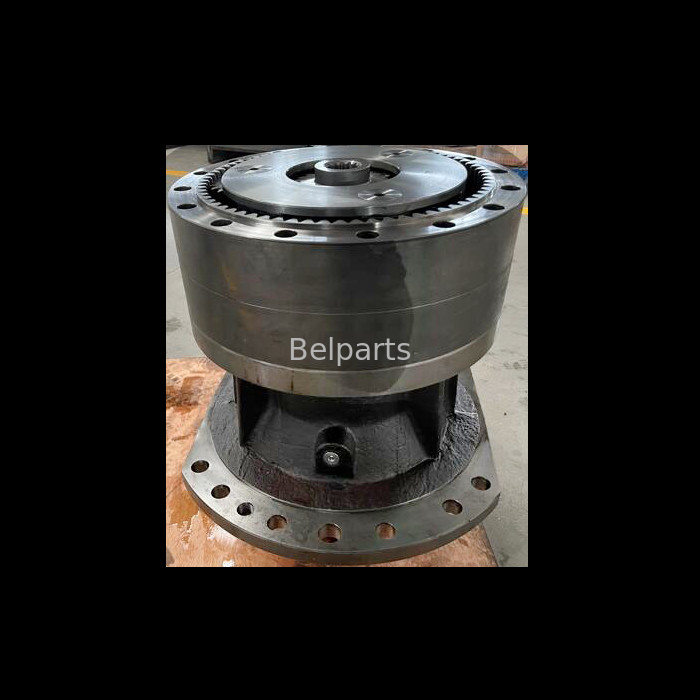

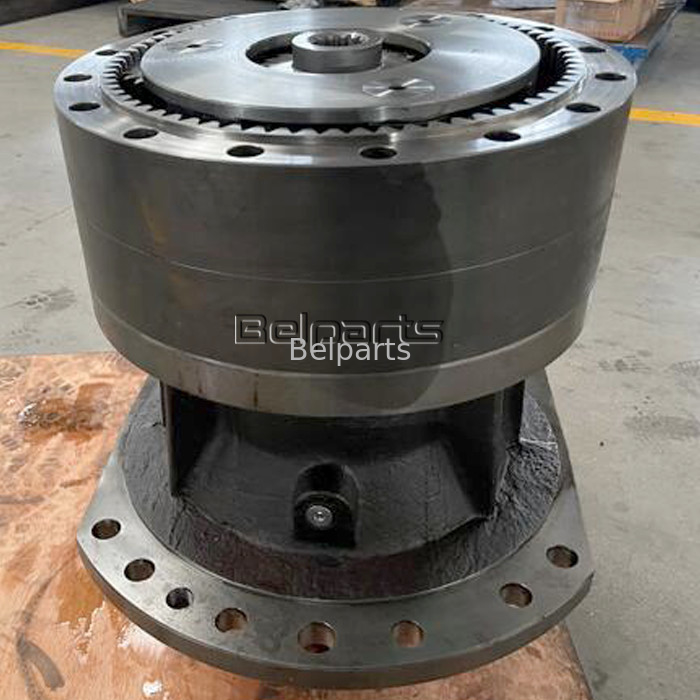

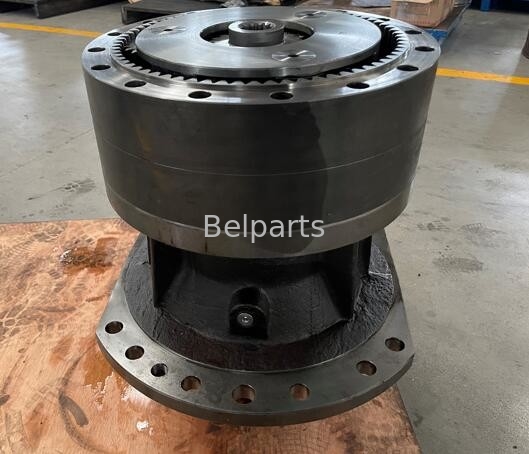

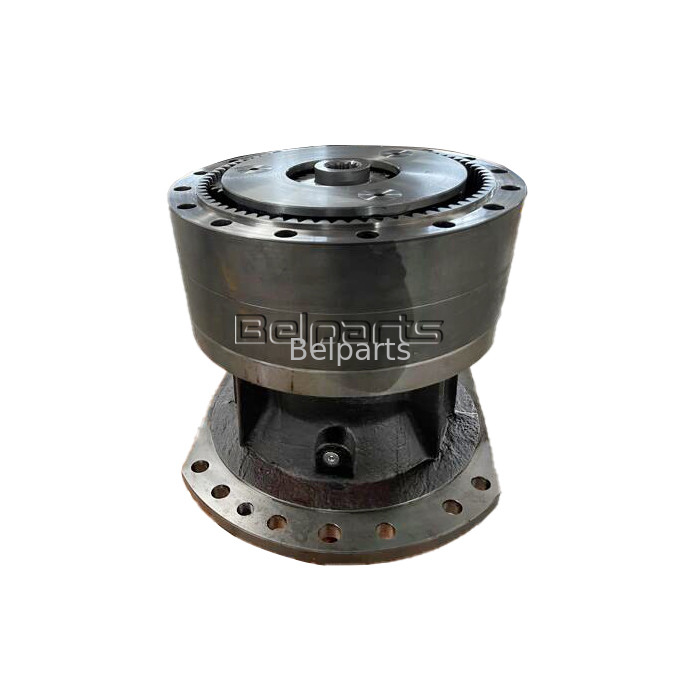

Excavator parts 374DL 374D 296-6146 296-6147 Swing Gearbox
| Appliion | Excavator |
| Part name | swing gearbox assy |
| Material | Steel |
| Model | 374DL 374D |
| MOQ | 1PC |
| Payment term | 296-6146 296-6147 |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express, or as required |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | 6V7238 | VALVE-SHUTOFF (ENGINE OIL PAN DRAIN) | 1 | |
| 2 | 7Y0225 | SHAFT - PLANETARY | 3 | |
| 3 | 0931730 | RING (RETAINING) | 1 | |
| 4 | 0940574 | RING-RETAINING | 1 | |
| 5 | 0940611 | WASHER (47.3X76X1-MM THK) | 6 | |
| 6 | 0962653 | RING (RETAINING) | 1 | |
| 7 | 1107053 | GEAR-PLANETARY (23-TEETH) | 3 | |
| 8 | 1362889 | GEAR-SUN (23-TEETH) | 1 | |
| 9 | 1362890 | COVER-HOUSING | 1 | |
| 10 | 1362891 | CARRIER-PLANETARY | 1 | |
| 11 | 1362893 | SPACER-SPECIAL | 1 | |
| 12 | 1362894 | HOUSING | 1 | |
| 13 | 1362896 | GEAR-RING (70-TEETH) | 1 | |
| 14 | 1362897 | GEAR-SUN (22-TEETH) | 1 | |
| 15 | 1362898 | WASHER (58.3X89X1-MM THK) | 8 | |
| 16 | 1362899 | SHAFT-PLANETARY | 4 | |
| 17 | 1362901 | GEAR-PLANETARY (23-TEETH) | 4 | |
| 18 | 1362941 | CAGE | 1 | |
| 19 | 1484645 | GAUGE-OIL LEVEL (SWING DRIVE) | 1 | |
| 20 | 1484646 | PIPE-GAUGE | 1 | |
| 21 | 2276221 | BREATHER AS (SWING DRIVE) | 1 | |
| 4H6112 | BREATHER (TORQUE CONVERTER) | 1 | ||
| 2276215 | BOSS (1/4-18-THD) | 1 | ||
| 2676785 | FITTING | 1 | ||
| 22 | 2676914 | SHAFT-PINION | 1 | |
| 23 | 2966229 | CARRIER-PLANETARY | 1 | |
| 24 | 0931731 | RING - RETAINING | 1 | |
| 25 | 0950891 | PIN - SPRING | 3 | |
| 26 | 0995194 | PIN-SPRING | 4 | |
| 27 | 1359044 | SEAL (LIP TYPE) | 2 | |
| 28 | 1362904 | BEARING | 1 | |
| 29 | 1362940 | BEARING | 1 | |
| 30 | 1362942 | SEAL-O-RING | 1 | |
| 31 | 2976841 | BEARING-ROLLER | 8 | |
| 32 | 3K0360 | SEAL PILOT MANIFOLD ON SEAL TO BOOM CHECK VALVE DRAIN | 1 | |
| 33 | 7X2569 | BOLT (M20X2.5X200-MM) | 16 | |
| 34 | 7Y0252 | BEARING AS. - ROLLER | 3 | |
| 35 | 7Y0595 | SPACER (58X79.6X6-MM THK) | 2 | |
| 36 | 8T4123 | WASHER-PLATED (22X35X3.5-MM THK) | 16 | |
| 37 | 8T4183 | BOLT (M12X1.75X40MM) (M12X1.75X40-MM) | 10 | |
| 38 | 8T4223 | WASHER-HARD (13.5X25.5X3-MM THK)(BOLT TO SHIELD) | 10 | |
| 39 | 1U8846 | SEALANT (FOR LOIONS A) | ||
| USE AS REQUIRED | ||||
| METRIC PART |
