Excavator R480LC-9S R520LC-9S Swing Gearbox Reduction 31QB-10141 For HYUNDAI

  • Excavator R480LC-9S R520LC-9S Swing Gearbox Reduction 31QB-10141 For HYUNDAI
  • Excavator R480LC-9S R520LC-9S Swing Gearbox Reduction 31QB-10141 For HYUNDAI
  • Excavator R480LC-9S R520LC-9S Swing Gearbox Reduction 31QB-10141 For HYUNDAI
  • Excavator R480LC-9S R520LC-9S Swing Gearbox Reduction 31QB-10141 For HYUNDAI
  • Excavator R480LC-9S R520LC-9S Swing Gearbox Reduction 31QB-10141 For HYUNDAI
  • Excavator R480LC-9S R520LC-9S Swing Gearbox Reduction 31QB-10141 For HYUNDAI
  • Excavator R480LC-9S R520LC-9S Swing Gearbox Reduction 31QB-10141 For HYUNDAI
Place of Origin Guangdong, China
Brand Name Belparts
Model Number R480LC-9S R520LC-9S
Price negotiation
Packaging Details Packaging Details: <br>1.According to orders,pack the spare parts one by one by oil paper; <br>2.Put them into small carton boxes one by one; <br>3.Put the packed small carton boxes into bigger carton boxes one by one; <br>4.Put the bigger carton boxes
Supply Ability 1000 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Swing Gearbox Model R480LC-9S R520LC-9S
Weight 344KG Brand Hyundai
Package 46*70*40 Part Number 31QB-10141
High Light

R520LC-9S Swing Gearbox

,

R480LC-9S Swing Gearbox

,

Swing Gearbox 31QB-10141
Leave a Message
Product Description

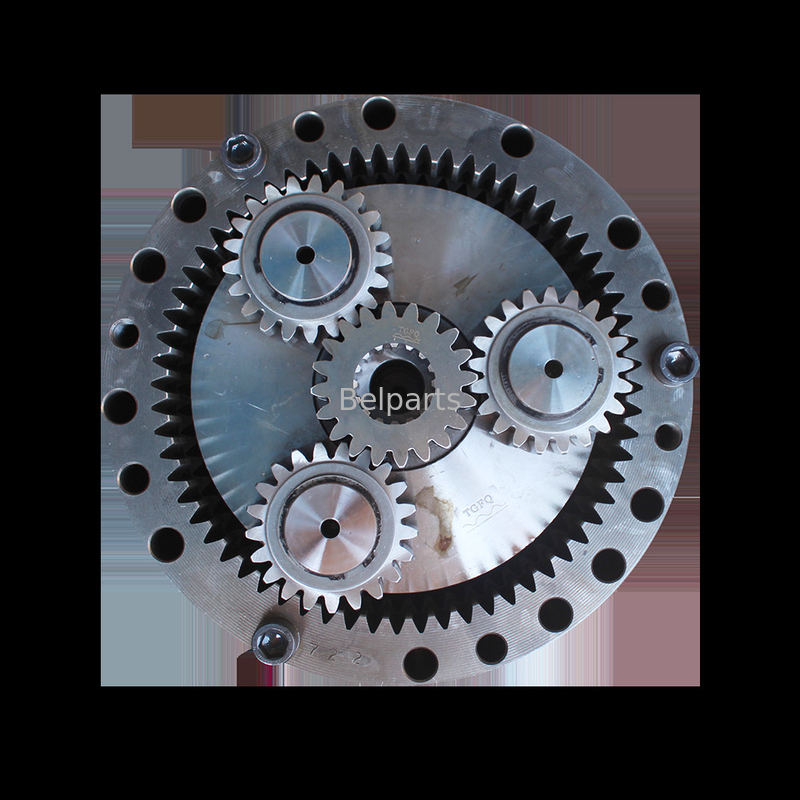

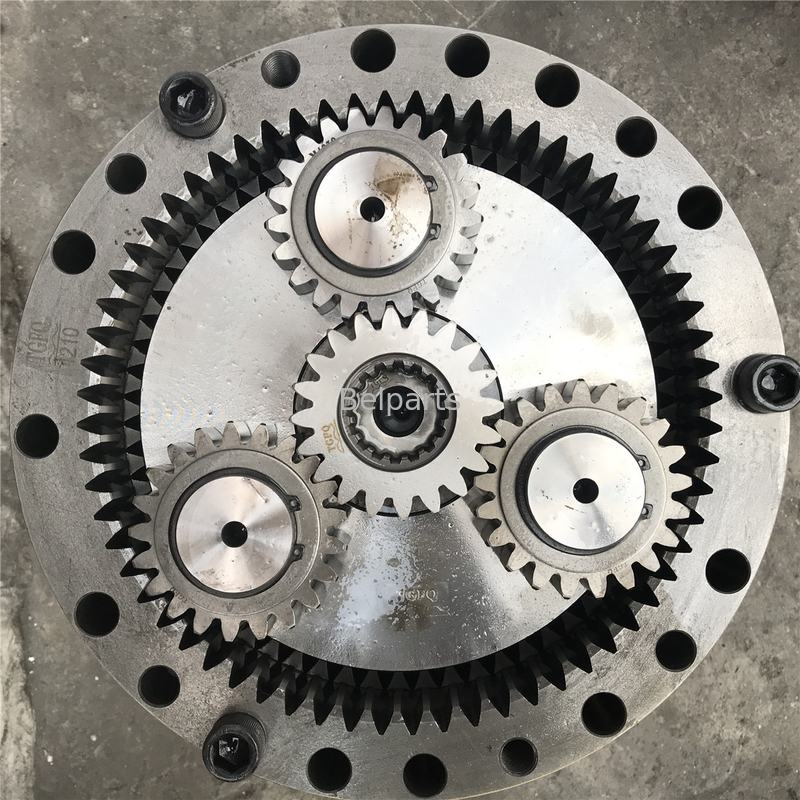

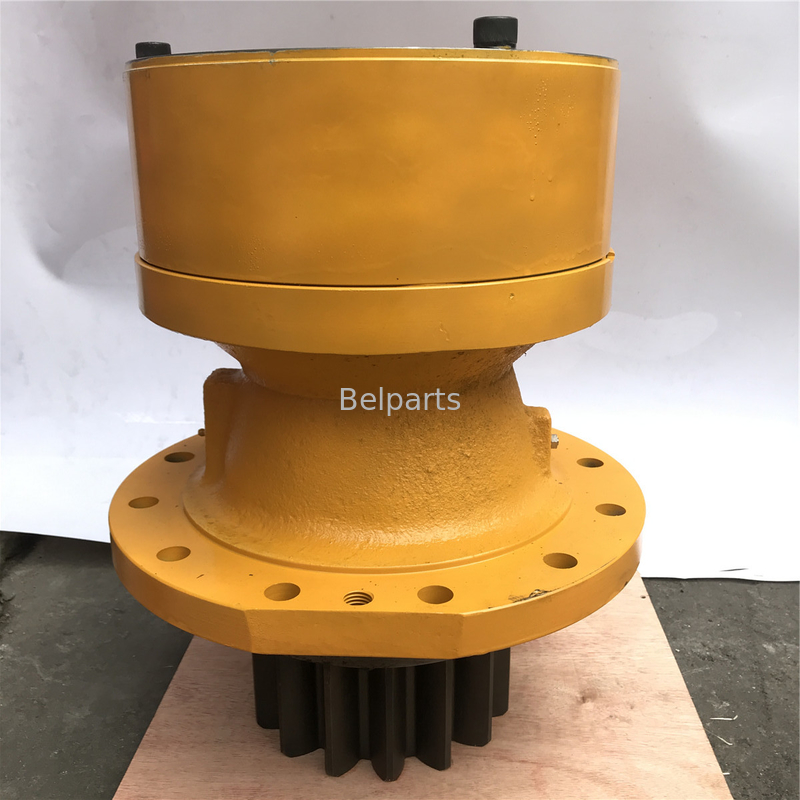

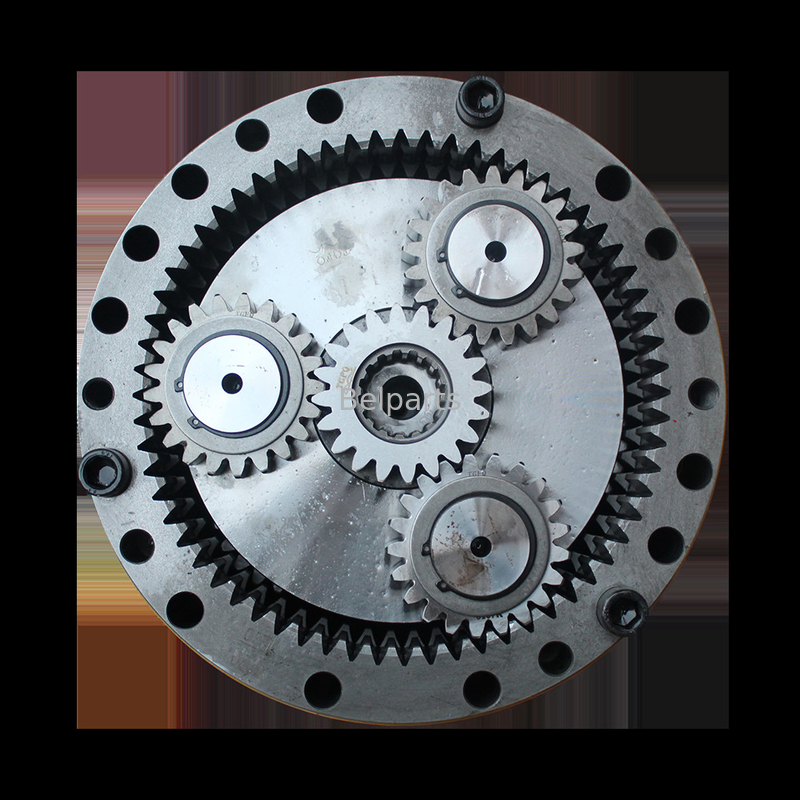

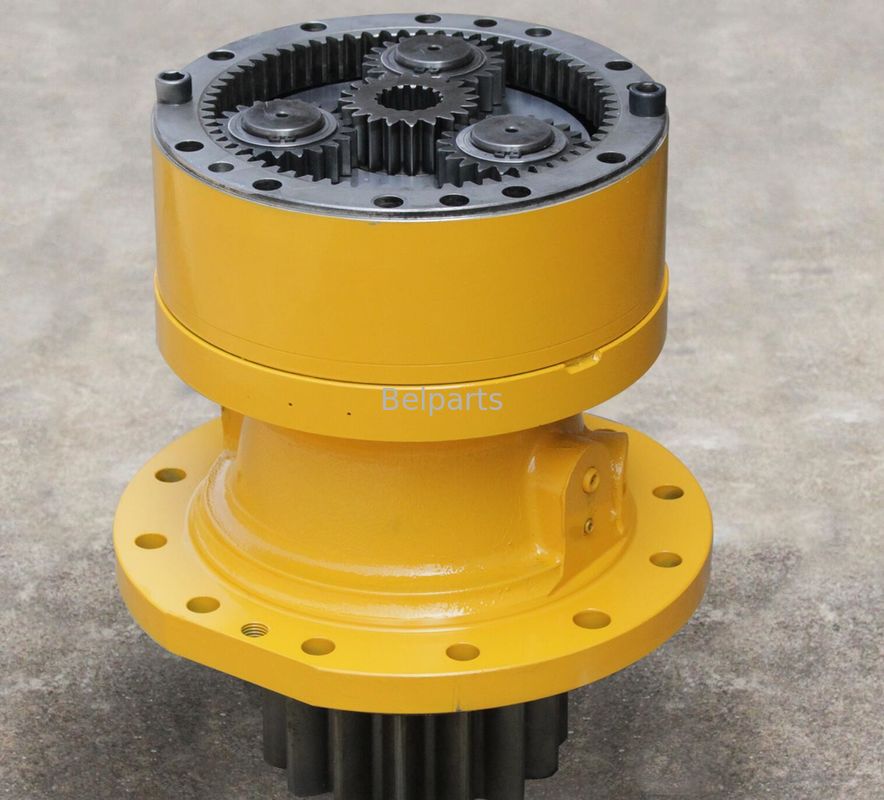

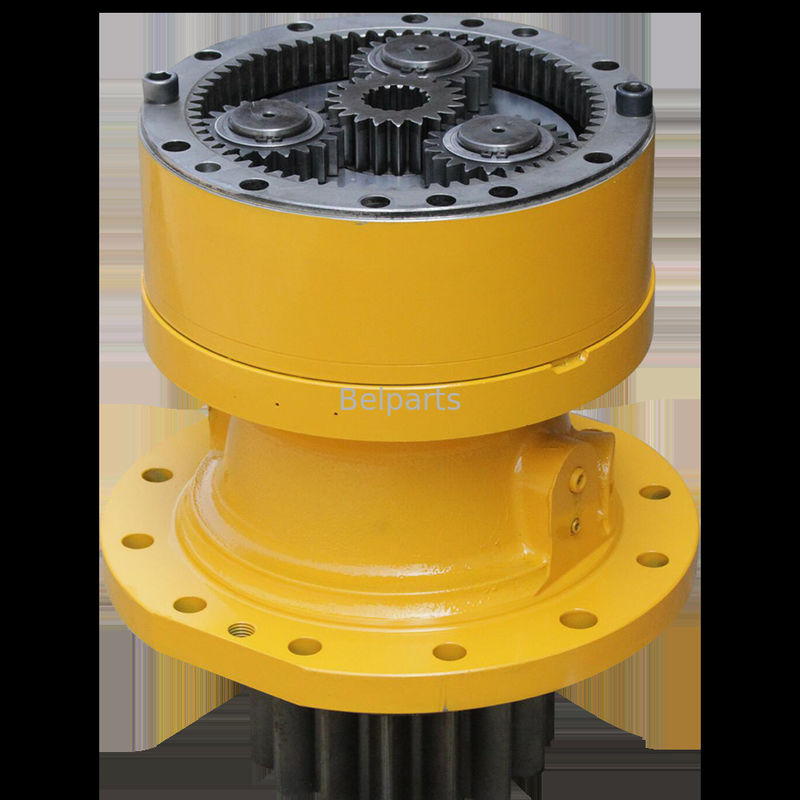

Excavator R480LC-9S R520LC-9S swing gearbox reduction 31QB-10141 swing gearbox for HYUNDAI

Product parameter:



Product name

swing gearbox

Weight

190KG

Model:

R480LC-9S R520LC-9S

Part number:

31QB-10141

Brand:

Hyundai

Package:

46*70*40

Delivery time:

Within 2 days after receiving the payment


Excavator R480LC-9S R520LC-9S Swing Gearbox Reduction 31QB-10141 For HYUNDAI 0Excavator R480LC-9S R520LC-9S Swing Gearbox Reduction 31QB-10141 For HYUNDAI 1

Excavator R480LC-9S R520LC-9S Swing Gearbox Reduction 31QB-10141 For HYUNDAI 2

Excavator R480LC-9S R520LC-9S Swing Gearbox Reduction 31QB-10141 For HYUNDAI 3

Excavator R480LC-9S R520LC-9S Swing Gearbox Reduction 31QB-10141 For HYUNDAI 4

Excavator R480LC-9S R520LC-9S Swing Gearbox Reduction 31QB-10141 For HYUNDAI 5

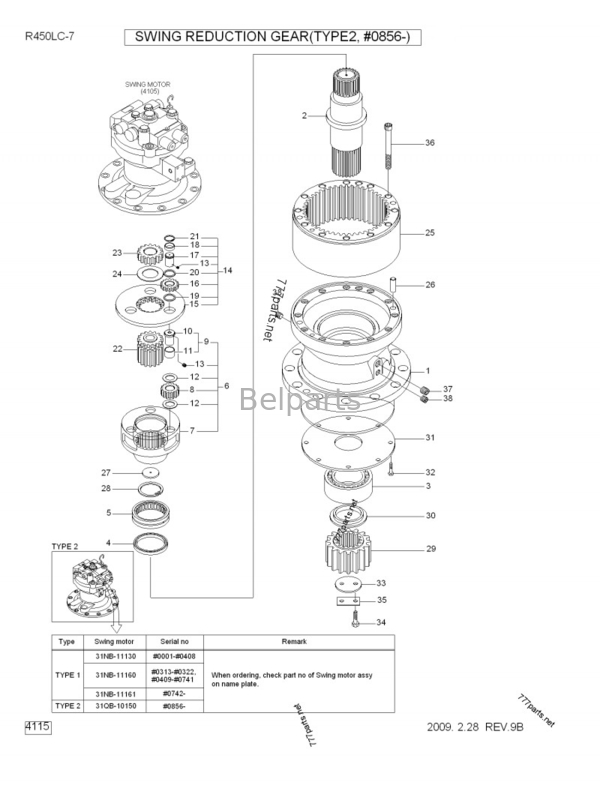

List of spare parts

# Part No Part Name Qty. Price request
*-2 31QB-10140 SWING REDUCTION GEAR 1
1 XKAQ-00637 CASING 1
2 XKAQ-00752 SHAFT-DRIVE 1
3 XKAQ-00026 BEARING-ROLLER 1
4 XKAQ-00032 SEAL-OIL 1
5 XKAQ-00029 BEARING-ROLLER 1
6 XKAQ-00753 CARRIER ASSY 2 1
7 XKAQ-00075 CARRIER-2 1
8 XKAQ-00023 GEAR-PLANET 2 3
9 XKAQ-00643 PIN ASSY 2 3
10 XKAQ-00070 PIN & BUSHING 1
N11 XKAQ-00291 BUSHING 2 1
12 XKAQ-00644 WASHER-THRUST 6
13 XKAQ-00048 PIN-SPRING 6
14 XKAQ-00754 CARRIER ASSY 1
INCL 13		 1
15 XKAQ-00531 CARRIER 1 1
16 XKAQ-00646 PLANET GEAR 1 3
17 XKAQ-00415 PIN 1 3
18 XKAQ-00030 CAGE-NEEDLE 3
19 XKAQ-00417 PLATE-SIDE 1 3
20 XKAQ-00416 PLATE-SIDE 2 3
21 XKAQ-00041 RING-STOP 3
22 XKAQ-00755 GEAR-SUN 2 1
23 XKAQ-00648 GEAR-SUN 1 1
24 XKAQ-00534 PLATE-SIDE 3 1
25 XKAQ-00649 GEAR-RING 1
26 XKAQ-00072 PIN-KNOCK 2
27 XKAQ-00404 PLATE-THRUST 1
28 XKAQ-00074 RING-STOP 1
29 XKAQ-00287 GEAR-PINION 1
30 XKAQ-00018 SPACER 1
31 XKAQ-00031 PLATE-COVER 1
32 XKAQ-00064 BOLT-HEX 8
33 XKAQ-00043 PLATE-LOCK 1
34 XKAQ-00042 BOLT-HEX 2
35 XKAQ-00029 BEARING-ROLLER 1
36 XKAQ-00065 BOLT-SOCKET 12
37 XKAQ-00049 PLUG-PRESSURE 1
38 XKAQ-00274 PLUG 2
