Name: Earth Moving Machinery Excavator DX480 DX520 Swing Gearbox Reduction 130426-00005A Swing Gearbox
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: DX480 DX520
Price: 475.00 USD
Availability: InStock

Home > products > Excavator Swing Gearbox >

Earth Moving Machinery Excavator DX480 DX520 Swing Gearbox Reduction 130426-00005A Swing Gearbox

DX520 Swing Gearbox

Earth Moving Machinery Swing Gearbox

Swing Gearbox 130426-00005A

Place of Origin:

Guangdong, China

Brand Name:

Belparts

Model Number:

DX480 DX520

Request A Quote

Product Details

Product Name:

Swing Gearbox

Model:

DX480 DX520

Weight:

200KG

Brand:

Doosan

Package:

53*53*68

Part Number:

130426-00005A

Payment & Shipping Terms

Price

negotiation

Packaging Details

Packaging Details:
1.According to orders,pack the spare parts one by one by oil paper;
2.Put them into small carton boxes one by one;
3.Put the packed small carton boxes into bigger carton boxes one by one;
4.Put the bigger carton boxes

Supply Ability

1000 Piece/Pieces per Month

belparts02@gmail.com

86-020-32384870

Contact Now

Product Description

Earth-moving machinery excavator DX480 DX520 swing gearbox reduction 130426-00005A swing gearbox

Product parameter:

Product name	swing gearbox
Weight	200KG
Model:	DX480 DX520
Part number:	130426-00005A
Brand:	Doosan
Package:	535368
Delivery time:	Within 2 days after receiving the payment

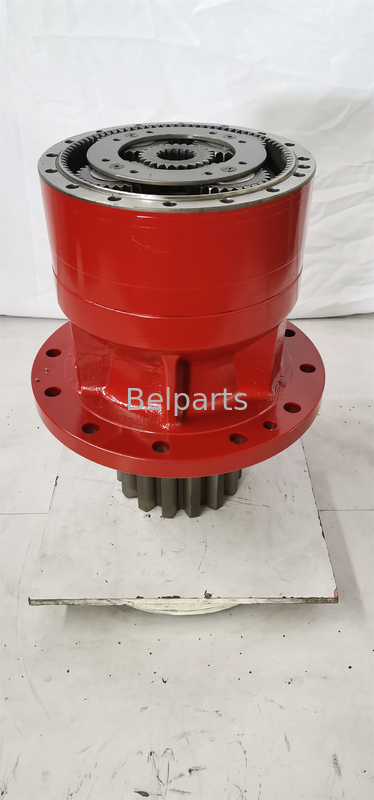

Earth Moving Machinery Excavator DX480 DX520 Swing Gearbox Reduction 130426-00005A Swing Gearbox 0

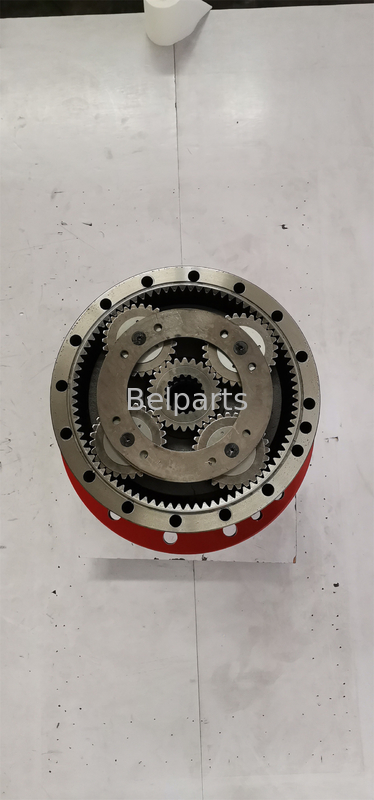

Earth Moving Machinery Excavator DX480 DX520 Swing Gearbox Reduction 130426-00005A Swing Gearbox 2

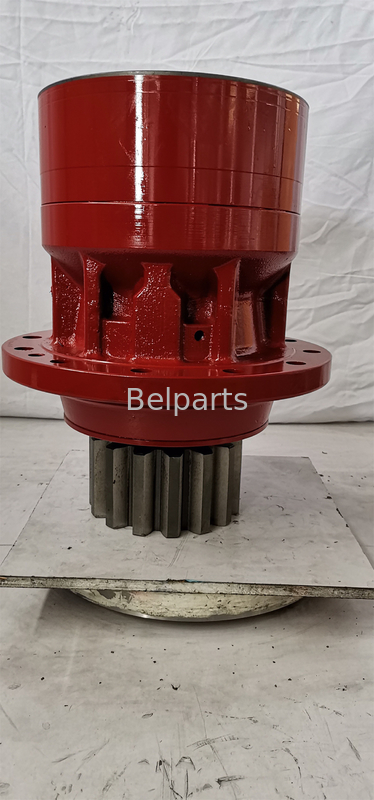

Earth Moving Machinery Excavator DX480 DX520 Swing Gearbox Reduction 130426-00005A Swing Gearbox 3

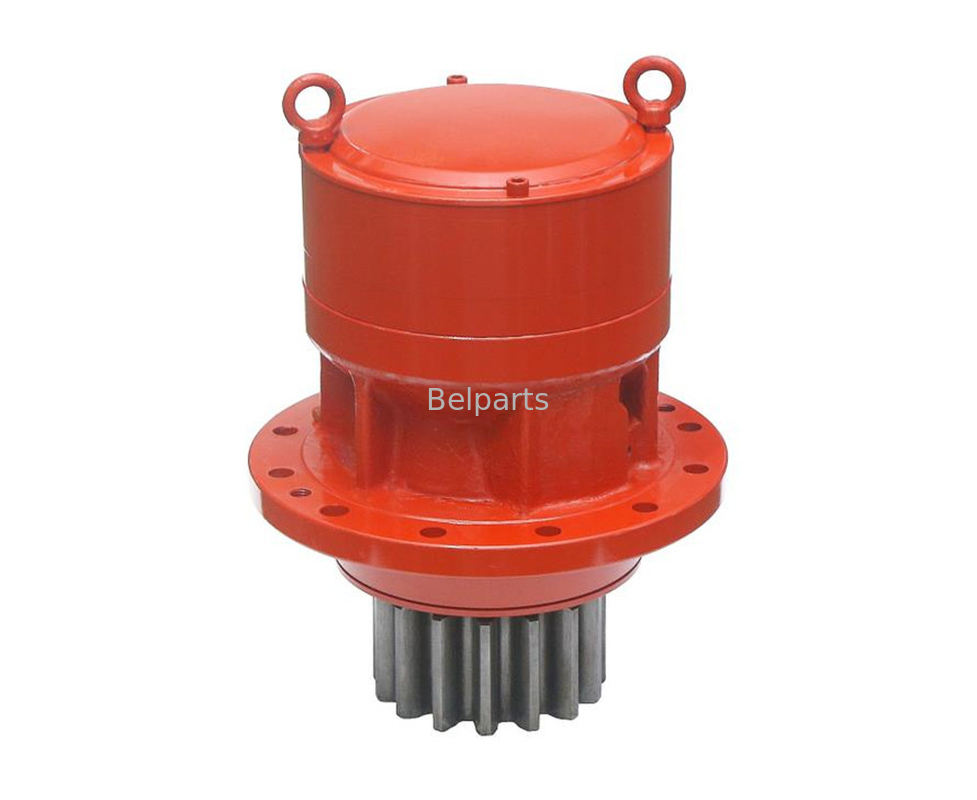

Earth Moving Machinery Excavator DX480 DX520 Swing Gearbox Reduction 130426-00005A Swing Gearbox 4

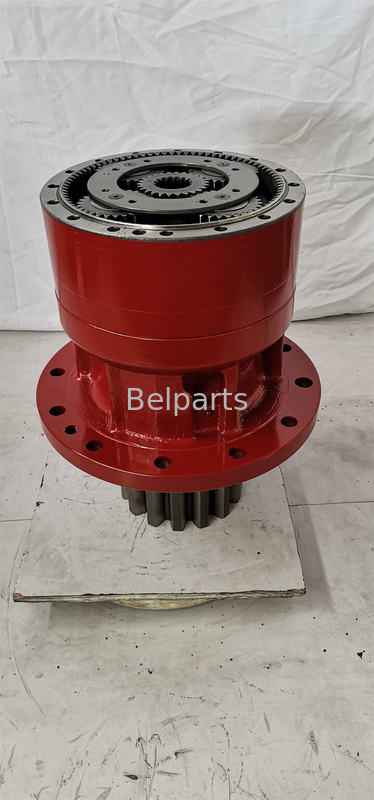

Earth Moving Machinery Excavator DX480 DX520 Swing Gearbox Reduction 130426-00005A Swing Gearbox 5

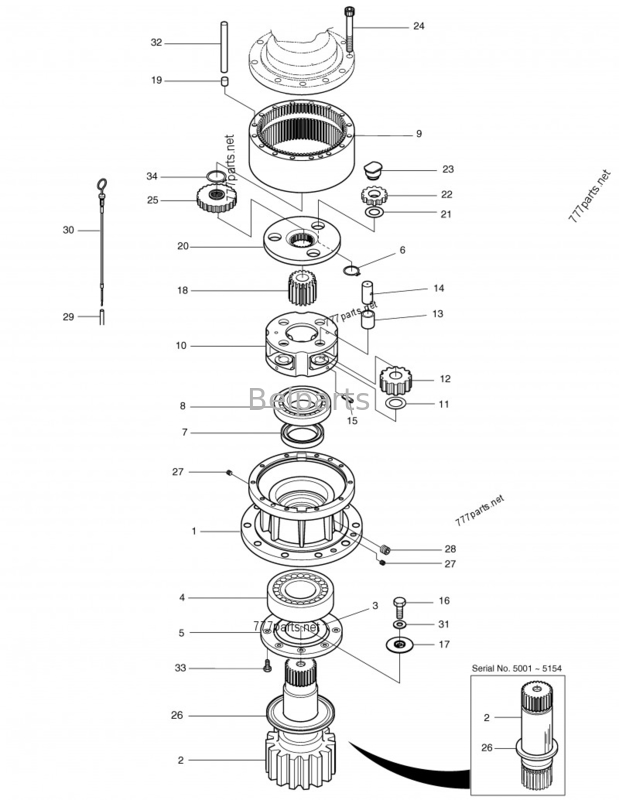

List of spare parts

#	Part No	Part Name	Comment	Qty.
-	K1000350	BOX, SWING REDUCTION GEAR	160 kg	2
-	K1033589	BOX, SWING REDUCTION GEAR	157 kg	2
1	2402-6003C	CASING	37 kg	1
2	2405-1018C	SHAFT, DRIVE	19 kg	1
2	K1033590	SHAFT, DRIVE	33 kg	1
3	2412-1040	RING, NILOS		1
4	2109-9033	ROLLER BEARING(=2109-9033P)	13 kg	1
5	2891-1421B	PLATE, COVER	1 kg	1
6	S6500380	RING, RETAINING		3
7	2180-1254	SEAL, OIL		1
8	2109-1050	ROLLER BEARING( 2109-1050P)	3 kg	1
8	109-00174	CYLINDRICAL BEARING	3 kg	1
9	104-00051A	GEAR, RING	21 kg	1
10	230-00061	CARRIER NO.2	11 kg	1
11	2114-1901A	WASHER, THRUST NO.2		4
12	104-00050	GEAR, PLANET NO.2	2 kg	4
13	110-00219	BUSH NO.2		4
14	123-00437A	PIN NO.2	1 kg	4
15	S5741341	PIN, SPRING		4
16	S0121061	BOLT, HEX.HD.		1
17	114-00548	WASHER, THRUST NO.3		1
18	104-00048	GEAR, SUN NO.2	2 kg	1
19	2705-1030	PIN, KNOCK	1 kg	4
20	230-00060A	CARRIER NO.1	6 kg	1
21	114-00527	WASHER, THRUST NO.1		3
22	104-00049A	GEAR, PLANET NO.1	1 kg	3
23	123-00435A	PIN ASS`Y NO.1	1 kg	3
24	S2217471	BOLT, SOCKET M12X150		16
25	104-00047A	GEAR, SUN NO.1	1 kg	1
26	2114-1914A	SPACER		1
26	K1033591	SPACER		1
27	2181-1116D2	PLUG, RECHECK		2
28	2181-1116D4	PLUG, RECHECK	97123-04111	1
29	2140-1406	PIPE, LEVEL GAUGE		1
30	2119-1065	GAUGE, LEVEL		1
31	S5231090	WASHER, DOUBLE TAP		1
32	140-01374A	PIPE		4
33	120-00144	BOLT , HEX. HD		8
34	S6500450	RING, SNAP		1
