Place of Origin:
Guangdong, China
Brand Name:
Belparts
Model Number:
R140LC-7

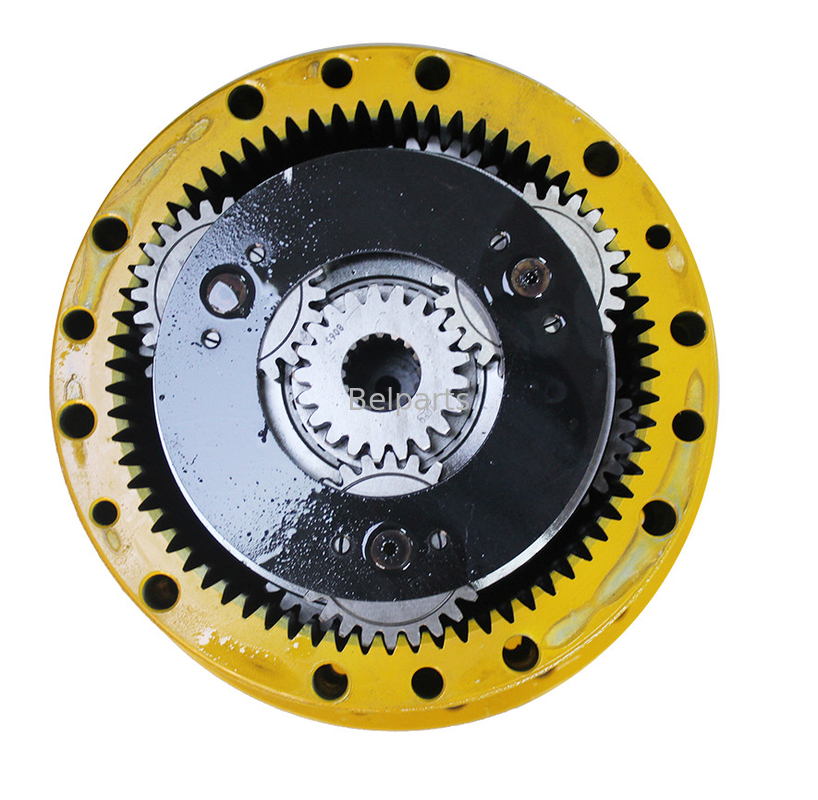

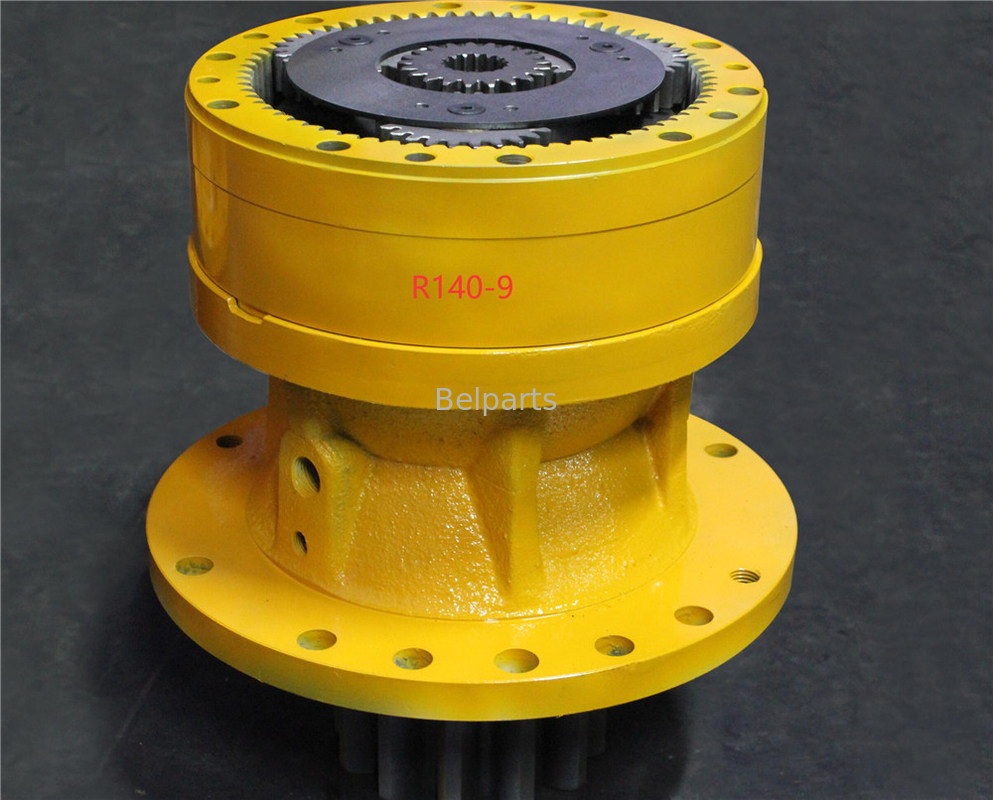

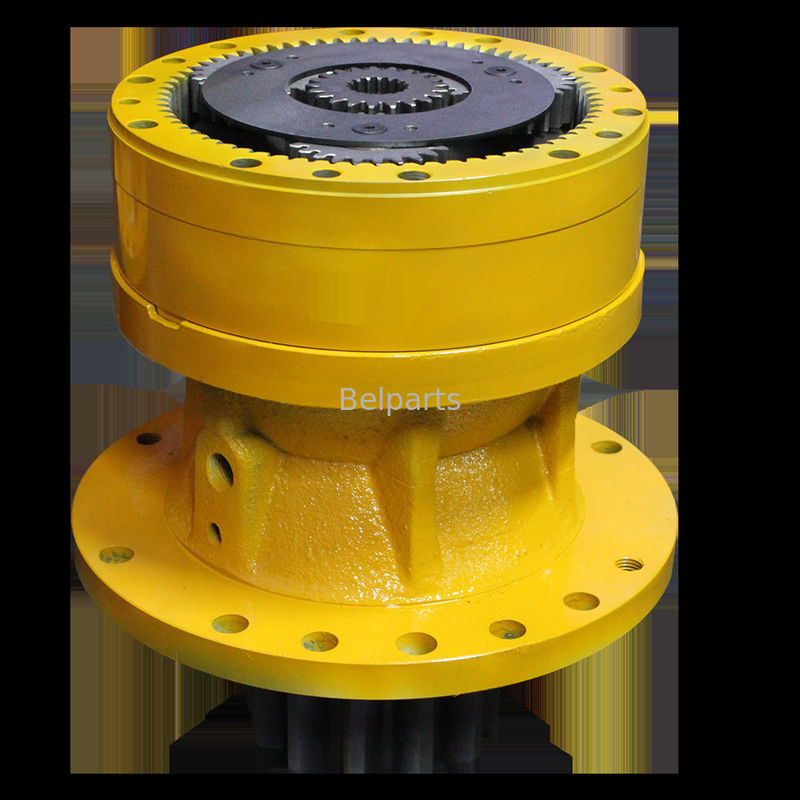

Excavator Swing gearbox R140LC-7 31E6-12030 31N4-10140 Slewing Reduction Gearbox
Product parameter:
|
Product name |
swing gearbox |
| Weight |
84KG |
|
Model: |
R140LC-7 |
|
Part number: |
31E6-12030 31N4-10140 |
|
Brand: |
Hyundai |
|
Package: |
40*40*57 |
|
Delivery time: |
Within 2 days after receiving the payment |

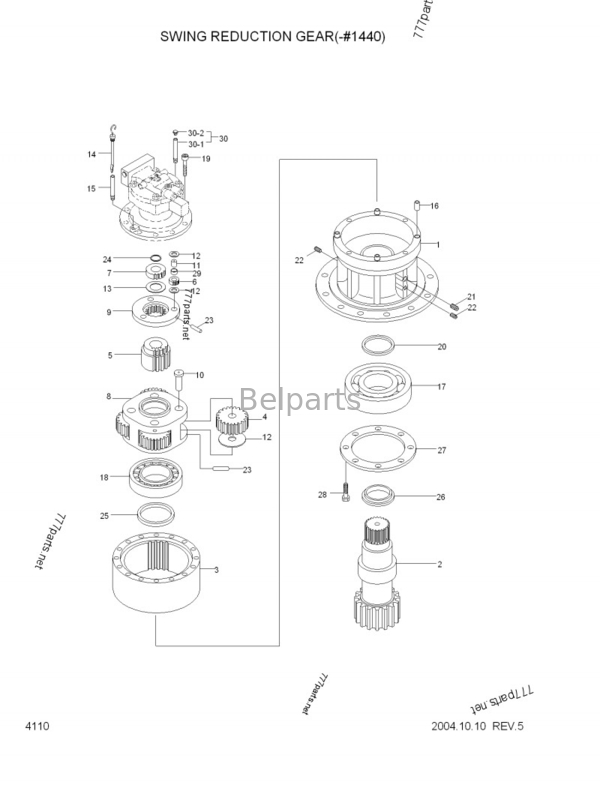

| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| * | @ | FUEL INJECTION PIPE & NOZZLE SEE 4101 |
1 | |
| * | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| *-2 | 31N4-10140 | SWING REDUCTION GEAR | 1 | |
| *-2 | 31N4-10141 | SWING REDUCTION GEAR | 1 | |
| 1 | XKAQ-00134 | CASING | 1 | |
| 1 | XKAQ-00332 | CASING | 1 | |
| 2 | XKAQ-00249 | SHAFT-DRIVE | 1 | |
| 3 | XKAQ-00102 | GEAR-RING | 1 | |
| 5 | XKAQ-00278 | GEAR-SUN NO.2 | 1 | |
| *-21 | XKAQ-00271 | CARRIER NO.1 ASSY | 1 | |
| 6 | XKAQ-00099 | GEAR-PLANET NO.1 | 3 | |
| 7 | XKAQ-00277 | GEAR-SUN NO.1 | 1 | |
| 9 | XKAQ-00096 | CARRIER NO.1 | 1 | |
| 11 | XKAQ-00094 | PIN ASSY NO.1 | 3 | |
| 12 | XKAQ-00093 | WASHER-THRUST(B) | 6 | |
| 13 | XKAQ-00057 | PLATE-SIDE 1 | 1 | |
| 23 | XKAQ-00086 | PIN-SPRING | 3 | |
| 24 | XKAQ-00085 | RING-STOP | 4 | |
| 29 | XKAQ-00080 | CAGE-NEEDLE | 3 | |
| *-22 | XKAQ-00272 | CARRIER NO.2 ASSY | 1 | |
| 4 | XKAQ-00101 | GEAR-PLANET NO.2 | 4 | |
| 8 | XKAQ-00097 | CARRIER NO.2 | 1 | |
| 10 | XKAQ-00095 | PIN ASSY NO.2 | 4 | |
| 12 | XKAQ-00093 | WASHER-THRUST(B) | 4 | |
| 23 | XKAQ-00086 | PIN-SPRING | 4 | |
| 7 | XKAQ-00277 | GEAR-SUN NO.1 | 1 | |
| 16 | XKAQ-00091 | PIN-KNOCK | 2 | |
| 17 | XKAQ-00090 | BEARING-SPH ROLLER | 1 | |
| 18 | XKAQ-00089 | BEARING-CYL ROLLER | 1 | |
| 19 | XKAQ-00088 | BOLT-SOCKET | 10 | |
| 20 | XKAQ-00087 | SEAL-OIL | 1 | |
| 21 | XKAQ-00049 | PLUG-PRESSURE | 1 | |
| 22 | XKAQ-00066 | PLUG | 2 | |
| 25 | XKAQ-00084 | RING-STOP | 1 | |
| 26 | XKAQ-00083 | SPACER | 1 | |
| 27 | XKAQ-00082 | PLATE-COVER | 1 | |
| 28 | XKAQ-00081 | BOLT-HEX | 6 | |
| 31 | XKAQ-00333 | CAP-RUBBER | 4 |
