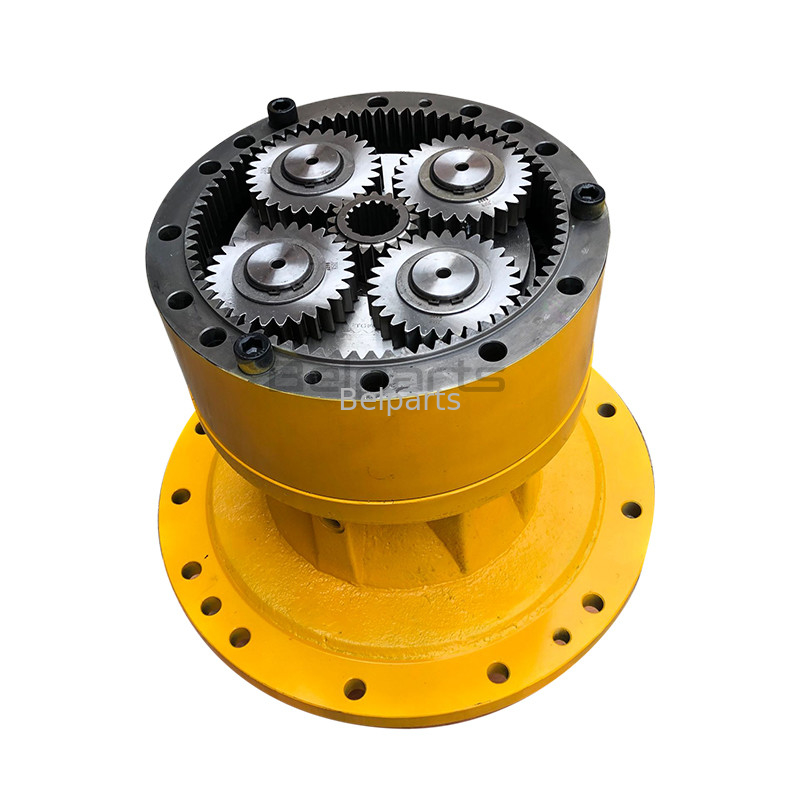

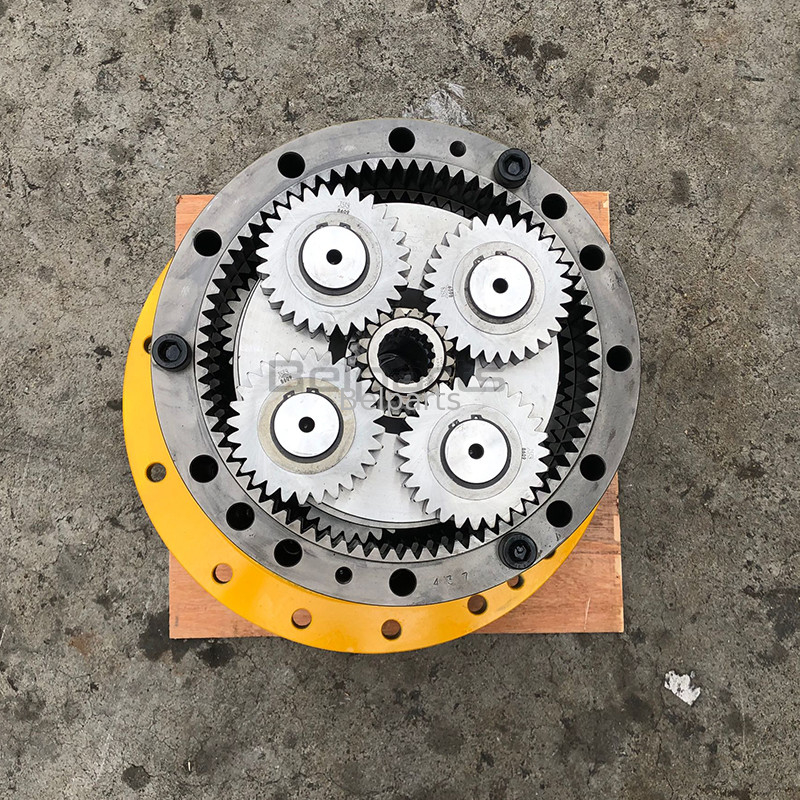

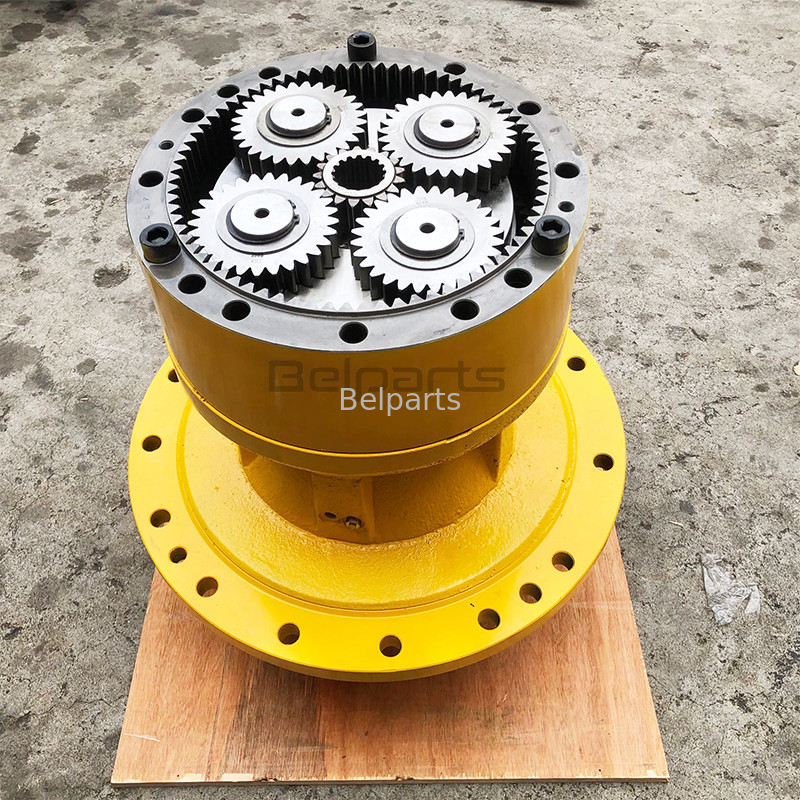

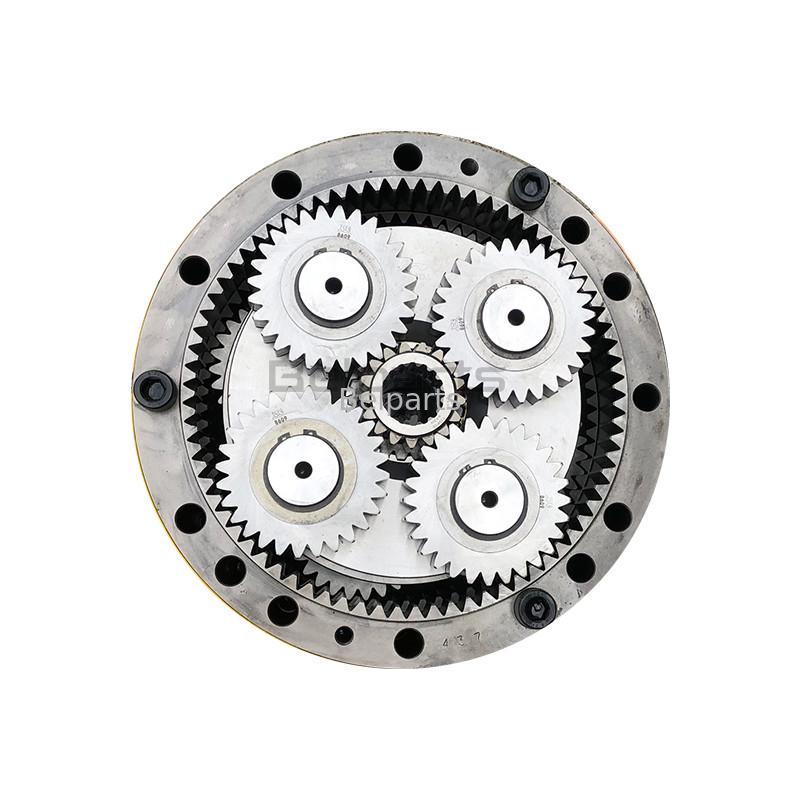

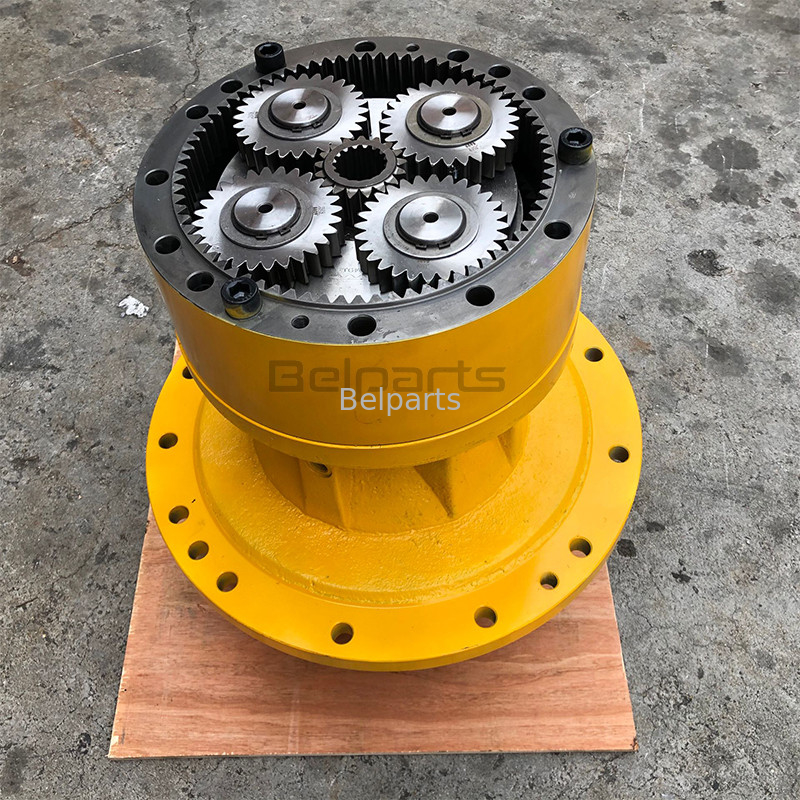

Excavator Machine Swing Gearbox R170W-7 31N6-10160 31N6-10180 Swing Reduction Assy

Name: Excavator Machine Swing Gearbox R170W-7 31N6-10160 31N6-10180 Swing Reduction Assy
Brand: BELPARTS MACHINERY LIMITED
SKU: R170W-7
Price: 475.00 USD
Availability: InStock

Place of Origin:Guangdong, China

Brand Name:Belparts

Model Number:R170W-7

Price:negotiation

Supply Ability:1000 Piece/Pieces per Month

Product Details

Highlight:

R170W-7 Swing Gearbox

,

31N6-10160 Swing Gearbox

,

31N6-10180 Swing Gearbox

Product Name: Swing Gearbox

Model: R170W-7

Weight: 184KG

Brand: Hyundai

Package: 51*49*58

Part Number: 31N6-10160 31N6-10180

Product Description

Excavator machine swing gearbox R170W-7 31N6-10160 31N6-10180 swing reduction assy

Product parameter:

Product name	swing gearbox
Weight	184KG
Model:	R170W-7
Part number:	31N6-10160 31N6-10180
Brand:	Hyundai
Package:	514958
Delivery time:	Within 2 days after receiving the payment

Excavator Machine Swing Gearbox R170W-7 31N6-10160 31N6-10180 Swing Reduction Assy

Parts on group SWING REDUCTION GEAR(TYPE 1):

Pos.	Part No	Qty	Parts name	Comments
*.	@	[1]	SWING MOTOR ASSY
*-2.	31N6-10160	[1]	SWING REDUCTION GEAR
1.	XKAQ-00771	[1]	CASING
2.	XKAQ-00331	[1]	SHAFT-DRIVE
2.	XKAQ-00780	[1]	SHAFT-DRIVE
3.	XKAQ-00018	[1]	SPACER
5.	XKAQ-00026	[1]	BEARING-ROLLER
6.	XKAQ-00032	[1]	SEAL-OIL
7.	XKAQ-00029	[1]	BEARING-ROLLER
7.	XKAQ-00647	[1]	BEARING-ROLLER
8.	XKAQ-00076	[1]	PLATE-THRUST
9.	XKAQ-00075	[1]	CARRIER 2
10.	XKAQ-00074	[1]	RING-STOP
11.	XKAQ-00284	[1]	GEAR-RING
11.	XKAQ-00779	[1]	GEAR-RING
12.	XKAQ-00072	[4]	PIN-KNOCK

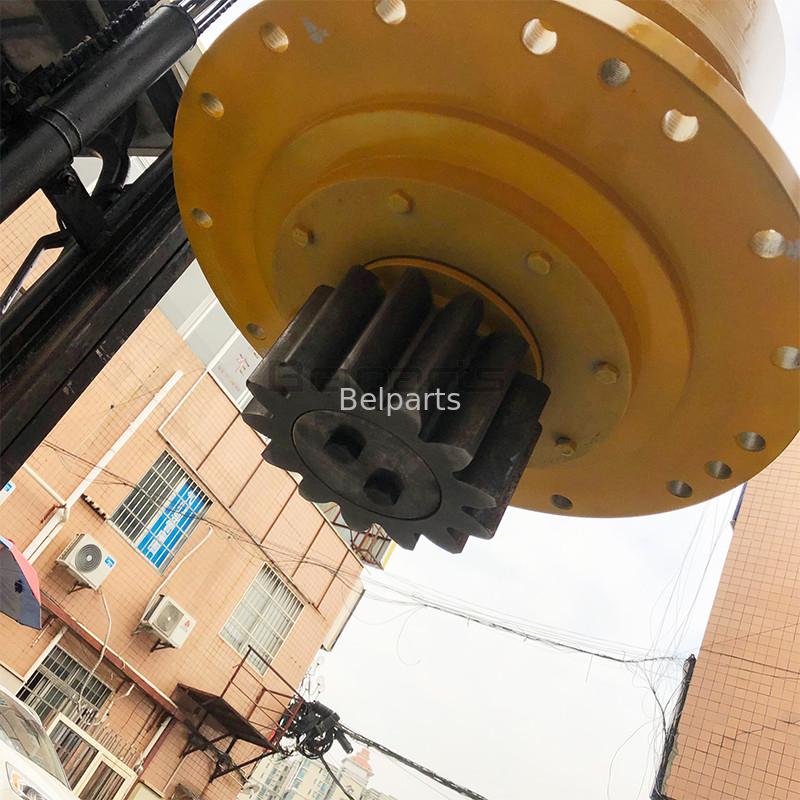

13.	XKAQ-00976	[1]	GEAR-PINION
14.	XKAQ-00071	[6]	WASHER-THRUST
15.	XKAQ-00023	[3]	GEAR-PLANET 2
16.	XKAQ-00070	[3]	PIN 2	INCL 23
17.	XKAQ-00048	[6]	PIN-SPRING
18.	XKAQ-00011	[1]	GEAR-SUN 2
19.	XKAQ-00015	[1]	CARRIER 1
20.	XKAQ-00057	[3]	PLATE-SIDE 1
21.	XKAQ-00019	[3]	PIN 1
22.	XKAQ-00030	[3]	CAGE-NEEDLE
N23.	@	[3]	BUSHING 2
24.	XKAQ-00025	[3]	GEAR-PLANET 1
25.	XKAQ-00292	[2]	WASHER-LOCK
26.	XKAQ-00068	[1]	PLATE-SIDE 3
27.	XKAQ-00010	[1]	GEAR-SUN 1
29.	XKAQ-00049	[1]	PLUG
30.	XKAQ-00066	[2]	PLUG
31.	XKAQ-00065	[2]	BOLT-SOCKET
32.	XKAQ-00035	[1]	PIPE-GAUGE
33.	XKAQ-00034	[1]	BAR-GAUGE
34.	XKAQ-00031	[1]	PLATE-COVER
35.	XKAQ-00064	[8]	BOLT-HEX
36.	XKAQ-00043	[1]	PLATE-LOCK
37.	XKAQ-00042	[2]	BOLT-HEX
38.	XKAQ-00041	[3]	RING-STOP
39.	XKAQ-00040	[3]	PLATE-SIDE 2
40.	XKAQ-00143	[1]	POST-AIR BREATHER
*-1.	@	[1]	SWING MOTOR UNIT	SEE 4100
