Place of Origin:
Guangdong, China
Brand Name:
Belparts
Model Number:
JS220

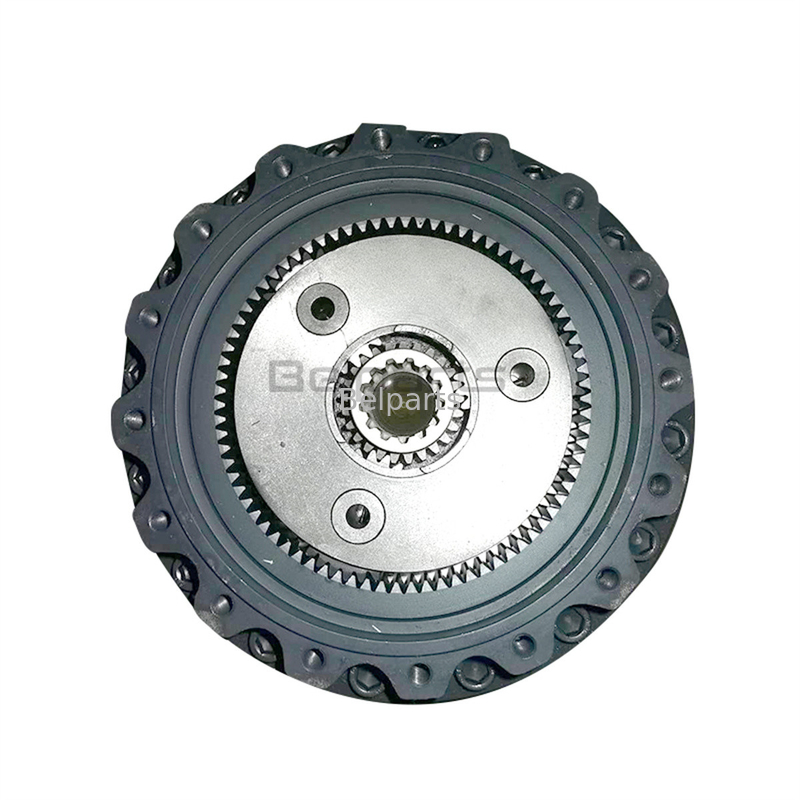

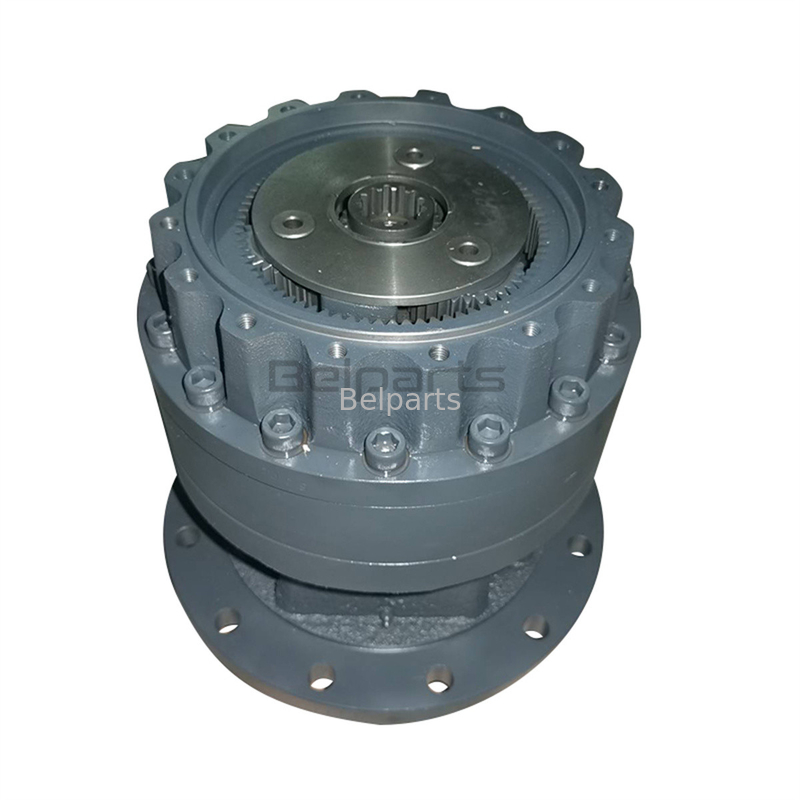

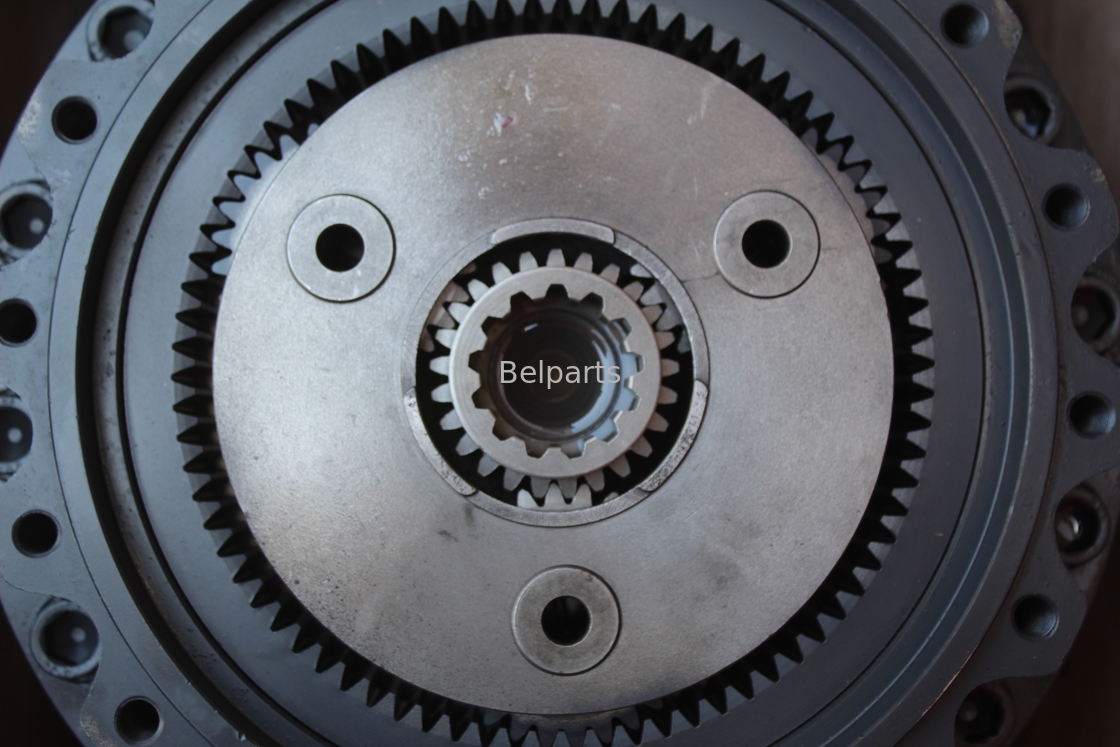

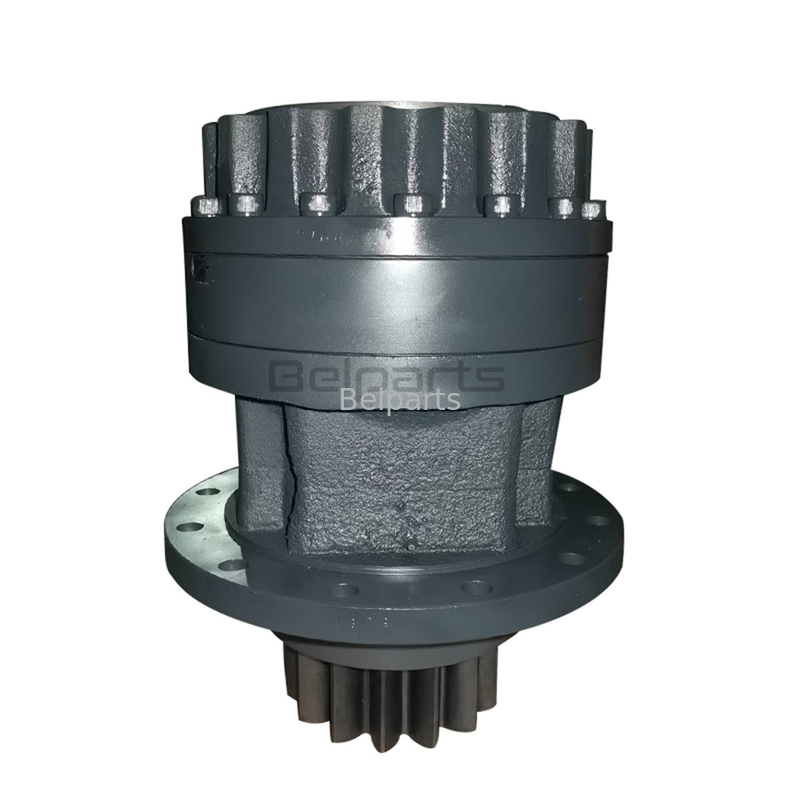

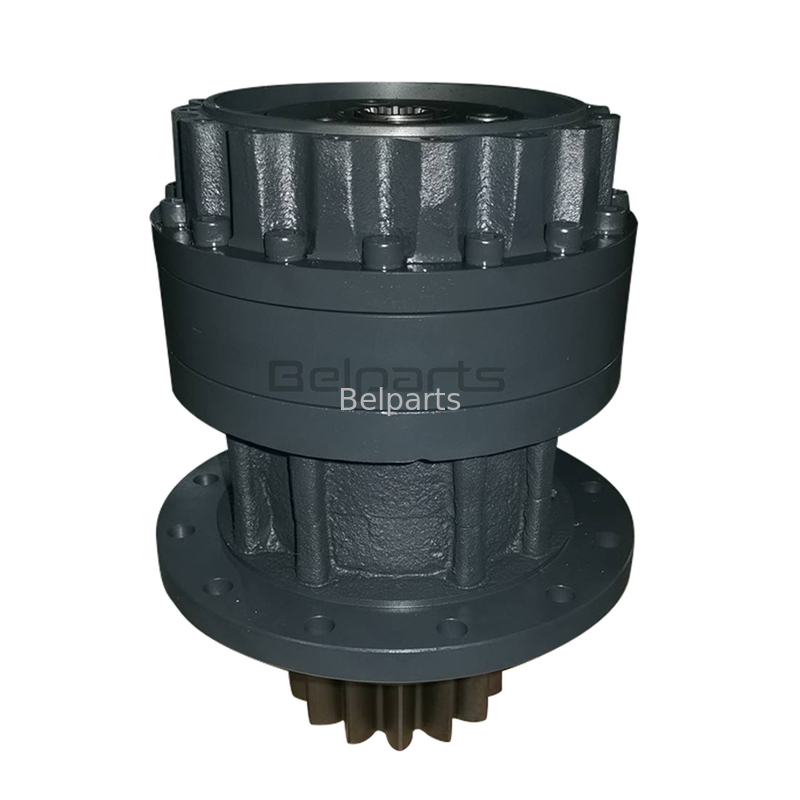

Excavator swing gearbox JS220 JRC0007 swing reduction gearbox for JCB
Product parameter:
|
Product name |
swing gearbox |
| Weight |
201KG |
|
Model: |
JS220 |
|
Part number: |
JRC0007 |
|
Brand: |
JCB |
|
Package: |
46*46*66 |
|
Delivery time: |
Within 2 days after receiving the payment |

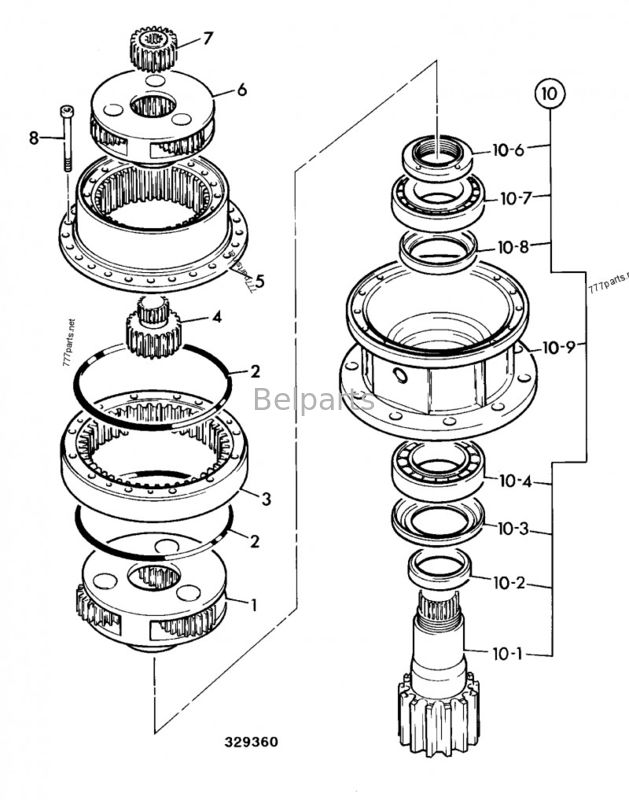

| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 5A | 05/903865 | Ring, toothed | 1 | |
| 10-1 | 05/903869 | Shaft, pinion, 14 teeth | 1 | |
| 10 | 05/903873 | Gear, output assembly | 1 | |
| 10-6 | 05/903874 | Nut | 1 | |
| 10-8 | 05/903876 | Seal, ring | 1 | |
| 7 | 05/903867 | Gear, sun | 1 | |
| 8 | 05/903868 | Screw | 16 | |
| 4 | 05/903863 | Gear, sun | 1 | |
| A | JRC0007 | Gearbox, swing | 1 | |
| 2 | 05/903861 | O Ring | 2 | |
| 10-2 | 05/903870 | Spacer | 1 | |
| 5 | 05/903864 | Cover | 1 | |
| 10-3 | 05/903871 | Ring | 1 | |
| 10-9 | 05/903877 | Housing, gearbox | 1 | |
| 6 | 05/903866 | Gear, reduction assembly | 1 | |
| 1 | 05/903860 | Gear, reduction assembly | 1 | |
| 11 | . | 'See Remark' | 1 | |
| 3 | 05/903862 | Ring, toothed | 1 | |
| 10-7 | 05/903875 | Bearing | 1 | |
| 10-4 | 05/903872 | Bearing | 1 |
|
