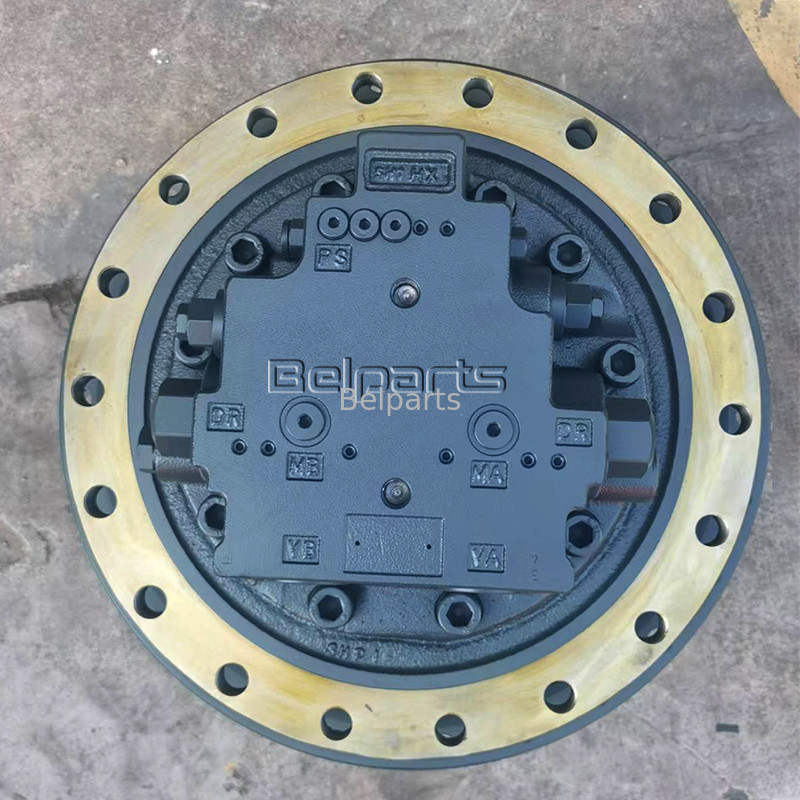

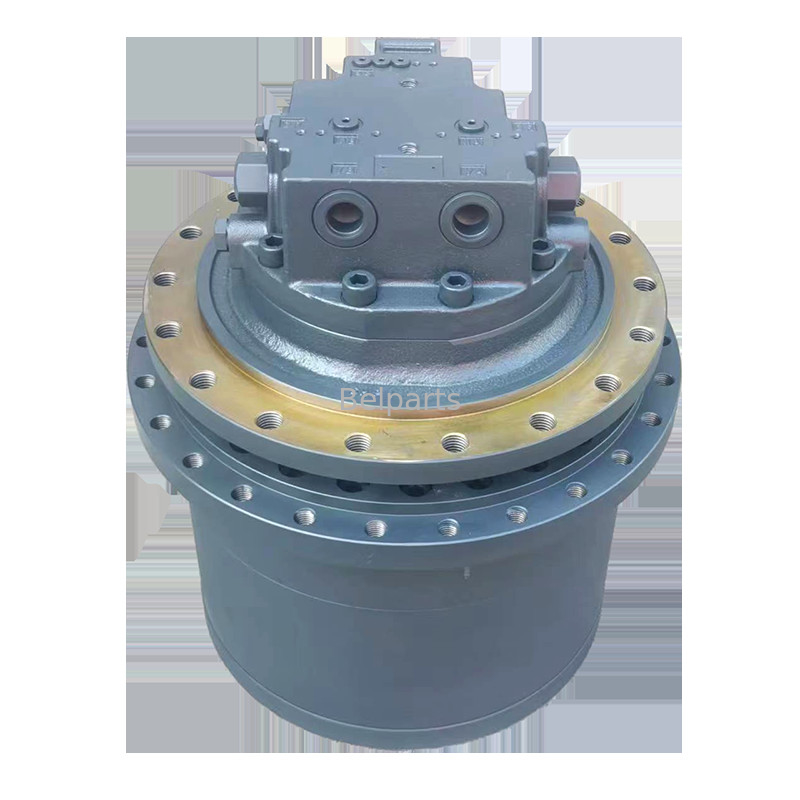

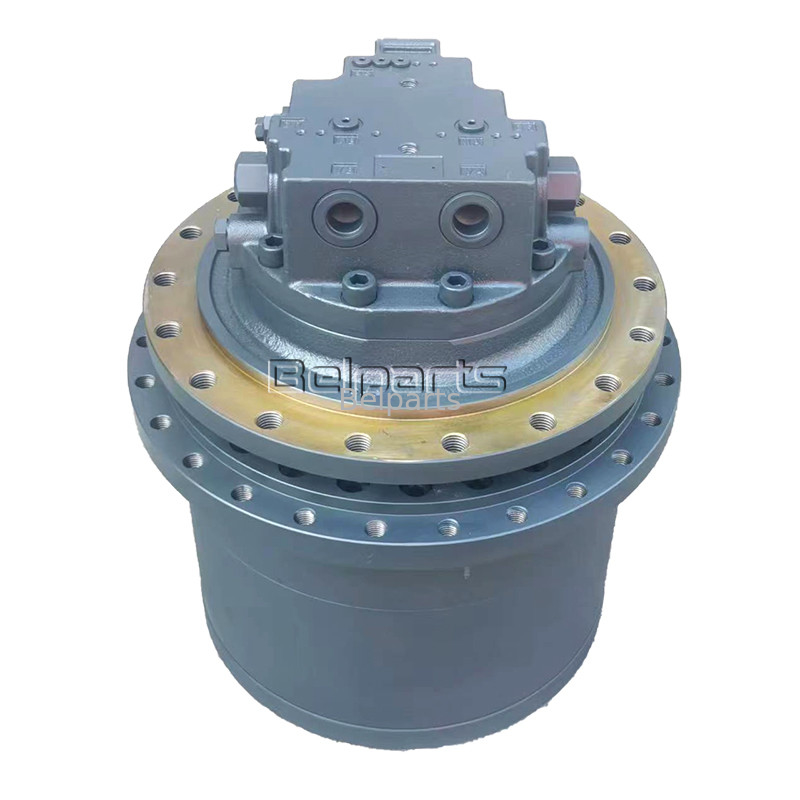

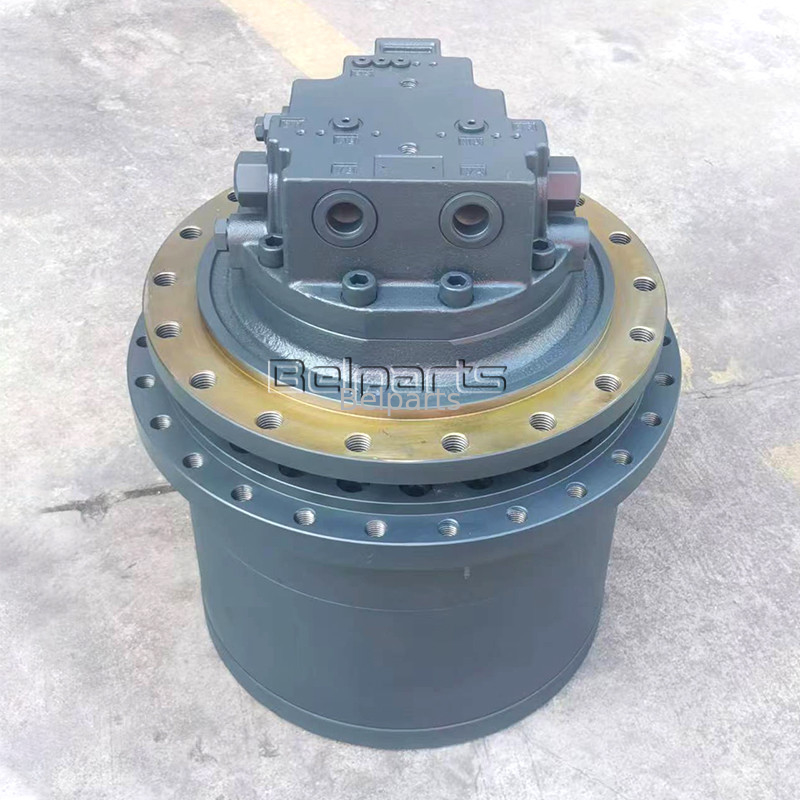

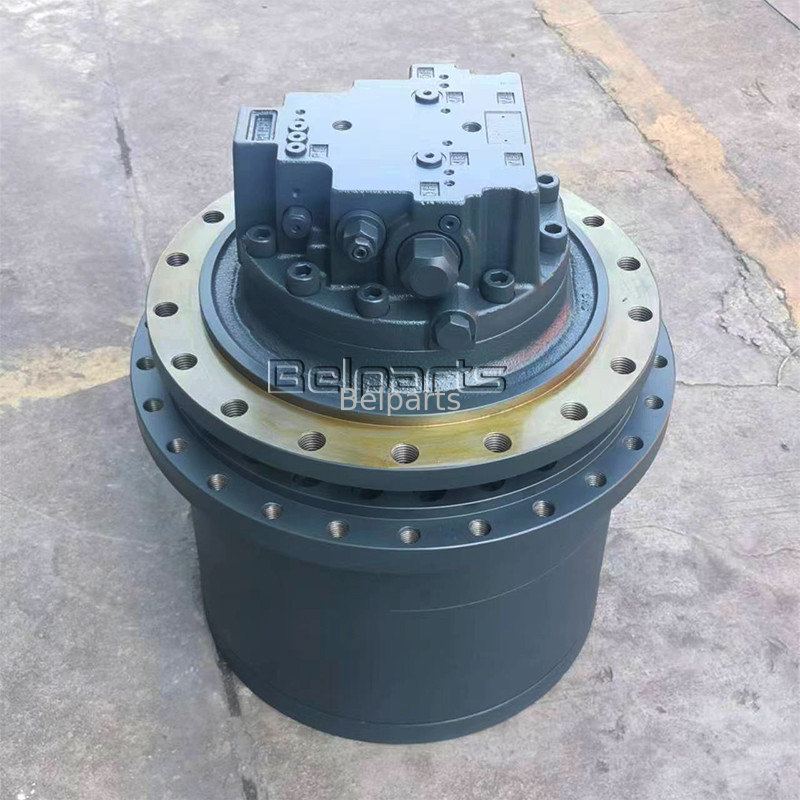

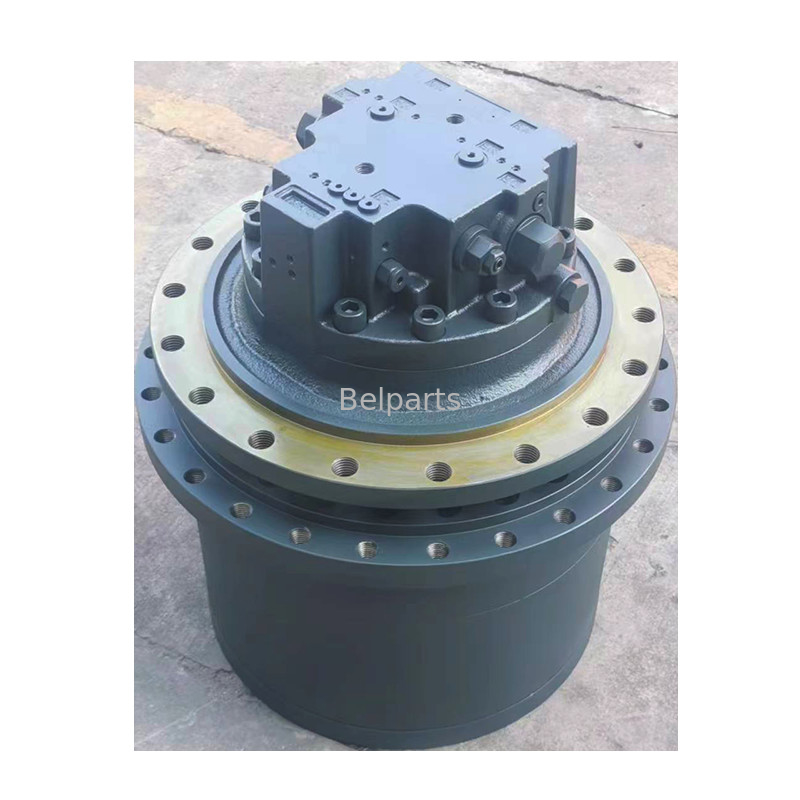

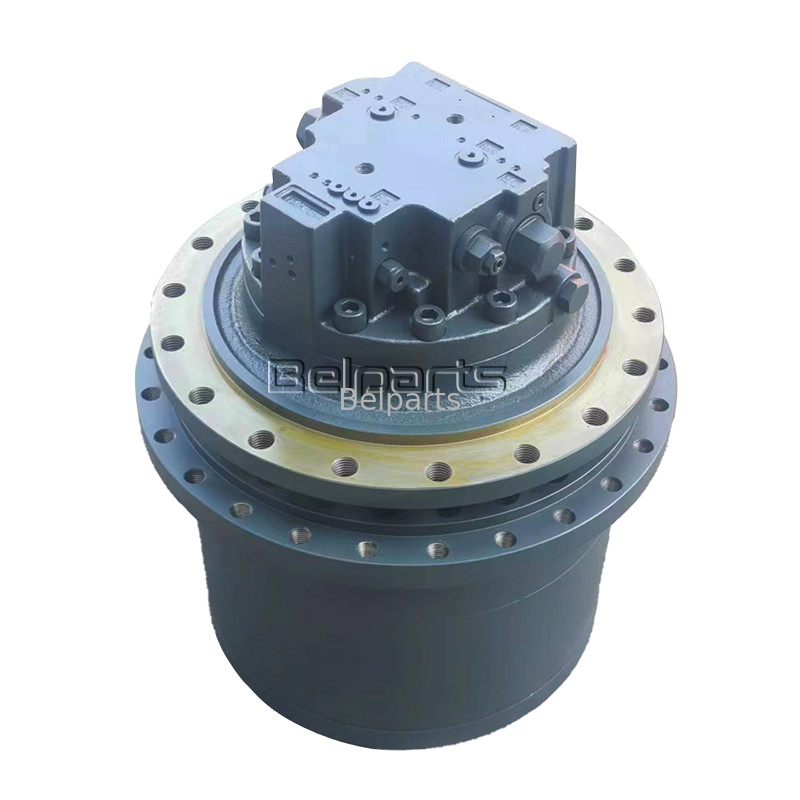

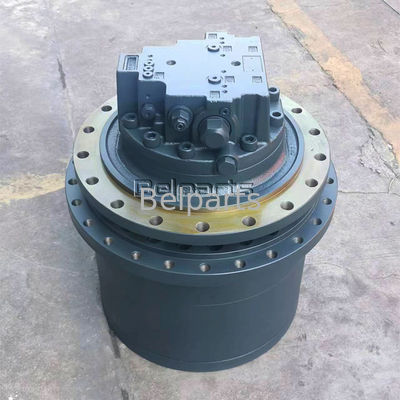

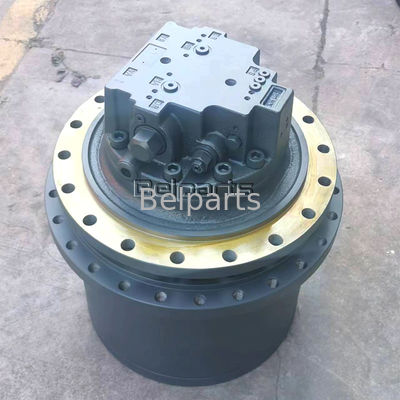

39Q8-42100 R300 31N8-40052 Excavator Final Drive Assembly For Hyundai Construction Machinery Parts

Place of Origin:Made in china

Brand Name:Belparts

Minimum Order Quantity:1PCS

Price:Negotiated price

Payment Terms:T/T, trade assurance,PayPal

Supply Ability:1000PCS

Product Details

Highlight:

31N8-40052 Excavator Final Drive

,

,

Model: R300

Part Name: Excavator Final Drive

Weight: 317kg

Part Number: 39Q8-42100 31N8-40052

Texture: Steel

Brand: Hyundai

Product Description

Construction Machinery Parts 39Q8-42100 R300 31N8-40052 excavator final drive assembly for hyundai

39Q8-42100 R300 31N8-40052 Excavator Final Drive Assembly For Hyundai Construction Machinery Parts

Pos.	Part No	Qty	Parts name	Comments
*.	@	[1]	TRAVEL MOTOR ASSY	SEE 4135, 4136
N*-2.	39Q8-42100	[1]	TRAVEL REDUCTION GEAR
N*-2.	39Q8-42101	[1]	TRAVEL REDUCTION GEAR
1.	39Q8-42110	[1]	GEAR-RING
2.	39Q8-42120	[2]	BEARING-ANG.BALL
3.	39Q8-42130	[2]	SEAL ASSY-FLOATING
4.	39Q8-42140	[1]	RING-NUT
5.	39Q8-42150	[1]	PLATE-LOCK
6.	S017-120206	[4]	BOLT-HEX
7.	39Q8-42160	[1]	HOUSING
8.	S129-070206	[22]	BOLT-SOCKET,UNIFIED
9.	39Q8-42171	[1]	COUPLING
K10.	39Q8-42190	[1]	CARRIER 2
K11.	39Q8-42200	[3]	GEAR-PLANETARY 2
K12.	39Q8-42210	[3]	BEARING-NEEDLE
K13.	39Q8-42220	[6]	WASHER-THRUST 2
K14.	39Q8-42230	[3]	PIN-CARRIER 2
K15.	XKBR-00128	[3]	PIN-SPRING 2
K16.	39Q8-42240	[3]	PIN-SOLID
17.	39Q8-42250	[1]	GEAR-SUN 2
K18.	39Q8-42270	[1]	CARRIER 1
K19.	39Q8-42280	[3]	GEAR-PLANETARY 1
K20.	39Q8-42290	[3]	BEARING-NEEDLE 1
K21.	39Q8-42300	[6]	WASHER-THRUST 1
K22.	39Q8-42310	[3]	PIN-CARRIER 1
K23.	S472-600504	[3]	PIN-SPRING
24.	39Q8-42320	[1]	GEAR-SUN 1
25.	39Q6-42320	[1]	PLATE-THRUST
26.	39Q8-42330	[1]	PLATE-THRUST
27.	39Q8-42340	[1]	COVER
28.	S109-18140D	[25]	BOLT-HEX SOCKET HEAD
N28.	S109-18140V	[25]	BOLT-SOCKET
29.	P220-110205	[3]	PLUG-HEX
30.	S602-045001	[1]	RING-RETAINING,C TYPE
31.	39Q8-42350	[1]	NAME PLATE
32.	39Q6-41800	[2]	RIVET
33.	S631-024001	[3]	O-RING
K.	39Q8-42180	[1]	CARRIER ASST KIT 2	SEE ILLUST
K.	39Q8-42260	[1]	CARRIER ASST KIT 1	SEE ILLUST
