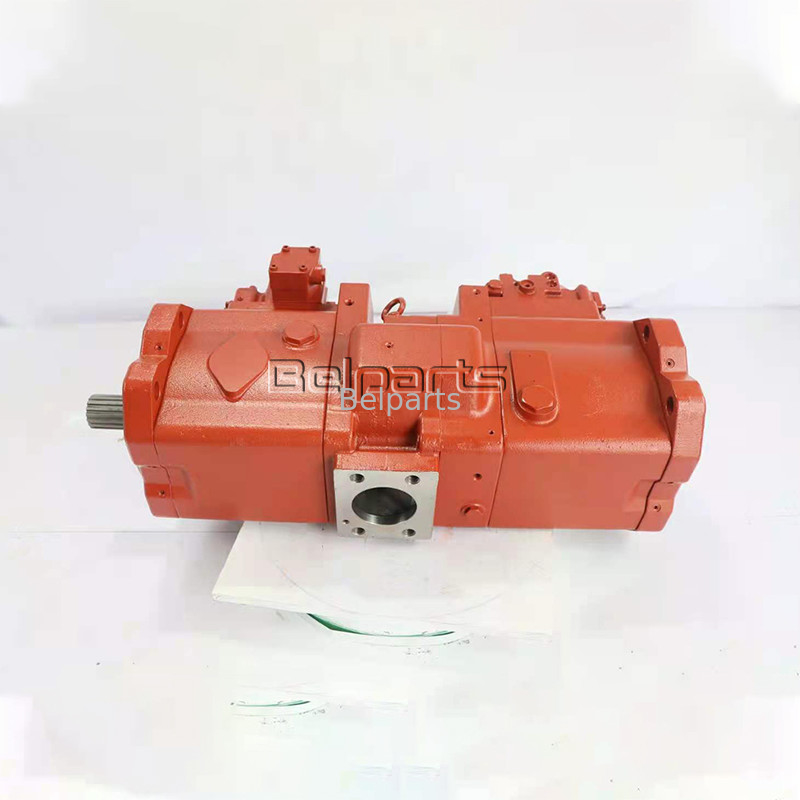

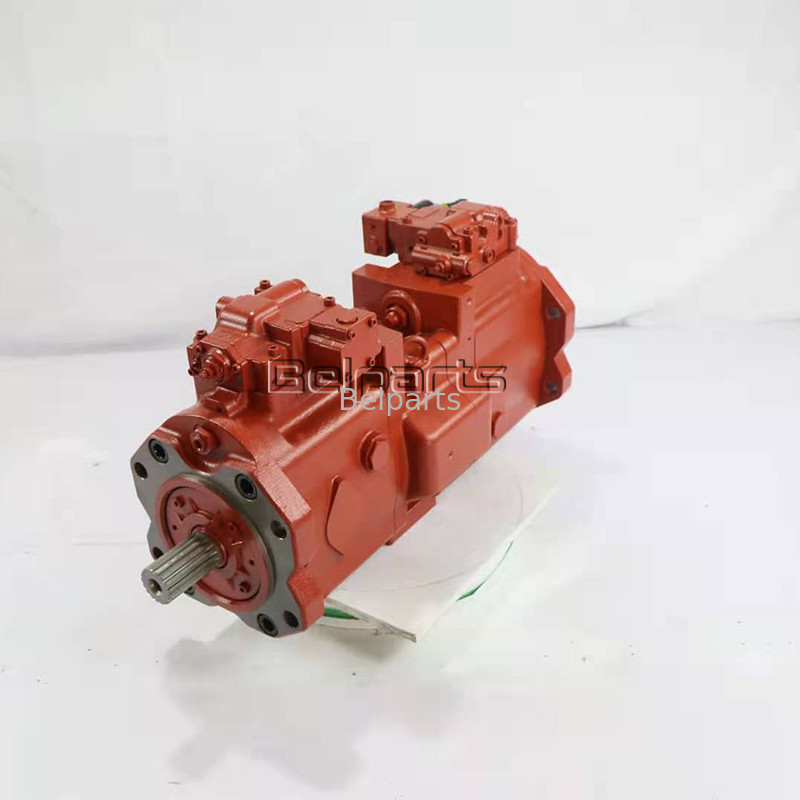

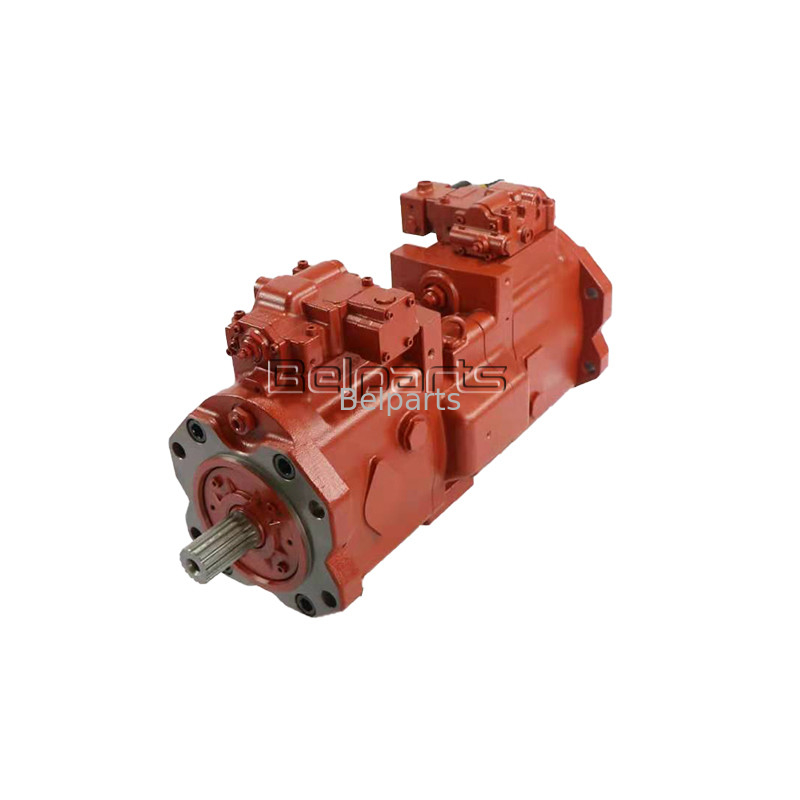

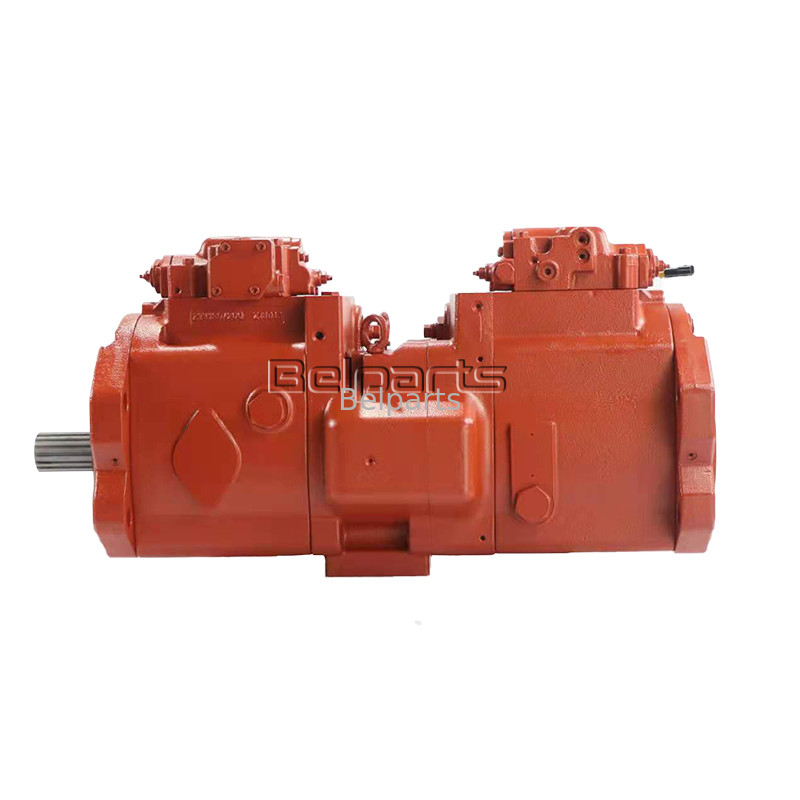

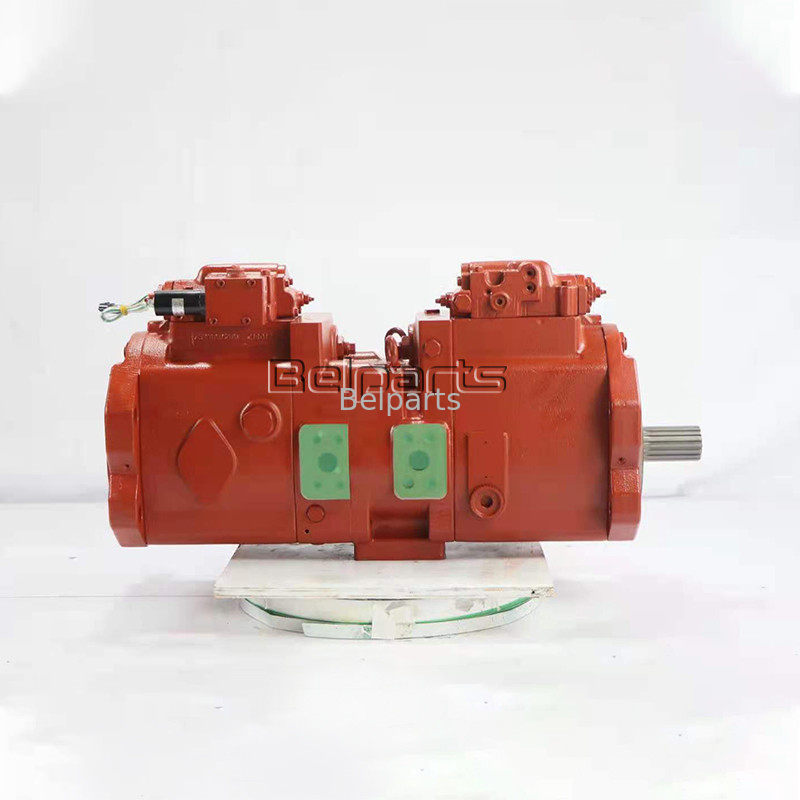

31qa-10010 Hyundai Pump Assy For Crawler Excavator R360lc9 R380lc9a R380lc9dm R380lc9mh R430lc9

Place of Origin Guangdong, China
Brand Name Belparts
Model Number R360lc9 R380lc9a R380lc9dm R380lc9mh R430lc9
Price negotiation
Packaging Details Packaging Details: <br>1.According to orders,pack the spare parts one by one by oil paper; <br>2.Put them into small carton boxes one by one; <br>3.Put the packed small carton boxes into bigger carton boxes one by one; <br>4.Put the bigger carton boxes
Supply Ability 1000 Piece/Pieces per Month
Product Details
Product Name Hydraulic Pump Model R360lc9 R380lc9a R380lc9dm R380lc9mh R430lc9
Weight 76KG Brand Hitachi
Package Wooden Box Part Number 31qa-10010
High Light

31qa-10010 Hyundai Pump Assy

,

Crawler Excavator Pump Assy

,

R360lc9 Excavator Pump Assy

Leave a Message
Product Description

31qa-10010 Hyundai Pump Assy For Crawler Excavator R360lc9 R380lc9a R380lc9dm R380lc9mh R430lc9 0

Parts on group MAIN PUMP (-#0632):

Pos. Part No Qty Parts name
*. 31QA-10010 [1] PUMP ASSY
*-1. @ [1] MAIN PUMP UNIT
*. 31QA-10010 [1] PUMP ASSY
*-1. @ [1] MAIN PUMP UNIT
S012. XJBN-00680 [2] BLOCK-CYLINDER
111 XJBN-00574 [1] SHAFT-DRIVE(F)
113 XJBN-00573 [1] SHAFT-DRIVE(R)
114 XJBN-00572 [1] COUPLING-SPLINE
123 XJBN-00571 [2] BEARING-ROLLER
124 XJBN-00570 [2] BEARING-NEEDLE
127 XJBN-00569 [3] SPACER-BEARING
130 XJBN-00568 [1] BOOSTER
NS151. XJBN-00681 [18] PISTON
NS152. XJBN-01385 [18] SHOE
153 XJBN-00020 [2] PLATE-SET
156 XJBN-00564 [2] BUSHING-SPHERICAL
157 XJBN-00541 [18] SPRING-CYLINDER
211 XJBN-00023 [2] PLATE-SHOE
S212. XJBN-00012 [2] PLATE-SWASH
S214. XJBN-00013 [2] BUSHING-TILTING
251 XJBN-00560 [2] SUPPORT-S.P.
261 XJBN-00025 [1] COVER(FR)-SEAL
271 XJBN-01386 [2] CASING-PUMP
311 XJBN-00559 [1] COVER-VALVE(F)
312 XJBN-00558 [1] COVER-VALVE(R)
S313. XJBN-01387 [1] PLATE(R)-VALVE
S314. XJBN-01388 [1] PLATE(L)-VALVE
401 XJBN-00028 [4] SCREW
402 XJBN-00555 [4] SCREW-HEX SOC HD
406 XJBN-00029 [4] SCREW-HEX
466 XJBN-00030 [4] PLUG
468 XJBN-00031 [4] PLUG
490 XJBN-00032 [28] PLUG
492 XJBN-00234 [1] PLUG
492 XJBN-00234 [1] PLUG
NS531. XJBN-00369 [2] PIN-TILTING
532 XJBN-00033 [2] PISTON-SERVO
534 XJBN-00034 [2] STOPPER(L)
535 XJBN-00035 [2] STOPPER(S)
NS548. XJBN-00360 [2] PIN-FEED BACK
702 XJBN-00040 [2] O-RING
706 XJBN-00554 [1] O-RING
710 XJBN-00041 [1] O-RING
717 XJBN-00042 [2] O-RING
719 XJBN-00043 [3] O-RING
724 XJBN-00361 [19] O-RING
725 XJBN-00362 [6] O-RING
706 XJBN-00554 [1] O-RING
728 XJBN-00363 [4] O-RING
732 XJBN-00047 [2] O-RING
774 XJBN-00906 [1] SEAL-OIL
789 XJBN-00049 [2] RING-BACK UP
792 XJBN-00050 [2] RING-BACK UP
808 XJBN-00364 [4] NUT-HEX
824 XJBN-00052 [2] RING-SNAP
885 XJBN-00053 [2] PIN 2
886 XJBN-00054 [5] PIN-SPRING
901 XJBN-00055 [2] BOLT-EYE
953 XJBN-00056 [2] SCREW-SET
954 XJBN-00553 [2] SCREW-SET
981 XJBN-00156 [1] NAME PLATE
983 XJBN-00341 [2] PIN
*-2. @ [1] REGULATOR ASSY
*-3. @ [1] REGULATOR ASSY
*-4. @ [1] GEAR PUMP
S011. XJBN-01382 [2] PISTON ASSY
S013. XJBN-01383 [1] CYLINDER ASSY-RH
S014. XJBN-01384 [1] CYLINDER ASSY-LH
*-3. @ [1] REGULATOR ASSY
S030. XJBN-00011 [2] SWASH PLATE ASSY
S530. XJBN-00371 [2] TILTING PIN SUB ASSY
S011. XJBN-01382 [2] PISTON ASSY
S013. XJBN-01383 [1] CYLINDER ASSY-RH
S014. XJBN-01384 [1] CYLINDER ASSY-LH
S030. XJBN-00011 [2] SWASH PLATE ASSY
S530. XJBN-00371 [2] TILTING PIN ASSY
N. @ [AR] NOT SUPPLIED PARTS
