Hitachi Excavator Travel Swing Gearbox Assy Zx230 Zaxis230 9204193 Swing Reduction Gear
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Name | ZX230 ZAXIS230 | Part Number | 9204193 |
|---|---|---|---|
| Brand Name | BELPARTS | Apply For | SWING REDUCTION |
| Packing Size | 129KG | Packing | Wooden Case/Carton Box |
| Means Of Transport | By Sea, Air Or DHL/FEDEX/TNT | ||
| High Light | Hitachi Excavator Travel Swing Gearbox,Zx230 Excavator Travel Swing Gearbox,9204193 Swing Reduction Gear |
||
Product Description

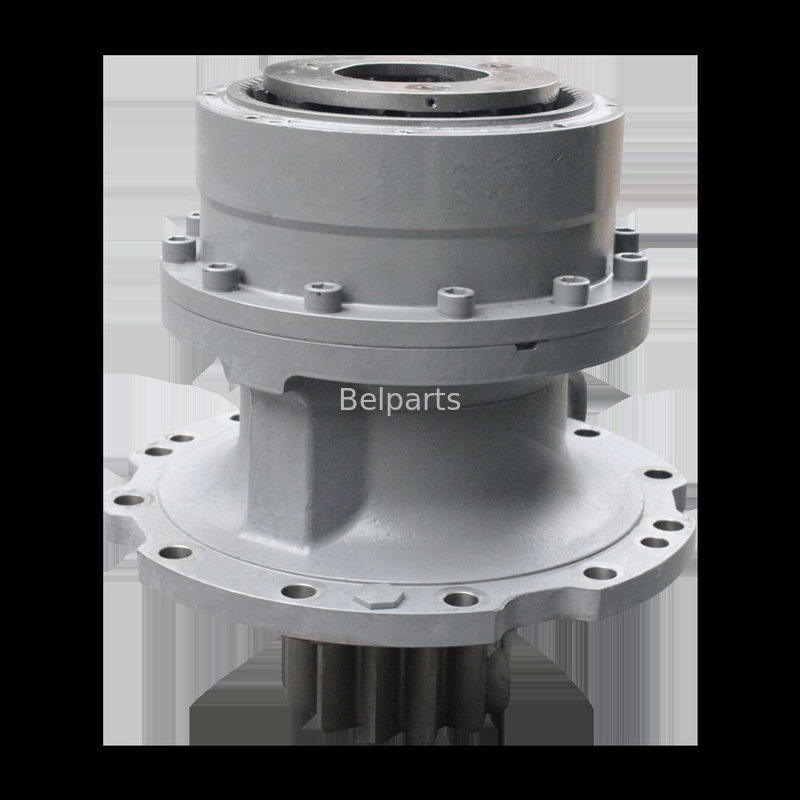

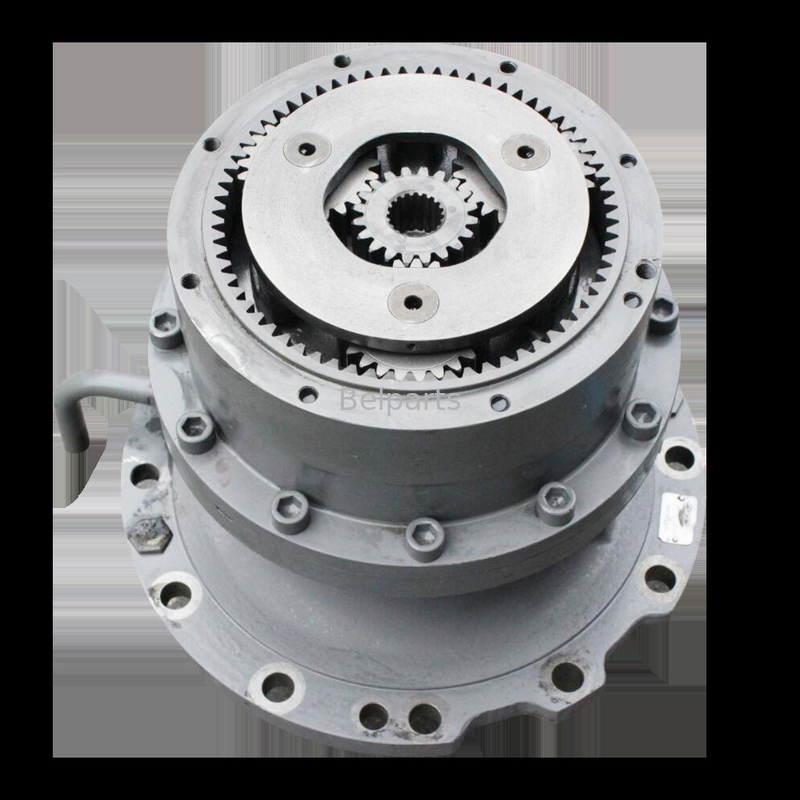

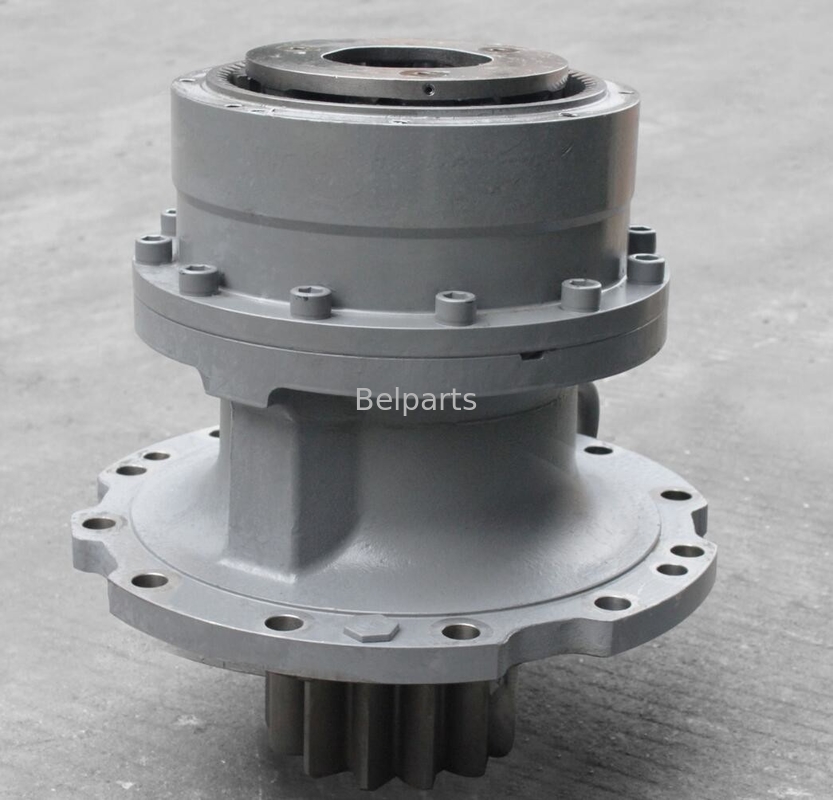

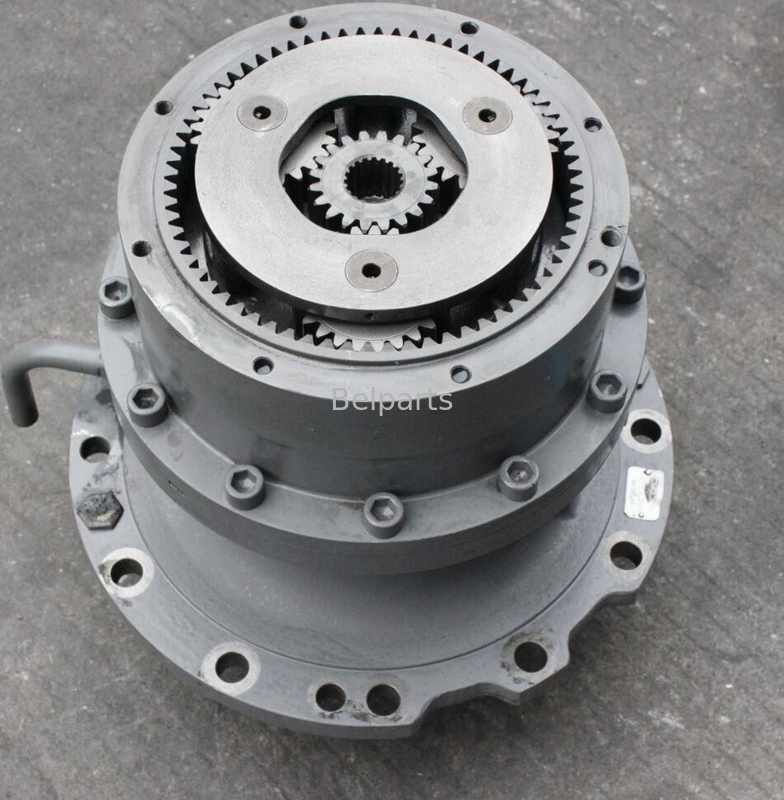

HITACHI EXCAVATOR TRAVEL SWING GEARBOX ASSY ZX230 ZAXIS230 9204193 SWING REDUCTION GEAR
PRODUCT SPECIFIIONS
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 01 | 2043409 | SHAFT; PROP. | 1 | |
| 02 | 3085038 | SLEEVE | 1 | |
| 03 | A811130 | O-RING | 1 | |
| 04 | 4417903 | BRG.; ROL. | 1 | |
| 05 | 4417906 | SEAL; OIL | 1 | |
| 06 | 1026916 | HOUSING | 1 | |
| 07 | 4417904 | BRG.; ROL. | 1 | |
| 08 | 3085037 | NUT | 1 | |
| 09 | 4415042 | PLATE; LOCK | 1 | |
| 11 | 1026826 | CARRIER | 1 | |
| 12 | 4194454 | PLATE; THRUST | 1 | |
| 13 | 4336925 | PIN | 3 | |
| 13 | 4488904 | PIN | 3 | |
| 14 | 3084655 | GEAR; PLANETARY | 3 | |
| 15 | 4427630 | BRG.; NEEDLE | 6 | |
| 15 | 4461644 | BRG.; NEEDLE | 6 | |
| 15 | 4631475 | BRG.; NEEDLE | 6 | |
| 16 | 4336929 | PLATE; THRUST | 3 | |
| 17 | 4027427 | PIN; SPRING | 3 | |
| 18 | 3084656 | GEAR; SUN | 1 | |
| 20 | 1026808 | GEAR; RING | 1 | |
| 21 | M341840 | BOLT; SOCKET | 12 | |
| 22 | J901016 | BOLT | 2 | |
| 23 | 1026812 | CARRIER | 1 | |
| 24 | 4187590 | PLATE; THRUST | 1 | |
| 25 | 4341941 | PIN | 3 | |
| 26 | 3084652 | GEAR; PLANETARY | 3 | |
| 27 | 4354748 | BRG.; NEEDLE | 3 | |
| 28 | 4347635 | PLATE; THRUST | 3 | |
| 29 | 4144018 | PIN; SPRING | 3 | |
| 31 | 3084649 | GEAR; SUN | 1 | |
| 33 | 3088126 | PIPE | 1 | |
| 35 | 4445354 | PLUG | 2 | |
| 36 | 94-2012 | PLUG | 1 | |
| 61 | 8053415 | COVER (FOR TRANSPORTATION) | 1 | |
| 62 | 4252835 | O-RING (FOR TRANSPORTATION) | 1 | |
| 63 | J011250 | BOLT; SEMS | 8 | |
| 63 | J271250 | BOLT; SEMS (FOR TRANSPORTATION) | 8 | |
| 64 | 94-2011 | PLUG (FOR TRANSPORTATION) | 1 | |
| 100 | 4423851 | MOTOR; OIL | 1 | |
| 101 | 991342 | RING; RETAINING | 1 | |
| 103 | M341228 | BOLT; SOCKET | 8 | |
| 103 | M341230 | BOLT; SOCKET | 8 | |
| 104 | 4264452 | PIPE | 1 | |
| 105 | 4332658 | PIPE | 1 | |
| 106 | 4343365 | CAP | 1 | |
| 108 | 3074223 | GAUGE; LEVEL | 1 | |
| 109 | 3053093 | NAME-PLATE | 1 | |
| 110 | M492564 | SCREW; DRIVE | 2 | |
| 200 | 9204193 | SWING; DEVICE (WITHOUT MOTOR) | 1 |
