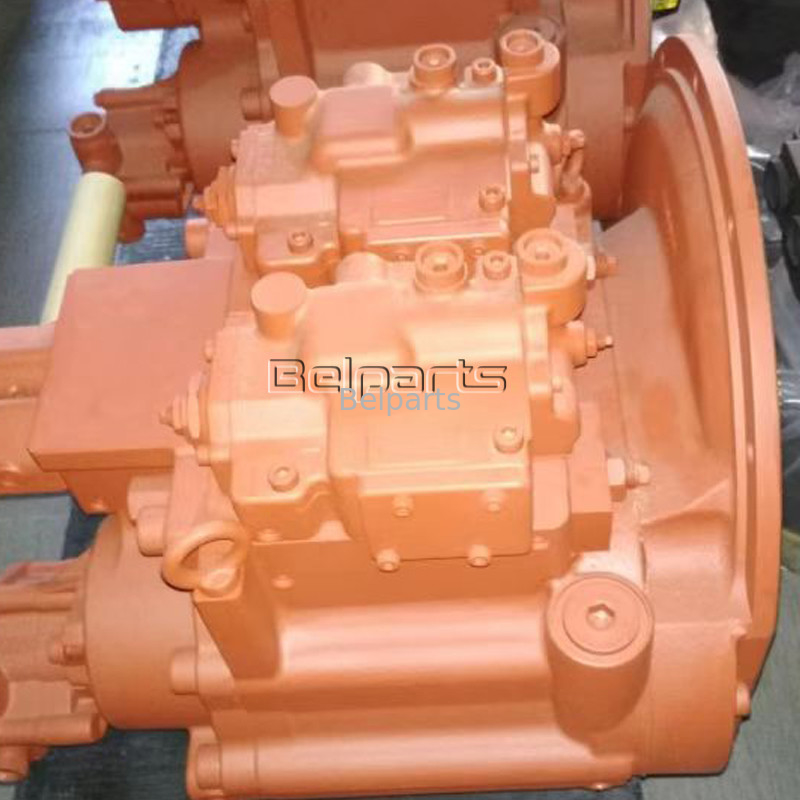

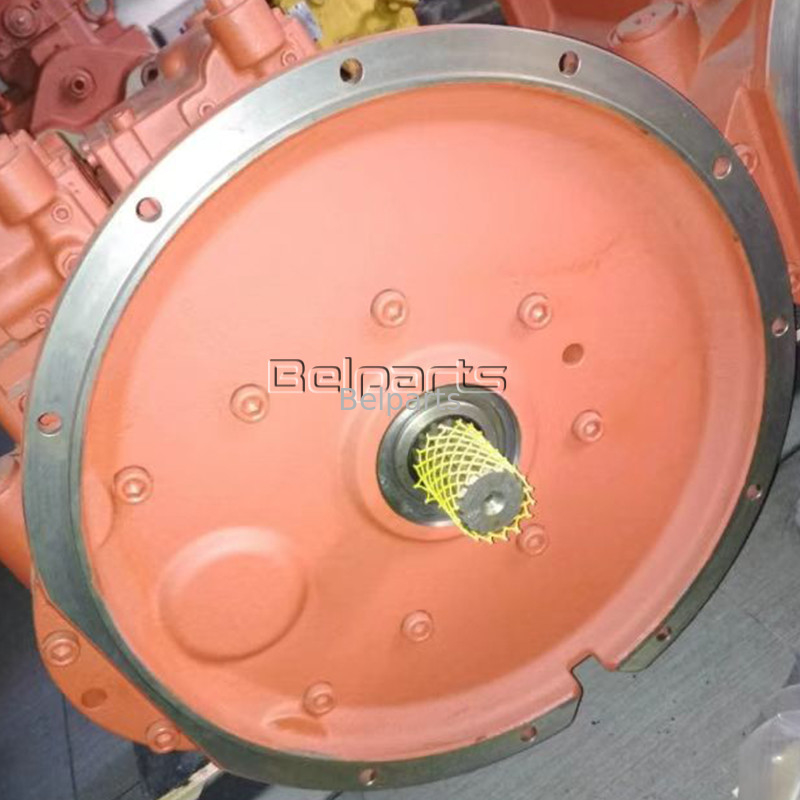

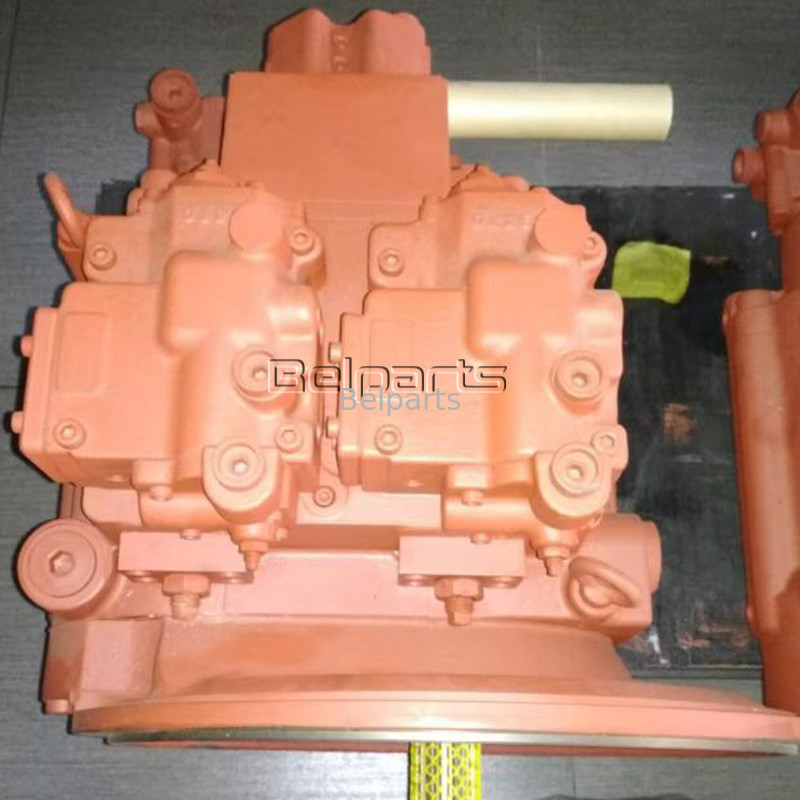

Hyundai R200W-7 Piston Pump Excavator K3V112DP 31N6-15010 Hydraulic Main Pump
Place of Origin | Guangdong, China |
---|---|
Brand Name | Belparts |
Model Number | R200W-7 |
Price | negotiation |
Packaging Details | Packaging Details: <br>1.According to orders,pack the spare parts one by one by oil paper; <br>2.Put them into small carton boxes one by one; <br>3.Put the packed small carton boxes into bigger carton boxes one by one; <br>4.Put the bigger carton boxes |
Supply Ability | 1000 Piece/Pieces per Month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Pump Piston | Model | R200W-7 |
---|---|---|---|
Weight | 330KG | Brand | Belparts |
Package | Wooden Box | Part Number | K3V112DP 31N6-15010 |
High Light | R200W-7 Piston Pump,K3V112DP Piston Pump,31N6-15010 Hydraulic Main Pump |
Hyundai R200W-7 piston pump Excavator K3V112DP 31N6-15010 hydraulic main pump
Application | Crawler Excavator |
Part name | Pump hydraulic |
Material | Steel |
Model | R200W-7 |
MOQ | 1PC |
Part numebr | K3V112DP 31N6-15010 |
Payment term | T/T, Western union, paypal, trade assurance or as required |
Weight | 330KG |
Brand | Belparts |
# | Part No | Part Name | Qty. | Price request |
---|---|---|---|---|
* | 31N6-15010 | MAIN PUMP *-1,*-2,*-3,*-4 |
1 | |
*-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
S141 | XJBN-00067 | BLOCK-CYLINDER | 2 | |
S151 | XJBN-00061 | PISTON | 18 | |
S152 | XJBN-00062 | SHOE | 18 | |
153 | XJBN-00082 | PLATE-SET | 2 | |
156 | XJBN-00083 | BUSHING-SPHERICAL | 2 | |
157 | XJBN-00084 | SPRING-CYLINDER | 18 | |
211 | XJBN-00085 | PLATE-SHOE | 2 | |
S212 | XJBN-00780 | PLATE-SWASH | 2 | |
S214 | XJBN-00071 | BUSHING-TILTING | 2 | |
251 | XJBN-00779 | SUPPORT | 2 | |
312 | XJBN-00776 | COVER-VALVE | 1 | |
S313 | XJBN-00738 | PLATE-VALVE,RH | 1 | |
S314 | XJBN-00739 | PLATE-VALVE,LH | 1 | |
316 | XJBN-00690 | COVER | 1 | |
406 | XJBN-00029 | SCREW-HEX | 8 | |
409 | XJBN-00696 | SCREW-HEX | 2 | |
410 | XJBN-00775 | SCREW-HEX | 12 | |
412 | XJBN-00774 | SCREW-HEX | 1 | |
467 | XJBN-00265 | PLUG | 2 | |
491 | XJBN-00234 | PLUG | 9 | |
S531 | XJBN-00771 | PIN-TILTING | 2 | |
532 | XJBN-00770 | PISTON-SERVO | 2 | |
534 | XJBN-00769 | STOPPER(L) | 2 | |
535 | XJBN-00093 | STOPPER(S) | 2 | |
536 | XJBN-00768 | COVER-SERVO | 2 | |
S548 | XJBN-00360 | PIN-FEED BACK | 2 | |
703 | XJBN-00281 | O-RING | 2 | |
709 | XJBN-00387 | O-RING | 1 | |
725 | XJBN-00045 | O-RING | 2 | |
732 | XJBN-00097 | O-RING | 2 | |
752 | XJBN-00763 | PACKING-SEAT | 1 | |
789 | XJBN-00099 | RING-BACK UP | 2 | |
793 | XJBN-00761 | RING-BACK UP | 2 | |
806 | XJBN-00101 | NUT-HEX | 2 | |
807 | XJBN-00760 | NUT | 2 | |
885 | XJBN-00103 | PIN-VALVE PLATE | 2 | |
886 | XJBN-00054 | PIN-SPRING | 2 | |
888 | XJBN-00712 | PIN | 2 | |
953 | XJBN-00757 | SCREW-SET | 2 | |
954 | XJBN-00392 | SCREW-SET | 2 | |
*-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4030 |
2 | |
*-3 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4040 |
1 | |
*-4 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4045 |
1 | |
S | XJBN-00060 | PISTON SUB ASSY SEE ILLUST |
2 | |
S | XJBN-00063 | CYLINDER ASSY(RH) SEE ILLUST |
1 | |
S | XJBN-00066 | CYLINDER ASSY(LH) SEE ILLUST |
1 | |
S | XJBN-00756 | SWASH PLATE ASSY SEE ILLUST |
2 | |
S | XJBN-00754 | TILTING PIN ASSY SEE ILLUST |
2 |
Our advantages:
Ø Strong part number database.
If you can provide the right model and part number, we can supply the right product.
Ø Professional and experienced salesperson.
Our founder has been into this field for more than 7 years, with rich experiences.
Ø Strict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
Ø Good management system.
No matter how big or small order, as long as customers place the order, we will provide exporting service free for charge.
Ø Good service attitude.
If the customer has any questions about the product, In our receiving and knowing the situation, we will help the customer to solve the problem in the first place.As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.
GZ YUEXIANG ENGINEERING MACHINERY LTD
Our company is located in Guangzhou China ,was founded in September 2013 . At present , we have one shop, one warehouse and one office as well as a professional team for purchasing, selling, packing, shipping and after-sale service.
Our main products are Excavator Hydraulic spare parts, Hydraulic main pump, Swing Motor, Travel Motor, Final Drive Assy, Swing Assy, Swing Gearbox, Travel Gearbox, and other hydraulic items with genuine and aftermarket quality. Until now, our products enjoy high reputation all over the world and have been exported to more than 125 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with its own brand "Belparts" are widely acclaimed by foreign customers.
