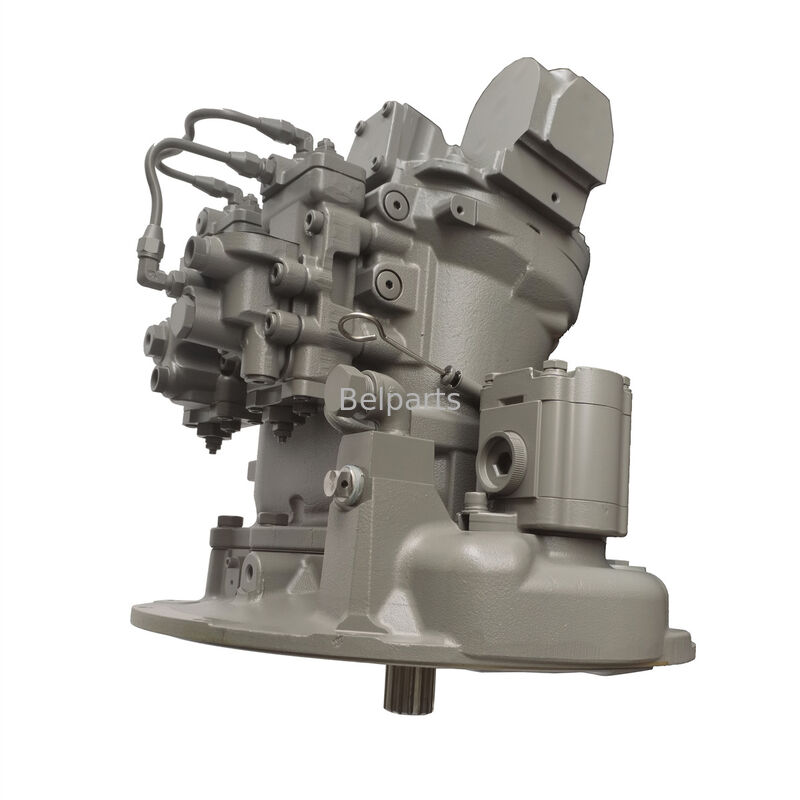

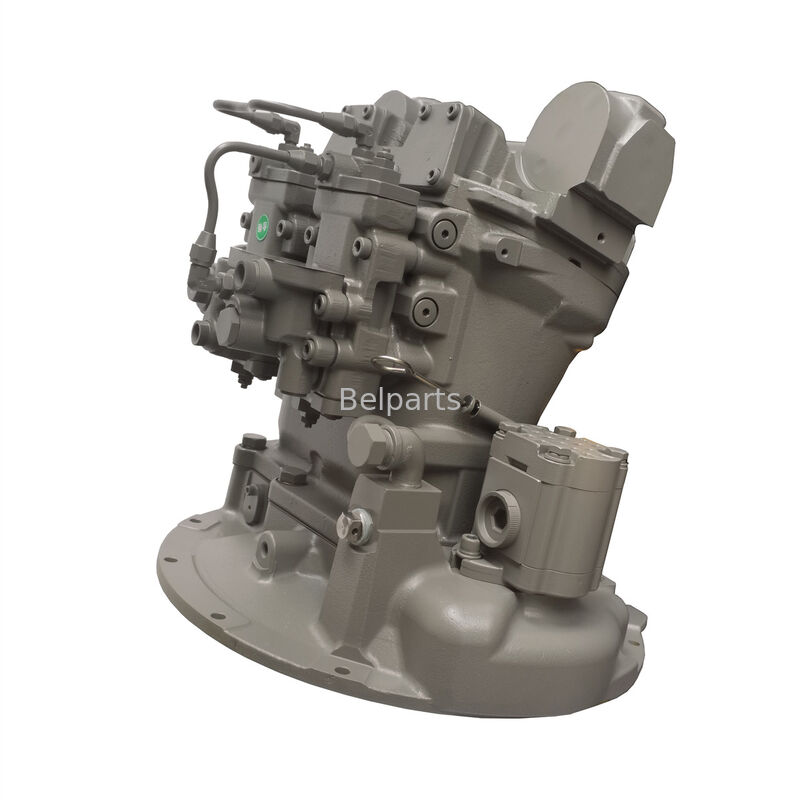

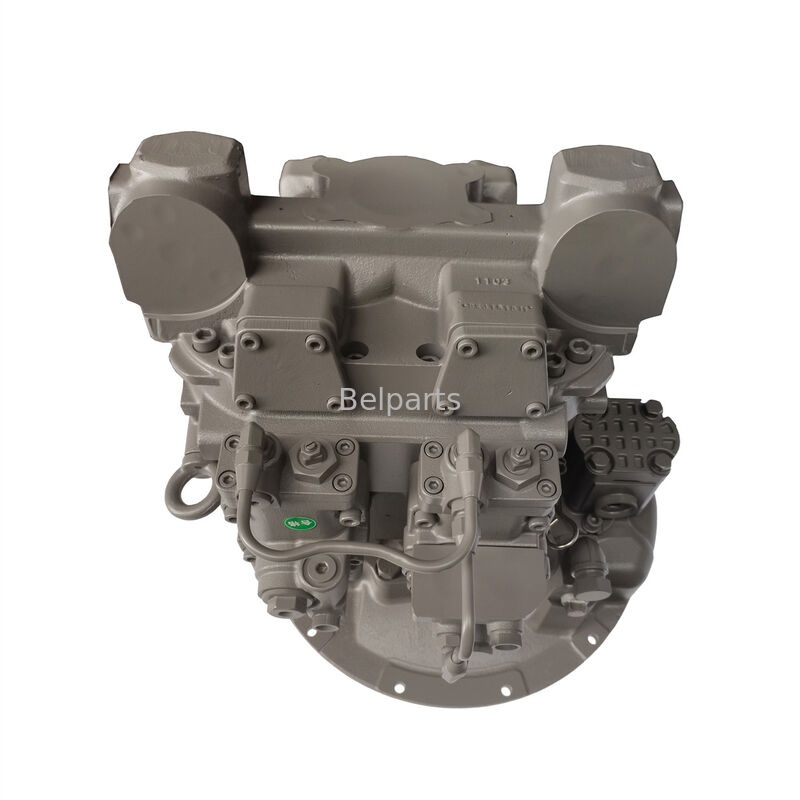

ZX200 Main Hydraulic Pump For HITACHI Excavator HPV102 9195235EX 9195235 9205002 9191164 Direct Injection Piston Pump

Place of Origin:Guangdong, China
Brand Name:Belparts
Model Number:ZX200
Price:negotiation
Supply Ability:1000 Piece/Pieces per Month
Product Details
Highlight:

ZX200 Excavator Main Pump

,

HPV102 Excavator Main Pump

,

60100453-J Excavator Main Pump

Product Name: Hydarulic Pump
Model: ZX200
Type: HPV102
Part Number: 9195235EX 9195235 9205002 9191164
Weight: 235KG
Product Description

ZX200 Main Hydraulic Pump For HITACHI Excavator HPV102  9195235EX 9195235 9205002 9191164 Direct Injection Piston Pump

Product Description

Belparts construction machinery parts YC35 SWE40 SWE50 excavator B0600-21020 PSVD2-21E-7 PSVD2-21 hydraulic main pump



Appliion Excavator
Part name Hydarulic Piston Pump
Type HPV102
Model ZX200
Part number 9195235EX 9195235 9205002 9191164
MOQ 1PC
Material Steel
Payment term T/T, Western union, paypal, trade assurance or as required
Weight 235KG
Brand Belparts


# Part No Part Name Qty. Price request


PUMP; UNIT 1
01 1026679 . CASING; PUMP 1
01 1032319 . CASING; PUMP 1
03 2036807 . DISC; DRIVING 1
03 2043207 . DISC; DRIVING 1
04 2036808 . DISC; DRIVING 1
04 2043211 . DISC; DRIVING 1
06 4337419 . BRG.; ROL. 2
06 4410050 . BRG.; ROL. 2
07 4348182 . RING 2
07 4339171 . RING 2
08 4337483 . BRG.; ROL. 2
08 4622945 . BRG.; ROL. 2
09 4178173 . NUT; BRG. 2
10 4338907 . RING; THRUST 1
12 4333170 . SEAL; OIL 2
13 4116290 . RING; RETAINING 2
15 4233165 . PLUG 1
16 957366 . O-RING 1
19 8059452 . PISTON 14
21 4337035 . SHAFT; CENTER 2
22 4198956 . PIN 2
23 4179181 . SPRING; COMPRES. 2
25 2036744 . ROTOR 2
27 2036795 . VALVE 1
28 2036786 . VALVE 1
29 4179179 . PIN 4
31 3075674 . LINK; E 2
32 9724756 . LEVER 4
33 4179177 . PIN 4
34 4179176 . PIN 2
35 4146370 . RING; RETAINING 12
36 4200227 . PIN 2
41 1027131 . HEAD 1
42 3069541 . PISTON; SERVO 2
43 4338053 . PIN 2
44 4337812 . SCREW; SET 2
46 4355085 . O-RING 2
47 4338060 . STOPPER 2
50 4355083 . O-RING 2
51 4338061 . STOPPER 2
54 4180349 . O-RING 20
55 M340825 . BOLT; SOCKET 16
57 3070581 . RING; BACKUP 1
58 4099290 . PIN; SPRING 2
59 4342840 . O-RING 1
60 M341245 . BOLT; SOCKET 12
64 4355012 . SENSOR; PRES. 2
64 4436271 . SENSOR; PRES. 2
64A 4365826 .. O-RING 1
67 9134110 . PLUG 2
67A 957366 .. O-RING 1
69 9181608 . REGULATOR; L (FOR ASSEMBLY OF MACHINE) 1
69 9198935 . REGULATOR; L (FOR TRANSPORTATION) 1
70 9181609 . REGULATOR; R (FOR ASSEMBLY OF MACHINE) 1
70 9198936 . REGULATOR; R (FOR TRANSPORTATION) 1
72 4515041 . PIN; SPRING 4
73 4343074 . O-RING 4
74 4348665 . O-RING 2
80 9134111 . PLUG 2
80A 4509180 .. O-RING 1
82 4252767 . BRACKET 1
83 M340613 . BOLT; SOCKET 1
84 A590908 . WASHER; SPRING 1
100 4451039 KIT; SEAL 1


Our advantages:

Ø Strong part number database.

If you can provide the right model and part number, we can supply the right product.

Ø Professional and experienced salesperson.

Our founder has been into this field for more than 7 years, with rich experiences.

Ø Strict and complete company rules.

We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.

Ø Good management system.

No matter how big or small order, as long as customers place the order, we will provide exporting service free for charge.

Ø Good service attitude.

If the customer has any questions about the product, In our receiving and knowing the situation, we will help the customer to solve the problem in the first place.As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.






company model three

ZX200 Main Hydraulic Pump For HITACHI Excavator HPV102  9195235EX 9195235 9205002 9191164 Direct Injection Piston Pump 1ZX200 Main Hydraulic Pump For HITACHI Excavator HPV102  9195235EX 9195235 9205002 9191164 Direct Injection Piston Pump 2


GZ YUEXIANG ENGINEERING MACHINERY LTD

Our company is loed in Guangzhou China ,was founded in September 2013 . At present , we have one shop, one warehouse and one office as well as a professional team for purchasing, selling, packing, shipping and after-sale service.


Our main products are Excavator Hydraulic spare parts, Hydraulic main pump, Swing Motor, Travel Motor, Final Drive Assy, Swing Assy, Swing Gearbox, Travel Gearbox, and other hydraulic items with genuine and aftermarket quality. Until now, our products enjoy high reputation all over the world and have been exported to more than 125 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with its own brand "Belparts" are widely acclaimed by foreign customers.
