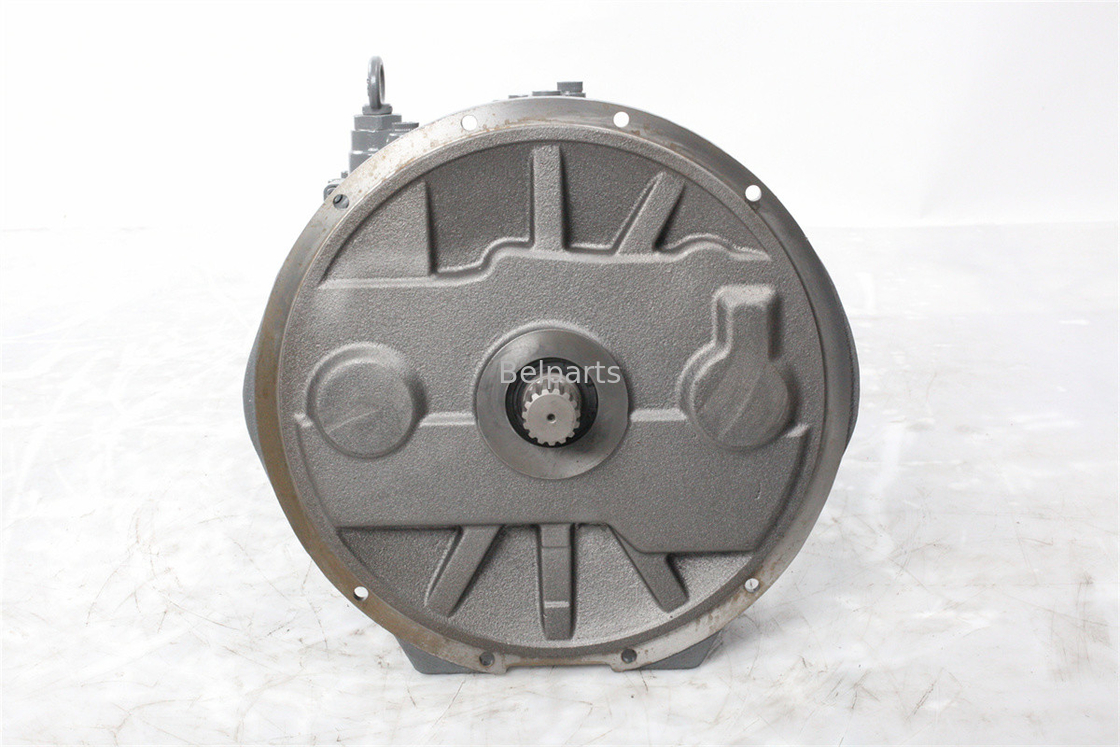

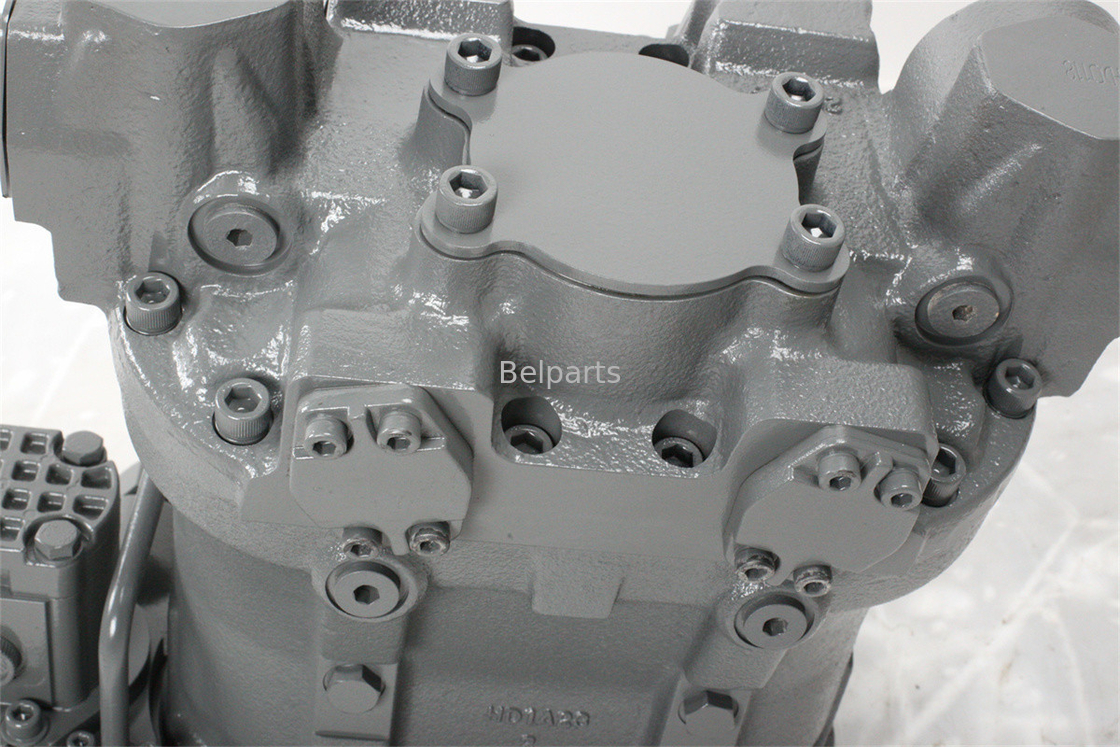

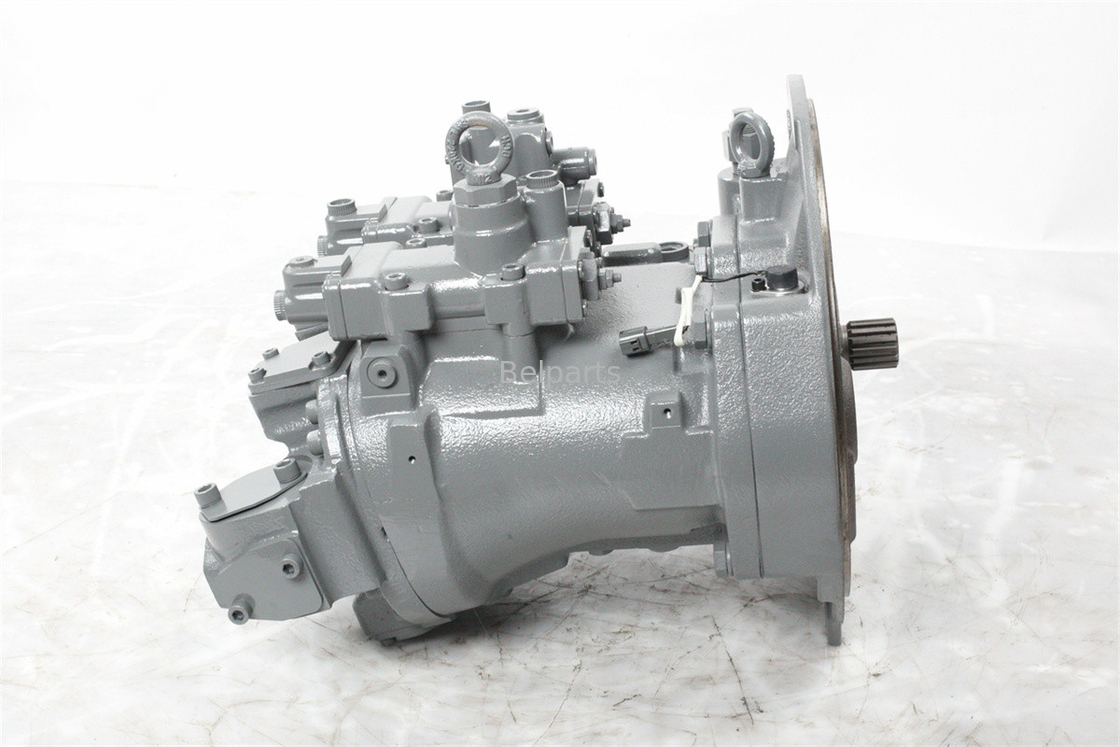

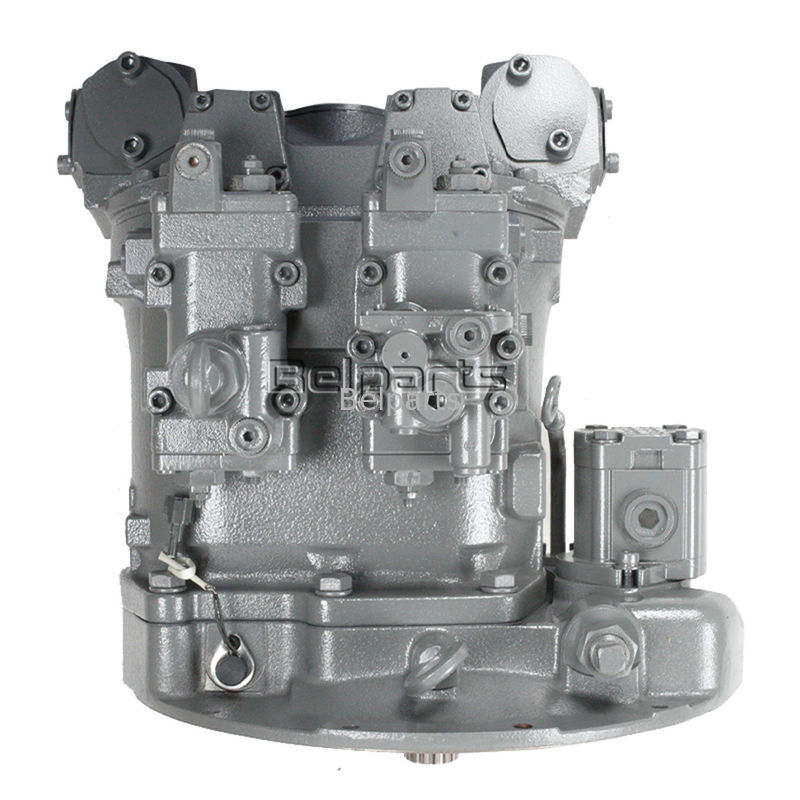

HPVO118HW Main Pump For Hitachi ZX240-3 9191165 Hydraulic Main Pump Excavator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Apply To | Crawler Excavator | Excavator Model | ZX240-3 |
|---|---|---|---|
| Product Name | Excavator Hydraulic Main Pump | Supply Ability | 1000pcs |
| Brand | Belparts | Weight | 200KG |
| Packing | 67*87*89 | Pump Number | 9191165 |
| High Light | HPVO118HW Main Pump,9191165 Main Pump,ZX240-3 Hydraulic Main Pump |
||
Product Description
HPVO118HW Main pump for hitachi ZX240-3 9191165 hydraulic main pump excavator
|
Appliion |
Hitachi Excavator |
|
Part name |
hydraulic pump |
|
Material |
Steel |
|
Model |
ZX240-3 |
|
Part number |
9191165 HPVO118HW |
|
Payment term |
As require |
|
Delivery |
3-7 working days |
|
Brand |
made in china or orginal new |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 9191165 | PUMP DEVICE (FOR ASSEMBLY OF MACHINE) | 1 | ||
| (9195236) | PUMP DEVICE (FOR TRANSPORTATION) | 1 | ||
| 01 | 1027184 | . CASING; GEAR | 1 | |
| 03 | 3063840 | . GEAR; PILOT | 1 | |
| 04 | 3055594 | . SHAFT; GEAR | 1 | |
| 08 | 958740 | . BRG.; BALL | 2 | |
| 09 | 962002 | . RING; RETAINING | 1 | |
| 10 | 991725 | . RING; RETAINING | 1 | |
| 30 | 3063842 | . GEAR | 1 | |
| 31 | 3063843 | . GEAR | 1 | |
| 32 | 4274552 | . RING; RETAINING | 2 | |
| 34 | 4099290 | . PIN; SPRING | 2 | |
| 43 | 4310055 | . SEAL; OIL | 1 | |
| 44 | 991725 | . RING; RETAINING | 1 | |
| 61 | 4438059 | . GAUGE; LEVEL | 1 | |
| 62 | 9743977 | . PIPE | 1 | |
| 63 | 9742779 | . PACKING | 1 | |
| 64 | M340816 | . BOLT; SOCKET | 2 | |
| 68 | 4265372 | . SENSOR; REVOL. | 1 | |
| 69 | 4306888 | . O-RING | 1 | |
| 70 | A590106 | . WASHER; PLANE | 1 | |
| 71 | M340616 | . BOLT; SOCKET | 1 | |
| 86 | 4234782 | . PLUG | 1 | |
| 87 | 4092534 | . PLUG | 1 | |
| 87A | 4509180 | .. O-RING | 1 | |
| 103 | . PUMP; UNIT | 1 | ||
| 112 | . NAME-PLATE | 1 | ||
| 113 | M492564 | . SCREW; DRIVE | 2 | |
| 120 | 4276918 | . PUMP; GEAR | 1 | |
| 121 | M341030 | . BOLT; SOCKET | 2 | |
| 122 | 984054 | . WASHER; SPRING | 2 | |
| 123 | 4114402 | . WASHER | 2 | |
| 127 | 4369148 | . PIPE; E | 1 | |
| 130 | 4293950 | . ELBOW; S | 2 | |
| 130A | 957366 | .. O-RING | 1 | |
| 133 | 4416605 | . COUPLING | 1 | |
| 133A | 4463992 | .. HUB | 1 | |
| 133B | 4334899 | .. SCREW; SET | 2 | |
| 133C | 4101345 | .. PIN; SPRING | 4 | |
| 133D | 4463993 | .. INSERT | 4 | |
| 133E | 4334894 | .. BOLT; SOCKET | 4 | |
| 133F | 4463994 | .. ELEMENT | 1 | |
| 136 | 8058352 | . PACKING | 1 | |
| 137 | J901645 | . BOLT | 6 | |
| 138 | A590916 | . WASHER; SPRING | 6 | |
| 200 | 4451036 | KIT; SEAL | 1 |
FAQ
(1). Are you a manufacturer or trading company?
We are the professional manufacturer of the Excavator Hydraulic parts,
(2). What’s the accessory for each Outdoor Digital Signage?
Accessory such as : blower or pump, repair kits (including the PVC materials, glue, Etc.) are included;
(3). Your blowers and pumps meet CE/UL requirements?
(4). Yes, Our blowers/pumps have the certifies of CE/UL.
(5). Can we change the size and color for the inflatables we desire ?
Yes, the size and color can be customized according to your request.
