Product Details
Highlight:

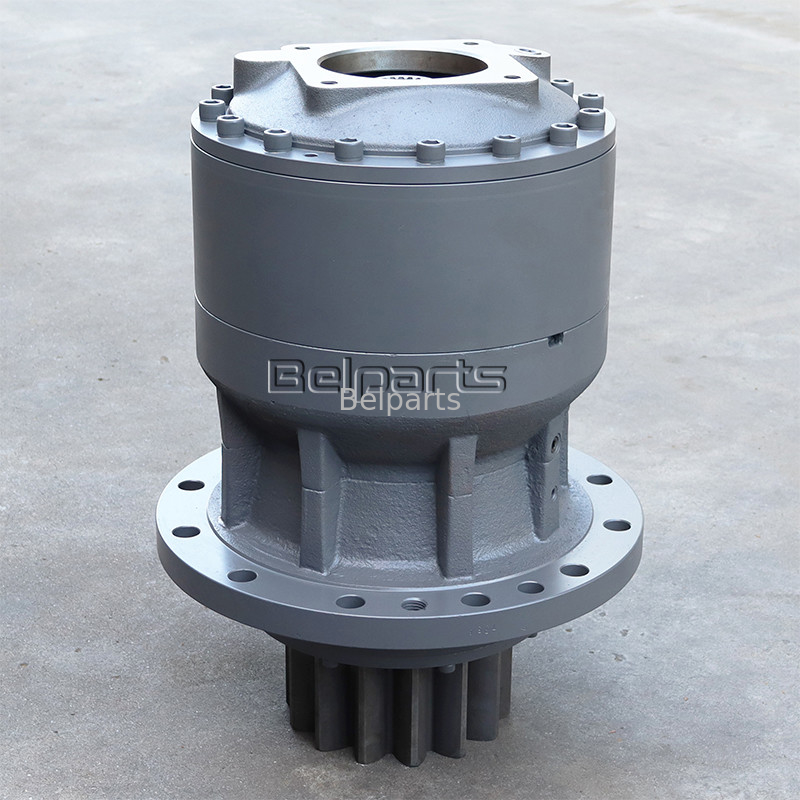

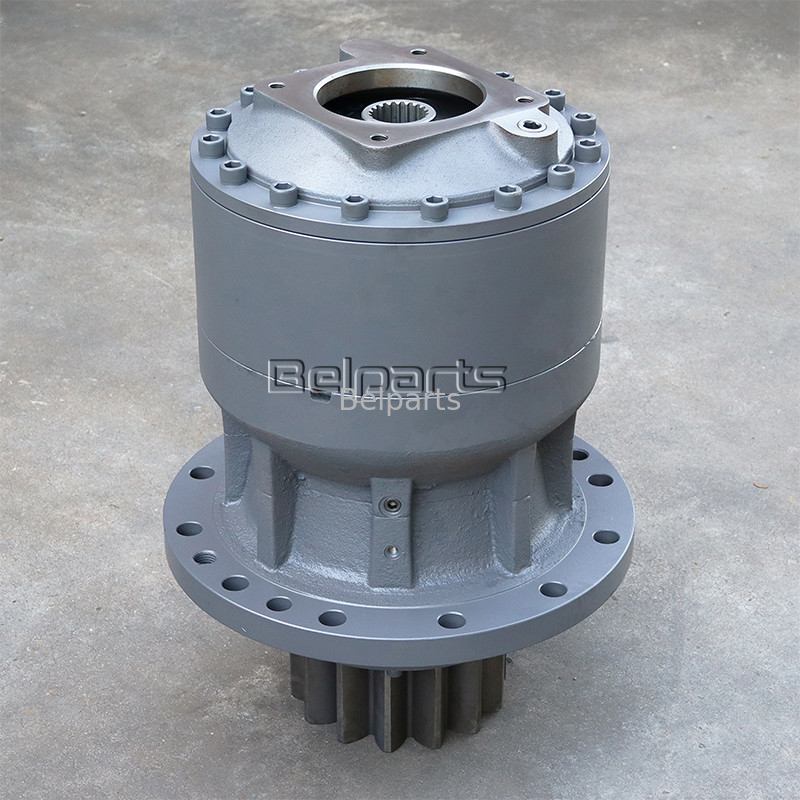

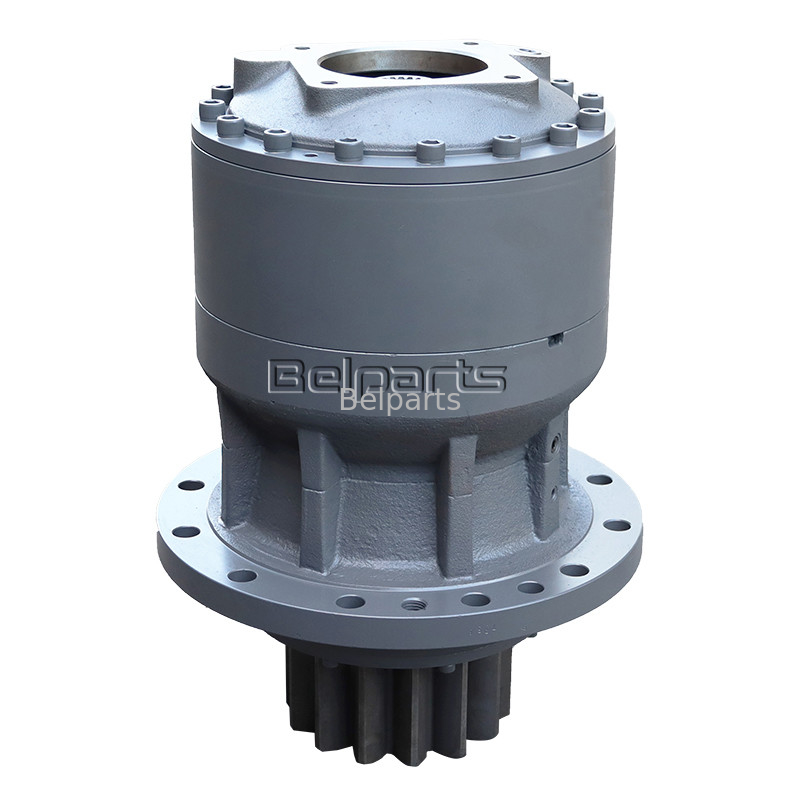

DX420 Swing Gearbox
,Excavator DX380 Swing Gearbox
,404-00095A Swing Reduction Gear
Machine Model:
DX380 DX420
Part Name:
Excavator Swing Gearbox
Brand Name:
Doosan Excavator
Payments:
T/T, PayPal, Trade Assurance
Part Number:
404-00095A
Weight:
320 KG
Packing:
62x62x78
Means Of Transport:
By Sea, Air Or DHL/FEDEX/TNT
Product Description
R290LC-7 HYUNDAI EXCAVATOR HYDRAULIC SWING GEAR 31N8-10181 SWING GEARBOX
Product Paramenters
List of spare parts
| # | Part No | Part Name | Comment | Qty. | Price request |
|---|---|---|---|---|---|
| 7 | 123-00459 | SHAFT FOR PIN NO.2 | 2 kg | 4 | |
| 8 | 110-00228 | BUSH NO.2 | 4 | ||
| 9 | 230-00058 | CARRIER NO.1 | 7 kg | 1 | |
| 10 | 104-00043 | GEAR, SUN NO.1 | 2 kg | 1 | |
| - | 404-00095A | GEAR , SWING REDUCTION | 321 kg | 1 | |
| - | 404-00095B | GEAR , SWING REDUCTION | 321 kg | 1 | |
| 1 | 105-00011 | SHAFT | 38 kg | 1 | |
| 1 | 105-00011A | SHAFT | 43 kg | 1 | |
| 2 | 423-00172 | CASE, GEAR | 31 kg | 1 | |
| 3 | 230-00056 | CARRIER NO.2 | 20 kg | 1 | |
| 3 | 230-00056A | CARRIER NO.2 | 23 kg | 1 | |
| 4 | 104-00039 | GEAR, SUN NO.2 | 5 kg | 1 | |
| 5 | 104-00037 | GEAR, PLANETARY NO.2 | 4 kg | 4 | |
| 6 | 223-00043 | PLATE, SIDE NO.2 | 4 | ||
| 11 | 104-00041 | GEAR, PLANETARY NO.1 | 2 kg | 4 | |
| 12 | 223-00044 | PLATE, SIDE NO.1 | 3 | ||
| 13 | 123-00457 | PIN ASSY NO.1 | 1 kg | 4 | |
| 14 | 104-00040 | GEAR, RING | 37 kg | 1 | |
| 15 | 223-00045 | PLATE, THRUST | 1 | ||
| 16 | 621-02348 | COVER | 16 kg | 1 | |
| 17 | 705-00008 | PIN, LOCK | 1 kg | 4 | |
| 18 | 114-00543 | SPACER | 2 kg | 1 | |
| 19 | 114-00544 | COLLAR | 2 kg | 1 | |
| 20 | 159-00233 | PLATE | 2 kg | 1 | |
| 21 | 278-00090 | RING, LOCKING | 2 kg | 1 | |
| 22 | 109-00168 | BEARING, SPHERICAL ROLLER | 23 kg | 1 | |
| 23 | 109-00169 | BEARING, SPHERICAL ROLLER | 4 kg | 1 | |
| 24 | 180-00472 | SEAL, OIL | 1 | ||
| 25 | S5741361 | PIN, SPRING | 4 | ||
| 26 | S5810030 | PLUG | 1 | ||
| 27 | S5810010 | PLUG | 2 | ||
| 28 | S5810050 | PLUG | 1 | ||
| 29 | 120-00294 | BOLT, SOCKET M16X180 | 16 | ||
| 30 | 140-01343A | PIPE, HYDRAULIC | 1 | ||
| 31 | 119-00020 | BAR, LEVEL | 1 | ||
| 32 | 120-00293 | BOLT, SOCKET M16X40 | 1 kg | 4 | |
| 33 | 223-00046 | PLATE, SIDE NO.3 | 4 | ||
| 34 | S6500400 | RING, RETAINING | 4 | ||
| 35 | 230-00068 | CARRIER NO.1 ASS'Y | 18 kg | 1 | |
| 36 | 230-00065 | CARRIER ASS'Y , NO2 | 40 kg | 1 |
FAQ:
Q: How to guarantee the same?
A: Before sending, I will take pictures. After confirmation, I send.
Q: When to ship?
A: Once getting payment then arrange.
Q: Import customs fee?
A: It depends on import country. I can make lower valve so that you can pay lower customs fee even no need to pay.
Q: How long for transport?
A: For express/ air, it takes about 5 days. For land/ sea, it takes about one month. It depeds on your address.
Q: Product usage?
A; If any problem about usage, I will solve at first time.
