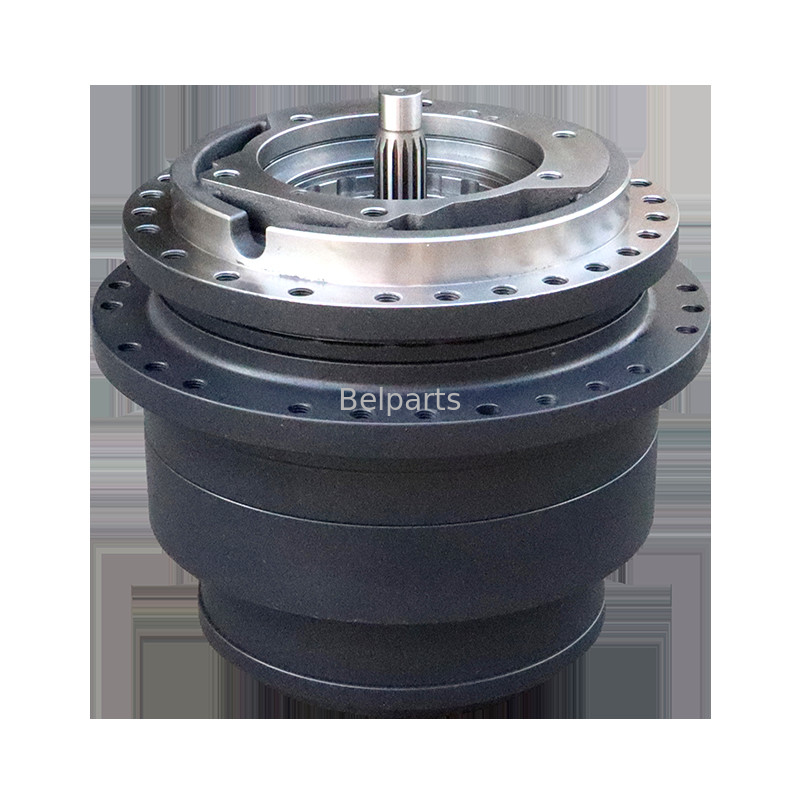

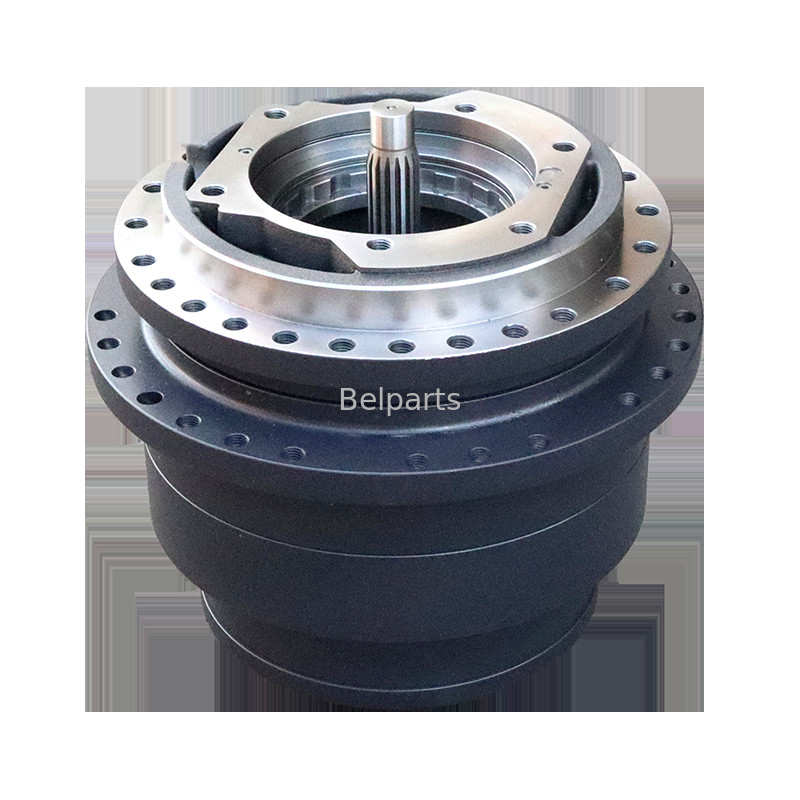

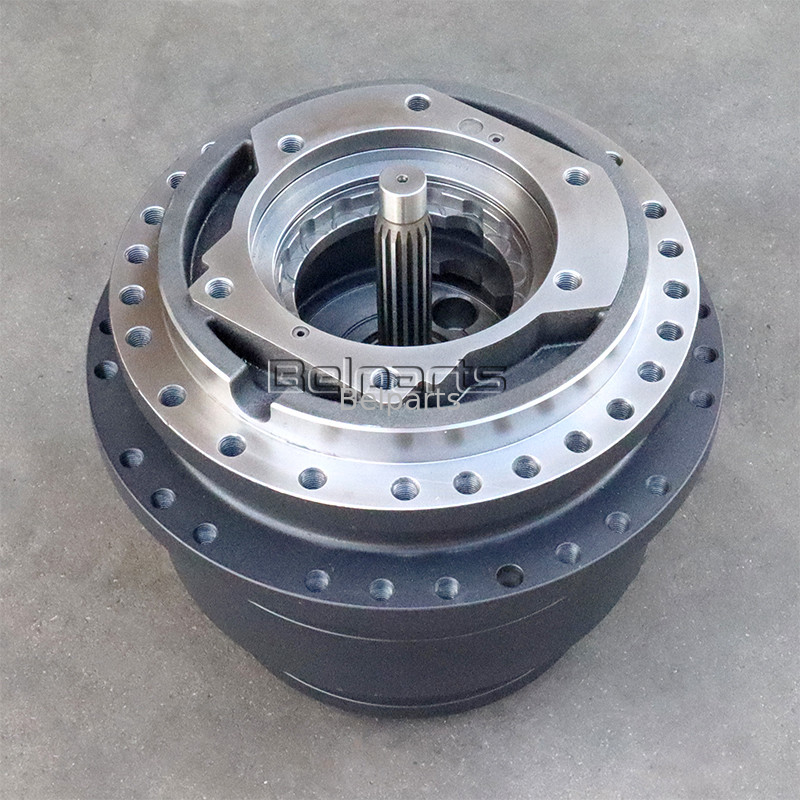

Excavator DX340 R375 Travel Gearbox Travel Reduction Gearbox Doosan K1003134

Place of Origin Made in china
Brand Name Belparts
Model Number DX340 R375
Certifiion OEM
Minimum Order Quantity 1PCS
Price Negotiated price
Packaging Details Wooden case
Delivery Time 1~7 days
Payment Terms T/T,Alibaba trade assurance,PayPal
Supply Ability 1000PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model DX340 R375 Warranty Travel Reduction Gearbox
Weight 310Kg Part Number K1003134
Condition Doosan Color Grey
Texture Steel Packing Wooden Case Or As You Required
High Light

R375 Travel Gearbox

,

Excavator DX340 Travel Gearbox

,

K1003134 Travel Gearbox

Leave a Message
Product Description

325BL Excavator travel gearbox 204-3648 travel reduction gearbox



Product Description


Appliion
Crawler Excavator
Part name
travel gearbox
Model
DX340 R375
Part number
K1003134
Brand
Doosan
Payment term
T/T, paypal, trade assurance or as required
Weight
310Kg





List of spare parts

# Part No Part Name Comment Qty. Price request
- K1003134 TRAVEL REDUCTION GEAR   2
1 104-00035 GEAR, RING 33 kg 1
2 1.402-00129 HOUSING 49 kg 1
4 1.430-00216 COVER, SIDE 12 kg 1
5 1.230-00009 CARRIER NO.1 54 kg 1
6 1.230-00015 CARRIER NO.2 10 kg 1
9 404-00080 GEAR, SUN NO.1 1 kg 1
10 404-00081 GEAR, SUN NO.2 2 kg 1
11 404-00082 GEAR, SUN NO.3 6 kg 1
12 1.403-00061 GEAR, PLANETARY NO.1 1 kg 3
13 1.403-00065 GEAR, PLANETARY NO.2 1 kg 3
14 104-00036 GEAR, PLANETARY NO.3 3 kg 4
16 K9002264 PIN NO.2 1 kg 3
17 123-00285 PIN NO.3 1 kg 4
18 1.412-00121 PLATE, SIDE E   3
19 1.412-00117 PLATE, SIDE A   6
20 412-00038 PLATE, SIDE F   8
21 1.216-00017 CAGE, NEEDLE   3
22 1.216-00015 CAGE, NEEDLE   3
23 1.216-00018 CAGE, NEEDLE   4
24 1.115-00232 RING, INNER   3
25 110-00126 BUSH, FLOATING 1 kg 4
26 114-00347 RING, THRUST 60   2
27 114-00348 RING, THRUST 90   1
29 S2222671 BOLT, SOCKET M16X100   28
30 S2208871 BOLT HEX SOCKET HD CL   12
32 2181-1890D4 PLUG, RECHECK PF1/2 3
33 109-00145 BEARING, ANGULAR 7 kg 2
34 180-00345 SEAL, FLOATING 3 kg 1
35 1.114-00054 SHIM 1.0   1
36 1.123-00081 PIN, SPRING   3
37 S6510420 RING, RETAINING   4
44 S6500450 RING, SNAP   3
45 124-00150 CLIP   1
46 124-00151 CLIPW   1
47 1.115-00248 NUT, RING 3 kg 1
53 1.114-00306 WASHER 1.0t   1
53 K9002676 WASHER 1.5t   1
54 K9006417 SCREW, SET   6
81 1.180-00162 O-RING   1
82 1.180-00163 O-RING   1
83 S8000181 O-RING 1BP18 3
901 1.230-00012 CARRIER NO.1 SUB ASS'Y 9 kg 1
902 1.230-00018 CARRIER NO.2 SUB ASS'Y 17 kg 1

Excavator DX340 R375 Travel Gearbox Travel Reduction Gearbox Doosan K1003134 0







Company Information


GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. Our products have been exported to more than 100 countries and regions.

Excavator DX340 R375 Travel Gearbox Travel Reduction Gearbox Doosan K1003134 1Excavator DX340 R375 Travel Gearbox Travel Reduction Gearbox Doosan K1003134 2Excavator DX340 R375 Travel Gearbox Travel Reduction Gearbox Doosan K1003134 3



Factory Superiority


Excavator DX340 R375 Travel Gearbox Travel Reduction Gearbox Doosan K1003134 4Excavator DX340 R375 Travel Gearbox Travel Reduction Gearbox Doosan K1003134 5Excavator DX340 R375 Travel Gearbox Travel Reduction Gearbox Doosan K1003134 6



Exhibition Stength


In the past few years, in order to sell our products all over the world, we have participated in many exhibitions, such as Beijing Construction Machinery Exhibition in 2017, Shanghai Bauma Exhibition in 2018, German Exhibition in 2019, and we will continue to participate in various exhibitions in the future to let our products go to the world.

Excavator DX340 R375 Travel Gearbox Travel Reduction Gearbox Doosan K1003134 7Excavator DX340 R375 Travel Gearbox Travel Reduction Gearbox Doosan K1003134 8Excavator DX340 R375 Travel Gearbox Travel Reduction Gearbox Doosan K1003134 9



Our advantages


1.Strong part number database.
If you can provide the right model and part number, we can supply the right product.
2.Professional and experienced salesperson.
Our founder has been into this field for more than 7 years, with rich experiences.
3.Strict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
4.Good management system.
No matter how big or small order, as long as customers place the order, we will provide exporting service free for charge.
5.Good service attitude.
If the customer has any questions about the product, In our receiving and knowing the situation, we will help the customer to solve the problem in the first place.As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.

Excavator DX340 R375 Travel Gearbox Travel Reduction Gearbox Doosan K1003134 10



Factory Superiority


Excavator DX340 R375 Travel Gearbox Travel Reduction Gearbox Doosan K1003134 4Excavator DX340 R375 Travel Gearbox Travel Reduction Gearbox Doosan K1003134 12Excavator DX340 R375 Travel Gearbox Travel Reduction Gearbox Doosan K1003134 6



FAQ:


1.What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 1-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
5.How do I pay?
You can pay by T/T,PayPal (for small amount) and Alibaba trade assurance.
