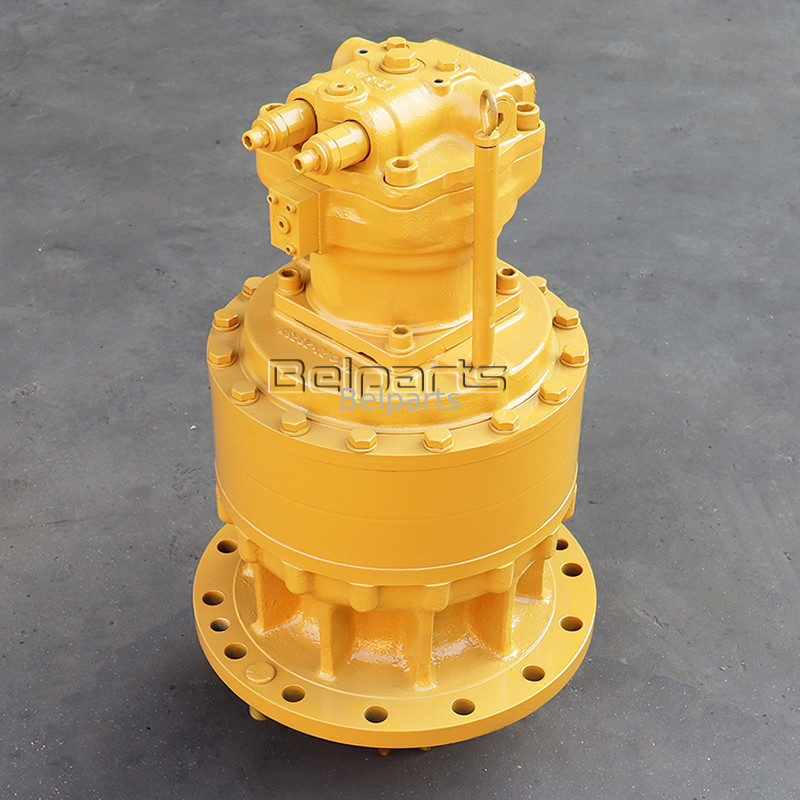

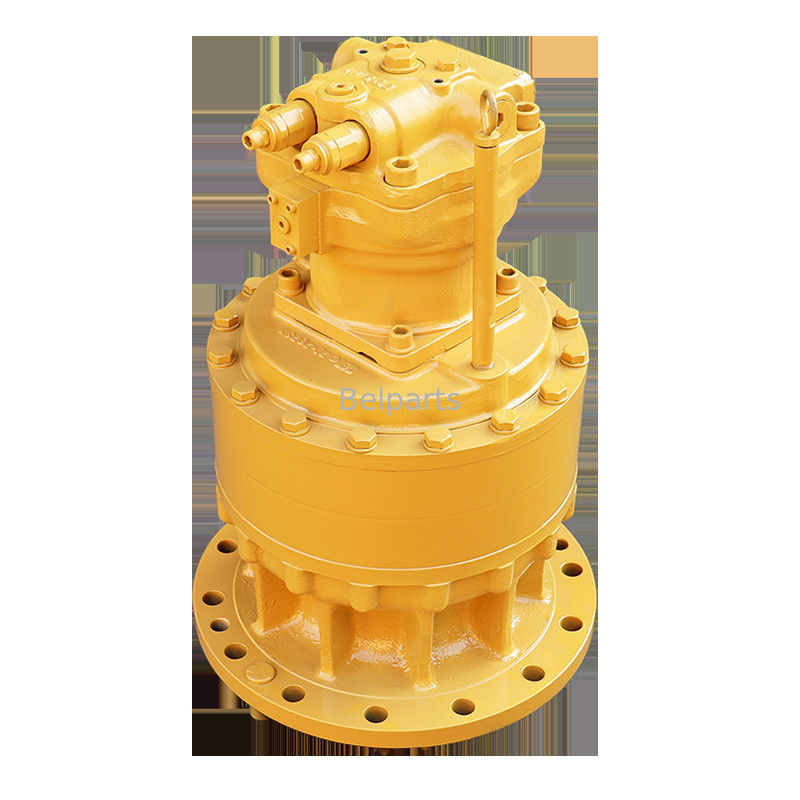

Excavator 325B E325B Swing Motor Assy 184-3829 1843829 M2X170CHB For

Place of Origin:Made in China
Brand Name:Belparts
Model Number:325B E325B
Minimum Order Quantity:1 piece
Price:Negotiable price
Payment Terms:T/T, Paypal and Trade Assurance
Supply Ability:1000pieces
Product Details
Highlight:

E325B Swing Motor Assy

,

184-3829 Swing Motor Assy

,

M2X170CHB Swing Motor Assy

Model Name: Swing Motor Assy
Apply For: Excavator
Machine Model: 325B E325B
Supply Ability: 1000pcs
Brand: Excavator
Port: Huangpu, Guangzhou
Place Of Origin: Made In China
Part Number: 184-3829 1843829 M2X170CHB
Product Description

Excavator 325B E325B swing motor 184-3829 1843829 M2X170CHB for



Appliion

Excavator

Part name

swing motor assy

Brand

Model

325B

Part number

184-3829 1843829 M2X170CHB

Weight

228KG

Delivery

2 days after the payment received

Shipment

by sea, by air, by express, or as required







Part No Part Name Price request
1843829 MOTOR GROUP-PISTON

List of spare parts

# Part No Part Name Qty. Price request
1 2095894 SHAFT 1
2 0874743 STOPPER 2
3 0941399 RING - RETAINING 1
4 7Y4212 BEARING 1
5 0874757 PISTON 2
6 1076969 BODY 1
7 1225114 GUIDE - BALL 1
8 2095909 PLATE (CAM) 1
9 1475860 PISTON AS 1
10 1347134 BARREL AS 1
11 1076954 PLATE (FRICTION) 4
12 1076955 PLATE (SEPARATOR) 5
13 1076972 GUIDE (PISTON) 1
14 1076971 PISTON (BRAKE) 1
15 1076970 HEAD 1
16 8T4944 BOLT - SOCKET HEAD (M16 X X2 X 40 MM) 10
17 1076976 SHIM (1.20-MM THK) 1
18 1076977 SHIM (1.40-MM THK) 1
19 1076978 SHIM (1.60-MM THK) 1
20 1076979 SHIM (1.80-MM THK) 1
21 1076980 SHIM (1.0MM THK) 1
22 1076981 SHIM (0.80-MM THK) 1
23 0965916 SHEET 2
24 2D6642 BALL 6.35 mm(.25 in.)diameter 2
25 0951572 SEAL - O-RING (4.80 MM ID) 2
26 0965919 RING (5.00MM ID) 2
27 0965915 RETAINER 2
28 0964003 BEARING, NEEDLE 1
  7Y4234 RACE (NEEDLE ROLLER) 1
29 0951585 SEAL- -O-RING (17.80 MM ID) 1
30 1373723 VALVE 1
31 0961519 SHEET 1
32 0957380 SPRING 1
33 1373708 RETAINER 1
34 0941875 PIN, ROLLER 1
35 1076974 WASHER SET-BELLEVILLE 1
36 8T6759 PLUG - PIPE (1/16-27 THD) 10
37 0951575 SEAL - O-RING (7.80 MM ID) 3
38 0964378 RING (BACK UP) 1
39 0964377 SEAL - O-RING (190.0 MM ID) 2
40 8T6759 PLUG - PIPE (1/16-27 THD) 1
41 1076986 SEAL-O-RING (152.5MM ID) 1
42 0957383 SEAL-O-RING (ID=174.00mm) 1
43 0957386 RING (175.25MM ID) 1
44 1076987 RING-BACKUP (154.20MM ID) 1
45 0951685 SEAL - O-RING (179.3 MM ID) 1
46 1184057 SPRING 9
47 7Y4215 SPACER 1
48 0951586 SEAL - O-RING (19.80 MM ID) 2
49 7Y4217 RING (20.0MM ID) 2
50 0964376 SEAL (LIP TYPE) 1
51 1232008 KEY 2
52 0874786 ADAPTER 1
53 1211558 PIN 2
54 3K0360 SEAL PILOT MANIFOLD ON SEAL TO BOOM CHECK VALVE DRAIN 1
55 9S4185 PLUG--TO SEAL HYDRAULIC PUMP TO SUMP OF LIMIT SYSTEM 1
56 0951700 SEAL - O-RING (34.40 MM ID) 2
57 7Y4224 ORIFICE 2
58 0963978 SPRING 1
59 7Y4216 SPOOL 1
60 2M9780 SEAL--TO CONNECTOR PUMP OUTLET 1

    AVAILABLE REPAIR KIT(S):
  1076988 KIT-SEAL (TRAVEL MOTOR) 1
    (INCLUDES RINGS, SEAL & O'RING SEALS)
    USE AS REQUIRED
    KIT MARKED J SERVICES PARTS MARKED J
    METRIC PART
