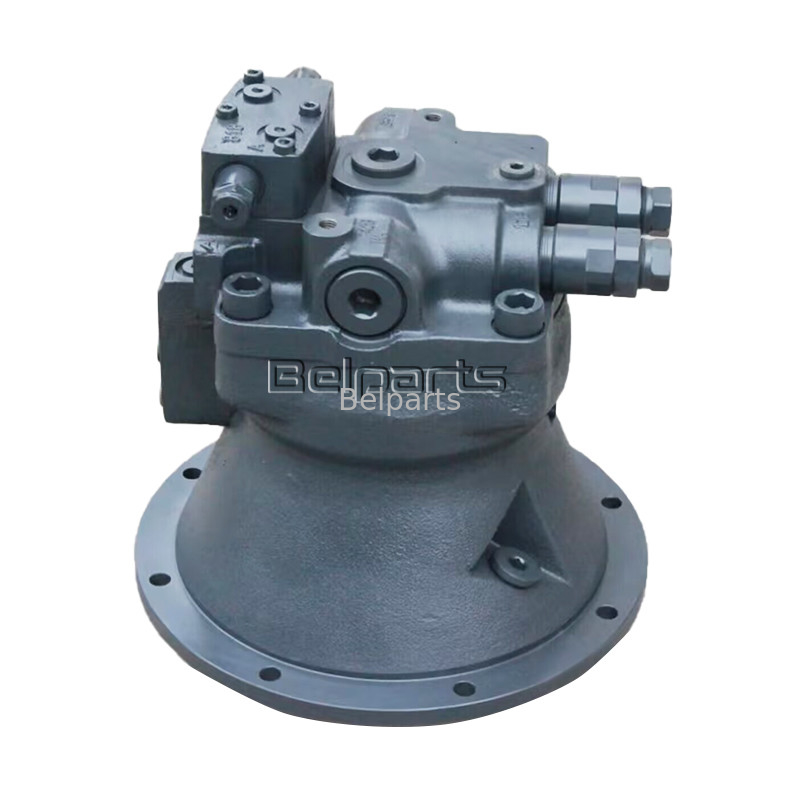

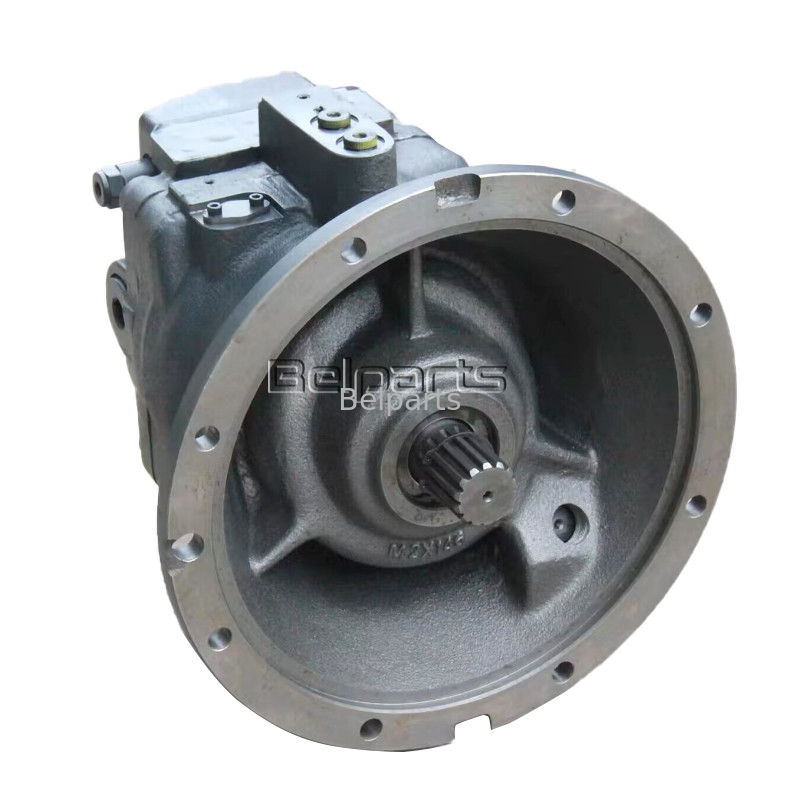

Excavator JS260 JCB Swing Motor Assy Swing Device 20925266 Motor Swing

Brand Name Belparts
Model Number JS260
Certifiion OEM
Minimum Order Quantity 1 piece
Price Negotiable price
Packaging Details Wooden packing
Delivery Time 1-7days
Payment Terms T/T, Paypal and Alibaba Trade Assurance

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin Guangdong, China Supply Ability 1000pcs
Model Name JS260 Usage JCB Crawler Excavator
Payments T/T, PayPal, Alibaba Trade Assurance Weigtht 71KG
Port Huangpu, Guangzhou Part Number 20925266
High Light

JS260 Swing Motor Assy

,

20925266 Swing Motor Assy

Leave a Message
Product Description

Excavator JS260 JCB swing motor swing device 20925266



Appliion

Excavator

Part name

JCB swing motor

Material

Steel

Model

JS260

Part number

20925266

Weight

71KG

Delivery

2 days after the payment received

Shipment

by sea, by air, by express, or as required





List of spare parts

# Part No Part Name Qty. Price request
3 20/950990 Ring, snap 1
47 828/10221 Seal, O ring 2
A 20/925266 Motor, swing 1
49 N.S.P. None serviced part 1
8 N.S.P. None serviced part 1
18 N.S.P. None serviced part 1
40 20/951512 Bearing, roller 1
51 20/951500 Valve, swing, reactionless 2
6 20/951525 Retainer 1
48 20/951514 Screw, hexagon head 4
14 N.S.P. None serviced part 1
15 20/951501 Valve, relief, assembly 1
31 20/951531 O Ring 1
29 20/951506 Spring, brake 16
2 20/951517 Cover, seal 1
54 20/951534 Casing, valve, swing reactionless 1
20 N.S.P. None serviced part 1
45 20/951516 Plunger, h2 2
17 N.S.P. None serviced part 1
28 N.S.P. None serviced part 1
42 20/951510 Plug 2
36 LBQ0112 O Ring 1
34 20/951504 Plate, separator 4
57 20/951530 Piston, assembly 1
53 828/10228 Seal, O ring 2
37 20/951523 Rod, push 12
12 20/951526 Cylinder 1
32 20/951532 O Ring, seal 1
5 20/951518 Casing, b1 1
22 20/951519 Plate, valve 1
55 20/951502 Seal, kit, assembly 1
10 N.S.P. None serviced part 1
41 20/951533 Seal, oil 1
4 20/951527 Spacer, bearing 1
25 20/951511 Bearing, roller 1
50 N.S.P. None serviced part 1
39 20/951522 Spacer 3
33 20/951505 Plate, friction 3
52 20/951068 Ring, back up 2
35 20/950858 Plug 1
44 20/951515 Spring, h2 2
19 N.S.P. None serviced part 1
1 20/951528 Shaft, drive 1
16 N.S.P. None serviced part 1
13 20/951509 O Ring 1
30 20/951507 Piston, brake 1
43 20/951508 O Ring 2
56 20/951529 Valve, casing, assembly 1
7 20/951520 Plate, shoe 1
27 20/951524 Spring, cylinder 1
46 20/951503 Valve, relief 2
26 20/951513 Ring, snap 1
23 20/951522 Spacer 3
9 20/951521 Plate, set 1
