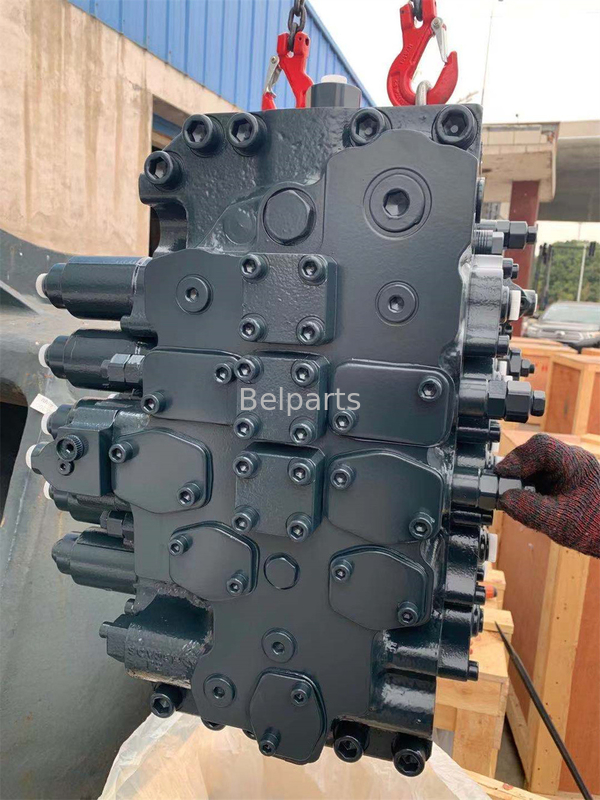

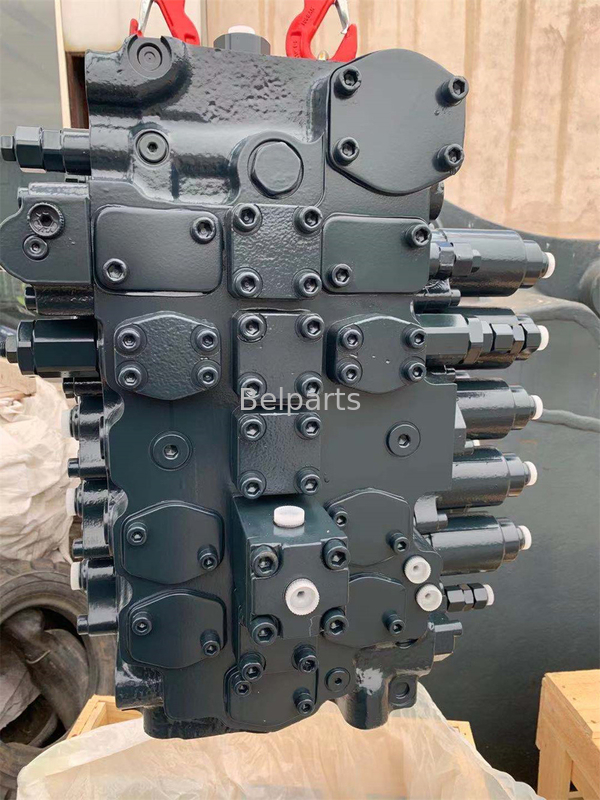

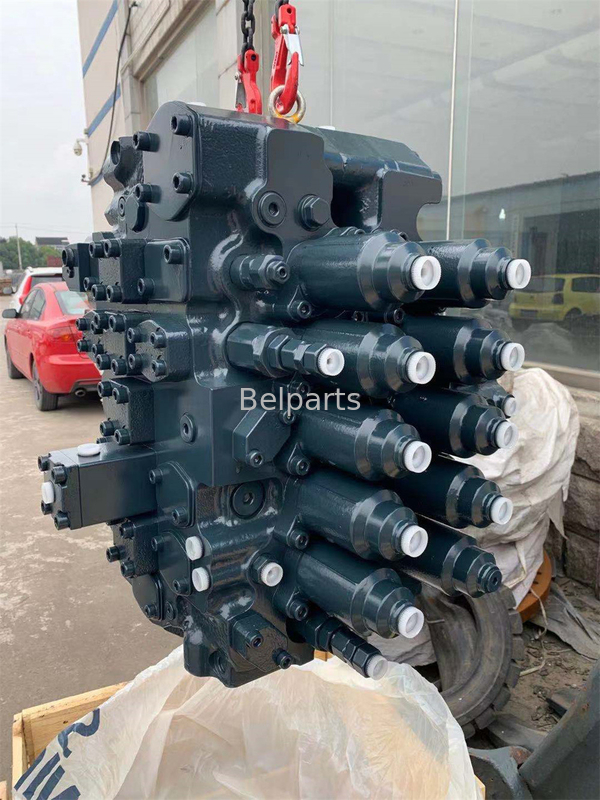

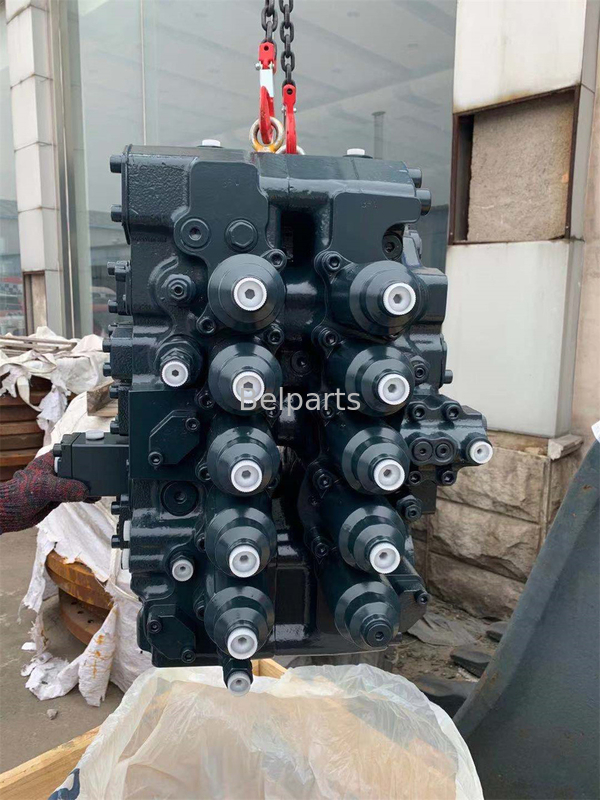

R520-9 Excavator Hydraulic Control Valve For Hyundai 31QB-17100 Main Control Valve

  • R520-9 Excavator Hydraulic Control Valve For Hyundai 31QB-17100 Main Control Valve
  • R520-9 Excavator Hydraulic Control Valve For Hyundai 31QB-17100 Main Control Valve
  • R520-9 Excavator Hydraulic Control Valve For Hyundai 31QB-17100 Main Control Valve
  • R520-9 Excavator Hydraulic Control Valve For Hyundai 31QB-17100 Main Control Valve
  • R520-9 Excavator Hydraulic Control Valve For Hyundai 31QB-17100 Main Control Valve
  • R520-9 Excavator Hydraulic Control Valve For Hyundai 31QB-17100 Main Control Valve
Place of Origin Made in china
Brand Name Belparts
Model Number R520-9
Certifiion OEM
Minimum Order Quantity 1PCS
Price Negotiated price
Packaging Details Wooden case
Delivery Time 1~3 days
Payment Terms T/T,Alibaba trade assurance,PayPal
Supply Ability 1000PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model R520-9 Brand Hyundai
MOQ 1PCS Part Name Control Valve
Packing 110*120*99 Textures Steel
Part Number 31QB-17100 Weight 230Kg
High Light

R520-9 Excavator Hydraulic Control Valve

,

31QB-17100 Hydraulic Control Valve

,

31QB-17100 Main Control Valve
Leave a Message
Product Description

R520-9 Excavator Hydraulic Control Valve for hyundai 31QB-17100 Main Control Valve

Product Description





Part number
31QB-17100
Type Model
main Control Valve
Machine model  R520-9
Apply for  Crawler excavator
Weight 230KG
MOQ
1PCS
Warranty
6-12 Months

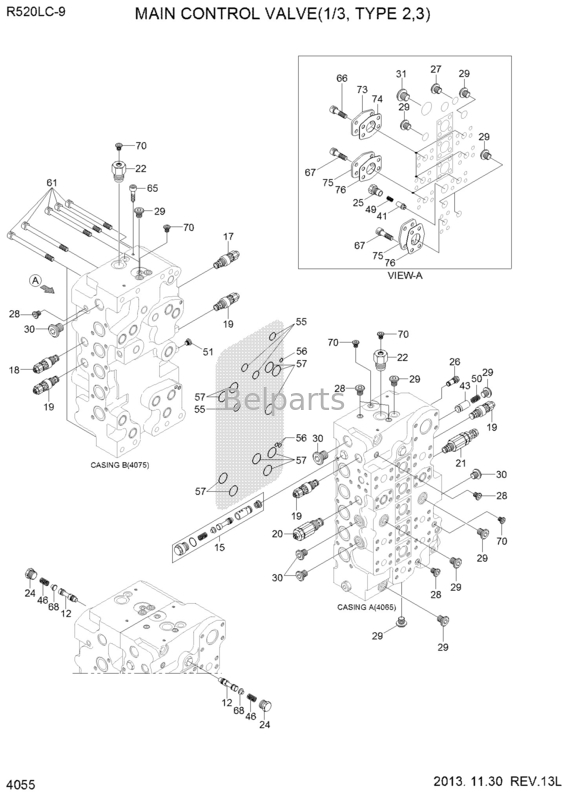

Parts on group MAIN CONTROL VALVE (1/3, TYPE 2,3):

Pos. Part No Qty Parts name Comments
*. 31QB-17000 [1] MAIN CONTROL VALVE TYPE 2
*. 31QB-17100 [1] MAIN CONTROL VALVE TYPE 3
12. 31QB-17720 [1] SPOOL KIT-BYPASS CUT1
15. 31QB-17810 [1] ARM REGEN CUT ASSY TYPE 2
15. 31QA-17811 [1] ARM REGEN CUT ASSY TYPE 3
17. 31QB-17740 [1] PORT RELIEF VALVE
17. 31QB-17740K [1] PORT RELIEF VALVE
18. 31QB-17750 [1] PORT RELIEF VALVE
18. 31QB-17750K [1] PORT RELIEF VALVE
19. 31QB-17760 [4] PORT RELIEF VALVE
19. 31QB-17760K [4] PORT RELIEF VALVE
20. 31QB-17780 [1] PORT RELIEF VALVE
20. 31QB-17780K [1] PORT RELIEF VALVE ASSY
21. 31QB-17790 [1] PORT RELIEF VALVE
22. 31QB-17800 [2] RELIEF VALVE-NEGACON
24. 31QB-17930 [2] PLUG ASSY-BY PASS
25. 31QB-17940 [1] PLUG
26. 31QB-17920 [1] PLUG
27. 31N8-17550 [1] PLUG
28. 31N4-18090 [5] PLUG
29. 31N8-17500 [11] PLUG
30. 31N4-18080 [5] PLUG
31. 31N8-17540 [1] PLUG
41. 31QB-18660 [1] POPPET
43. 31QB-18680 [1] POPPET
46. 31QB-18240 [2] SPRING
49. 31QB-18720 [1] SPRING
50. 31QB-18730 [1] SPRING
51. 31N8-18680 [1] PLUG
55. S631-022004 [4] O-RING
56. S631-010004 [3] O-RING
57. S631-030004 [10] O-RING
61. S109-201806 [10] BOLT-SOCKET
65. S109-120206 [4] BOLT-SOCKET
66. S107-120154 [16] BOLT-SOCKET
67. S107-100154 [12] BOLT-SOCKET
68. 31QB-18360 [2] SPRING SEAT-BC
70. 31N8-19460 [5] CAP-DUST
73. 31QB-19620 [4] COVER 1-1/4
74. 31QB-19630 [4] GASKET 1-1/4
75. 31QB-19640 [3] COVER 1
76. 31QB-19650 [3] GASKET 1



R520-9 Excavator Hydraulic Control Valve For Hyundai 31QB-17100 Main Control Valve 0R520-9 Excavator Hydraulic Control Valve For Hyundai 31QB-17100 Main Control Valve 1
