R320LC-7 Excavator Spare Parts Main Control Valve For Hyundai 31N9-10110
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | R320LC-7 | Part Name | Excavator Control Valve |
|---|---|---|---|
| Packing | 58*54*68 | Textures | Steel |
| Part Number | 31N9-10110 | Weight | 280Kg |
| High Light | R320LC-7 Main Control Valve,Main Control Valve 31N9-10110,R320LC-7 Excavator Control Valve |
||
Product Description

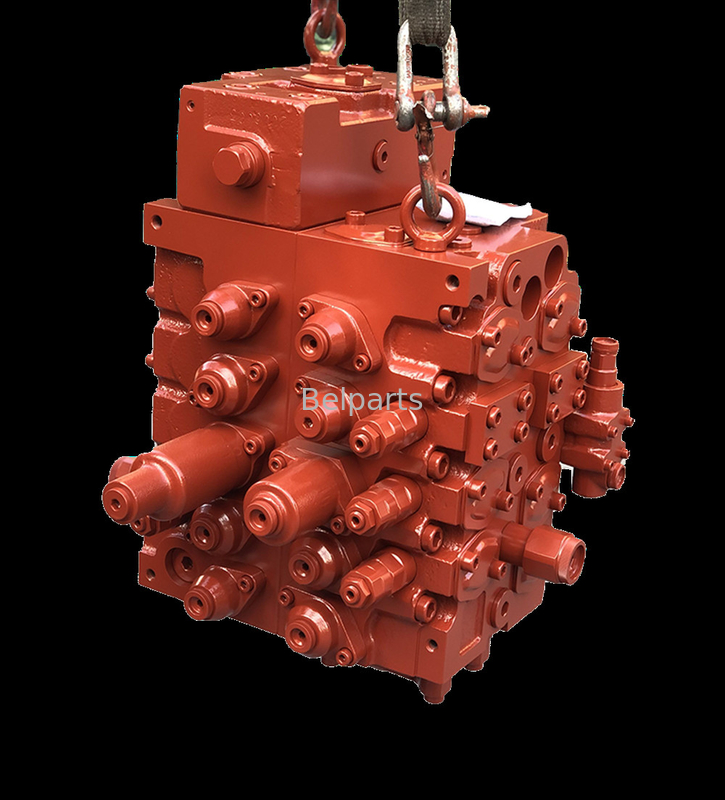

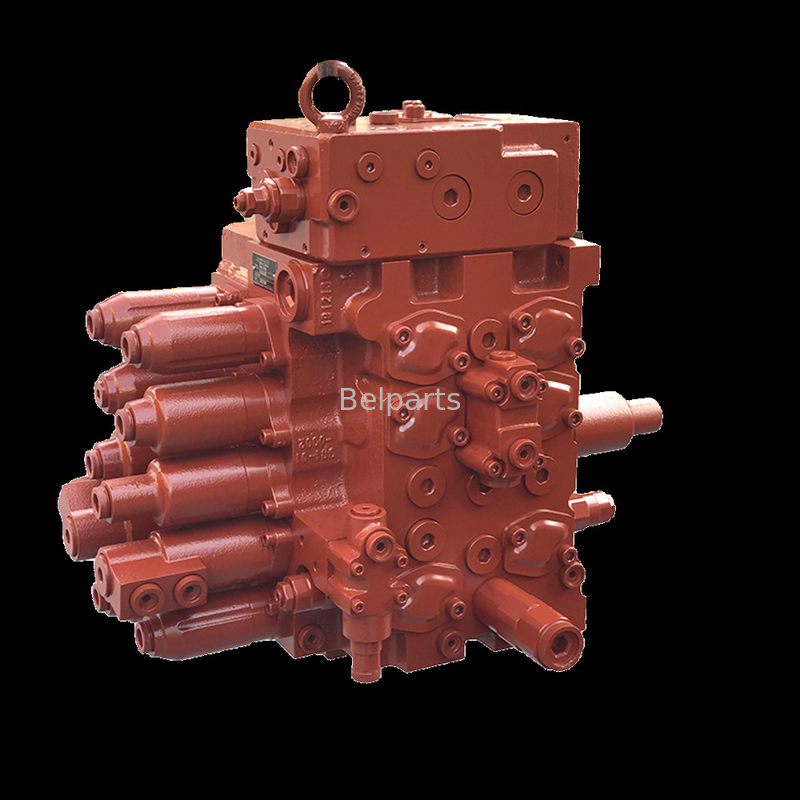

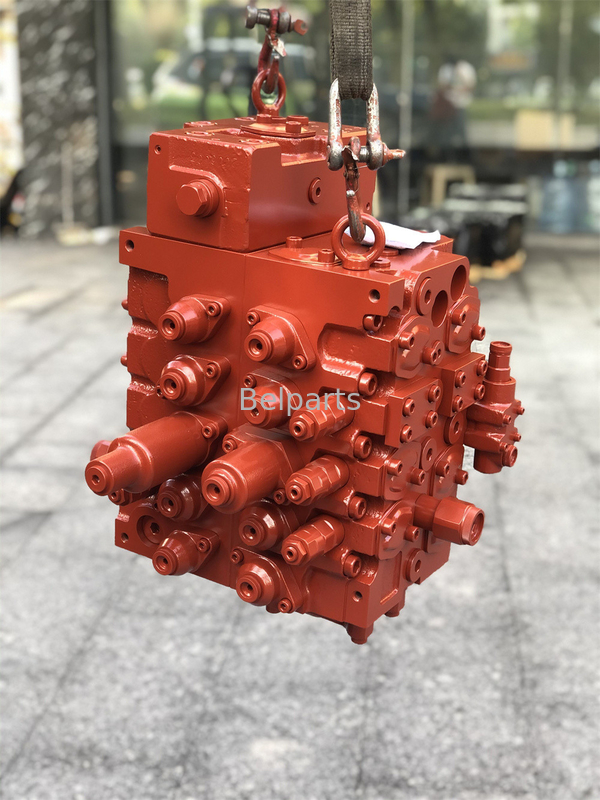

R320LC-7 Excavator Spare Parts Main Control Valve for hyundai 31N9-10110
Product Description
Parts on group MAIN CONTROL VALVE(1/5, TYPE 1):
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31N9-10110 | [1] | MAIN CONTROL VALVE | |
| N101. | XJBN-00242 | [1] | CASING-A | |
| N102. | XJBN-00241 | [1] | CASING-B | |
| N103. | XJBN-00646 | [1] | BLOCK | |
| N104. | XJBN-00647 | [1] | BLOCK | |
| 165. | XJBN-00232 | [5] | O-RING | |
| 166. | XJBN-00231 | [3] | O-RING | |
| 167. | XJBN-00374 | [2] | O-RING | |
| 168. | XJBN-00283 | [1] | O-RING | |
| 251. | XJBN-00226 | [1] | VALVE-CONTROL | |
| 252. | XJBN-00225 | [2] | VALVE-LOCK | |
| 254. | XJBN-00214 | [1] | VALVE-LOGIC | |
| 266. | XJBN-00281 | [4] | O-RING | |
| 324. | XJBN-00199 | [1] | SPRING | |
| 325. | XJBN-00198 | [1] | SPRING | |
| 338. | XJBN-00188 | [1] | STOPPER | |
| 357. | XJBN-00186 | [3] | ORIFICE | |
| 391. | XJBN-00249 | [1] | SPOOL-TRAVEL | |
| 401. | XJBN-00652 | [1] | SPOOL | |
| 424. | XJBN-00175 | [1] | SPRING | |
| 425. | XJBN-00174 | [1] | SPRING | |
| 438. | XJBN-00173 | [1] | ROD | |
| 511. | XJBN-00172 | [3] | POPPET | |
| 521. | XJBN-00169 | [3] | SPRING | |
| 551. | XJBN-00167 | [4] | PLUG | |
| 561. | XJBN-00363 | [4] | O-RING | |
| 601. | XJBN-00653 | [1] | MAIN RELIEF VALVE | |
| 602. | XJBN-00162 | [1] | PORT RELIEF VALVE | |
| 974. | XJBN-00159 | [5] | SCREW-SOCKET | |
| 980. | XJBN-00362 | [1] | O-RING | |
| 981. | XJBN-00363 | [2] | O-RING | |
| 982. | XJBN-01017 | [1] | O-RING | |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
FAQ:
1.What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 1-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
5.How do I pay?
You can pay by T/T,PayPal (for small amount) and Alibaba trade assurance.
