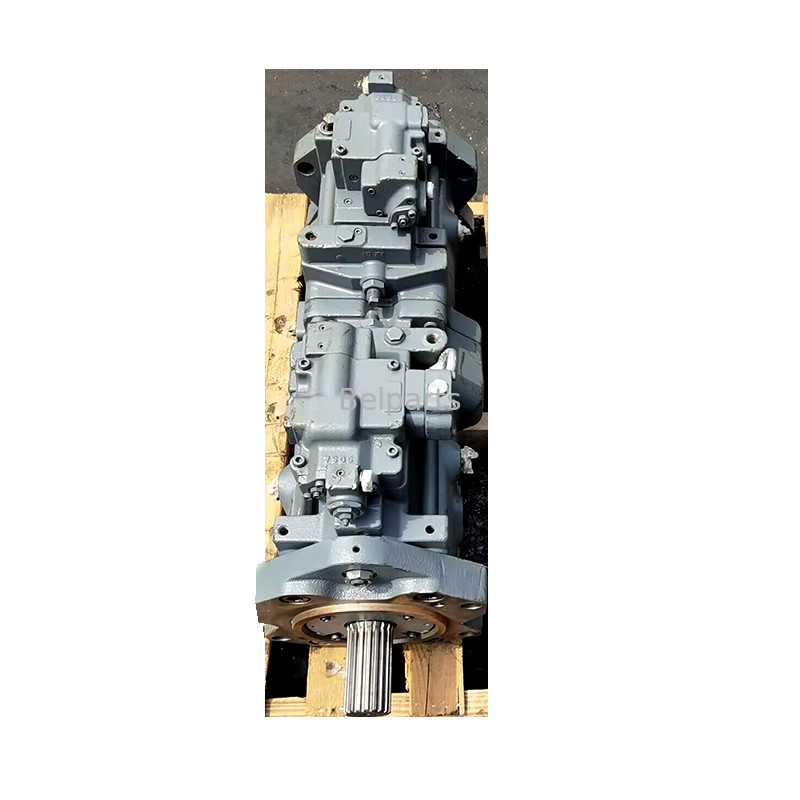

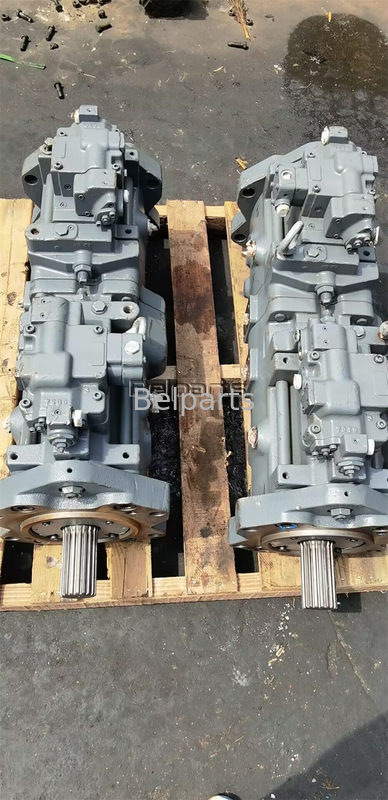

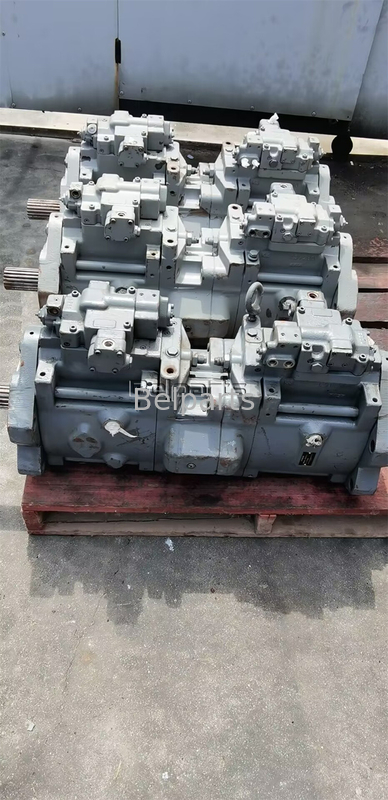

Belparts Excavator Hydraulic Pump EX3600-5 K3V280 For Hitachi Main Hydraulic Pump 4426856 4624104
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Part Name | Hydraulic Pump/Main Pump | Packing | Wooden Case Or As You Required |
|---|---|---|---|
| MOQ | 1PCS | Model | EX3600-5 K3V280 |
| Part No. | 4426856 4624104 | Condition | 100% New |
| Quality | High Quality | ||
| High Light | EX3600-5 Excavator Hydraulic Pump,K3V280 Excavator Hydraulic Pump,4624104 Excavator Hydraulic Pump |
||
Product Description
Belparts excavator hydraulic pump EX3600-5 K3V280 for hitachi main hydraulic pump 4426856 4624104
Product Description
|
Product Name:
|
Hydraulic Main Pump
|
|
Model:
|
EX3600-5 K3V280 |
|
Part Number:
|
4426856 4624104 |
|
MOQ:
|
1 PIECE
|
|
Packing:
|
Standard Exporting Wooden Case
|
|
Delivery time:
|
Within 2 days After full Payment
|
Product Name:Hydraulic Main Pump
Model: EX3600-5 K3V280
Part Number:4426856 4624104
Pump Number:/
MOQ:1 PIECE
Packing:Standard Exporting Wooden Case
Delivery time:Within 2 days After full Payment
| # | Part No | Part Name | Qty. | Price request |
| 4426856 | PUMP; PISTON | 1 | ||
| 011 | 0718001 | . PISTON ASS'Y | 2 | |
| 011A | .. PISTON | 9 | ||
| 011B | .. SHOE | 9 | ||
| 013 | 0703001 | . CYL. ASS'Y | 1 | |
| 013A | .. BLOCK; CYL. | 1 | ||
| 013B | .. PLATE; VALVE | 1 | ||
| 014 | 0703002 | . CYL. ASS'Y | 1 | |
| 014A | .. BLOCK; CYL. | 1 | ||
| 014B | .. PLATE; VALVE | 1 | ||
| 030 | 0716801 | . PLATE ASS'Y | 2 | |
| 030A | .. PLATE | 1 | ||
| 030B | .. BUSHING | 1 | ||
| 111 | 0703006 | . SHAFT | 1 | |
| 113 | 0770001 | . SHAFT | 1 | |
| 114 | 0703008 | . COUPLING | 1 | |
| 123 | 0682302 | . BRG.; ROL. | 2 | |
| 124 | 0682303 | . BRG.; NEEDLE | 2 | |
| 127 | 0339809 | . SPACER | 4 | |
| 130 | 0703010 | . BOOSTER | 1 | |
| 153 | 0718002 | . RETAINER | 2 | |
| 156 | 0682306 | . BUSHING | 2 | |
| 157 | 0682307 | . SPRING | 18 | |
| 158 | 0682308 | . SPACER | 2 | |
| 211 | 0682309 | . PLATE | 2 | |
| 251 | 0737001 | . SUPPORT | 2 | |
| 253 | 0738101 | . WASHER | 8 | |
| 261 | 0682311 | . COVER | 1 | |
| 263 | 0770002 | . COVER | 1 | |
| 264 | 0770003 | . COVER | 1 | |
| 271 | 0682313 | . CASING | 2 | |
| 311 | 0703014 | . COVER; VALVE | 1 | |
| 312 | 0703015 | . COVER; VALVE | 1 | |
| 401 | 0682316 | . BOLT; SOCKET | 4 | |
| 402 | 0703016 | . BOLT; SOCKET | 4 | |
| 406 | M340820 | . BOLT; SOCKET | 4 | |
| 407 | 0135602 | . BOLT; SOCKET | 4 | |
| 409 | 0121812 | . BOLT; SOCKET | 2 | |
| 466 | 0236014 | . PLUG | 2 | |
| 468 | 0175233 | . PLUG | 4 | |
| 490 | 0263019 | . PLUG | 31 | |
| 491 | 0451027 | . SCREW | 4 | |
| 492 | 0451028 | . PLUG | 5 | |
| 530 | 0703017 | . PIN ASS'Y | 2 | |
| 530A | .. PIN | 1 | ||
| 530B | .. PIN | 1 | ||
| 532 | 0682318 | . PISTON; SERVO | 2 | |
| 534 | 0682319 | . STOPPER | 2 | |
| 535 | 0682320 | . STOPPER | 2 | |
| 702 | 4292386 | . O-RING | 2 | |
| 706 | 0703018 | . O-RING | 1 | |
| 708 | 0451041 | . O-RING | 1 | |
| 710 | 0682321 | . O-RING | 2 | |
| 717 | 0682322 | . O-RING | 4 | |
| 718 | 0703019 | . O-RING | 1 | |
| 724 | 0443801 | . O-RING | 19 | |
| 725 | 4297379 | . O-RING | 2 | |
| 728 | 0443408 | . O-RING | 4 | |
| 732 | 0682324 | . O-RING | 2 | |
| 774 | 0682325 | . SEAL; OIL | 1 | |
| 789 | 0694503 | . RING; BACK-UP | 2 | |
| 792 | 0682327 | . RING; BACK-UP | 2 | |
| 808 | 0451038 | . NUT | 4 | |
| 824 | 960323 | . RING; RETAINING | 2 | |
| 885 | 0313404 | . PIN | 2 | |
| 886 | 4144353 | . PIN; SPRING | 5 | |
| 901 | 0177612 | . BOLT; EYE | 2 | |
| 953 | 0339847 | . SCREW | 2 | |
| 954 | 0682328 | . SCREW; SET | 2 | |
| 981 | 0625508 | . NAME-PLATE | 1 | |
| 983 | 0625509 | . PIN | 2 | |
| 990 | 4444266 | . REGULATOR ..REGULATOR (1/3) ..REGULATOR (2/3) ..REGULATOR (3/3) | 2 | |
| 1000 | 4620702 | KIT; SEAL | 1 |
Company Information
GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. Our products have been exported to more than 100 countries and regions.
Exhibition Strength
In the past few years, in order to sell our products all over the world, we have participated in many exhibitions, such as Beijing Construction Machinery Exhibition in 2017, Shanghai Bauma Exhibition in 2018, German Exhibition in 2019, and we will continue to participate in various exhibitions in the future to let our products go to the world.
Delivery
Hot products
Factory Superiority
Service
1) Material: All our products are used high quality genuiner raw material.
2) Inspection: We make a very strict inspection process before delivery.
3) Inventory: We have about 1000 pieces in stock, can provide you at once.
4) Price: We have steady in stock and we can offer competitive price.
FAQ
1.What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts,
hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
