20Y-27-00018 Travel Motor Assy
,Pc200-5 Travel Motor Assy
,20Y-27-00019 Final Drive

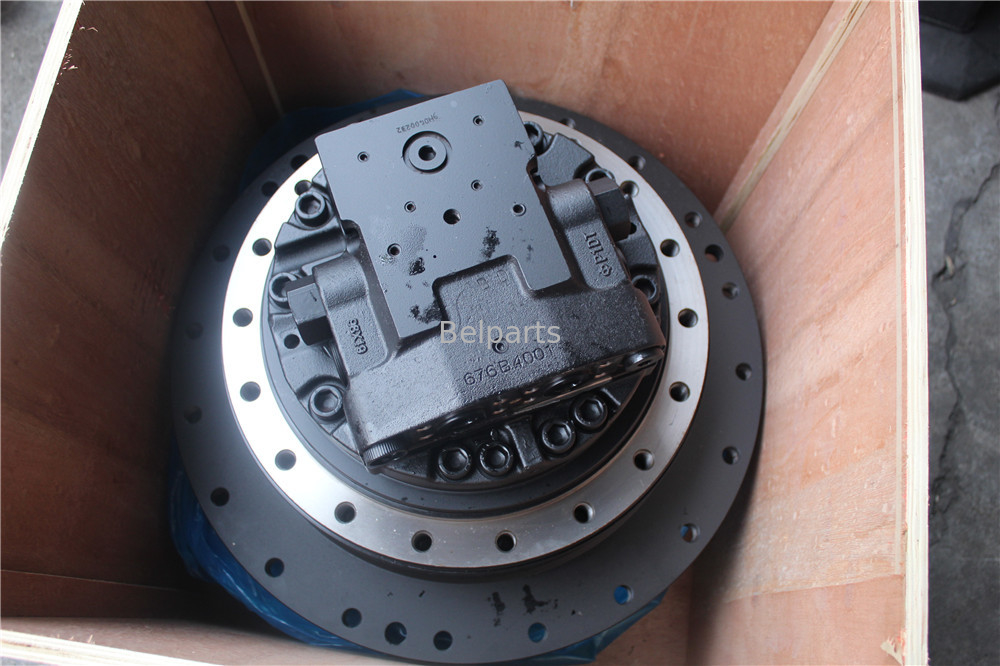

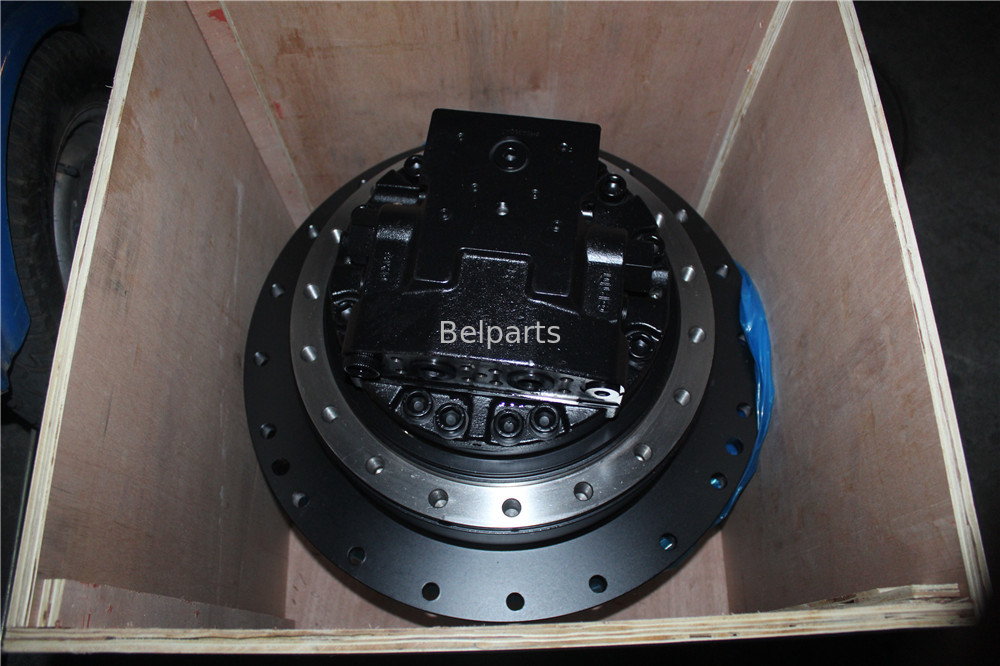

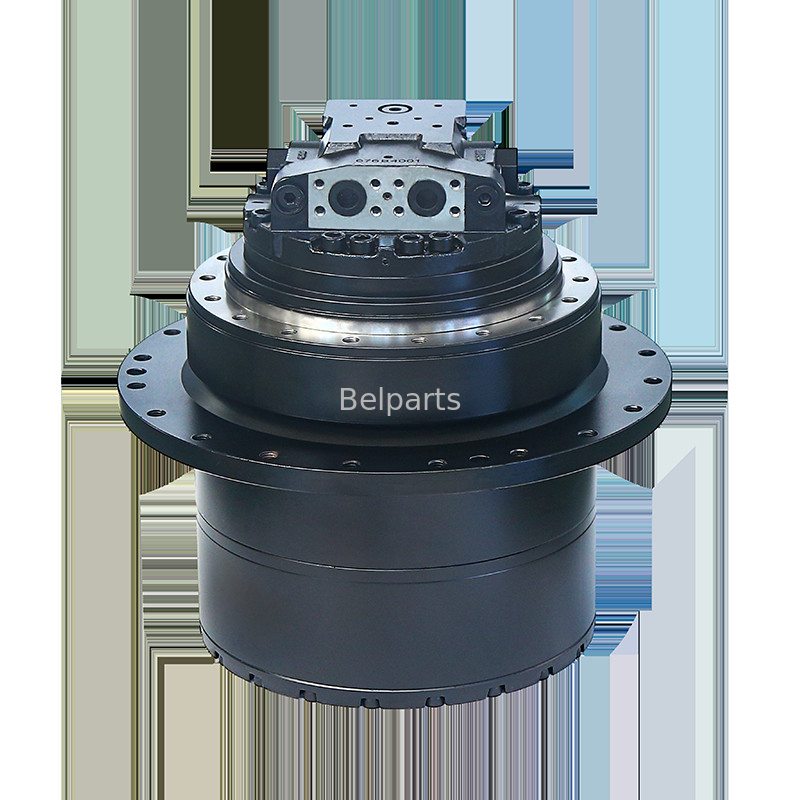

Belparts Excavator Travel Motor Assy Final Drive pc200-5 repair kit 20Y-27-00019 20Y-27-00018
Appliion:Excavator machine
Part name:travelling motors assy
Model:pc200-5
Package:56*54*67
Warranty:1 Year
Brand:Belparts
Delivery:2 days after the payment received
Shipment:by sea, by air, by express or as required
|
Appliion |
Crawler Excavator |
|
Part name |
final drive |
|
Part number |
20Y-27-00019 20Y-27-00018 |
|
Model |
pc200-5 |
|
MOQ |
1PC |
|
Brand |
Belparts |
|
Delivery |
2 days after the payment received |
|
Shipment |
by sea, by air, by express, or as required |
| # | Part No | Part Name | Qty. | Price request |
| 1 | (20Y-27-00019) | FINAL DRIVE ASS'Y | 2 | |
| 1 | 20Y-27-00018 | FINAL DRIVE ASS'Y | 2 | |
| 1 | 20Y-27-00016 | FINAL DRIVE ASS'Y | 2 | |
| 1 | (20Y-27-00015) | FINAL DRIVE ASS'Y | 2 | |
| 1 | (20Y-27-00014) | FINAL DRIVE ASS'Y | 2 | |
| 1 | (20Y-27-00013) | FINAL DRIVE ASS'Y | 2 | |
| 1 | 20Y-27-00012 | FINAL DRIVE ASS'Y | 2 | |
| (20Y-27-00013(2)) | ||||
| 1 | 20Y-27-00011 | FINAL DRIVE ASS'Y | 2 | |
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.3351 AND 6431 TO 6433 | ||||
| 1 | 708-8H-00071 | TRAVEL MOTOR ASS'Y | 1 | |
| 1 | 708-8H-00070 | MOTOR ASS'Y,TRAVEL | 1 | |
| 1 | 708-8H-00031 | MOTOR ASS'Y | 1 | |
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6431 TO 6433 | ||||
| 1 | (*708-8H-04112) | CASE ASS'Y | 1 | |
| 1 | 708-8H-04111 | CASE ASS'Y | 1 | |
| 1 | CASE | 1 | ||
| 1 | CASE | 1 | ||
| 2 | Plug | 2 | ||
| 3 | (*708-8H-04123) | END COVER ASS'Y | 1 | |
| 3 | (*708-8H-04122) | END COVER ASS'Y | 1 | |
| 3 | (*708-8H-04121) | END COVER ASS'Y | 1 | |
| 3 | END,COVER | 1 | ||
| 3 | END,COVER | 1 | ||
| 4 | Spool | 1 | ||
| 5 | Spool | 1 | ||
| 5 | Spool | 1 | ||
| 6 | Plug | 17 | ||
| 7 | 708-8H-14211 | Plate | 1 | |
| 8 | 706-8E-14170 | Spring | 1 | |
| 9 | 706-8E-14190 | Plug | 1 | |
| 10 | 07002-11823 | O-RING,(FOR 2ND TRAVEL SPEED) (OP) | 1 | |
| 11 | 04260-00793 | BALL,STEEL | 2 | |
| 12 | 706-8E-14110 | Plug | 2 | |
| 13 | 07002-11023 | O-RING,(F4350-66A1 -1C ) | 2 | |
| 14 | (*07000-05220) | O-ring | 1 | |
| 15 | (*04020-01024) | PIN,DOWEL (ITL) | 2 | |
| 16 | (*708-18-13230) | Pin | 1 | |
| 17 | (*07000-12012) | O-RING (ITL) | 3 | |
| 18 | (*708-8H-11210) | Bolt | 4 | |
| 19 | (*708-8H-11220) | Bolt | 4 | |
| 20 | (*708-8H-11260) | Washer | 8 | |
| 21 | 708-8H-11530 | Plug | 4 | |
| 22 | 07002-11423 | O-RING,(FOR 2ND TRAVEL SPEED) (OP) | 4 | |
| 23 | 708-8H-16120 | Retainer | 2 | |
| 24 | 708-8H-16160 | Spring | 2 | |
| 25 | 708-8H-16141 | Plug | 2 | |
| 25 | 708-8H-16140 | Plug | 2 | |
| 26 | 07002-13634 | O-RING,SEE FIG. K4010-65A0 | 2 | |
| 27 | 706-75-74231 | Valve | 2 | |
| 28 | 706-75-74240 | Spring | 2 | |
| 29 | 708-8H-16150 | Plug | 2 | |
| 30 | 07002-13034 | O-RING,(F2310-59A0 -4 ) | 2 | |
| 31 | 708-8H-14140 | PISTON,(A) | 1 | |
| 32 | 708-8H-14180 | PISTON,(B) | 1 | |
| 33 | 708-8H-14170 | Spring | 1 | |
| 34 | 07000-13038 | O-RING, (WITHOUT EMERGENCY STEERING) | 2 | |
| 34 | 07000-13035 | O-RING, UPPER COOLER INLET AND OUTLET PORTS | 2 | |
| 35 | 07040-11007 | PLUG,HOUSING NO.2?3?4?5?6 | 1 | |
| 36 | 07002-11023 | O-RING,(F4350-66A1 -1C ) | 1 | |
| 37 | (706-73-86202) | VALVE ASS'Y,C.O.R | 2 | |
| 38 | 20B-27-11210 | Bleeder | 1 |
Company Information
GZ Belparts Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor, and gearbox. Our products have been exported to more than 100 countries and regions.
Factory
Certifiion
Product Testing
Product Packing
Our Services
Why choose us:
1.24-hour online consultation and communiion
2.Large stock of a single product
3.Product quality is guaranteed.
Packaging Details:
1.According to orders,pack the spare parts one by one by oil paper;
2.Put them into small carton boxes one by one;
3.Put the packed small carton boxes into bigger carton boxes one by one;
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. Goods is packed by oil paper and plastic bags inside
6.Using wooden case package.
7.We support the custom-made demand for package
