Excavator Pc200-5 Piston Pump
,708-25-04051 Piston Pump

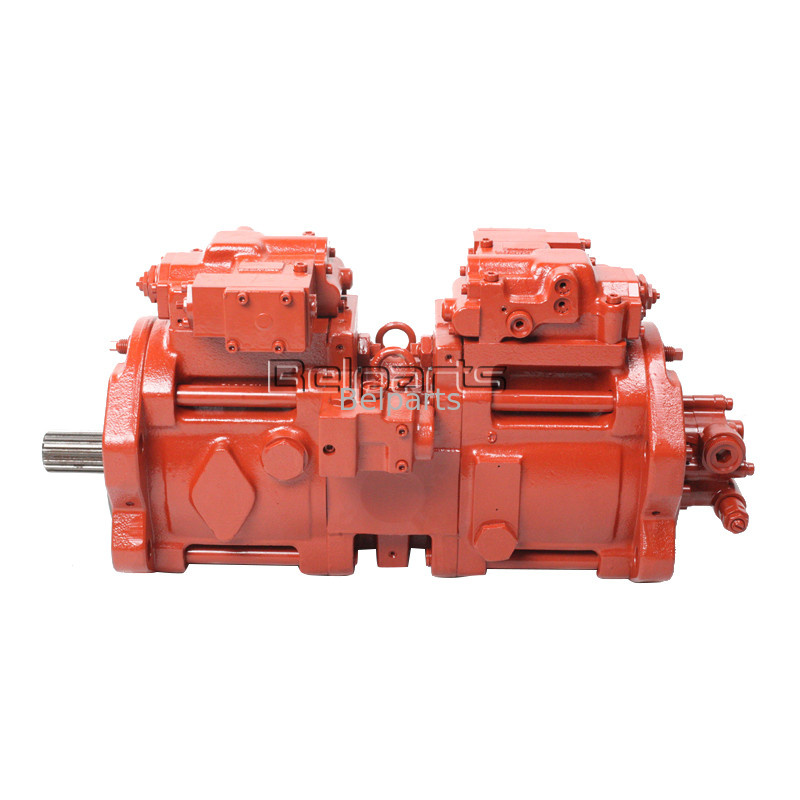

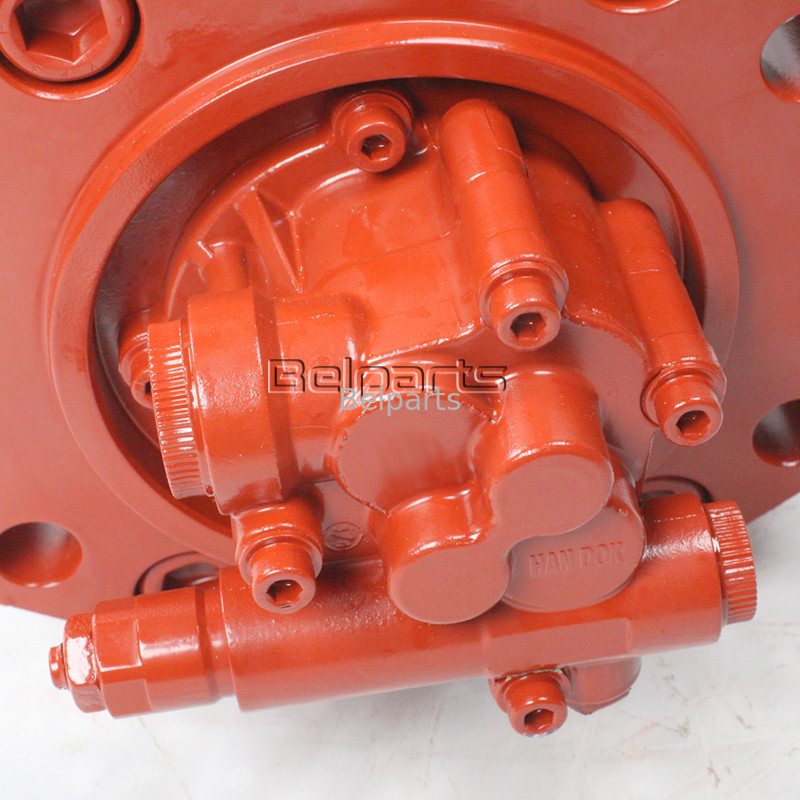

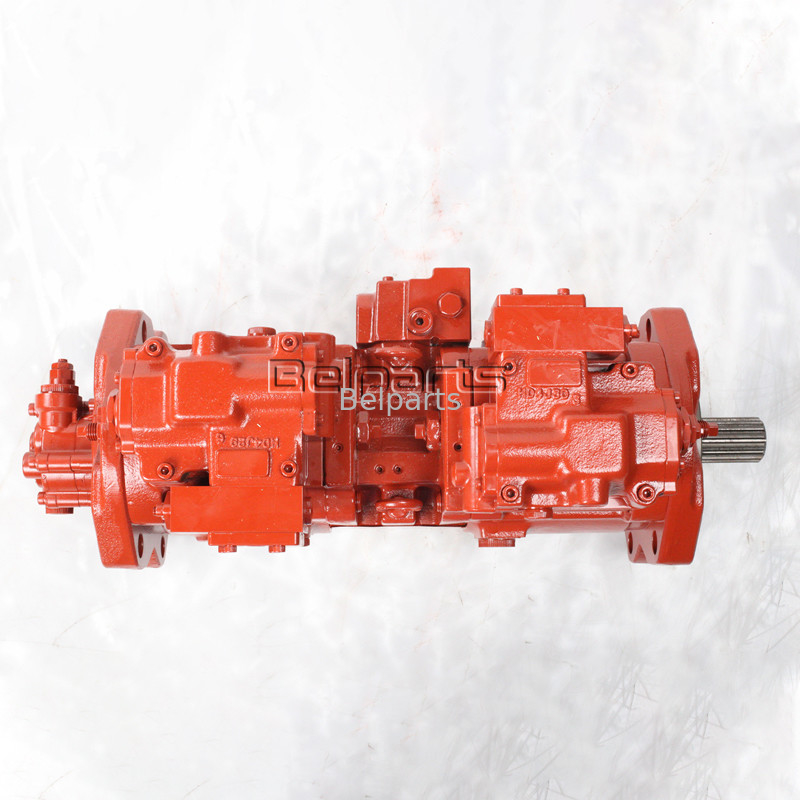

Belparts Excavator pc200-5 Piston Pump Hydraulic Main Pump for komatsu 708-25-04051
Material:Steel
Product Name: Excavator Main Hydraulic Pump
Applicable Industries:Machinery Repair Shops, Manufacturing Plant
Dimension(L*W*H):35*51*52
Part number:708-25-04051
Package Details:Export Wooden Box
Weight:130KG
Surface treatment:Heat resistance paint
Pressure:Standard, High Pressure
| Appliion | Excavator |
| Part name | pump hydarulic |
| Part number | 708-25-04051 |
| Model | pc200-5 |
| MOQ | 1PC |
| Material | Steel |
| Payment term | T/T, Western union, paypal, trade assurance or as required |
| Weight | 190KG |
| Brand | Belparts |
| # | Part No | Part Name | Qty. | Price request |
| G-1 | (20Y-60-X1261) | PUMP GROUP | 1 | |
| ==================== | ||||
| 1 | (708-25-04051) | PUMP ASS'Y | 1 | |
| 1 | 708-25-04014 | PUMP ASS'Y | 1 | |
| 1 | (708-25-04013) | PUMP ASS'Y | 1 | |
| 1 | (708-25-04012) | PUMP ASS'Y | 1 | |
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6101 TO 6151 | ||||
| 1 | (708-25-04151) | PUMP SUB ASS'Y | 1 | |
| 1 | 708-25-04112 | PUMP SUB ASS'Y | 1 | |
| 1 | (708-25-04111) | PUMP SUB ASS'Y | 1 | |
| 2 | (704-24-28230) | PUMP ASS'Y | 1 | |
| 3 | (708-25-04311) | RELIEF VALVE ASS'Y | 1 | |
| 4 | 01010-31260 | BOLT, TRUNNION CAP | 2 | |
| 5 | 01643-31232 | WASHER,(NOT USED WITH EMERGENCY STR.) | 2 | |
| 6 | 708-25-19220 | TEE | 1 | |
| 7 | 07040-11007 | PLUG,HOUSING NO.2?3?4?5?6 | 1 | |
| 8 | 07002-01023 | O-RING,(F4320-61A0 -29 ) | 1 | |
| 9 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 1 | |
| 10 | 07002-02034 | O-RING,(NOT USED WHEN (B) SPEC.) | 1 | |
| 11 | 07102-20404 | HOSE,INLET | 1 | |
| 12 | 07235-10422 | ELBOW,(NOT USED WHEN (B) SPEC.) | 1 | |
| 13 | 708-25-19120 | Flange | 1 | |
| 14 | 720-68-15240 | Filter | 1 | |
| 15 | 07000-02021 | O-RING,WATER PIPING | 1 | |
| 16 | 01010-30820 | BOLT,(SANDY? DUSTY TERRAIN SPEC.) | 2 | |
| 17 | 01643-50823 | WASHER,(FOR SHIPPING) | 2 | |
| 18 | (708-25-04521) | SERVO VALVE ASS'Y,FRONT | 1 | |
| 18 | 708-25-04520 | SERVO VALVE ASS'Y,FRONT | 1 | |
| (708-25-04521{708-25-04613)} | ||||
| 19 | (708-25-04613) | SERVO VALVE ASS'Y,REAR | 1 | |
| 19 | 708-25-04612 | SERVO VALVE ASS'Y,REAR | 1 | |
| (708-25-04613{708-25-04521)} | ||||
| 20 | 706-46-53260 | Plug | 2 | |
| 21 | 07002-01423 | O-RING,(CRUSHER?OTHER ATT.FOR PPC CON | 2 | |
| 22 | 708-25-19140 | Tube | 1 | |
| 23 | 706-46-53180 | BOLT,JOINT | 2 | |
| 24 | 07000-02012 | O-RING, BETWEEN VALVE AND PUMP | 4 | |
| 25 | 708-25-19130 | Bolt | 8 | |
| 26 | 01602-00825 | WASHER,SPRING?(SANDY AND DUSTY SPEC.) | 8 | |
| 27 | 04020-00616 | PIN,(DOWEL) | 4 | |
| 28 | 708-25-32730 | Coupling | 1 | |
| 29 | 704-28-02710 | O-ring | 1 |
Our advantages:
Ø Strong part number database.
If you can provide the right model and part number, we can supply the right product.
Ø Professional and experienced salesperson.
Our founder has been into this field for more than 7 years, with rich experiences.
Ø Strict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
Ø Good management system.
No matter how big or small order, as long as customers place the order, we will provide exporting service free for charge.
Ø Good service attitude.
If the customer has any questions about the product, In our receiving and knowing the situation, we will help the customer to solve the problem in the first place.As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.
GZ YUEXIANG ENGINEERING MACHINERY LTD
Our company is loed in Guangzhou China ,was founded in September 2013 . At present , we have one shop, one warehouse and one office as well as a professional team for purchasing, selling, packing, shipping and after-sale service.
Our main products are Excavator Hydraulic spare parts, Hydraulic main pump, Swing Motor, Travel Motor, Final Drive Assy, Swing Assy, Swing Gearbox, Travel Gearbox, and other hydraulic items with genuine and aftermarket quality. Until now, our products enjoy high reputation all over the world and have been exported to more than 125 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with its own brand "Belparts" are widely acclaimed by foreign customers.
-
