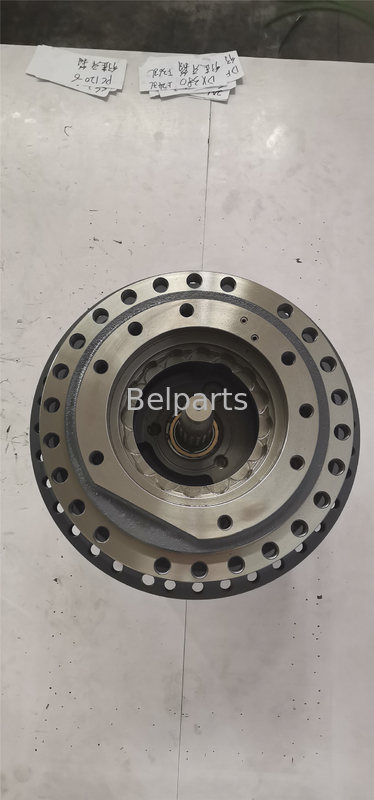

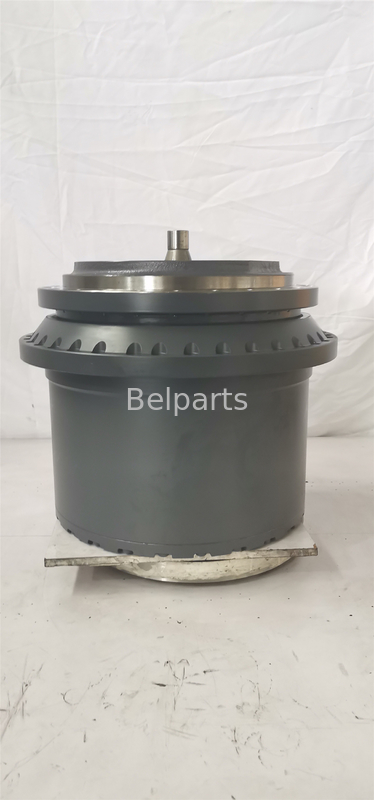

Excavator Travel Gearbox DX380 DX380LC Travel Reduction Gear K9005496 For Doosan
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | DX380 DX380LC | Warranty | TRAVEL GEARBOX |
|---|---|---|---|
| Weight | 239Kg | Part Number | K9005496 |
| Brand | Doosan | Texture | Steel |
| Packing | Wooden Case Or As You Required | ||
| High Light | DX380LC Travel Gearbox,K9005496 Travel Gearbox |
||
Product Description
Belparts Excavator Travel Gearbox DX380 DX380LC Travel Reduction Gear K1012069 for doosan
Product Description
Part Name:Excavator Travel reduction gear
Appliion:DX380 DX380LC
Part Number:K9005496
Place of Origin:Guangzhou China
Warranty:6 Months
Weight:380KG
Brand:Belparts
Packing:45*54*56
|
Appliion
|
Crawler Excavator
|
|
Part name
|
TRAVEL GEARBOX
|
|
Model
|
DX380 DX380LC |
|
Package
|
67*67*45
|
|
Brand
|
Belparts |
|
Payment term
|
T/T, paypal, trade assurance or as required
|
|
After sales service
|
Online
|

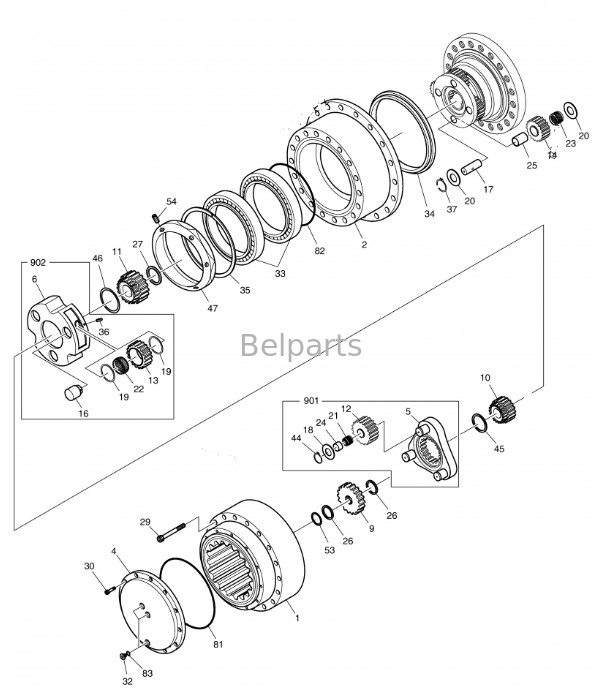

| # | Part No | Part Name | Comment | Qty. | Price request |
| 37 | S6510420 | RING, RETAINING | 4 | ||
| 44 | S6500450 | RING, SNAP | 3 | ||
| 45 | 124-00150 | CLIP | 1 | ||
| 46 | 124-00151 | CLIPW | 1 | ||
| 47 | 1.115-00248 | NUT, RING | 3 kg | 1 | |
| 1 | 104-00035 | GEAR, RING | 33 kg | 1 | |
| 2 | K9005498 | HOUSING | 1 | ||
| 4 | 1.430-00216 | COVER, SIDE | 12 kg | 1 | |
| 5 | K9005495 | CARRIER NO.1 | 9 kg | 1 | |
| 6 | 1.230-00015 | CARRIER NO.2 | 10 kg | 1 | |
| 9 | K9005496 | GEAR, SUN NO.1 | 2 kg | 1 | |
| 10 | 404-00081 | GEAR, SUN NO.2 | 2 kg | 1 | |
| 11 | 404-00082 | GEAR, SUN NO.3 | 6 kg | 1 | |
| 12 | K9005494 | GEAR, PLANETARY NO.1 | 4 kg | 3 | |
| 13 | 1.403-00065 | GEAR, PLANETARY NO.2 | 1 kg | 3 | |
| 14 | 104-00036 | GEAR, PLANETARY NO.3 | 3 kg | 4 | |
| 16 | K9002264 | PIN NO.2 | 1 kg | 3 | |
| 17 | 123-00285 | PIN NO.3 | 1 kg | 4 | |
| 18 | 1.412-00121 | PLATE, SIDE E | 3 | ||
| 19 | 1.412-00117 | PLATE, SIDE A | 6 | ||
| 20 | 412-00038 | PLATE, SIDE F | 8 | ||
| 21 | 1.216-00017 | CAGE, NEEDLE | 3 | ||
| 22 | 1.216-00015 | CAGE, NEEDLE | 3 | ||
| 23 | 1.216-00018 | CAGE, NEEDLE | 4 | ||
| 24 | 1.115-00232 | RING, INNER | 3 | ||
| 25 | 110-00126 | BUSH, FLOATING | 1 kg | 4 | |
| 26 | 114-00347 | RING, THRUST 60 | 2 | ||
| 27 | 114-00348 | RING, THRUST 90 | 1 | ||
| 29 | S2222671 | BOLT, SOCKET M16X100 | 28 | ||
| 30 | S2208871 | BOLT HEX SOCKET HD CL | 12 | ||
| 32 | 2181-1890D4 | PLUG, RECHECK | PF1/2 | 3 | |
| 33 | 109-00145 | BEARING, ANGULAR | 7 kg | 2 | |
| 34 | 180-00345 | SEAL, FLOATING | 3 kg | 1 | |
| 35 | 1.114-00054 | SHIM 1.0 | 1 | ||
| 35 | 1.114-00053 | SHIM 0.9 | 1 | ||
| 35 | 1.114-00051 | SHIM 0.8 | 1 | ||
| 35 | 1.114-00049 | SHIM 0.7 | 1 | ||
| 35 | 1.114-00047 | SHIM 0.6 | 1 | ||
| 35 | 1.114-00045 | SHIM 0.5 | 1 | ||
| 36 | 1.123-00081 | PIN, SPRING | 3 | ||
| 53 | 1.114-00306 | WASHER 1.0t | 1 | ||
| 54 | K9006417 | SCREW, SET | 6 | ||
| 81 | 1.180-00162 | O-RING | 1 | ||
| 82 | 1.180-00163 | O-RING | 1 | ||
| 83 | S8000181 | O-RING | 1BP18 | 3 | |
| 901 | K9005518 | CARRIER NO.1 SUB ASS'Y | 20 kg | 1 | |
| 902 | 230-00044 | CARRIER NO.2 SUB ASS'Y | 1 |
