Place of Origin:
Guangdong, China
Brand Name:
Belparts
Model Number:
R210LC-9 R220LC-9 R235LC-9

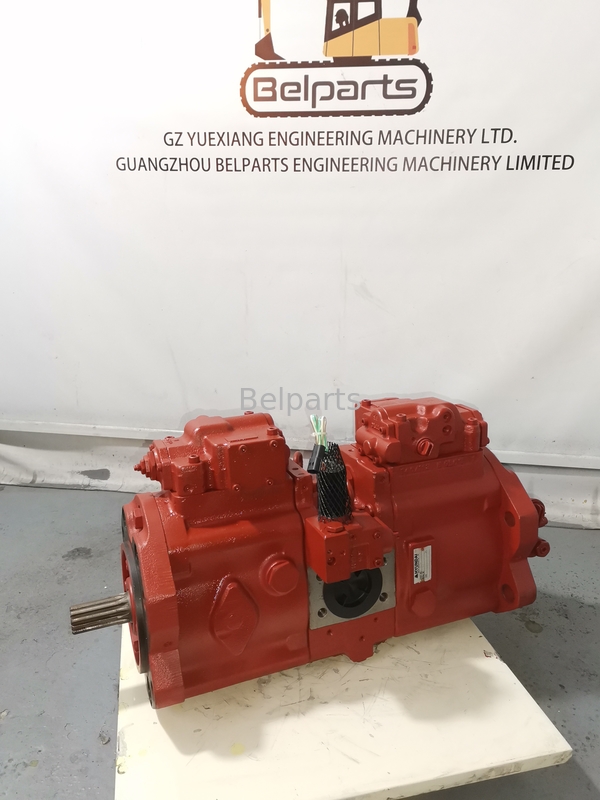

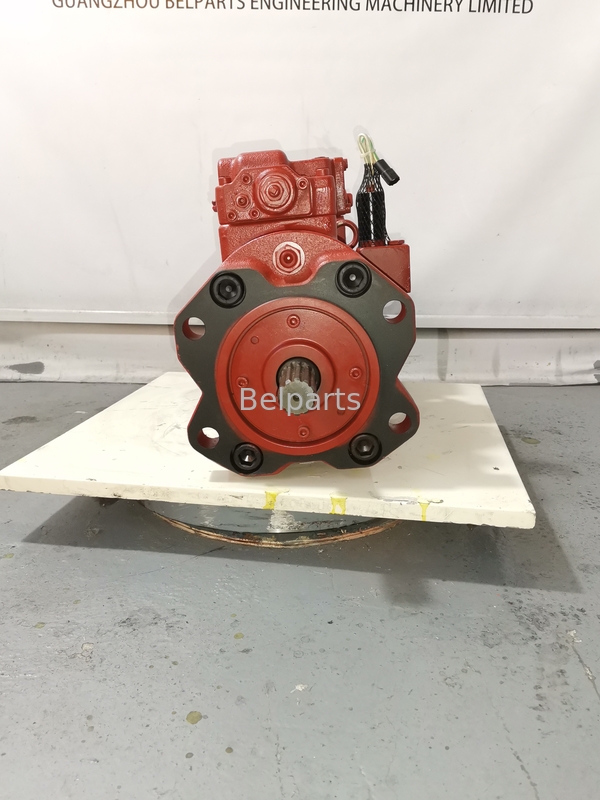

Belparts excavator main pump R210LC-9 R220LC-9 R235LC-9 hydraulic pump 31Q6-10010 for hyundai
Appliion:Excavator
Part name:pump hydarulic
Part number:31Q6-10010
Model:R210LC-9 R220LC-9 R235LC-9
MOQ:1PC
Material:Steel
Payment term:T/T, Western union, paypal, trade assurance or as required
Weight:190KG
Brand:Belparts
Appliion | Excavator |
Part name | pump hydarulic |
Part number | 31Q6-10010 |
Model | R210LC-9 R220LC-9 R235LC-9 |
MOQ | 1PC |
Material | Steel |
Payment term | T/T, Western union, paypal, trade assurance or as required |
Weight | 190KG |
Brand | Belparts |

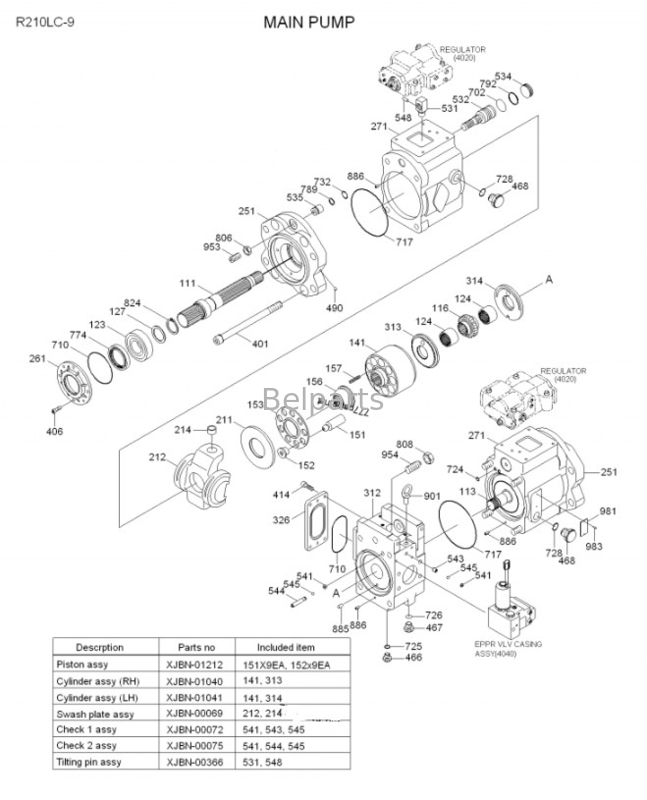

# | Part No | Part Name | Qty. | Price request |
* | 31Q6-10010 | MAIN PUMP *-1,-2,-3,-4 |
1 | |
*-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
111 | XJBN-00077 | DRIVE SHAFT(F) | 1 | |
113 | XJBN-00078 | DRIVE SHAFT(R) | 1 | |
116 | XJBN-01213 | GEAR-1ST | 1 | |
123 | XJBN-00950 | BEARING-ROLLER | 2 | |
124 | XJBN-00786 | BEARING-NEEDLE | 2 | |
127 | XJBN-00081 | SPACER-BEARING | 4 | |
NS141 | XJBN-00067 | BLOCK-CYLINDER | 2 | |
NS151 | XJBN-01032 | PISTON | 18 | |
NS152 | XJBN-01214 | SHOE | 18 | |
153 | XJBN-00945 | PLATE-SET | 2 | |
156 | XJBN-00083 | BUSHING-SPHERICAL | 2 | |
157 | XJBN-00084 | SPRING-CYLINDER | 18 | |
211 | XJBN-00085 | PLATE-SHOE | 2 | |
NS212 | XJBN-00070 | PLATE-SWASH | 2 | |
S214 | XJBN-00071 | BUSHING-TILTING | 2 | |
251 | XJBN-00086 | SUPPORT | 2 | |
261 | XJBN-00087 | COVER(F)-SEAL | 1 | |
271 | XJBN-01034 | CASING-PUMP | 2 | |
312 | XJBN-00940 | BLOCK-VALVE | 1 | |
NS313 | XJBN-01035 | PLATE-VALVE(R) | 1 | |
NS314 | XJBN-01036 | PLATE-VALVE(L) | 1 | |
326 | XJBN-00937 | COVER | 1 | |
401 | XJBN-00090 | SCREW-HEX SOC HD | 8 | |
406 | XJBN-00355 | SCREW-HEX SOC HD | 4 | |
414 | XJBN-00160 | SCREW-SOCKET | 4 | |
466 | XJBN-00356 | PLUG | 2 | |
467 | XJBN-00936 | PLUG | 2 | |
468 | XJBN-00357 | PLUG | 4 | |
490 | XJBN-00032 | PLUG | 27 | |
NS531 | XJBN-00358 | PIN-TILTING | 2 | |
532 | XJBN-00955 | PISTON-SERVO | 2 | |
534 | XJBN-01037 | STOPPER(L) | 2 | |
535 | XJBN-00093 | STOPPER(S) | 2 | |
NS541 | XJBN-00859 | SEAT | 4 | |
NS543 | XJBN-00860 | STOPPER | 2 | |
NS544 | XJBN-00861 | STOPPER | 2 | |
S545 | XJBN-00359 | BALL-STEEL | 4 | |
NS548 | XJBN-00360 | PIN-FEED BACK | 2 | |
702 | XJBN-00918 | O-RING | 2 | |
710 | XJBN-00095 | O-RING | 2 | |
717 | XJBN-00096 | O-RING | 4 | |
724 | XJBN-00361 | O-RING | 16 | |
725 | XJBN-00362 | O-RING | 6 | |
726 | XJBN-00233 | O-RING | 2 | |
728 | XJBN-00363 | O-RING | 4 | |
732 | XJBN-00912 | O-RING | 2 | |
774 | XJBN-00962 | SEAL-OIL | 1 | |
789 | XJBN-00099 | RING-BACK UP | 2 | |
792 | XJBN-00100 | BACK-UP RING | 2 | |
806 | XJBN-00101 | NUT-HEX | 2 | |
808 | XJBN-00364 | NUT | 2 | |
824 | XJBN-00102 | RING-SNAP | 2 | |
885 | XJBN-00103 | PIN-VALVE PLATE | 2 | |
886 | XJBN-00365 | PIN-SPRING | 4 | |
901 | XJBN-00104 | BOLT-EYE | 2 | |
953 | XJBN-00105 | SCREW-SET | 2 | |
954 | XJBN-00106 | SCREW-SET | 2 | |
981 | XJBN-00156 | NAME PLATE | 1 | |
983 | XJBN-00341 | PIN | 2 | |
*-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4020 |
2 | |
*-3 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4030 |
1 | |
*-4 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4040 |
1 | |
011 | XJBN-01212 | PISTON SUB ASSY SEE ILLUST |
2 | |
013 | XJBN-01040 | CYLINDER SUB ASSY-RH SEE ILLUST |
1 | |
014 | XJBN-01041 | CYLINDER SUB ASSY-LH SEE ILLUST |
1 | |
030 | XJBN-00069 | SWASH PLATE SUB ASSY SEE ILLUST |
2 | |
041 | XJBN-00072 | CHECK VALVE ASSY 1 SEE ILLUST |
2 | |
042 | XJBN-00075 | CHECK VALVE ASSY 2 SEE ILLUST |
2 | |
530 | XJBN-00366 | TILTING PIN ASSY SEE ILLUST |
2 |
Our advantages:
Ø Strong part number database.
If you can provide the right model and part number, we can supply the right product.
Ø Professional and experienced salesperson.
Our founder has been into this field for more than 7 years, with rich experiences.
Ø Strict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
Ø Good management system.
No matter how big or small order, as long as customers place the order, we will provide exporting service free for charge.
Ø Good service attitude.
If the customer has any questions about the product, In our receiving and knowing the situation, we will help the customer to solve the problem in the first place.As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.
1) Material: All our products are used high quality genuiner raw material.
2) Inspection: We make a very strict inspection process before delivery.
3) Inventory: We have about 1000 pieces in stock, can provide you at once.
4) Price: We have steady in stock and we can offer competitive price.
5) Delivery time: We will deliver the goods within 1-3 days after received the payment.
6) Service: We have a professional team to offer professional service for you 24/7.
7) All the spare parts are 100% measured, 100% interchangeable.
GZ YUEXIANG ENGINEERING MACHINERY LTD
Our company is loed in Guangzhou China ,was founded in September 2013 . At present , we have one shop, one warehouse and one office as well as a professional team for purchasing, selling, packing, shipping and after-sale service.
Our main products are Excavator Hydraulic spare parts, Hydraulic main pump, Swing Motor, Travel Motor, Final Drive Assy, Swing Assy, Swing Gearbox, Travel Gearbox, and other hydraulic items with genuine and aftermarket quality. Until now, our products enjoy high reputation all over the world and have been exported to more than 125 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with its own brand "Belparts" are widely acclaimed by foreign customers.
Packaging Details:
1.According to orders,pack the spare parts one by one by oil paper;
2.Put them into small carton boxes one by one;
3.Put the packed small carton boxes into bigger carton boxes one by one;
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. Goods is packed by oil paper and plastic bags inside
6.Using wooden case package.
Send your inquiry directly to us
