Place of Origin:
Guangdong, China
Brand Name:
Belparts
Model Number:
ec330 ec330b

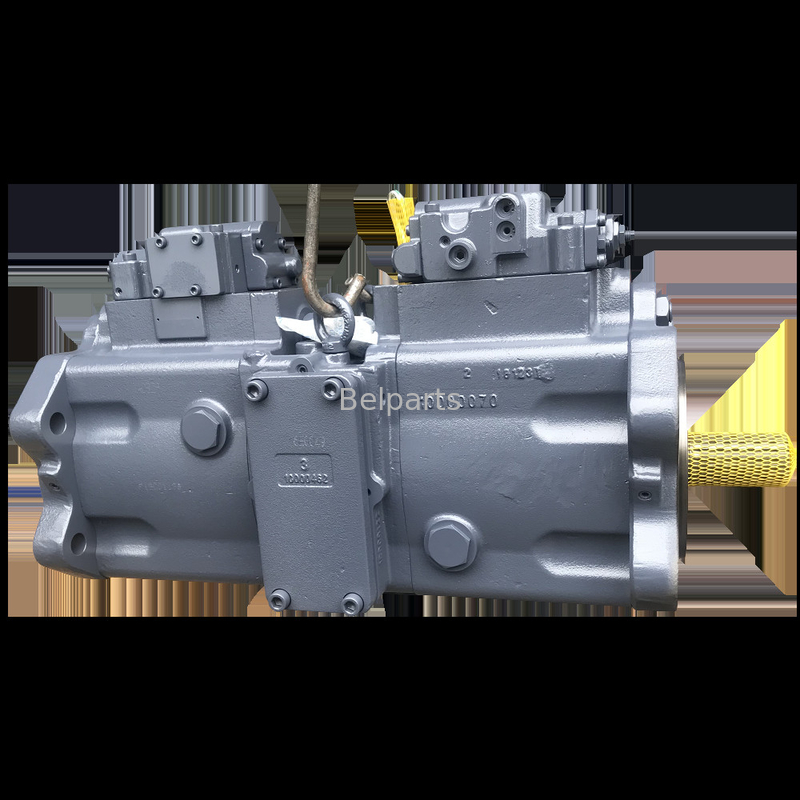

Belparts Excavator main pump ec330 ec330b hydraulic pump VOE 14531412
Appliion:Excavator
Part name:hydarulic pump
Part number:VOE 14531412
Model:ec330 ec330b
MOQ:1PC
Material:Steel
Payment term:T/T, Western union, paypal, trade assurance or as required
Weight:190KG
Brand:Belparts
Appliion | Excavator |
Part name | hydarulic pump |
Part number | VOE 14531412 |
Model | ec330 ec330b |
MOQ | 1PC |
Material | Steel |
Payment term | T/T, Western union, paypal, trade assurance or as required |
Weight | 190KG |
Brand | Belparts |

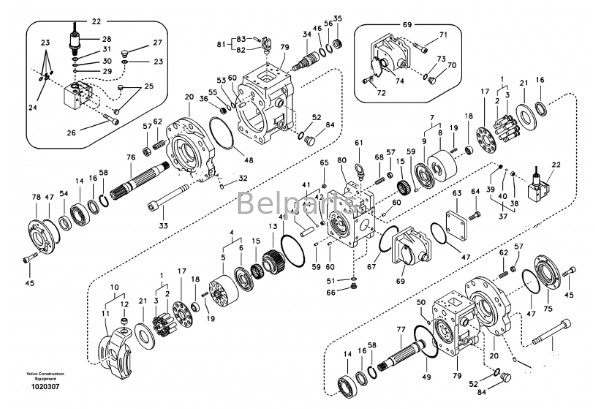

# | Part No | Part Name | Qty. | Price request |
8280299 | ||||
VOE 14531412 | Pump | 1 | ||
1 | SA 7223-00140 | Piston | 2 | |
2 | VOE 14512923 | Piston | 9 | |
3 | VOE 14502323 | Seat, Pad | 9 | |
4 | SA 7223-00780 | Cylinder | 1 | |
5 | VOE 14502321 | Block | 1 | |
6 | VOE 14502324 | Plate | 1 | |
7 | SA 7223-00790 | Cylinder | 1 | |
8 | VOE 14502321 | Block | 1 | |
9 | VOE 14502325 | Plate | 1 | |
10 | VOE 14502011 | Plate | 2 | |
11 | SA 7223-00220 | Plate | 1 | |
12 | SA 7223-00240 | Bushing | 1 | |
13 | VOE 14511979 | Gear | 1 | |
14 | VOE 14511980 | Bearing | 2 | |
15 | VOE 14511981 | Bearing | 2 | |
16 | SA 7223-00060 | Spacer | 3 | |
17 | SA 8230-09300 | Plate | 2 | |
18 | VOE 14510070 | Bushing more | 2 | |
19 | SA 7223-00180 | Spring | 18 | |
20 | SA 7223-00260 | Support | 2 | |
21 | SA 7223-00210 | Plate | 2 | |
22 | VOE 14535453 | Valve more | 1 | |
23 | VOE 14533606 | O-ring more | 4 | |
24 | VOE 14533608 | O-ring more | 1 | |
25 | SA 7242-11040 | Plug more | 3 | |
26 | SA 8230-25880 | Bolt more | 3 | |
27 | SA 9415-11021 | Plug more | 1 | |
28 | SA 8230-32080 | Valve more | 1 | |
29 | VOE 14535454 | O-ring more | 1 | |
30 | VOE 14535455 | O-ring more | 1 | |
31 | VOE 14535456 | O-ring more | 1 | |
32 | SA 7242-11040 | Plug more | 24 | |
33 | SA 7223-00390 | Bolt | 8 | |
34 | SA 7223-00410 | Piston | 2 | |
35 | SA 7223-00420 | Stop | 2 | |
36 | SA 7223-00430 | Stop | 2 | |
37 | SA 7223-00450 | Check valve more | 2 | |
38 | VOE 14535204 | Seat | 1 | |
39 | VOE 14535205 | Stop | 1 | |
40 | VOE 14880998 | Ball more | 1 | |
41 | VOE 14540760 | Check valve | 2 | |
42 | VOE 14535204 | Seat | 1 | |
43 | VOE 14540758 | Stop | 1 | |
44 | VOE 14880998 | Ball more | 1 | |
45 | VOE 967630 | Allen Hd Screw more | 8 | |
46 | SA 7223-00690 | O-ring | 2 | |
47 | VOE 14533617 | O-ring | 3 | |
48 | VOE 14533034 | O-ring | 2 | |
49 | VOE 14533035 | O-ring | 2 | |
50 | VOE 14533604 | O-ring | 16 | |
51 | VOE 14533606 | O-ring more | 4 | |
52 | VOE 14533612 | O-ring | 3 | |
53 | SA 7223-00700 | O-ring | 2 | |
54 | VOE 14535388 | Seal | 1 | |
55 | SA 7223-00640 | Ring | 2 | |
56 | SA 7223-00650 | Ring | 2 | |
57 | VOE 979022 | Nut more | 4 | |
58 | VOE 914470 | Snap Ring more | 2 | |
59 | SA 7242-10560 | Pin | 2 | |
60 | SA 7223-00660 | Spring Pin | 4 | |
61 | VOE 14880555 | Eye Bolt | 2 | |
62 | SA 7223-00670 | Set Screw | 2 | |
63 | VOE 14511994 | Cover | 1 | |
64 | SA 9016-11206 | Bolt more | 4 | |
65 | VOE 14512382 | Plug | 12 | |
66 | SA 9415-11021 | Plug more | 2 | |
67 | VOE 14540757 | O-ring | 1 | |
68 | SA 7223-00680 | Set Screw | 2 | |
69 | VOE 14512927 | Power Take-off | 1 | |
70 | SA 9415-11051 | Plug more | 1 | |
71 | SA 8240-03470 | Bolt | 4 | |
72 | SA 8240-03450 | Bolt | 2 | |
73 | VOE 983524 | O-ring more | 1 | |
74 | SA 9511-22080 | O-ring more | 1 | |
75 | VOE 14512544 | Cover | 1 | |
76 | VOE 14511977 | Shaft | 1 | |
77 | VOE 14511978 | Shaft | 1 | |
78 | SA 7223-00280 | Cover | 1 | |
79 | VOE 14540759 | Casing | 2 | |
80 | VOE 14511982 | Block | 1 | |
81 | VOE 14506634 | Pin | 2 | |
82 | SA 7223-00400 | Pin | 1 | |
83 | SA 7223-00570 | Pin | 1 | |
84 | SA 9415-11051 | Plug more | 4 | |
100 | VOE 14540777 | Sealing Kit | 1 |
More machine model are available as below:
excavator hydraulic main pump, excavator main pump, piston pump for excavator: PC20,PC25,PC18,PC30,PC40,PC55,PC50UR,PC60,PC75,PC78,PC90,PC100,PC110,PC120,PC130-6,PC140,PC150-5,PC160,PC180,PC200-6,
Sumitomo hydraulic pump, sumitomo excavator main pump: SH55,SH60,SH75,SH90,SH100,SH120-1/2/3/5,SH160,SH180,SH200-1/A3 SH220 SH300-2 LS2650FJ-2 LS2800CJ/DJ/EJ/FJ-2 LS2800FJ2 LS2800F2 LS3400EA LS3400FJ LS5800FJ
Kato main hydraulic pump, crane hydraulic pump parts: HD250SE-2,HD250-5/7,KD400SE-2,HD400SEN2,HD400-5/7 HD450-5/7,HD510,HD512,HD550-5/7,HD700-2/5,HD700-7,HD770-1,HD770-2,HD800-5,HD800-7,HD820-1/2/3,HD880,HD850,HD900-5/7,HD1023,HD1220SE-2,HD1250-5,HD1430,HD1880-7,HD900-7,HD1880
excavator piston pump, hydraulic pump:EC55,EC60,EC70,EC75,EC90,EC110,EC120,EC130,EC160,EC210B,EC240B,EC240B,EC260B,EC280,EC290B,EC320,EC360B,EC380,EC420,EC460B
