ZAX120-6 Travel Motor Assy
,9180731 Travel Motor Assy
,9181123 Travel Motor Assy

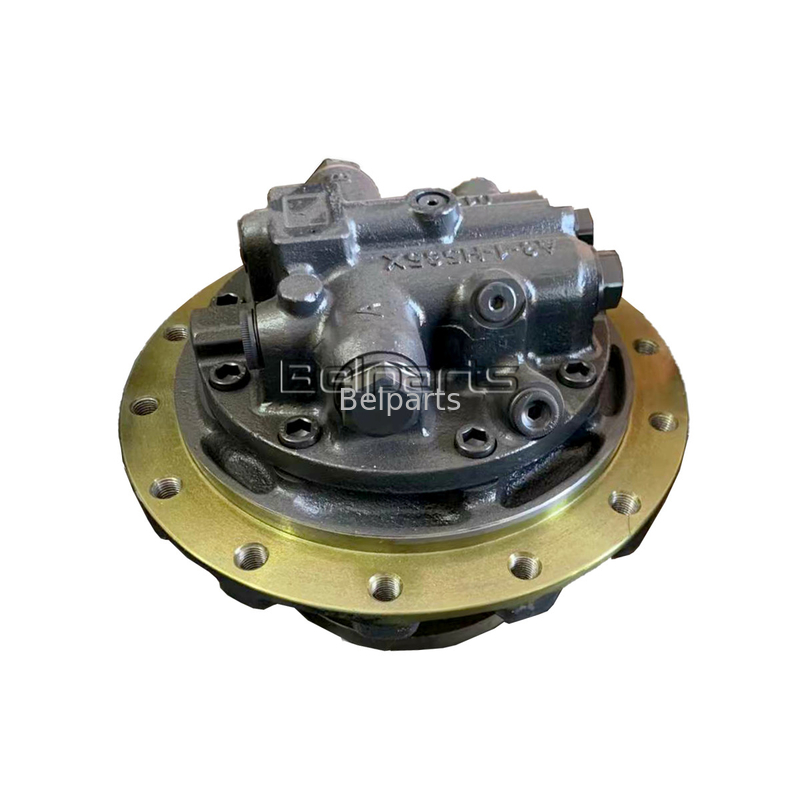

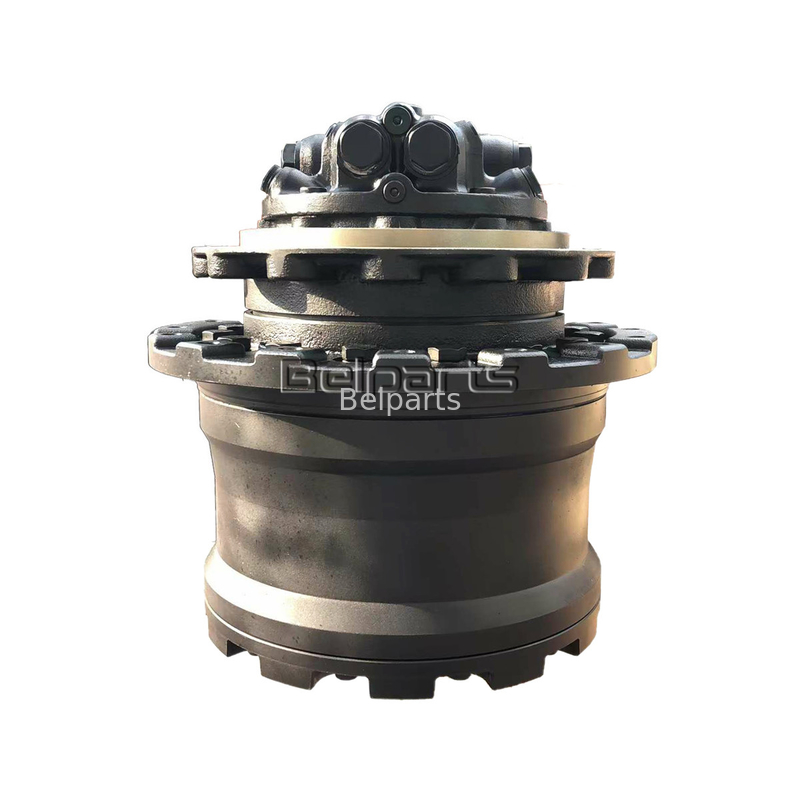

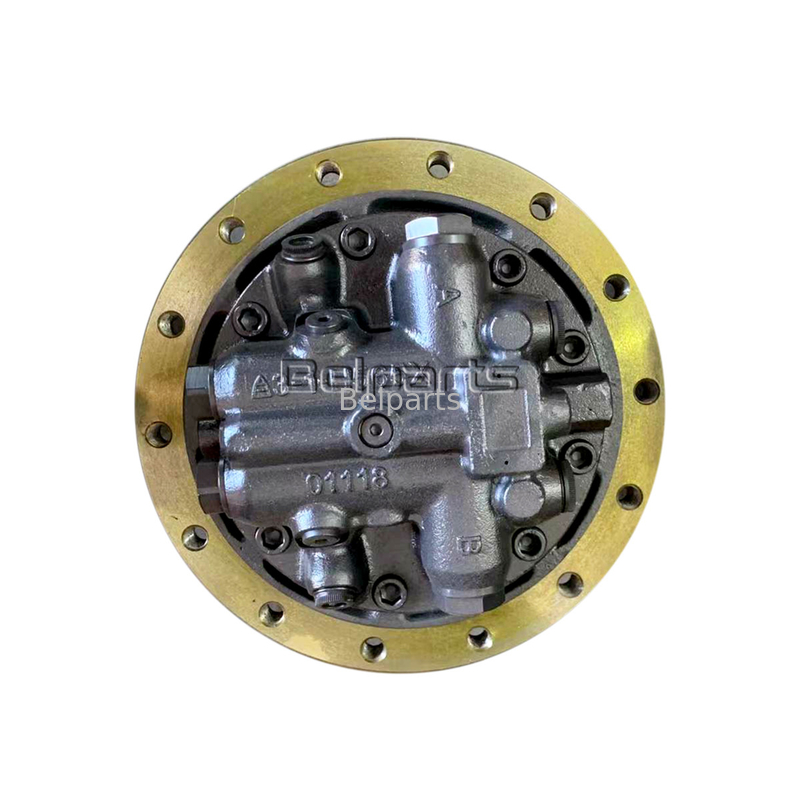

Belparts Excavator travel motor assy for hitachi ZAX120-6 ZX120-6 final drive assy 9180731 9181123
| # | Part No | Part Name | Qty. | Price request |
| 9180731 | TRAVEL DEVICE ASS'Y (FOR ASSEMBLY OF MACHINE) | 2 | ||
| (9181123) | TRAVEL DEVICE ASS'Y (FOR TRANSPORTATION) | 2 | ||
| 00 | 9180429 | . MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 | |
| 00 | (9196238) | . MOTOR; OIL (FOR TRANSPORTATION) | 1 | |
| 02 | 4110369 | . SEAL; GROUP | 1 | |
| 03 | 4321887 | . BRG.; ROL. | 2 | |
| 04 | 1016125 | . DRUM | 1 | |
| 05 | 1010325 | . SPROCKET | 1 | |
| 06 | J931640 | . BOLT | 16 | |
| 07 | 1027082 | . GEAR; RING | 1 | |
| 08 | J931660 | . BOLT | 16 | |
| 10 | 3085728 | . NUT | 1 | |
| 11 | 4436242 | . PIN; KNOCK | 1 | |
| 13 | 1027076 | . CARRIER | 1 | |
| 14 | 3085566 | . GEAR; PLANETARY | 3 | |
| 15 | 4354289 | . BRG.; NEEDLE | 6 | |
| 16 | 4192982 | . PLATE; THRUST | 12 | |
| 17 | 4245966 | . PIN | 3 | |
| 18 | 4144020 | . PIN; SPRING | 3 | |
| 19 | 3085569 | . GEAR; SUN | 1 | |
| 21 | 2043774 | . CARRIER | 1 | |
| 22 | 4418771 | . SPACER | 1 | |
| 23 | 3094907 | . GEAR; PLANETARY | 3 | |
| 24 | 4354278 | . BRG.; NEEDLE | 3 | |
| 25 | 4178203 | . PIN | 3 | |
| 26 | 4192020 | . PIN; SPRING | 3 | |
| 27 | 2043769 | . SHAFT; PROP. | 1 | |
| 29 | 2028800 | . COVER | 1 | |
| 30 | 4631350 | . PIN; STOPPER | 1 | |
| 31 | 4609016 | . BOLT; SEMS | 12 | |
| 32 | 4245797 | . PLUG | 3 | |
| 34 | 3053559 | . NAME-PLATE | 1 | |
| 35 | M492564 | . SCREW; DRIVE | 2 | |
| # | Part No | Part Name | Qty. | Price request |
| 9180731 | TRAVEL DEVICE ASS'Y (FOR ASSEMBLY OF MACHINE) | 2 | ||
| (9181123) | TRAVEL DEVICE ASS'Y (FOR TRANSPORTATION) | 2 | ||
| 00 | 9180429 | . MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 | |
| 00 | (9196238) | . MOTOR; OIL (FOR TRANSPORTATION) | 1 | |
| 02 | 4110369 | . SEAL; GROUP | 1 | |
| 03 | 4321887 | . BRG.; ROL. | 2 | |
| 04 | 1016125 | . DRUM | 1 | |
| 05 | 1010325 | . SPROCKET | 1 | |
| 06 | J931640 | . BOLT | 16 | |
| 07 | 1027082 | . GEAR; RING | 1 | |
| 08 | J931660 | . BOLT | 16 |
Company Information
GZ Belparts Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor, and gearbox. Our products have been exported to more than 100 countries and regions.
Factory
Certifiion
Product Testing
Product Packing
Our Services
Why Choose Us?
1.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the
order.
2.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us
and we will check. After it is confirmed, pls return to us , we will offer the correct item.
3.What is your main products ?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts,
hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
