Product Details
Highlight:
ZX870 Travel Motor Assy
,9251681 Travel Motor Assy
,9254461 Final Drive
Model Name:
ZX870 ZX890
Brand:
Belparts
Supply Ability:
1000pcs
Part Name:
Travel Motor Assy
Part Number:
9251681 9254461
Appliion:
Crawler Excavator
Payments:
T/T, PayPal, Trade Assurance
Packing:
89*67*78
Product Description

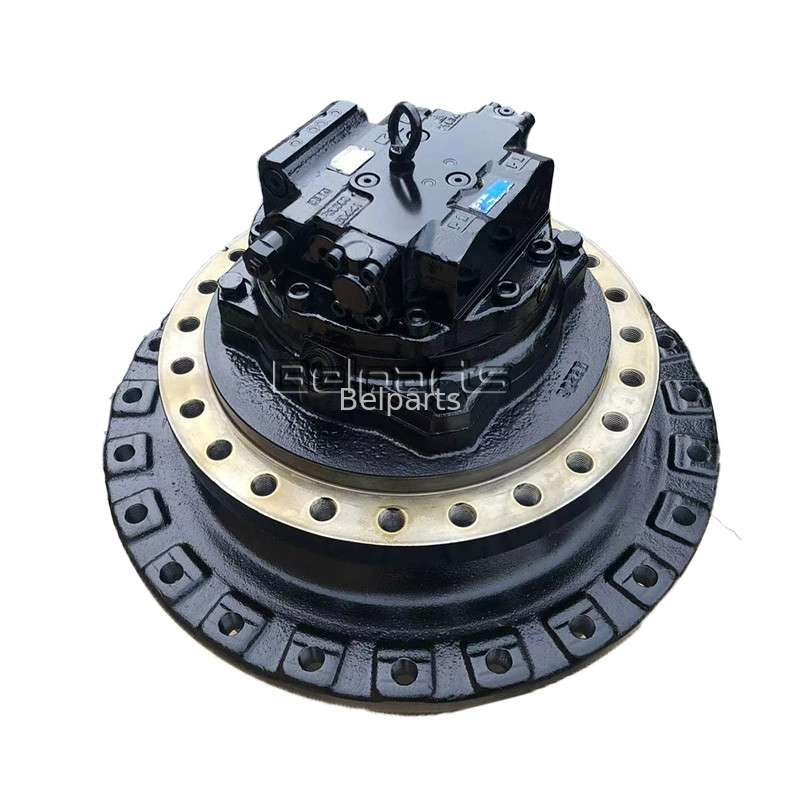

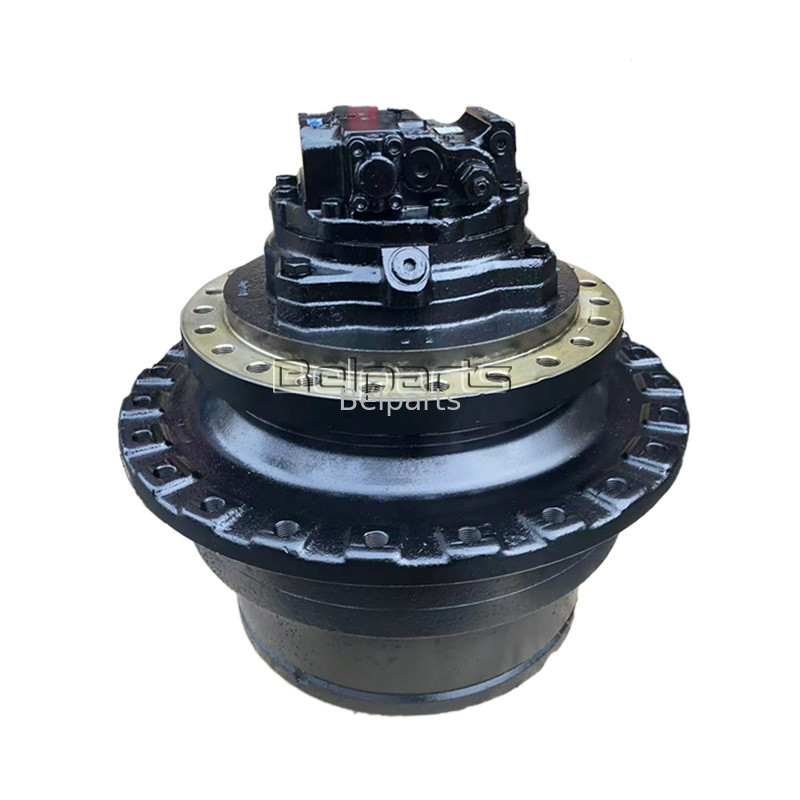

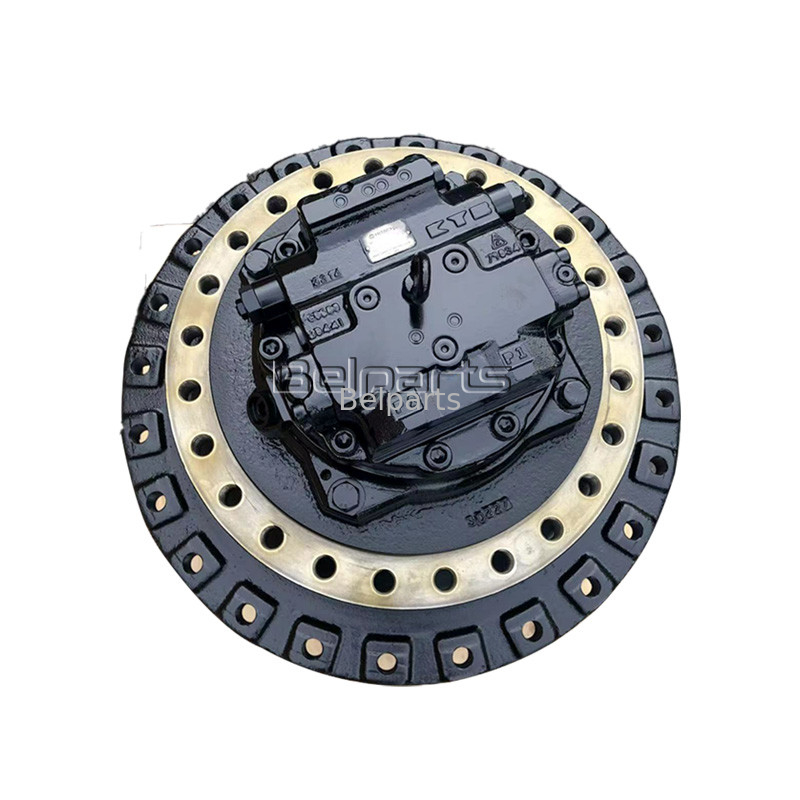

Belparts Excavator travel motor assy for hitachi ZX870 ZX890 final drive assy 9251681 9254461
| # | Part No | Part Name | Qty. | Price request |
| 9251681 | TRAVEL DEVICE | 2 | ||
| 00 | 4636857 | . MOTOR; OIL | 1 | |
| 02 | 4219329 | . BRG.; ROL. | 1 | |
| 03 | 4219328 | . BRG.; ROL. | 1 | |
| 04 | 1030160 | . HOUSING | 1 | |
| 05 | 1012131 | . DRUM | 1 | |
| 06 | 2025832 | . SUPPORT | 1 | |
| 09 | 4245703 | . SEAL; GROUP | 1 | |
| 11 | J932785 | . BOLT | 24 | |
| 12 | A590927 | . WASHER; SPRING | 24 | |
| 13 | 425175 | . CORK | 2 | |
| 14 | 4430291 | . SPROCKET | 1 | |
| 15 | 3069875 | . NUT | 1 | |
| 16 | 3041462 | . PLATE; LOCK | 1 | |
| 17 | J901225 | . BOLT | 2 | |
| 19 | 1028874 | . CARRIER | 1 | |
| 20 | 3090709 | . GEAR; PLANETARY | 4 | |
| 21 | 4464369 | . BRG.; NEEDLE | 8 | |
| 22 | 4219640 | . PLATE; THRUST | 8 | |
| 23 | 4447037 | . PIN | 4 | |
| 24 | 4222029 | . PIN; SPRING | 4 | |
| 25 | 3090710 | . GEAR; SUN | 1 | |
| 27 | 1028886 | . GEAR; RING | 1 | |
| 28 | 4223568 | . O-RING | 1 | |
| 29 | M342260 | . BOLT; SOCKET | 30 | |
| 31 | 1028881 | . CARRIER | 1 | |
| 33 | 3090930 | . GEAR; PLANETARY | 4 | |
| 34 | 4455088 | . BRG.; NEEDLE | 4 | |
| 35 | 4269470 | . PLATE; THRUST | 8 | |
| 36 | 4447032 | . PIN | 4 | |
| 37 | 4203180 | . PIN; SPRING | 4 | |
| 38 | 3090711 | . GEAR; SUN | 1 | |
| 39 | 4657080 | . SPACER | 3 | |
| 40 | 1028898 | . CARRIER | 1 | |
| 42 | 3089538 | . GEAR; PLANETARY | 3 | |
| 43 | 4445529 | . BRG.; NEEDLE | 3 | |
| 44 | 4210851 | . PLATE; THRUST | 6 | |
| 45 | 4309995 | . PIN | 3 | |
| 46 | 4246358 | . PIN; SPRING | 3 | |
| 47 | 2045895 | . SHAFT; PROP. | 1 | |
| 49 | 1028899 | . COVER | 1 | |
| 50 | 4284195 | . BRG.; BALL | 1 | |
| 51 | 4277474 | . PIN; STOPPER | 1 | |
| 54 | 4257967 | . BOLT; SHOE | 18 | |
| 55 | A590914 | . WASHER; SPRING | 18 | |
| 56 | 4462824 | . PLUG | 3 | |
| 57 | 429597 | . CORK | 2 | |
| 61 | 4271596 | . O-RING | 1 | |
| 62 | J911860 | . BOLT | 4 | |
| 63 | A590918 | . WASHER; SPRING | 4 | |
| 65 | . NAME-PLATE | 1 | ||
| 66 | M492564 | . SCREW; DRIVE | 2 |
Company Information
GZ Belparts Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor, and gearbox. Our products have been exported to more than 100 countries and regions.
Factory
Certifiion
Product Testing
Product Packing
Our Services
MIAN PRODUCTS We can supply excavator spare parts ( various brands )such as: Hydraulic parts, hydraulic pump, travel/swing gearbox, travel/swing motor, fan pump/motor, coupling and hub, gearpump, relief valve, control valve, regulator, floating oil seal, seal kit, bearing, swing circle, monitor, controller and so on.
