Excavator Travel Motor Assy E325 E329D Final Drive Assy 2042674 199-4521 227-6138 227-6116 267-6796
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Name | E325 E329D | Brand | Belparts |
|---|---|---|---|
| Supply Ability | 1000pcs | Part Name | Travel Motor Assy |
| Part Number | 2042674 199-4521 227-6138 227-6116 267-6796 | Appliion | Crawler Excavator |
| Payments | T/T, PayPal, Alibaba Trade Assurance | Packing | 89*67*78 |
| High Light | E329D Travel Motor Assy,199-4521 Travel Motor Assy,267-6796 Travel Motor Assy |
||
Product Description

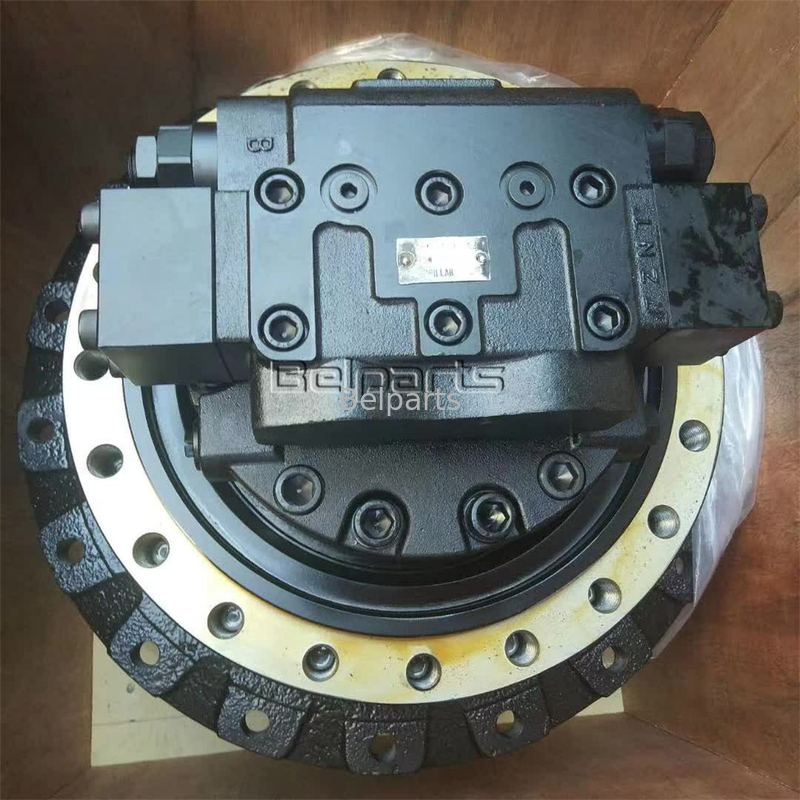

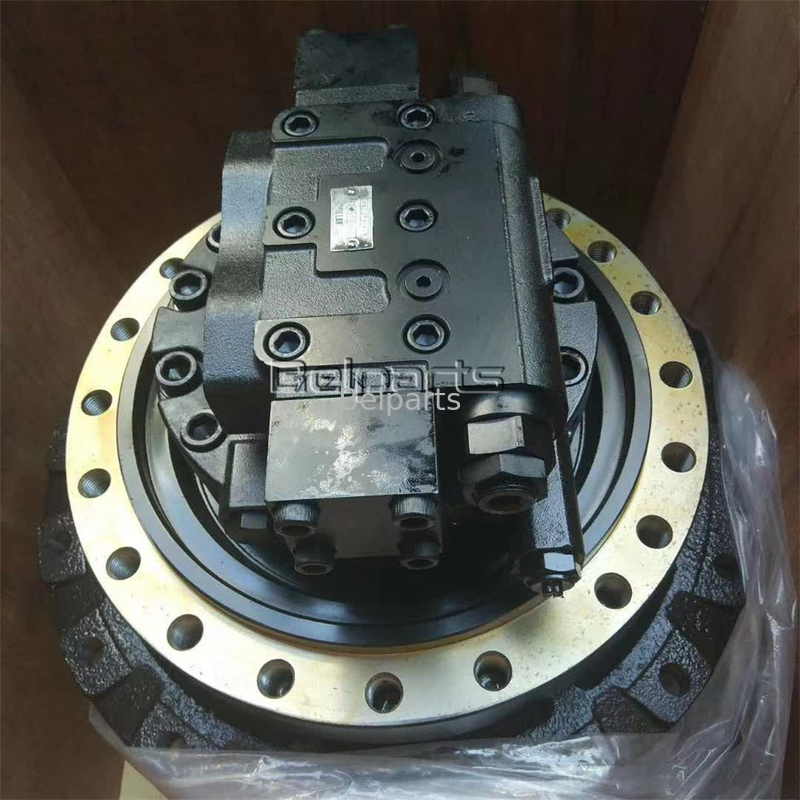

Belparts Excavator travel motor assy E325 E329D final drive assy 2042674 199-4521 227-6138 227-6116 267-6796
Aggregate
| Part No | Part Name | Price request |
| 2042674 | MOTOR & MTG GROUP-TRAVEL |
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
| 1 | 2095894 | SHAFT | 1 | |
| 2 | 0874743 | STOPPER | 2 | |
| 3 | 0941399 | RING - RETAINING | 1 | |
| 4 | 7Y4212 | BEARING | 1 | |
| 5 | 0874757 | PISTON | 2 | |
| 5A | 1425515 | RING-BACKUP | 2 | |
| 6 | 1076969 | BODY | 1 | |
| 7 | 1225114 | GUIDE - BALL | 1 | |
| 8 | 2095909 | PLATE (CAM) | 1 | |
| 9 | 1475860 | PISTON AS | 1 | |
| 10 | 2344629 | BARREL AS | 1 | |
| 11 | 1076954 | PLATE (FRICTION) | 4 | |
| 12 | 1076955 | PLATE (SEPARATOR) | 5 | |
| 13 | 0961523 | GUIDE - PISTON | 1 | |
| 14 | 7Y4213 | PISTON - BRAKE | 1 | |
| 15 | 7Y4202 | HEAD | 1 | |
| 16 | 8T4944 | BOLT - SOCKET HEAD (M16 X X2 X 40 MM) | 10 | |
| 17 | 0961521 | SHIM (1.0mm THICK) | 1 | |
| 18 | 0963785 | SHIM (1.2mm THICK) | 1 | |
| 19 | 0963786 | SHIM (1.4mm THICK) | 1 | |
| 20 | 0963787 | SHIM (1.6mm THICK) | 1 | |
| 21 | 0961522 | SHIM (2.0mm THICK) | 1 | |
| 22 | 0963788 | SHIM (1.8mm THICK) | 1 | |
| 23 | 0965916 | SHEET | 2 | |
| 24 | 2D6642 | BALL 6.35 mm(.25 in.)diameter | 2 | |
| 25 | 0951572 | SEAL - O-RING (4.80 MM ID) | 2 | |
| 26 | 0965919 | RING (5.00MM ID) | 2 | |
| 27 | 0965915 | RETAINER | 2 | |
| 28 | 0964003 | BEARING, NEEDLE | 1 | |
| 7Y4234 | RACE (NEEDLE ROLLER) | 1 | ||
| 29 | 0951585 | SEAL- -O-RING (17.80 MM ID) | 1 | |
| 30 | 0874742 | VALVE | 1 | |
| 31 | 0961519 | SHEET | 1 | |
| 32 | 0957380 | SPRING | 1 | |
| 33 | 0957382 | RETAINER | 1 | |
| 34 | 0941875 | PIN, ROLLER | 1 | |
| 35 | 0957378 | SPRING, DISK | 1 | |
| 36 | 0941882 | PLUG, TAPERED | 10 | |
| 37 | 0951575 | SEAL - O-RING (7.80 MM ID) | 3 | |
| 38 | 0964378 | RING (BACK UP) | 1 | |
| 39 | 0964377 | SEAL - O-RING (190.0 MM ID) | 2 | |
| 40 | 0941882 | PLUG, TAPERED | 1 | |
| 41 | 0957384 | SEAL - O-RING (160.0 MM ID) | 1 | |
| 42 | 0957383 | SEAL-O-RING (ID=174.00mm) | 1 | |
| 43 | 0957386 | RING (175.25MM ID) | 1 | |
| 44 | 0957387 | RING, BACK-UP | 1 | |
| 45 | 0951685 | SEAL - O-RING (179.3 MM ID) | 1 | |
| 46 | 0964389 | SPRING | 9 | |
| 47 | 7Y4215 | SPACER | 1 | |
| 48 | 0951586 | SEAL - O-RING (19.80 MM ID) | 2 | |
| 49 | 7Y4217 | RING (20.0MM ID) | 2 | |
| 50 | 0964376 | SEAL (LIP TYPE) | 1 | |
| 51 | 1232008 | KEY | 2 | |
| 52 | 1211558 | PIN | 2 | |
| 53 | 0874786 | ADAPTER | 1 | |
| 54 | 3K0360 | SEAL PILOT MANIFOLD ON SEAL TO BOOM CHECK VALVE DRAIN | 1 | |
| 55 | 9S4185 | PLUG--TO SEAL HYDRAULIC PUMP TO SUMP OF LIMIT SYSTEM | 1 | |
| 56 | 0951700 | SEAL - O-RING (34.40 MM ID) | 2 | |
| 57 | 7Y4224 | ORIFICE | 2 | |
| 58 | 0963978 | SPRING | 1 | |
| 59 | 7Y4216 | SPOOL | 1 | |
| 60 | 2M9780 | SEAL--TO CONNECTOR PUMP OUTLET | 1 | |
| AVAILABLE REPAIR KIT(S): | ||||
| 7Y4222 | SEAL KIT (J-CONSISTS OF PARTS MARKED J) | 1 | ||
| USE AS REQUIRED | ||||
| NOT REQUIRED FOR OPTIONAL BODY DESIGN | ||||
| KIT MARKED J SERVICES PART(S) MARKED J | ||||
| METRIC PART |
Company Information
GZ Belparts Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor, and gearbox. Our products have been exported to more than 100 countries and regions.
Factory
Certifiion
Product Testing
Product Packing
Our Services
MIAN PRODUCTS We can supply excavator spare parts ( various brands )such as: Hydraulic parts, hydraulic pump, travel/swing gearbox, travel/swing motor, fan pump/motor, coupling and hub, gearpump, relief valve, control valve, regulator, floating oil seal, seal kit, bearing, swing circle, monitor, controller, wire harness, boom/ arm / bucket cylinder, throttle motor, pedal valve, pilot valve, pusher, solenoid valve, sensor, hydraulic detector, center joint, friction plate, separate plate, turbo, water pump, oil cooler, radiator, inter cooler, breaker
FAQ
1. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
2. How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount),Alibaba trade assurance.
3. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
