EX200-3 Hydraulic Cylinder Assy
,4250223 Hydraulic Cylinder Assy

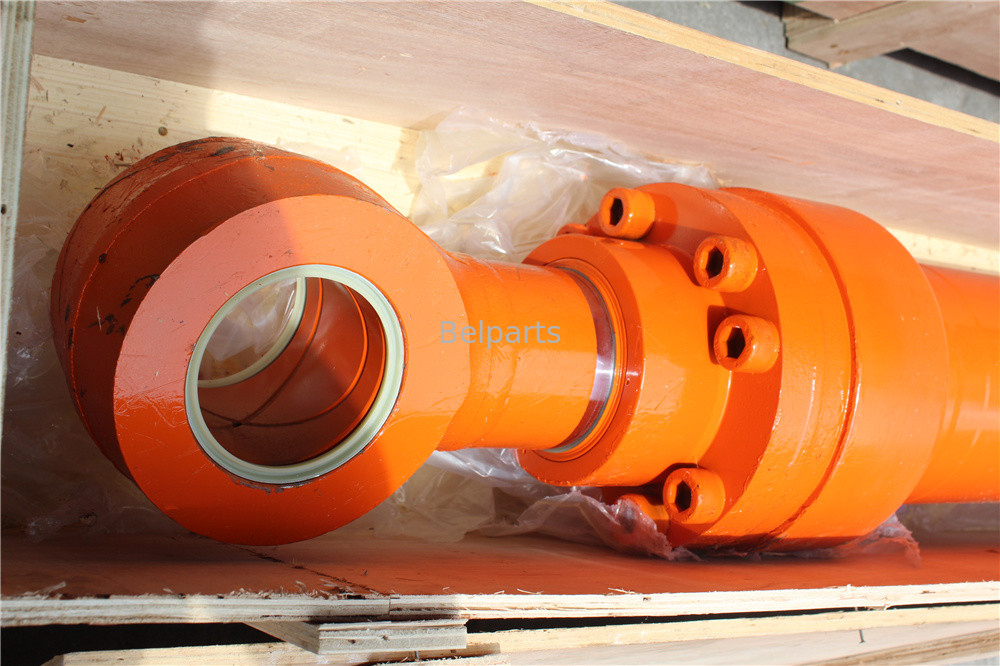

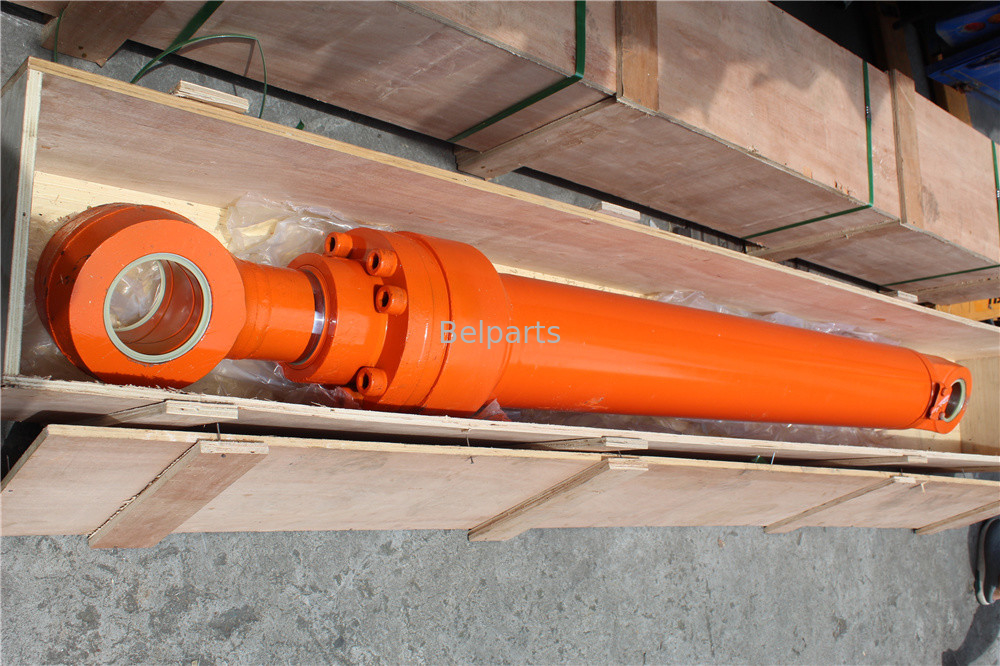

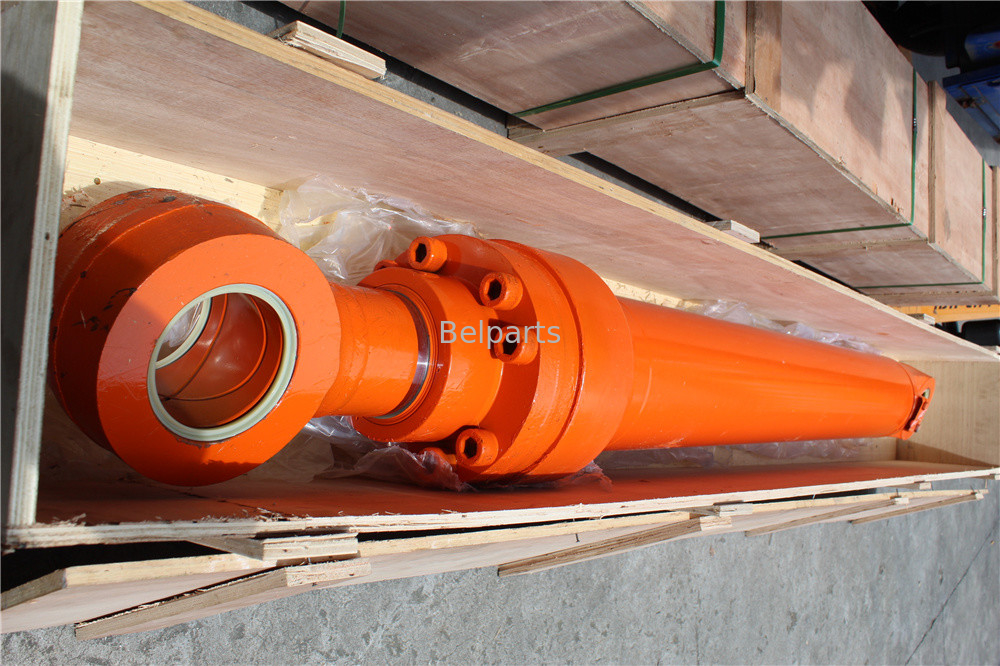

Belparts Excavator hydraulic EX200-3 EX200LC-3 EX200-2 EX200LC-2 Boom Arm Bucket Cylinder Assy for hitachi 4250223 42502
Introducing the EX200-3, EX200LC-3, EX200-2, and EX200LC-2 Hydraulic Cylinder Assemblies: Unmatched Performance and Durability
Engineered with precision and built to last, the EX200-3, EX200LC-3, EX200-2, and EX200LC-2 hydraulic cylinder assemblies are the ultimate solution for all your lifting and pressing needs. These high-quality cylinders are designed to deliver exceptional performance, reliability, and durability, making them the perfect choice for a wide range of industrial appliions.
Material:Steel
Product Name: Excavator Hydraulic Cylinder Assy
Applicable Industries:Machinery Repair Shops, Manufacturing Plant
Part number:4250223 4250224 4314778 4250225 4287889
Package Details:Export Wooden Box
Weight:110KG
Surface treatment:Heat resistance paint
Pressure:Standard, High Pressure
| Appliion | Excavator |
| Part name | Cylinder assy |
| Part number | 4250223 4250224 4314778 4250225 4287889 |
| Model | EX200-3 EX200LC-3 EX200-2 EX200LC-2 |
| MOQ | 1PC |
| Material | Steel |
| Payment term | T/T, Western union, paypal, trade assurance or as required |
| Weight | 110KG |
| Brand | Belparts |
| # | Part No | Part Name | Qty. | Price request |
| 4250225 | CYL.; BUCKET | 1 | ||
| 139 | 4286781 | . CYL. (PIPELESS) | 1 | |
| 1 | 4286782 | .. TUBE; CYL. ASS'Y | ||
| 1A | 0410001 | ... TUBE; CYL. | ||
| 1B | 0140808 | ... BUSHING | ||
| 2 | 4286783 | .. ROD; PISTON ASS'Y | 1 | |
| 2A | 0410002 | ... ROD; PISTON | ||
| 2B | 0208326 | ... BUSHING; PIN | ||
| 3 | 0410003 | .. HEAD; CYL. | ||
| 4 | 0310504 | .. BUSHING | ||
| 5 | 0240904 | .. RING; RETAINING | ||
| 6 | 0409605 | .. RING | ||
| 7 | 0240911 | .. U-RING | ||
| 8 | 0240912 | .. RING; BACK-UP | ||
| 9 | 0409613 | .. RING; WIPER | 1 | |
| 9 | 0409614 | .. RING; WIPER | ||
| 10 | A811105 | .. O-RING | 1 | |
| 11 | 0298904 | .. RING; BACK-UP | ||
| 12 | 0408805 | .. BOLT; SOCKET | ||
| 13 | 0410004 | .. BRG.; CUSHION | ||
| 14 | 0409110 | .. BOLT | ||
| 15 | 0409007 | .. PISTON | ||
| 16 | 0240915 | .. RING; SEAL ASS'Y | ||
| 17 | 0409008 | .. RING; BACK-UP | ||
| 18 | 0410005 | .. RING | ||
| 19 | 0298907 | .. RING | ||
| 20 | 0409010 | .. SHIM | ||
| 21 | 0409011 | .. NUT | ||
| 22 | 0309011 | .. SCREW; SET | ||
| 23 | 0111707 | .. BALL; STEEL | ||
| 37 | J75481 | .. FITTING; GREASE | 2 | |
| 38 | 4084578 | .. SEAL; DUST | 2 | |
| 39 | 4067902 | .. SEAL; DUST | 2 | |
| 56 | 0309312 | . JOINT | ||
| 57 | 0410006 | . PIPE | 1 | |
| 58 | 4506430 | . O-RING | 2 | |
| 59 | 0158855 | . BOLT; SOCKET | ||
| 60 | 0409018 | . BAND | ||
| 61 | 0327410 | . BAND | ||
| 62 | 0408815 | . BOLT | ||
| 63 | 0325913 | . WASHER | ||
| 64 | 0309021 | . CLAMP; PIPE | ||
| 65 | 0309022 | . BOLT | ||
| 66 | 0208516 | . WASHER; SPRING | ||
| 100 | 4321000 | KIT; SEAL | ||
| 100 | 4369890 | KIT; SEAL |
GZ YUEXIANG ENGINEERING MACHINERY LTD
Our company is loed in Guangzhou China ,was founded in September 2013 . At present , we have one shop, one warehouse and one office as well as a professional team for purchasing, selling, packing, shipping and after-sale service.
Our main products are Excavator Hydraulic spare parts, Hydraulic main pump, Swing Motor, Travel Motor, Final Drive Assy, Swing Assy, Swing Gearbox, Travel Gearbox, and other hydraulic items with genuine and aftermarket quality. Until now, our products enjoy high reputation all over the world and have been exported to more than 125 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with its own brand "Belparts" are widely acclaimed by foreign customers.
