9147237 Bucket Cylinder Assy
,EX280LCH-5 Bucket Cylinder Assy
,EX270LC-5 Hydraulic Cylinder Assy

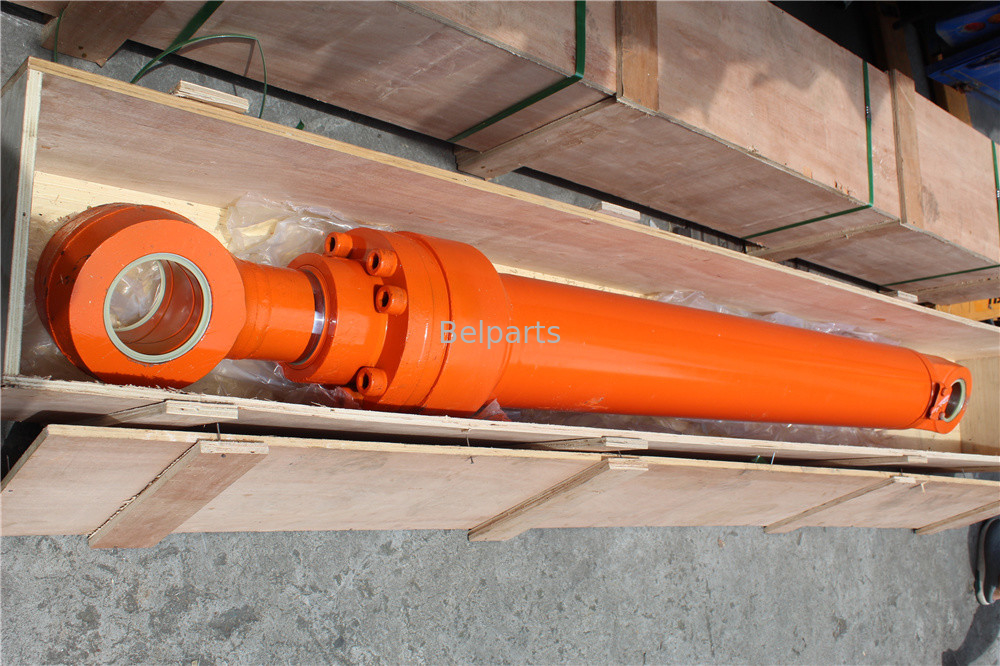

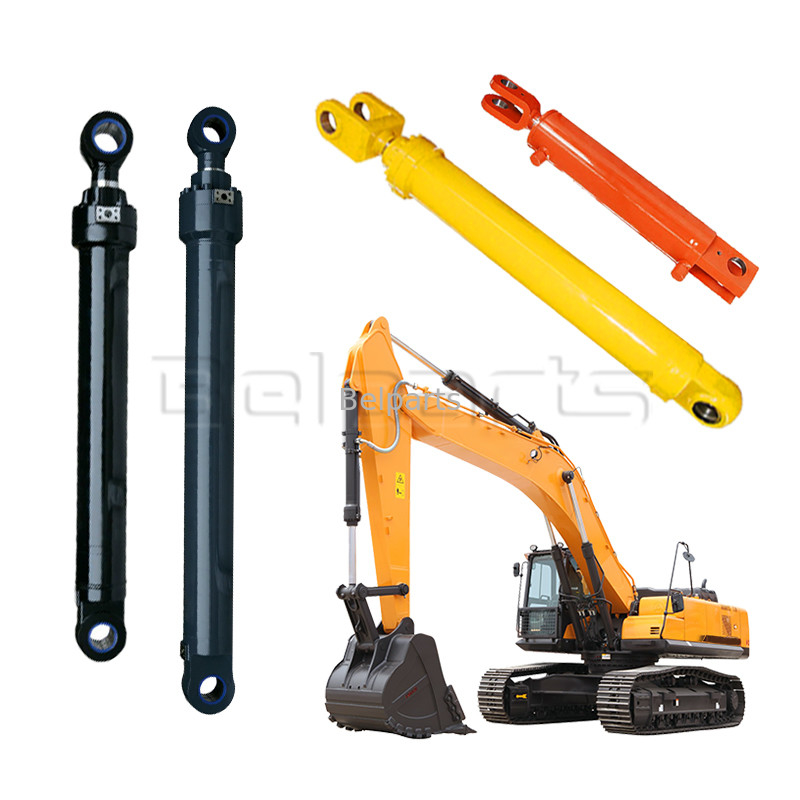

Belparts Excavator hydraulic EX270-5 EX270LC-5 EX280LCH-5 Boom Arm Bucket Cylinder Assy for hitachi 9147235 9147237 9161
Introducing the EX270-5, EX270LC-5, and EX280LCH-5 Hydraulic Cylinder Assemblies: The Ultimate Solution for Your Excavator Needs
Designed to meet the demanding requirements of modern excavators, our EX270-5, EX270LC-5, and EX280LCH-5 hydraulic cylinder assemblies are the perfect choice for those who demand reliability, durability, and performance. These high-quality cylinders are specifically engineered to provide maximum efficiency and long-lasting performance in a wide range of appliions.
Compatible with a variety of excavator models, including but not limited to erpillar, Komatsu, Hitachi, and Liebherr, these cylinder assemblies are designed to deliver exceptional performance under heavy loads and challenging conditions. Whether you're working on construction sites, mining operations, or any other industrial appliion, our cylinders are built to withstand the test of time.
Material:Steel
Product Name: Excavator Hydraulic Cylinder Assy
Applicable Industries:Machinery Repair Shops, Manufacturing Plant
Part number:9147235 9147237 9161887
Package Details:Export Wooden Box
Weight:110KG
Surface treatment:Heat resistance paint
Pressure:Standard, High Pressure
| Appliion | Excavator |
| Part name | Cylinder assy |
| Part number | 9147235 9147237 9161887 |
| Model | EX270-5 EX270LC-5 EX280LCH-5 |
| MOQ | 1PC |
| Material | Steel |
| Payment term | T/T, Western union, paypal, trade assurance or as required |
| Weight | 110KG |
| Brand | Belparts |

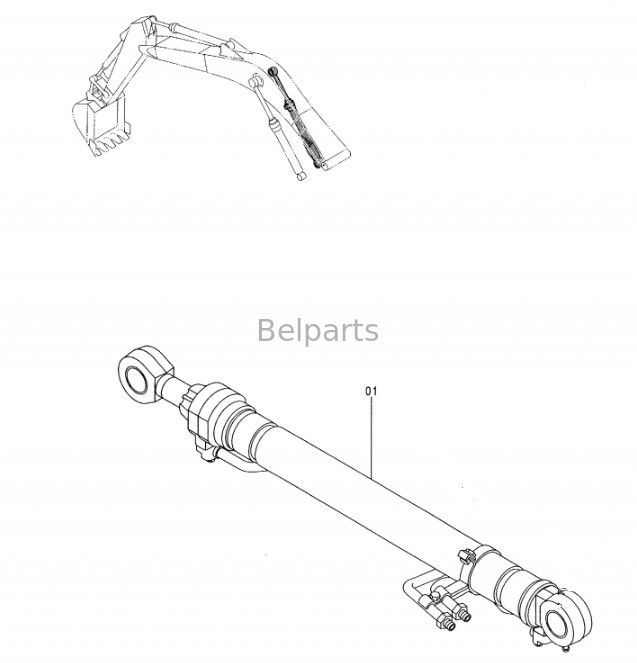

| # | Part No | Part Name | Qty. | Price request |
| 9147235 | CYL.; BOOM (R) (FOR ASSEMBLY OF MACHINE) | 1 | ||
| (9161885) | CYL.; BOOM (R) (FOR TRANSPORTATION) | 1 | ||
| 0035 | 9161892 | . CYL. (PIPELESS) (FOR ASSEMBLY OF MACHINE) | 1 | |
| 0035 | (9161895) | . CYL. (PIPELESS) (FOR TRANSPORTATION) | 1 | |
| 00 | 7030914 | .. TUBE; CYL. (FOR ASSEMBLY OF MACHINE) | 1 | |
| 00 | (9161898) | .. TUBE; CYL. (FOR TRANSPORTATION) | 1 | |
| 00A | 3042080 | ... BUSHING | 1 | |
| 02 | 7030925 | .. ROD; PISTON | 1 | |
| 02A | 3042080 | ... BUSHING | 1 | |
| 04 | 1015435 | .. HEAD; CYL. | 1 | |
| 05 | M342480 | .. BOLT; SOCKET | 8 | |
| 06 | 4348201 | .. SEAL; DUST | 1 | |
| 07 | 4171484 | .. SEAL | 1 | |
| 07 | 4389327 | .. SEAL | 1 | |
| 08 | 4264981 | .. RING | 1 | |
| 08 | 4389326 | .. RING | 1 | |
| 09 | 4369508 | .. RING; RETAINING | 1 | |
| 10 | 4272962 | .. BUSHING | 1 | |
| 11 | 4264982 | .. RING; RETAINING | 1 | |
| 12 | 4252550 | .. O-RING | 1 | |
| 16 | 4264978 | .. RING; CUSHION | 1 | |
| 18 | 3052363 | .. PISTON | 1 | |
| 19 | 4185246 | .. RING; TEFLON | 2 | |
| 20 | 4252191 | .. RING; WEAR | 2 | |
| 21 | 4185244 | .. RING; SEAL | 1 | |
| 21 | 4375667 | .. RING; SEAL | 1 | |
| 24 | 4201805 | .. SCREW; SET | 1 | |
| 26 | 3063059 | .. NUT | 1 | |
| 35 | J75481 | .. FITTING; GREASE | 1 | |
| 128 | 8049356 | . PIPE | 1 | |
| 129 | 8064641 | . PIPE | 1 | |
| 131 | M341245 | . BOLT; SOCKET | 4 | |
| 132 | M341260 | . BOLT; SOCKET | 4 | |
| 133 | A811035 | . O-RING | 2 | |
| 138 | 3049761 | . CLAMP | 1 | |
| 139 | 8049658 | . CLAMP | 1 | |
| 143 | J011035 | . BOLT; SEMS | 2 | |
| 146 | 4229234 | . CLAMP; PIPE | 1 | |
| 147 | J901265 | . BOLT | 1 | |
| 148 | J950012 | . NUT | 1 | |
| 149 | A590912 | . WASHER; SPRING | 1 | |
| 200 | 9161917 | KIT; SEAL | 1 | |
| 200 | 9180587 | KIT; SEAL | 1 |
GZ YUEXIANG ENGINEERING MACHINERY LTD
Our company is loed in Guangzhou China ,was founded in September 2013 . At present , we have one shop, one warehouse and one office as well as a professional team for purchasing, selling, packing, shipping and after-sale service.
Our main products are Excavator Hydraulic spare parts, Hydraulic main pump, Swing Motor, Travel Motor, Final Drive Assy, Swing Assy, Swing Gearbox, Travel Gearbox, and other hydraulic items with genuine and aftermarket quality. Until now, our products enjoy high reputation all over the world and have been exported to more than 125 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with its own brand "Belparts" are widely acclaimed by foreign customers.
