Belparts Excavator EX550 EX550-3 EX550LC EX550LC-3 EX550-5 EX550LC-5 Boom Arm Bucket Cylinder Assy For Hitachi 4309332

Place of Origin:Guangdong, China
Brand Name:Belparts
Model Number:EX550 EX550-3 EX550LC EX550LC-3 EX550-5 EX550LC-5
Price:negotiation
Supply Ability:1000 Piece/Pieces per Month
Product Details
Highlight:

Boom Arm Bucket Cylinder Assy

,

EX550LC-5 Bucket Cylinder Assy

,

4309332 hydraulic Cylinder Assy

Product Name: Hydraulic Cylinder Assy
Model: EX550 EX550-3 EX550LC EX550LC-3 EX550-5 EX550LC-5
Weight: 110KG
Brand: Belparts
Package: Wooden Box
Part Number: 4309332 4309333 4309334 4309335 4338133 4352759
Product Description

Belparts Excavator EX550 EX550-3 EX550LC EX550LC-3 EX550-5 EX550LC-5 Boom Arm Bucket Cylinder Assy for hitachi 4309332





Belparts construction machinery parts YC35 SWE40 SWE50 excavator B0600-21020 PSVD2-21E-7 PSVD2-21 hydraulic main pump

Material:Steel

Product Name: Excavator Hydraulic Cylinder Assy

Applicable Industries:Machinery Repair Shops, Manufacturing Plant

Part number:4309332 4309333 4309334 4309335 4338133 4352759

Package Details:Export Wooden Box

Weight:110KG

Surface treatment:Heat resistance paint

Pressure:Standard, High Pressure



Appliion Excavator
Part name Cylinder assy
Part number 4309332 4309333 4309334 4309335 4338133 4352759
Model EX550 EX550-3 EX550LC EX550LC-3 EX550-5 EX550LC-5
MOQ 1PC
Material Steel
Payment term T/T, Western union, paypal, trade assurance or as required
Weight 110KG
Brand Belparts

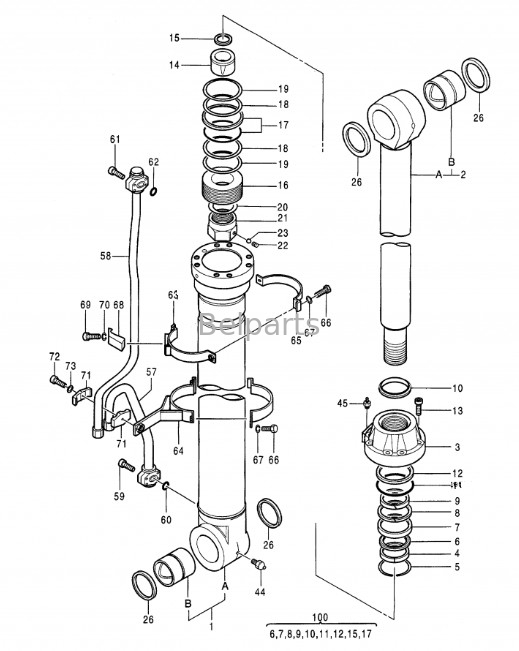

# Part No Part Name Qty. Price request
  4309332 CYL.; BOOM (R) 1  
145 4354802 . CYL. (PIPELESS) 1  
1 0643001 .. TUBE; CYL. ASS'Y 1  
1A   ... TUBE; CYL. 1  
1B 0643002 ... BUSHING; PIN    
2 0643003 .. ROD; PISTON ASS'Y    
2A   ... ROD; PISTON 1  
2B 0643004 ... BUSHING; PIN    
3 0643005 .. HEAD; CYL.    
4 0643006 .. BUSHING    
5 0133709 .. RING; RETAINING    
6 0643007 .. RING    
7 0643008 .. PACKING; U-RING    
8 0643009 .. RING; BACK-UP    
9 0643010 .. RING; SLIDE    
10 0643011 .. RING; WIPER    
11 A811170 .. O-RING 1  
12 0332704 .. RING; BACK-UP    
13 0417606 .. BOLT; SOCKET    
14 0643012 .. BRG.; CUSHION    
15 0643013 .. SEAL; CUSHION    
16 0643014 .. PISTON    
17 0332706 .. RING; SEAL ASSY    
18 0643015 .. RING; SLIDE    
19 0332708 .. RING; SLIDE    
20 0353010 .. SHIM    
21 0353009 .. NUT    
22 0353012 .. SCREW; SET    
23 0353011 .. BALL; STEEL    
26 4205000 .. SEAL; DUST    
44 J75481 .. FITTING; GREASE 1  
45 0643016 .. BLEEDER; AIR    
57 0643017 . PIPE    
58 0643018 . PIPE    
59 0309020 . BOLT; SOCKET 4  
60 984614 . O-RING 1  
61 0643019 . BOLT; SOCKET    
62 955612 . O-RING 1  
63 0643020 . BAND    
64 0643021 . BAND    
65 0417613 . BAND    
66 0408815 . BOLT    
67 0325913 . WASHER    
68 0309219 . CLAMP; PIPE    
69 0237417 . BOLT    
70 0208516 . WASHER; SPRING    
71 0236915 . HOLDER    
72 0236916 . BOLT 1  
73 A590914 . WASHER; SPRING 1  
100 4348853 KIT; SEAL 1  



Belparts Excavator EX550 EX550-3 EX550LC EX550LC-3 EX550-5 EX550LC-5 Boom Arm Bucket Cylinder Assy For Hitachi 4309332Belparts Excavator EX550 EX550-3 EX550LC EX550LC-3 EX550-5 EX550LC-5 Boom Arm Bucket Cylinder Assy For Hitachi 4309332Belparts Excavator EX550 EX550-3 EX550LC EX550LC-3 EX550-5 EX550LC-5 Boom Arm Bucket Cylinder Assy For Hitachi 4309332Belparts Excavator EX550 EX550-3 EX550LC EX550LC-3 EX550-5 EX550LC-5 Boom Arm Bucket Cylinder Assy For Hitachi 4309332

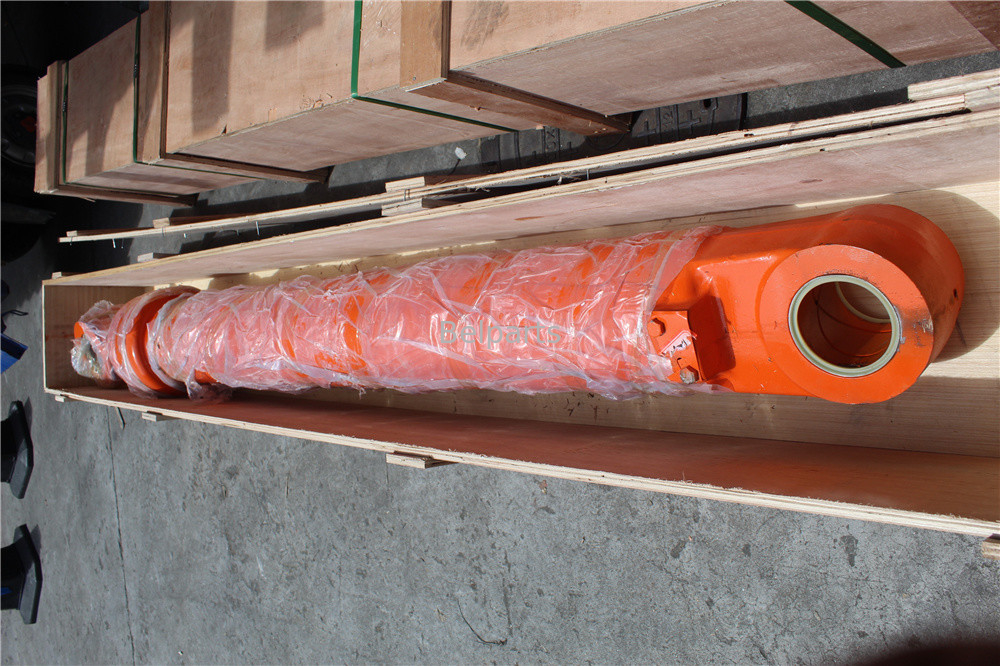

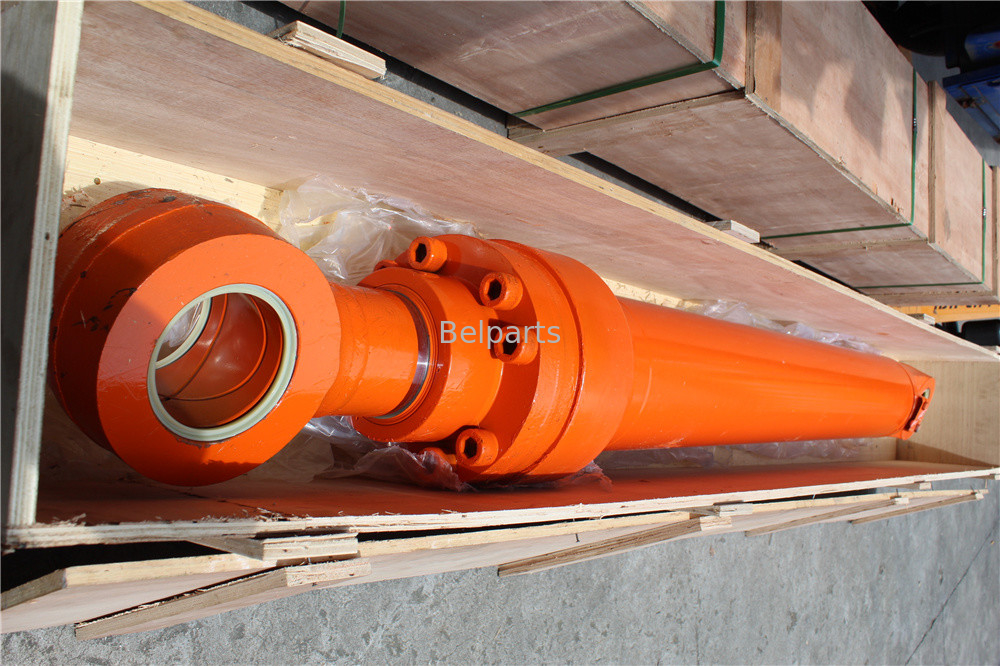

We understand the importance of safe and secure transportation of our products. That's why we offer our EX550 Series Hydraulic Cylinders in sturdy wooden cases to ensure they arrive at your doorstep in pristine condition.



company model three

Belparts Excavator EX550 EX550-3 EX550LC EX550LC-3 EX550-5 EX550LC-5 Boom Arm Bucket Cylinder Assy For Hitachi 4309332Belparts Excavator EX550 EX550-3 EX550LC EX550LC-3 EX550-5 EX550LC-5 Boom Arm Bucket Cylinder Assy For Hitachi 4309332



GZ YUEXIANG ENGINEERING MACHINERY LTD

Our company is loed in Guangzhou China ,was founded in September 2013 . At present , we have one shop, one warehouse and one office as well as a professional team for purchasing, selling, packing, shipping and after-sale service.



Our main products are Excavator Hydraulic spare parts, Hydraulic main pump, Swing Motor, Travel Motor, Final Drive Assy, Swing Assy, Swing Gearbox, Travel Gearbox, and other hydraulic items with genuine and aftermarket quality. Until now, our products enjoy high reputation all over the world and have been exported to more than 125 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with its own brand "Belparts" are widely acclaimed by foreign customers.
