Excavator DH130 DH150-7 DX130 DX150-7 Main Control Valve For Doosan Daewoo 2420-9521 2426-1225A 426-E0078
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | DH130 DH150-7 DX130 DX150-7 | Warranty | 1 Year |
|---|---|---|---|
| Part Name | Main Control Valve | Texture | Steel |
| Part Number | 2420-9521 2426-1225A 426-E0078 | Packing | Wooden Case Or As You Required |
| MOQ | 1PCS | ||
| High Light | DX150-7 Main Control Valve,2426-1225A Main Control Valve,426-E0078 Main Control Valve |
||
Product Description

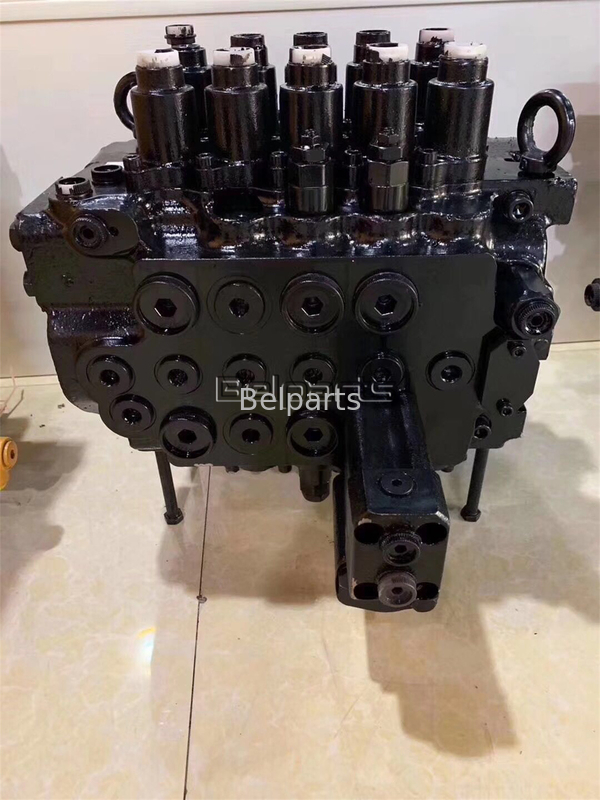

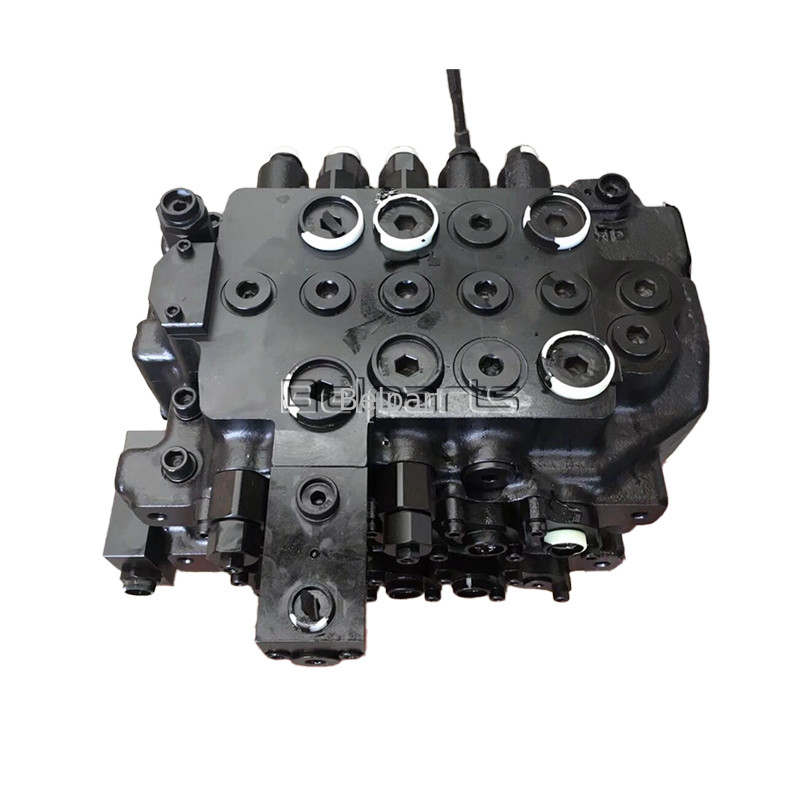

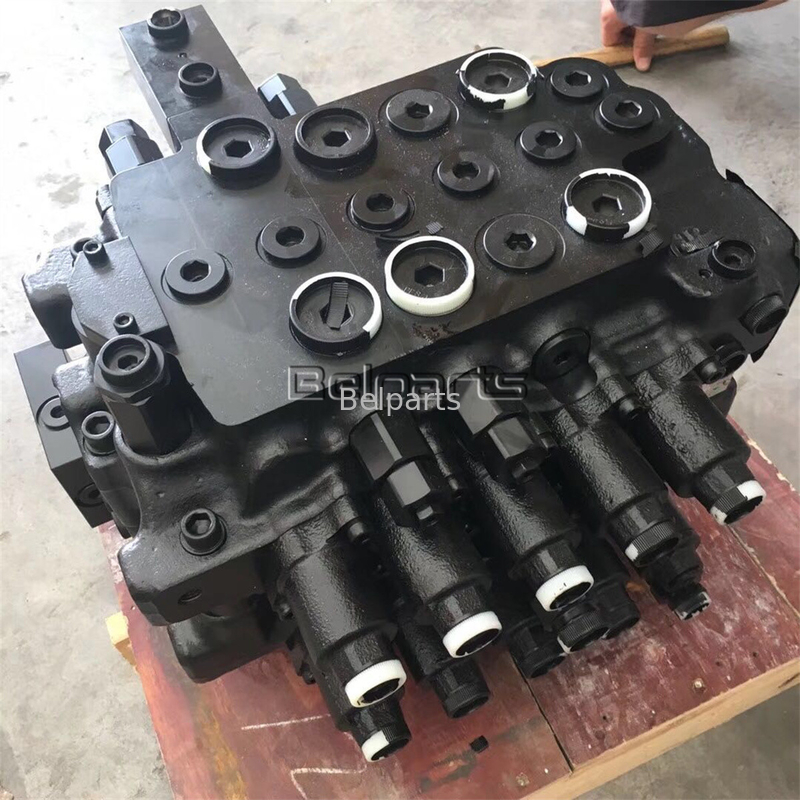

Belparts Excavator DH130 DH150-7 DX130 DX150-7 Main Control Valve for Doosan Daewoo 2420-9521 2426-1225A 426-E0078
Appliion:Excavator
Part name:main control valve
Model:DH130 DH150-7 DX130 DX150-7
Part number:2420-9521 2426-1225A 426-E0078
Warranty:Negotiable
Payment term:T/T, Western union, paypal, trade assurance or as required
After sales service:Online
|
Appliion
|
Excavator
|
|
Part name
|
main control valve
|
|
Model
|
DH130 DH150-7 DX130 DX150-7 |
|
Part number
|
2420-9521 2426-1225A 426-E0078
|
|
Warranty
|
Negotiable
|
|
Payment term
|
T/T, Western union, paypal, trade assurance or as required
|
|
After sales service
|
Online
|
| # | Part No | Part Name | Comment | Qty. | Price request |
| - | 2420-9521 | VALVE, CONTROL | 1 | ||
| 1 | 3518-029 | 2415-1012 ORIFICE | 1 | ||
| 2 | 8072-130 | BOLT SOCKET(S2266461) | 8 | ||
| 3 | 8131-009 | WASHER, SPRING M12 | 1 kg | 8 | |
| 4 | 0824-054 | CAP | 4 | ||
| 5 | 0207-001 | O-RING | 5 | ||
| 6 | 3513-221 | CHECK ASS'Y | 1 | ||
| 7 | 3590-061 | SPRING | 3 | ||
| 8 | 8202-016 | O-RING P21 HS90 | 26 | ||
| 9 | 3526-531 | CAP | 1 | ||
| 10 | 3526-609 | CAP | 1 | ||
| 113 | 3510-685 | SPOOL, TS=2424-1100 | 1 | ||
| 114 | 3590-477 | SPRING | 1 | ||
| 115 | 3526-418 | CAP(PL) | 1 | ||
| 116 | 3531-108 | GUIDE | 2 | ||
| 11 | 3510-986 | SPOOL, REGEN | 1 | ||
| 12 | 3516-234 | SLEEVE | 1 | ||
| 13 | 3590-529 | SPRING(2129-1467P) | 1 | ||
| 14 | 3512-114 | PISTON | 1 | ||
| 15 | 0824-052 | CAP | 7 | ||
| 16 | 8202-011 | O-RING | 8 | ||
| 17 | 0824-051 | CAP (S400LC)(=2430-1051) | 5 | ||
| 18 | 8202-009 | O-RING P11 HS90 | 5 | ||
| 19 | 8202-007 | O-RING | 7 | ||
| 20 | 8202-023 | O-RING P29 | 4 | ||
| 21 | 0201-066 | O-RING MS9021-130, HS90 | 1 | ||
| 22 | 8202-014 | O-RING P18, HS90 | 6 | ||
| 23 | 0201-063 | O-RING MS9021-127 HS90 | 10 | ||
| 24 | 3503-181 | COVER | 1 | ||
| 110 | 3526-516 | CAP | 1 | ||
| 111 | 3597-231 | SPACER | 1 | ||
| 112 | 3590-436 | SPRING | 1 | ||
| 28 | 3590-233 | SPRING | 1 | ||
| 29 | 3501-796 | HOUSING, LEFT | 1 | ||
| 30 | 0201-059 | O-RING | 10 | ||
| 31 | 3505-062 | RETAINER (TSB) | 10 | ||
| 32 | 3511-756 | PLUNGER, G1 | 1 | ||
| 33 | 3511-930 | PLUNGER, M51 | 2 | ||
| 34 | 3511-931 | PLUNGER, T15 | 1 | ||
| 35 | 3511-932 | PLUNGER, D52 | 1 | ||
| 36 | 3511-933 | PLUNGER, A51 | 1 | ||
| 37 | 3535-060 | COVER ASS'Y | 1 | ||
| 38 | 3526-529 | CAP (2430-1081) | 1 | ||
| 39 | 3590-447 | SPRING | 1 | ||
| 40 | 3610-016 | SPOOL, BC | 1 | ||
| 41 | 3511-937 | SPOOL, BP ASS'Y | 1 | ||
| 42 | 0201-024 | O-RING | 1 | ||
| 43 | 3590-520 | SPRING | 1 | ||
| 44 | 3503-247 | COVER ASSY | 1 | ||
| 45 | 8072-065 | BOLT, HEX SOCKET HEAD | 2 | ||
| 46 | 3501-797 | HOUSING, RIGHT | 1 | ||
| 48 | 3511-848 | PLUNGER, D ASSY(OPTION) | 1 | ||
| 49 | 3511-934 | PLUNGER, C6 | 1 | ||
| 50 | 3511-935 | PLUNGER, B8 | 1 | ||
| 51 | 3511-936 | PLUNGER, D7 | 1 | ||
| 52 | 3526-337 | CAP | 4 | ||
| 53 | 0859-181 | RING, BACK UP P21 B1AS | 5 | ||
| 54 | 1099-000 | CHIP, NYLON | 12 | ||
| 55 | 3390-401 | 3390-101 SPR | 12 | ||
| 56 | 3513-108 | VALVE, CHECK | 12 | ||
| 57 | 3537-396-360-20 | VALVE, OVER LOAD RELIEF | 7 | ||
| 58 | 0859-271 | BACK UP RING | 7 | ||
| 59 | 0207-004 | O-RING P12.5 | 7 | ||
| 60 | 8202-010 | O-RING, CN | 1 | ||
| 61 | 0859-194 | RING, BACK-UP | 1 | ||
| 62 | 3526-432 | 2430-1059 CAP | 1 | ||
| 63 | 3537-358 | MAIN RELIEF ASS'Y | 1 | ||
| 64 | 3526-535 | CAP | 2 | ||
| 65 | 0201-054 | O-RING MS9021-118 HS90 | 2 | ||
| 66 | 3516-209 | SLEEVE | 1 | ||
| 67 | 3526-580 | CAP (TSB) | 4 | ||
| 68 | 3526-534 | CAP | 1 | ||
| 69 | 3516-233 | SLEEVE | 1 | ||
| 70 | 3537-332 | VALVE ASSY, FOOT RELIEF | 2 | ||
| 71 | 3526-604 | CAP (TSB) | 1 | ||
| 72 | 3590-521 | SPRING | 1 | ||
| 73 | 3510-960 | SPRING | 1 | ||
| 74 | 0824-050 | CAP | 1 | ||
| 75 | 8202-005 | O-RING P11 | 1 | ||
| 76 | 3590-054 | SPRING | 1 | ||
| 77 | 3508-086 | MANIFOLD | 1 | ||
| 78 | 3610-014 | SPOOL, SP | 1 | ||
| 79 | 3526-603 | CAP, CONTROL V/V TSB | 2 | ||
| 80 | 0202-008 | O-RING | 3 | ||
| 81 | 8072-105 | BOLT, HEX SOCKET HEAD | 4 | ||
| 82 | 3537-357-360-20 | OVER LOAD RELIEF V/V | 1 | ||
| 83 | 0859-172 | RING, BACK UP | 5 kg | 1 | |
| 84 | 8202-013 | O-RING=1BP-16 | 1 | ||
| 85 | 3508-070 | MANIFOLD ASS'Y | 1 | ||
| 86 | 8202-021 | O-RING P26 | 1 | ||
| 87 | 0859-229 | RING, BACK UP | 1 kg | 1 | |
| 88 | 3504-056 | COVER ASS'Y | 1 | ||
| 89 | 0576-078 | BOLT, HEX SOCKET HEAD | 4 | ||
| 90 | 3593-023 | SEAT, SPRING (TSB) | 1 | ||
| 91 | 3590-471 | SPRING | 1 | ||
| 92 | 3513-277 | POPPET (TSB) | 1 | ||
| 93 | 3610-033 | SPOOL ASSY TL, TR | 2 | ||
| 94 | 3610-034 | PLUNGER, SW | 1 | ||
| 95 | 3610-035 | 2424-1353 SPOOL ASS | 1 | ||
| 96 | 3610-036 | 2424-1354 SPOOL ASSY | 1 | ||
| 97 | 3510-821 | SPOOL ASSY, TS | 1 | ||
| 98 | 3510-714 | PLUNGER, D(OPTION) | 1 | ||
| 99 | 3610-037 | SPOOL ASSY, BKT | 1 | ||
| 100 | 3610-038 | 2424-1352 SPOOL A | 1 | ||
| 101 | 3610-029 | PLUNGER, AM-2 | 1 | ||
| 102 | 3590-498 | SPRING (TSB) | 9 | ||
| 103 | 3526-585 | CAP | 9 | ||
| 104 | 3531-125 | GUIDE, SP | 18 | ||
| 105 | 3513-245 | CHECK ASS'Y | 2 | ||
| 106 | 8202-006 | O-RING | 2 | ||
| 107 | 0859-203 | RING, BACK UP | 2 | ||
| 108 | 3526-539 | CAP | 2 | ||
| 109 | 0859-323 | BACK UP RING | 2 | ||
| 25 | 8072-084 | BOLT, SOCKET | 40 | ||
| 26 | 3503-240 | COVER | 9 | ||
| 27 | 3513-261 | POPPET | 1 |
