Product Details
Highlight:
ZX470-5G Hydraulic Pump
,9184686 Hydraulic Pump
,4633472 Excavator Main Pump
Model:
ZX470-5G
Part Number:
4633472 9184686
Warranty:
1 Year
Texture:
Steel
Brand:
Hitachi Or As Require
Part Name:
Hydraulic Pump
Product Description

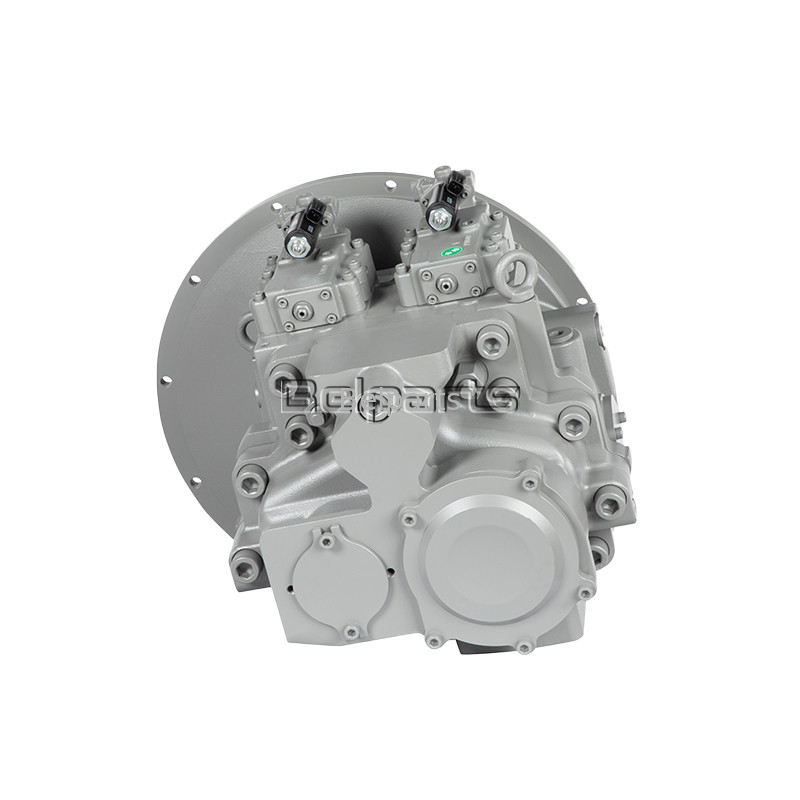

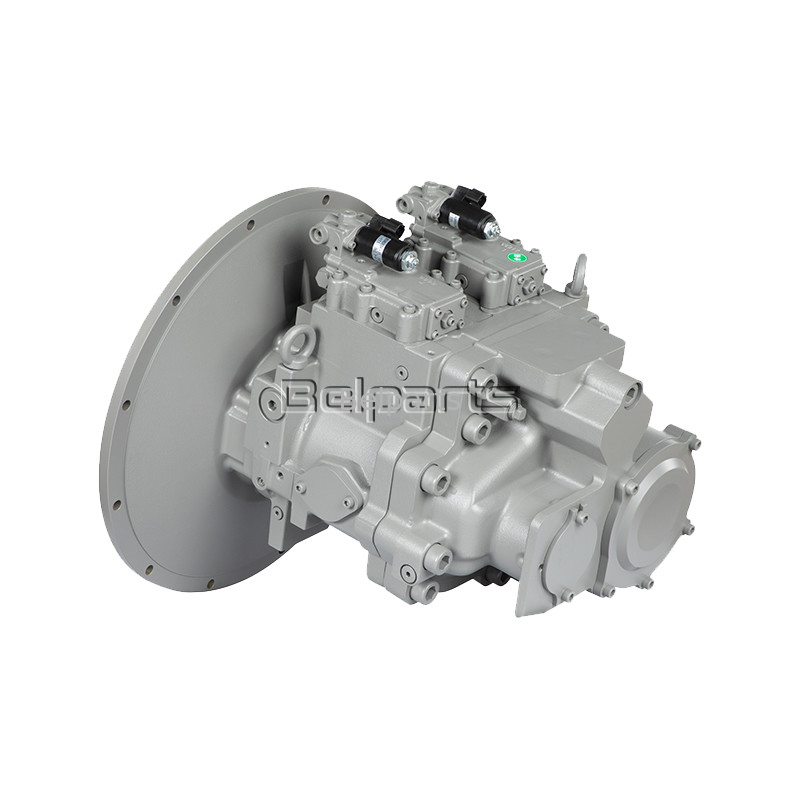

ZX470-5G hydraulic pump Belparts excavator main pump for hitachi 4633472 9184686
Appliion:Crawler excavator
Part name:Hydraulic Main Pump
Model:ZX470-5G
Part number:4633472 9184686
Warranty:3-12 months
Payment term:T/T, Trade Assurance, Paypal and etc.
Brand:Hitachi or as require
| Appliion | Crawler excavator |
| Part name | Hydraulic Main Pump |
| Model | ZX470-5G |
| Part number | 4633472 9184686 |
| Warranty | 3-12 months |
| Payment term | T/T, Trade Assurance, Paypal and etc. |
| Brand | Hitachi or as require |

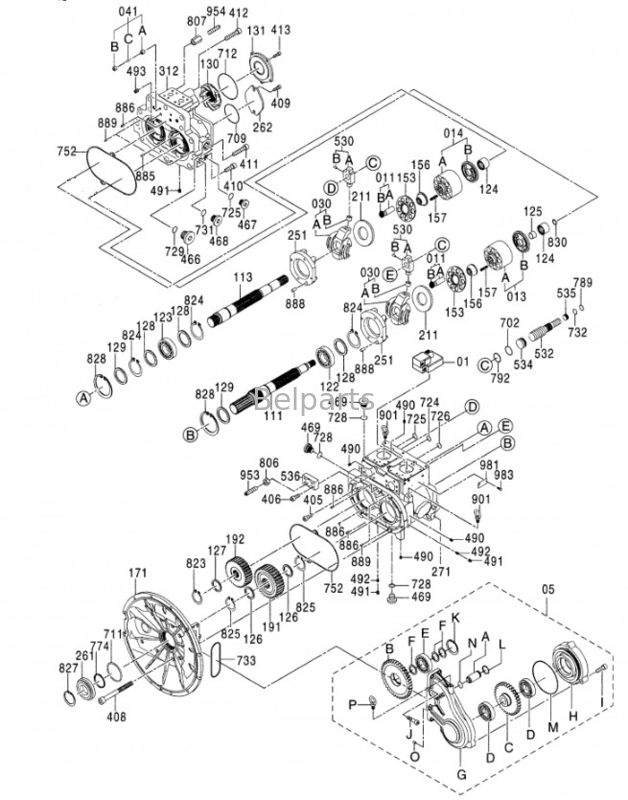

| # | Part No | Part Name | Qty. | Price request |
| 4633472 | PUMP; PISTON | 1 | ||
| 01 | 4658831 | . PUMP; REGULATOR | 2 | |
| 05 | 4654554 | . UNIT | 1 | |
| 05A | .. SHAFT | 1 | ||
| 05B | .. GEAR | 1 | ||
| 05C | .. GEAR | 1 | ||
| 05D | 0978517 | .. BRG.; BALL | 2 | |
| 05E | 0878107 | .. BRG.; ROL. | 1 | |
| 05F | 0818508 | .. SPACER | 3 | |
| 05G | .. CASE | 1 | ||
| 05H | .. CASE; GEAR | 1 | ||
| 05I | 0195126 | .. BOLT; SOCKET | 3 | |
| 05J | M341236 | .. BOLT; SOCKET | 8 | |
| 05K | 0978512 | .. O-RING | 1 | |
| 05L | 0443404 | .. O-RING | 1 | |
| 05M | 988850 | .. RING; RETAINING | 1 | |
| 05N | 446751 | .. RING; RETAINING | 1 | |
| 05O | .. PIN | 2 | ||
| 05P | 4091248 | .. BOLT; EYE | 1 | |
| 011 | 0820401 | . PISTON ASS'Y | 2 | |
| 011A | .. PISTON | 9 | ||
| 011B | .. SHOE | 9 | ||
| 013 | 0820402 | . CYL. ASS'Y | 1 | |
| 013A | .. BLOCK; CYL. | 1 | ||
| 013B | .. PLATE; VALVE | 1 | ||
| 014 | 0451003 | . CYL. ASS'Y | 1 | |
| 014A | .. BLOCK; CYL. | 1 | ||
| 014B | .. PLATE; VALVE | 1 | ||
| 030 | 0772701 | . PLATE ASS'Y | 2 | |
| 030A | .. PLATE | 1 | ||
| 030B | .. BUSHING | 1 | ||
| 041 | 0708004 | . VALVE; CHECK ASS'Y | 2 | |
| 041A | .. SEAT | 1 | ||
| 041B | .. STOPPER | 1 | ||
| 041C | .. BALL; STEEL | 1 | ||
| 111 | 0978501 | . SHAFT | 1 | |
| 113 | 0820406 | . SHAFT | 1 | |
| 122 | 0820407 | . BRG.; ROL. | 1 | |
| 123 | 0978502 | . BRG.; ROL. | 1 | |
| 124 | 0978503 | . BRG.; NEEDLE | 2 | |
| 125 | 0978504 | . RING; INNER | 1 | |
| 126 | 0820409 | . SPACER | 2 | |
| 127 | 0820410 | . SPACER | 1 | |
| 128 | 0820411 | . SPACER | 3 | |
| 129 | 0820412 | . SPACER | 2 | |
| 130 | 0978505 | . BOOSTER | 1 | |
| 131 | 0820414 | . COVER | 1 | |
| 153 | 0820415 | . RETAINER | 2 | |
| 156 | 0820416 | . BUSHING | 2 | |
| 157 | 0451016 | . SPRING | 18 | |
| 171 | 0978506 | . CASING | 1 | |
| 191 | 0820418 | . GEAR; DRIVE | 1 | |
| 192 | 0820419 | . GEAR | 1 | |
| 211 | 0451018 | . PLATE | 2 | |
| 251 | 0820420 | . SUPPORT | 2 | |
| 261 | 0978507 | . COVER | 1 | |
| 262 | 0820422 | . COVER | 1 | |
| 271 | 0978508 | . CASING | 1 | |
| 312 | 0978509 | . COVER | 1 | |
| 405 | 0978510 | . BOLT; SOCKET | 8 | |
| 406 | M341236 | . BOLT; SOCKET | 8 | |
| 408 | 0131103 | . BOLT; SOCKET | 11 | |
| 409 | 0820425 | . BOLT; SOCKET | 2 | |
| 410 | 0820426 | . BOLT; SOCKET | 9 | |
| 411 | 0820427 | . BOLT; SOCKET | 2 | |
| 412 | 0820428 | . BOLT; SOCKET | 1 | |
| 413 | M341025 | . BOLT; SOCKET | 5 | |
| 466 | 0978511 | . PLUG | 2 | |
| 467 | 0629404 | . PLUG | 2 | |
| 468 | 0626901 | . PLUG | 2 | |
| 469 | 0697911 | . PLUG | 3 | |
| 490 | 0263019 | . PLUG | 20 | |
| 491 | 0451028 | . PLUG | 12 | |
| 492 | 0451027 | . SCREW | 4 | |
| 493 | 0102440 | . PLUG | 2 | |
| 530 | 0820438 | . PIN ASS'Y | 2 | |
| 530A | .. PIN | 2 | ||
| 530B | .. PIN | 2 | ||
| 532 | 0820429 | . PISTON; SERVO | 2 | |
| 534 | 0451031 | . STOPPER | 2 | |
| 535 | 0820430 | . STOPPER | 2 | |
| 536 | 0820431 | . COVER | 2 | |
| 702 | 0451033 | . O-RING | 2 | |
| 709 | 0694604 | . O-RING | 2 | |
| 711 | 0820432 | . O-RING | 1 | |
| 712 | 0820433 | . O-RING | 1 | |
| 724 | 0443801 | . O-RING | 9 | |
| 725 | 4297379 | . O-RING | 2 | |
| 726 | 0443405 | . O-RING | 2 | |
| 728 | 0443408 | . O-RING | 5 | |
| 729 | 0719402 | . O-RING | 2 | |
| 731 | 0443407 | . O-RING | 2 | |
| 732 | 0451035 | . O-RING | 2 | |
| 733 | 0978512 | . O-RING | 1 | |
| 752 | 0820439 | . PACKING | 2 | |
| 774 | 0820443 | . SEAL; OIL | 1 | |
| 789 | 0451036 | . RING; BACK-UP | 2 | |
| 792 | 0451037 | . RING; BACK-UP | 2 | |
| 806 | 0451038 | . NUT | 2 | |
| 807 | 0820434 | . NUT | 2 | |
| 823 | 959499 | . RING; RETAINING | 1 | |
| 824 | 991345 | . RING; RETAINING | 3 | |
| 825 | 488075 | . RING; RETAINING | 2 | |
| 827 | 991728 | . RING; RETAINING | 1 | |
| 828 | 0820435 | . RING; RETAINING | 2 | |
| 830 | 0978513 | . RING; RETAINING | 1 | |
| 885 | 0313404 | . PIN | 2 | |
| 886 | 0244604 | . PIN; SPRING | 4 | |
| 888 | 0978514 | . PIN | 2 | |
| 889 | 0978515 | . PIN | 4 | |
| 901 | 0134458 | . BOLT; EYE | 2 | |
| 953 | 0978516 | . SCREW; SET | 2 | |
| 954 | 0682328 | . SCREW; SET | 2 | |
| 981 | . PLATE | 1 | ||
| 983 | 0625509 | . PIN | 2 |
