Belparts Swing gearbox For Komatsu Excavator PC60-7 swing reduction gear 708-7T-00470 708-7T-00360 708-7T-00240
Place of Origin:Made in China
Brand Name:Belparts
Model Number:PC60-7
Minimum Order Quantity:1 piece
Price:Negotiable price
Payment Terms:T/T, Paypal and Trade Assurance
Supply Ability:1000pieces
Product Details
Highlight:
708-7T-00360 Swing Motor
,Excavator PC60-7 Swing Motor
,708-7T-00240 Swing Motor
Model Name:
Excavator
Model:
PC60-7
Payments:
T/T, PayPal, Trade Assurance
Supply Ability:
2000pcs
Brand:
Belparts
Port:
Huangpu, Guangzhou
Packing:
37*36*52
Part Number:
708-7T-00470 708-7T-00360 708-7T-00240
Product Description

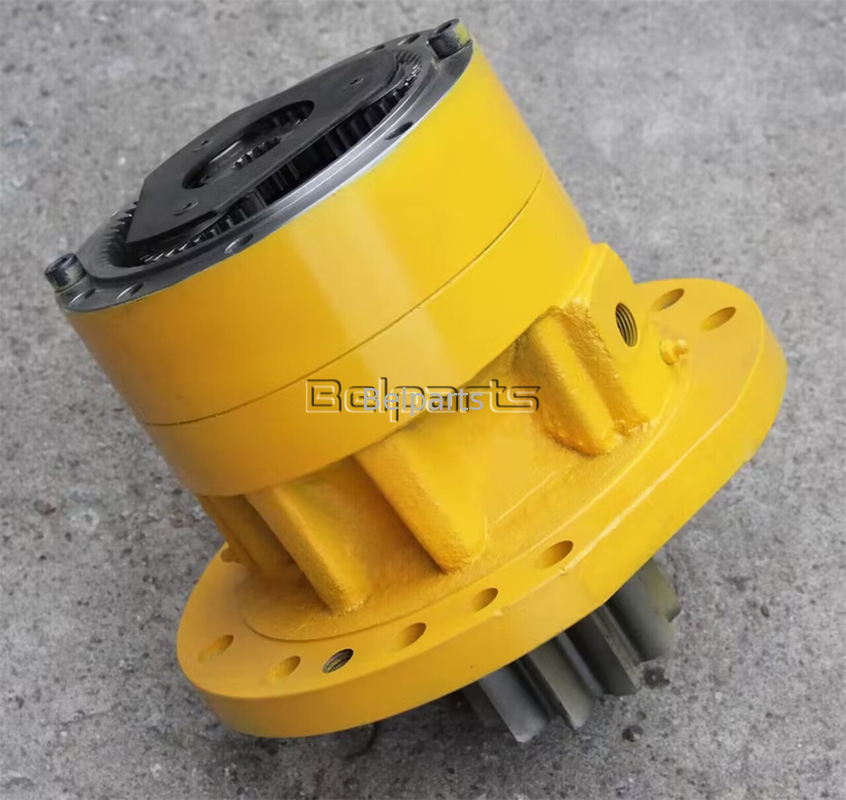

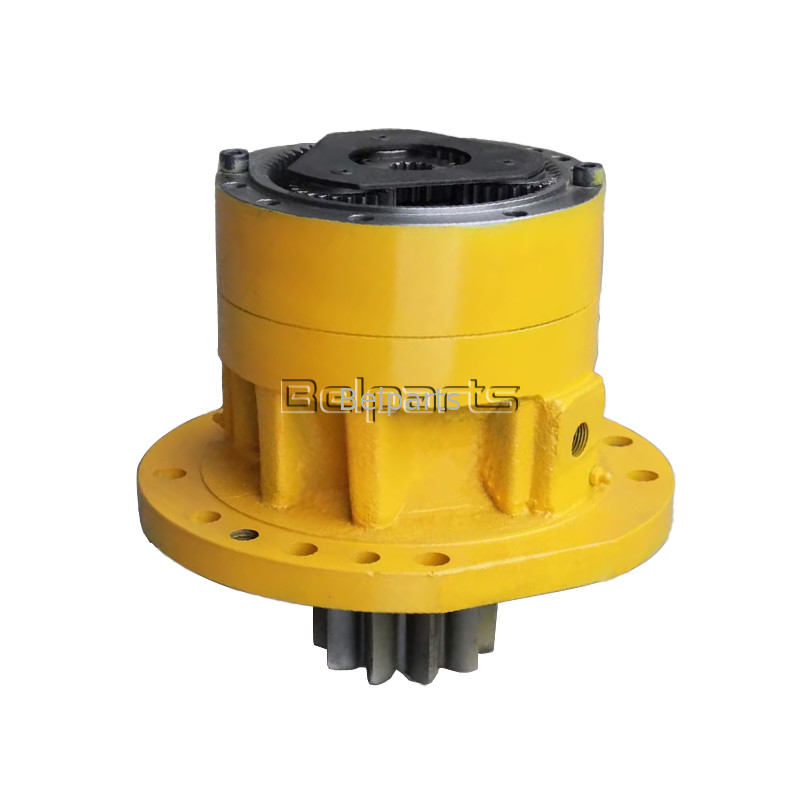

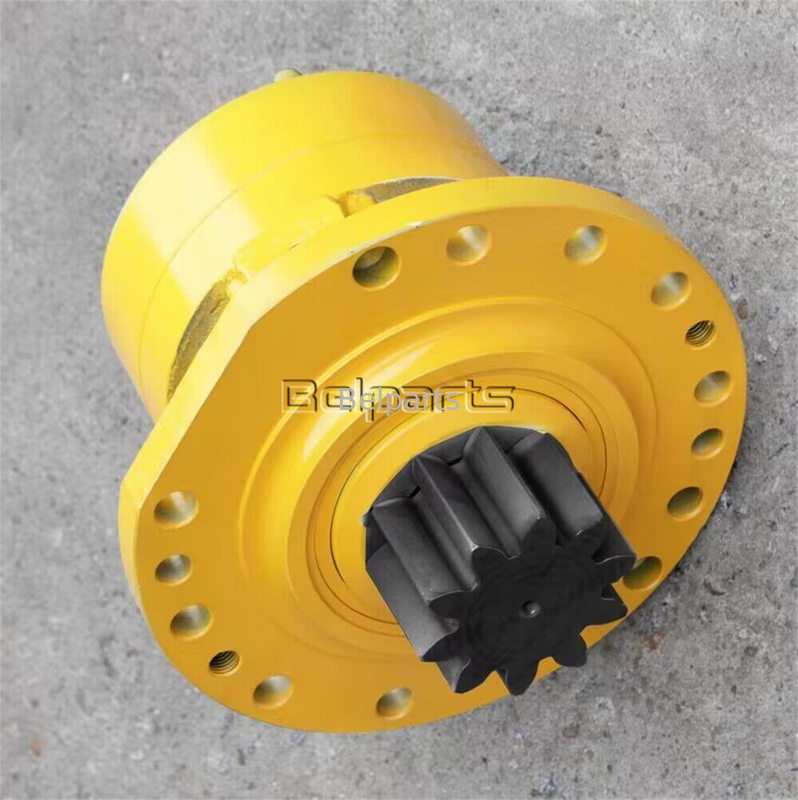

Belparts Swing gearbox For Komatsu Excavator PC60-7 swing reduction gear 708-7T-00470 708-7T-00360 708-7T-00240
Appliion:Excavator
Part name:swing gearbox
Material:Steel
Model:PC60-7
Part number:708-7T-00470 708-7T-00360 708-7T-00240
Payment term:37*36*52
Delivery:56KG
Brand:Belparts
|
Appliion |
Excavator |
|
Part name |
swing gearbox |
|
Material |
Steel |
|
Model |
PC60-7 |
|
Part number |
708-7T-00470 708-7T-00360 708-7T-00240 |
|
Payment term |
37*36*52 |
|
Delivery |
56KG |
|
Brand |
Belparts |
| # | Part No | Part Name | Qty. | Price request |
| 1 | 708-7T-00470 | MOTOR ASS'Y | 1 | |
| 1 | 708-7T-00360 | MOTOR ASS'Y | 1 | |
| 1 | 708-7T-00240 | MOTOR ASS'Y | 1 | |
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1640-01A0 TO Y1640-02A0A | ||||
| 1 | 708-7T-01210 | MOTOR SUB ASS'Y | 1 | |
| 1 | 708-7T-01040 | MOTOR SUB ASS'Y | 1 | |
| 1 | (*708-7T-11240) | CASE, MOTOR | 1 | |
| 2 | (*708-7T-11670) | COVER,END | 1 | |
| 2 | (*708-7T-11640) | COVER,END | 1 | |
| 2A | 706-73-72420 | Bushing | 2 | |
| 2B | 706-73-72440 | Spring | 2 | |
| 2C | 706-73-72430 | Plug | 2 | |
| 2D | 07002-12434 | O-RING,(FOR 2-ACTUATER ATTACHMENT) | 2 | |
| 3 | (*708-7T-51210) | O-ring | 1 | |
| 4 | (*720-68-19610) | PIN,DOWEL | 2 | |
| 5 | (*01010-81250) | Bolt | 4 | |
| 6 | (*708-7T-12420) | Shaft | 1 | |
| 6 | (*708-7T-12220) | Shaft | 1 | |
| 7 | (*708-7T-12240) | Bearing | 1 | |
| 8 | (*708-7T-12250) | Bearing | 1 | |
| 9 | (*708-7T-05020) | SPACER KIT | 1 | |
| 9 | SPACER? 1.6MM | 1 | ||
| 9 | SPACER? 1.7MM | 1 | ||
| 9 | SPACER? 1.8MM | 1 | ||
| 9 | SPACER? 1.9MM | 1 | ||
| 9 | SPACER? 2.0MM | 1 | ||
| 9 | SPACER? 2.1MM | 1 | ||
| 9 | SPACER? 2.2MM | 1 | ||
| 10 | 708-7T-12230 | GASKET, SEAL | 1 | |
| 11 | 04065-04518 | RING,SNAP (ITL) | 1 | |
| 12 | (*708-7T-13140) | BLOCK, CYLINDER | 1 | |
| 13 | (*708-7T-13290) | PLATE,VALVE | 1 | |
| 13 | (*708-7T-13261) | PLATE,VALVE | 1 | |
| 14 | (*720-68-19610) | PIN,DOWEL | 1 | |
| 15 | (*708-7T-13540) | Pin | 3 | |
| 16 | (*708-7T-13530) | Washer | 2 | |
| 17 | (*708-7T-13570) | Spring | 1 | |
| 18 | (*04065-03815) | RING, SNAP | 1 | |
| 19 | (*708-7T-13510) | GUIDE,RETAINER | 1 | |
| 20 | (*708-7T-13342) | RETAINER,RETAINER | 1 | |
| 21 | (*708-7T-13352) | PISTON SUB ASS'Y | 7 | |
| 21 | (*708-7T-13611) | PISTON SUB ASS'Y | 7 | |
| 22 | (*708-7T-53420) | PLATE,THRUST | 1 | |
| 22 | (*708-7T-13421) | THRUST PLATE | 1 | |
| 23 | (*708-7T-13710) | Spacer | 1 | |
| 24 | (*708-7T-52512) | Plate | 3 | |
| 25 | (*708-7T-15120) | FRICTION DISK | 2 | |
| 26 | (*708-7T-15140) | PISTON,BRAKE | 1 | |
| 27 | (*07000-12130) | O-ring | 1 | |
| 28 | (*708-7T-55220) | O-ring | 1 | |
| 29 | (*708-7T-15150) | Spring | 4 |
Processing&Testing
Delivery
- 1.Outside packing: standard export carton packing;
- 2.According to orders, pack the spare parts one by one in a small plastic bag;
- 3.Put them into small carton boxes one by one;
- 4.Put the packed small carton boxes into bigger carton boxes one by one;
- 5.Put the bigger carton boxes into wooden boxes if necessary especially for
- the shipments by sea.
