Place of Origin:
Guangdong, China
Brand Name:
Belparts
Model Number:
EX220-3 EX220LC-3
Video

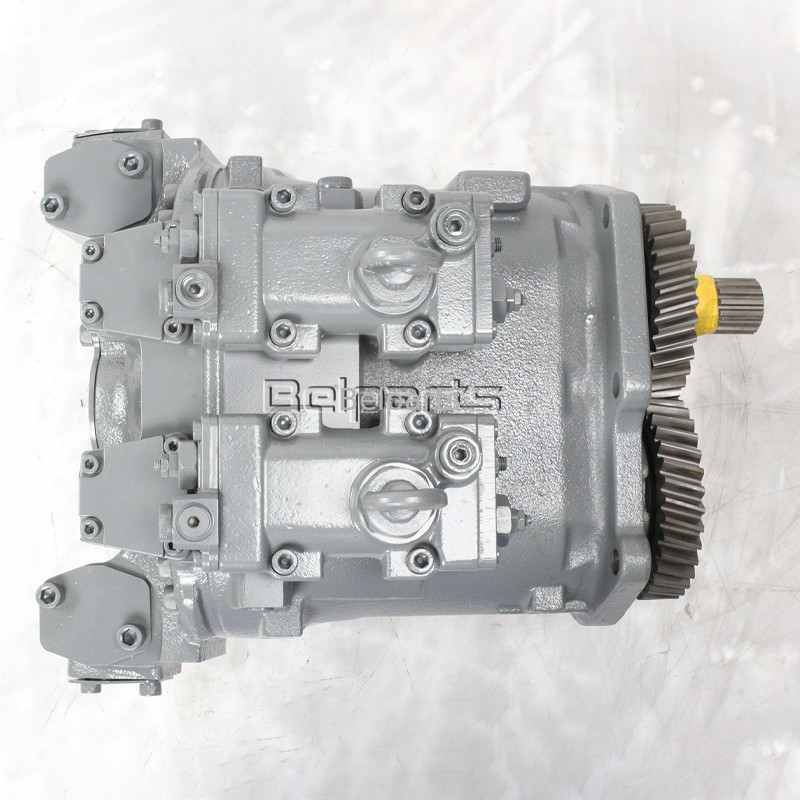

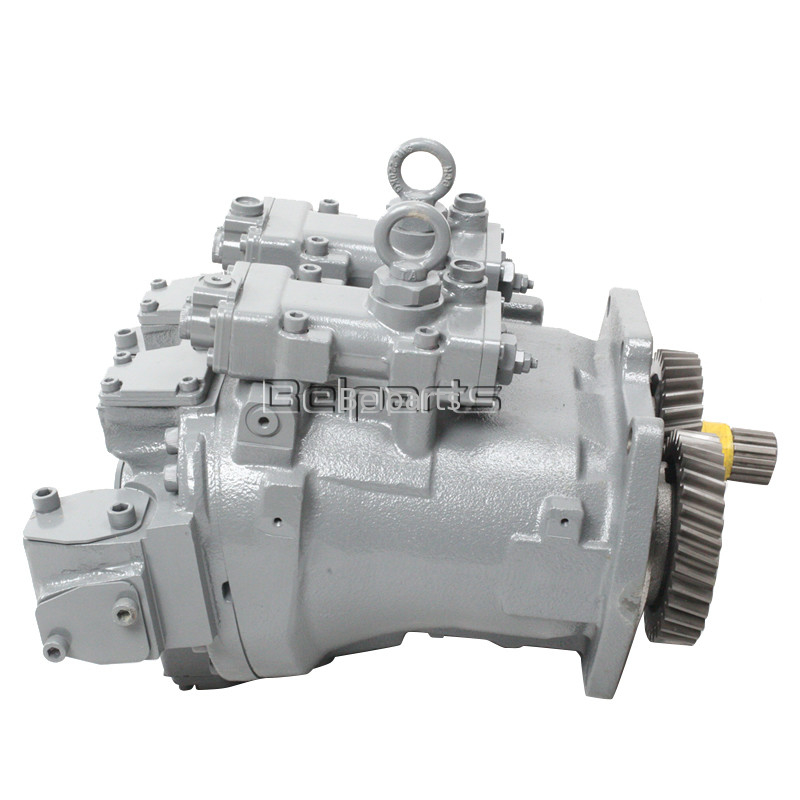

EX220-3 EX220LC-3 hydraulic pump Belparts Excavator main pump for Hitachi 9121195 9133569
Appliion:Excavator
Part name:hydarulic pump
Part number:9121195 9133569
Model:EX220-3 EX220LC-3
MOQ:1PC
Material:Steel
Payment term:T/T, Western union, paypal, trade assurance or as required
Weight:190KG
Brand:Belparts
|
Appliion |
Excavator |
|
Part name |
hydarulic pump |
|
Part number |
9121195 9133569 |
|
Model |
EX220-3 EX220LC-3 |
|
MOQ |
1PC |
|
Material |
Steel |
|
Payment term |
T/T, Western union, paypal, trade assurance or as required |
|
Weight |
190KG |
|
Brand |
Belparts |
| # | Part No | Part Name | Qty. | Price request |
| 9121195 | PUMP; DOUBLE | 1 | ||
| (9133569) | PUMP; DOUBLE | 1 | ||
| 01 | 1018921 | . CASING; GEAR | 1 | |
| 01 | 1018921 | . CASING; GEAR | ||
| 01 | 1020527 | . CASING; GEAR | 1 | |
| 03 | 3063840 | . GEAR; PILOT | 1 | |
| 04 | 3055594 | . SHAFT; GEAR | 1 | |
| 05 | 958740 | . BRG.; BALL | 2 | |
| 06 | 962002 | . RING; RETAINING | 1 | |
| 07 | 991725 | . RING; RETAINING | 1 | |
| 10 | . PUMP; UNIT | 1 | ||
| 12 | M492564 | . SCREW; DRIVE | 2 | |
| 13 | 3069414 | . NAME-PLATE | 1 | |
| 14 | 3063842 | . GEAR | 1 | |
| 15 | 3063843 | . GEAR | 1 | |
| 16 | 4274552 | . RING; RETAINING | 2 | |
| 18 | 4099290 | . PIN; SPRING | 2 | |
| 21 | M211645 | . BOLT | 6 | |
| 22 | A590916 | . WASHER; SPRING | 6 | |
| 23 | 4317619 | . O-RING | 1 | |
| 23 | 8058352 | . PACKING | 1 | |
| 25 | 4310055 | . SEAL; OIL | 1 | |
| 26 | 991725 | . RING; RETAINING | 1 | |
| 28 | 4276918 | . PUMP; GEAR | 1 | |
| 30 | M341028 | . BOLT; SOCKET | 2 | |
| 31 | 984054 | . WASHER; SPRING | 2 | |
| 32 | 4114402 | . WASHER | 2 | |
| 34 | 4317633 | . ADAPTER | 2 | |
| 36 | 4234782 | . PLUG | 1 | |
| 38 | 4242263 | . GAUGE; LEVEL | 1 | |
| 38 | 4340855 | . GAUGE; LEVEL | 1 | |
| 39 | 9736788 | . PIPE | 1 | |
| 40 | 4243160 | . PACKING | 1 | |
| 40 | 9742779 | . PACKING | 1 | |
| 41 | M340816 | . BOLT; SOCKET | 2 | |
| 42 | 9134111 | . PLUG | 1 | |
| 42A | 4509180 | .. O-RING | 1 | |
| 45 | 4265372 | . SENSOR; REVOL. | 1 | |
| 46 | 4306888 | . O-RING | 1 | |
| 47 | A590106 | . WASHER; PLANE | 1 | |
| 48 | M340616 | . BOLT; SOCKET | 1 | |
| 52 | 9134110 | . PLUG | 1 | |
| 52A | 957366 | .. O-RING | 1 | |
| 53 | 4278547 | . ADAPTER | 1 | |
| 53A | 4506418 | .. O-RING | 1 | |
| 55 | 4179837 | . FITTING; PIPE | 2 | |
| 55A | 957366 | .. O-RING | 1 | |
| 56 | 3063845 | . PIPE | 1 | |
| 57 | 9736515 | . CLAMP | 2 | |
| 58 | J900830 | . BOLT | 1 | |
| 59 | A590908 | . WASHER; SPRING | 1 | |
| 63 | 4314298 | . COUPLING | 1 | |
| 63A | 4341223 | .. HUB ASS'Y | 1 | |
| 63B | 4334902 | .. SCREW; SET | 2 | |
| 63C | 4101345 | .. PIN; SPRING | 4 | |
| 63D | 4183166 | .. INSERT | 4 | |
| 63E | 4183168 | .. BOLT; SOCKET | 4 | |
| 63F | 4183165 | .. COUPLING | 1 |
GZ YUEXIANG ENGINEERING MACHINERY LTD
Our company is loed in Guangzhou China ,was founded in September 2013 . At present , we have one shop, one warehouse and one office as well as a professional team for purchasing, selling, packing, shipping and after-sale service.
Our main products are Excavator Hydraulic spare parts, Hydraulic main pump, Swing Motor, Travel Motor, Final Drive Assy, Swing Assy, Swing Gearbox, Travel Gearbox, and other hydraulic items with genuine and aftermarket quality. Until now, our products enjoy high reputation all over the world and have been exported to more than 125 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with its own brand "Belparts" are widely acclaimed by foreign customers.
