Place of Origin:
Guangdong, China
Brand Name:
Belparts
Model Number:
PC35R-8 PC40-5 PC50UU-1
Video

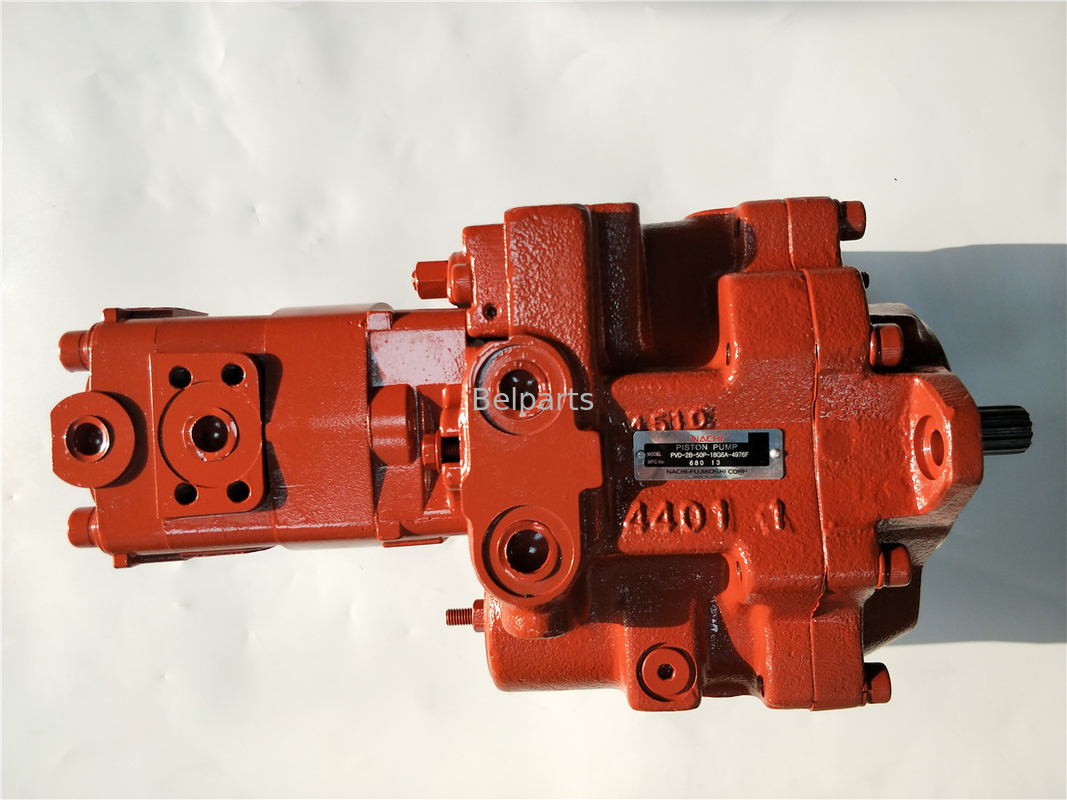

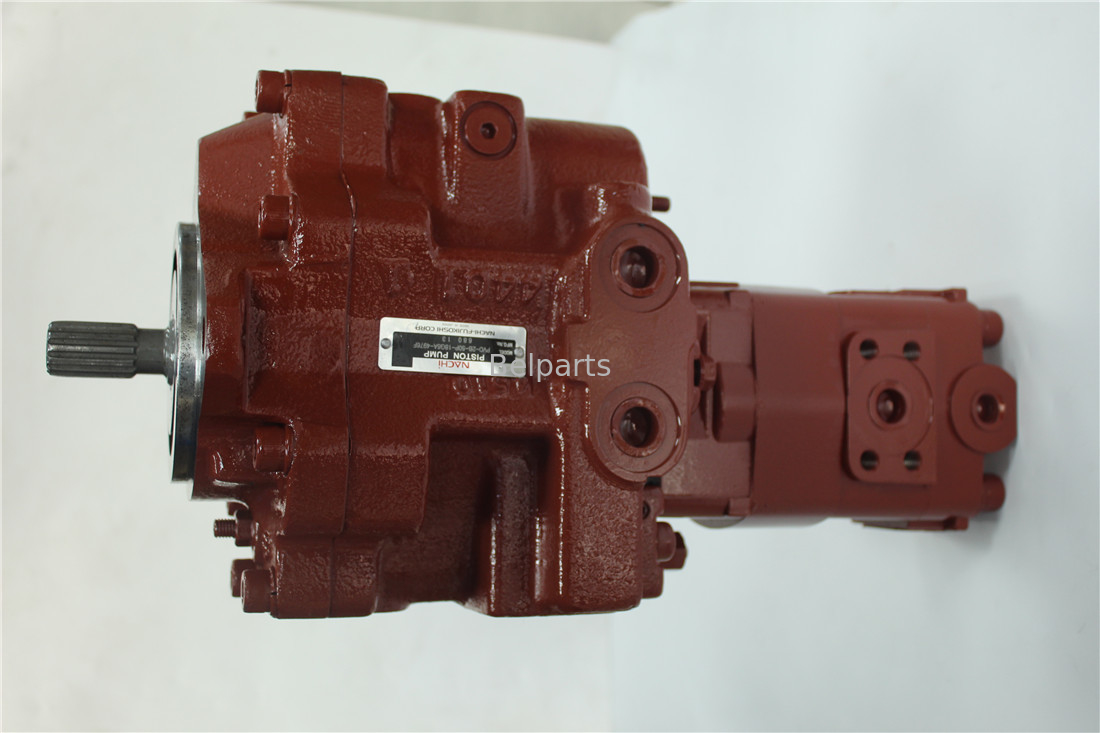

PC35R-8 PC40-5 PC50UU-1 Hydraulic Pump Belparts Excavator for komatsu 3F3055053 890001691 20T-60-00400
Appliion:Excavator
Part name:hydarulic pump
Part number: 3F3055053 890001691 20T-60-00400
Model:PC35R-8 PC40-5 PC50UU-1
MOQ:1PC
Material:Steel
Payment term:T/T, Western union, paypal, trade assurance or as required
Weight:190KG
Brand:Belparts
|
Appliion |
Excavator |
|
Part name |
hydarulic pump |
|
Part number |
3F3055053 890001691 20T-60-00400 |
|
Model |
PC35R-8 PC40-5 PC50UU-1 |
|
MOQ |
1PC |
|
Material |
Steel |
|
Payment term |
T/T, Western union, paypal, trade assurance or as required |
|
Weight |
190KG |
|
Brand |
Belparts |
| # | Part No | Part Name | Qty. | Price request |
| 1 | 708-1T-00142 | PUMP ASS'Y | 1 | |
| 1 | 708-1T-00141 | PUMP ASS'Y | 1 | |
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 TO Y1600-06A0 | ||||
| 1 | 708-1T-01122 | PUMP SUB ASS'Y | 1 | |
| 1 | 708-1T-01121 | PUMP SUB ASS'Y | 1 | |
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 TO Y1600-04A0 | ||||
| 1 | (*708-1T-04211) | CASE SUB ASS'Y | 1 | |
| 1 | CASE,PUMP | 1 | ||
| 2 | Plug | 3 | ||
| 3 | CAM,ROCKER | 1 | ||
| 4 | 01252-61250 | Bolt | 4 | |
| 5 | 04020-00616 | PIN,(DOWEL) | 1 | |
| 6 | 07000-11009 | O-RING,(FOR DUAL TILT DOZER) | 4 | |
| 7 | 708-7T-51210 | O-ring | 1 | |
| 8 | (*708-1T-04320) | Cap | 1 | |
| 8 | (*708-1T-04221) | CAP SUB ASS'Y | 1 | |
| 8 | Cap | 1 | ||
| 8 | CAP,END | 1 | ||
| 9 | Plug | 11 | ||
| 10 | 720-68-19610 | Pin | 1 | |
| 11 | (*708-1T-12131) | Shaft | 1 | |
| 12 | (*708-1T-11250) | Bearing | 1 | |
| 13 | (*708-1T-12310) | Spacer | 1 | |
| 14 | (*708-1T-11260) | Bearing | 1 | |
| 15 | (*708-1T-05010) | SPACER KIT | 1 | |
| 15 | SPACER? 1.6MM | 1 | ||
| 15 | SPACER? 1.7MM | 1 | ||
| 15 | SPACER? 1.8MM | 1 | ||
| 15 | SPACER? 1.9MM | 1 | ||
| 15 | SPACER? 2.0MM | 1 | ||
| 15 | SPACER? 2.1MM | 1 | ||
| 15 | SPACER? 2.2MM | 1 | ||
| 16 | 708-1T-11880 | SEAL,OIL | 1 | |
| 17 | 708-1T-11890 | Spacer | 1 | |
| 18 | 04065-05020 | RING, SNAP | 1 |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) |
Volumetric efficiency (≥%) |
Weight (kg) |
||
Rated |
Max |
Optimum speed |
Speed range |
||||
| CBXV-C15-K5V212 | 15 | 3.6 | 6.3 | 1500～2500 | 800～2800 | 92 | 3.2 |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
Weight (kg) |
||
Rated |
Max |
Optimum speed |
Speed range |
||||
| CBXTC-C10-K7V63 | 10 | 3.6 | 6.3 | 1500～2500 | 800～2800 | 92 | 1.45 |
