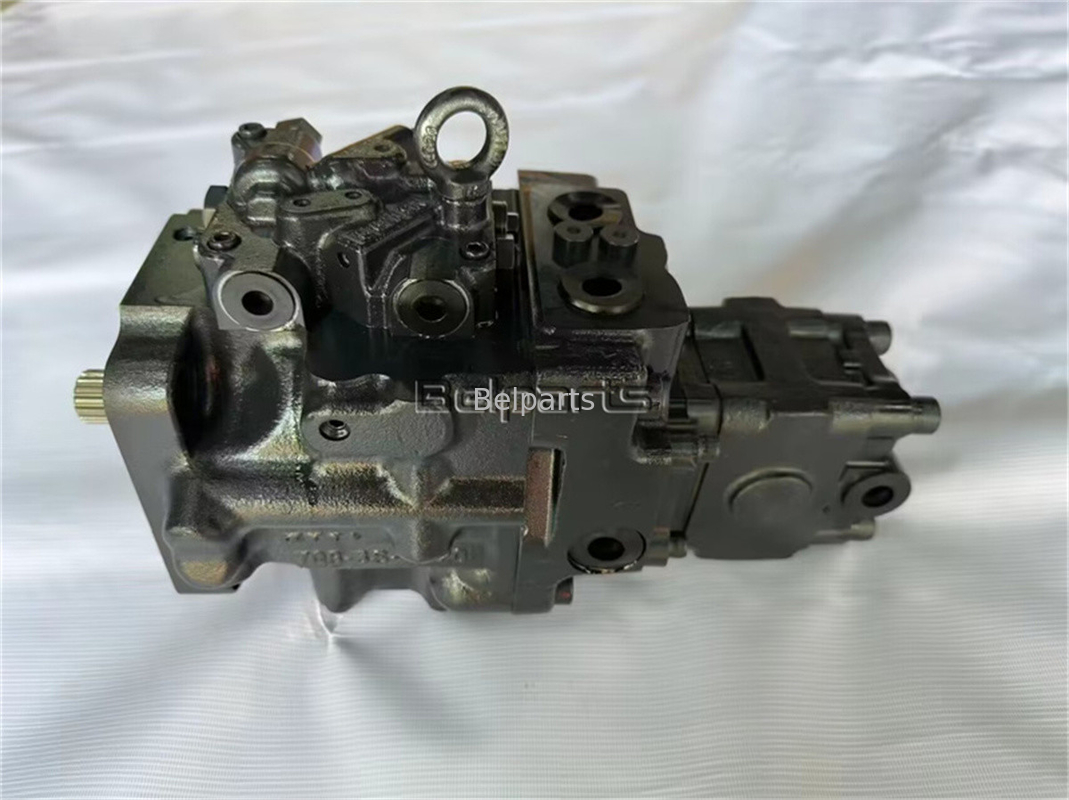

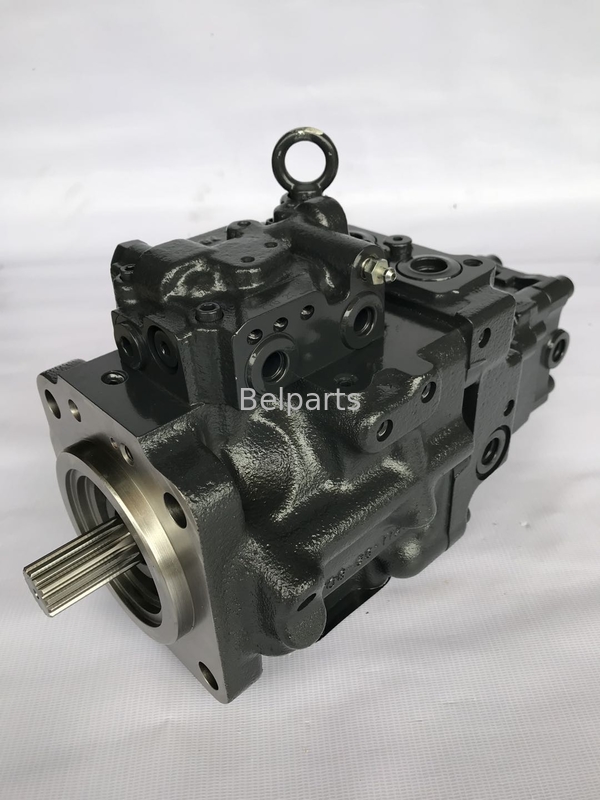

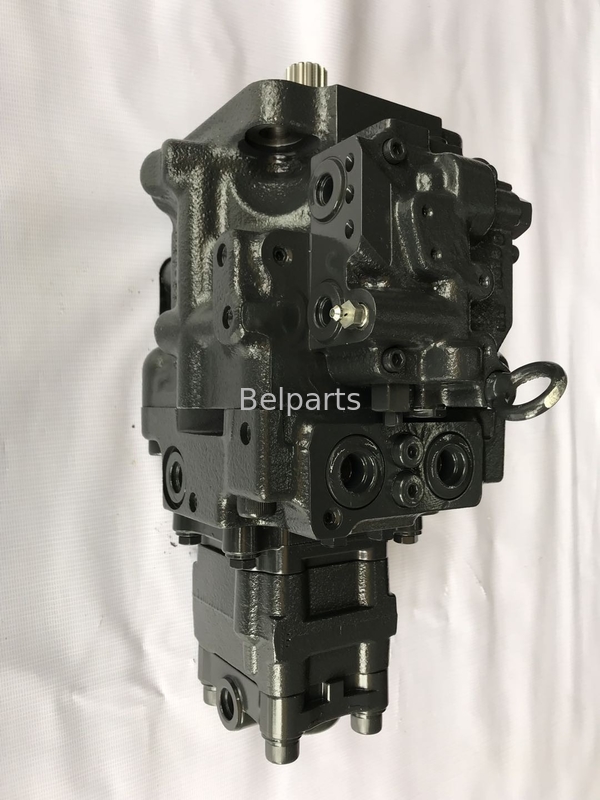

Excavator PC40-6 PC40-7 PC50UU-2 Hydraulic Pump For Komatsu 705-41-08010 705-41-03010 705-41-08090 705-41-03070
Place of Origin | Guangdong, China |
---|---|
Brand Name | Belparts |
Model Number | PC40-6 PC40-7 PC50UU-2 |
Price | negotiation |
Packaging Details | Packaging Details: <br>1.According to orders,pack the spare parts one by one by oil paper; <br>2.Put them into small carton boxes one by one; <br>3.Put the packed small carton boxes into bigger carton boxes one by one; <br>4.Put the bigger carton boxes |
Supply Ability | 1000 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Pump Hydarulic | Model | PC40-6 PC40-7 PC50UU-2 |
---|---|---|---|
Weight | 190KG | Brand | Belparts |
Package | Wooden Box | Part Number | 705-41-08010 705-41-03010 705-41-08090 705-41-03070 |
High Light | PC50UU-2 Hydraulic Pump,705-41-08010 Hydraulic Pump,705-41-03070 Hydraulic Pump |
Excavator PC40-6 PC40-7 PC50UU-2 Hydraulic Pump for komatsu 705-41-08010 705-41-03010 705-41-08090 705-41-03070
Appliion:Excavator
Part name:hydarulic pump
Part number: 705-41-08010 705-41-03010 705-41-08090 705-41-03070
Model:PC40-6 PC40-7 PC50UU-2
MOQ:1PC
Material:Steel
Payment term:T/T, Western union, paypal, trade assurance or as required
Weight:190KG
Brand:Belparts
Appliion |
Excavator |
Part name |
hydarulic pump |
Part number |
705-41-08010 705-41-03010 705-41-08090 705-41-03070 |
Model |
PC40-6 PC40-7 PC50UU-2 |
MOQ |
1PC |
Material |
Steel |
Payment term |
T/T, Western union, paypal, trade assurance or as required |
Weight |
190KG |
Brand |
Belparts |
# | Part No | Part Name | Qty. | Price request |
1 | 705-41-08090 | PUMP ASS'Y | 1 | |
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.H0210-51A1 TO H0210-53A1 | ||||
1 | 705-41-03070 | PUMP ASS'Y (SBR14) | 1 | |
1 | (*705-41-80210) | Bracket | 1 | |
1 | (*705-40-80620) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
1 | (*705-40-80610) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
2 | (*705-40-26011) | CASE,GEAR | 1 | |
3 | (*705-41-80310) | Carrier | 1 | |
3 | (*705-40-80610) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
3 | (*705-40-80620) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
4 | (*705-40-26342) | GEAR,DRIVE | 1 | |
5 | (*705-40-26511) | GEAR,DRIVEN | 1 | |
6 | 705-40-80720 | PLATE, SIDE | 2 | |
7 | 705-40-80760 | SEAL, RING | 2 | |
8 | 04020-00820 | PIN,DOWEL (WELDED) | 4 | |
9 | 705-67-01230 | PIN, DOWEL | 2 | |
10 | 01252-31275 | Bolt | 4 | |
11 | 01643-51232 | WASHER, (WITHOUT EMERGENCY STEERING) | 4 | |
12 | 705-40-80870 | Plate | 1 | |
13 | 705-40-80810 | Shaft seal | 1 | |
14 | 04065-03515 | RING, SNAP | 1 |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) |
Speed(r/min) | Volumetric efficiency (≥%) |
L1 | L2 | L | Weight (kg) |
|||
Rated |
Max |
Min |
Rated |
Max |
|||||||
AP2D-16.2/4.5 | 16.2/4.5 | 22/5 | 25/8 | 800 | 2000 | 3000 | 92/92 | 45.2 | 130.2 | 145 | 5.55 |
AP2D-16.2/6.5 | 16.2/6.5 | 92/92 | 45.2 | 132 | 147 | 5.6 | |||||
AP2D-18.2/4.5 | 18.2/4.5 | 92/92 | 46 | 132 | 149 | 5.7 | |||||
AP2D-18.2/6.5 | 18.2/6.5 | 92/92 | 46 | 133 | 151 | 5.73 | |||||
AP2D-20/4.5 | 20/4.5 | 92/92 | 47.2 | 136 | 156 | 5.85 | |||||
AP2D-20/6.5 | 20/6.5 | 92/92 | 47.2 | 133 | 151 | 5.8 | |||||
AP2D-23/4.5 | 23/4.5 | 92/92 | 50 | 140.5 | 159 | 5.9 | |||||
AP2D-23/6.5 | 23/6.5 | 92/92 | 50 | 141.5 | 161 | 5.96 | |||||
AP2D-23/9 | 23/9 | 92/92 | 50 | 143 | 163 | 6.1 |
