PC60-7-B PC60-7 Hydraulic Pump Belparts Excavator Main Pump PC60-5 708-21-01011 708-21-01010 708-21-10601 708-1W-00042
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | PC60-5 PC60-7-B PC60-7 | Part Number | 708-21-01011 708-21-01010 708-21-10601 708-1W-00042 |
|---|---|---|---|
| Warranty | 1 Year | Texture | Steel |
| Part Name | Hydraulic Pump | ||
| High Light | PC60-7 Hydraulic Pump,708-1W-00042 Hydraulic Pump,708-21-01010 Excavator Main Pump |
||
Product Description

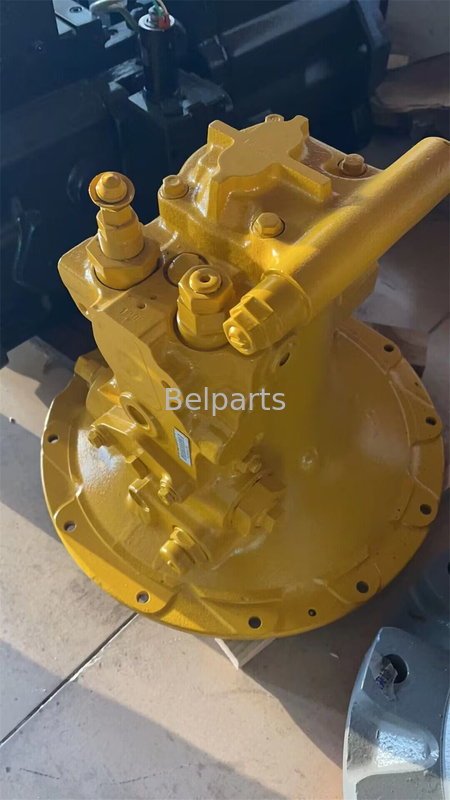

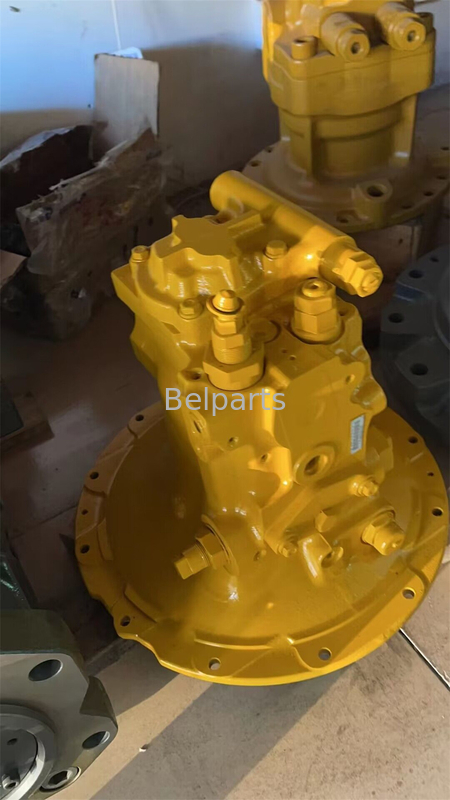

PC60-7-B PC60-7 Hydraulic Pump Belparts Excavator main pump PC60-5 708-21-01011 708-21-01010 708-21-10601 708-1W-00042
Appliion:Crawler excavator
Part name:Hydraulic Main Pump
Model:PC60-5 PC60-7-B PC60-7
Part number:708-21-01011 708-21-01010 708-21-10601 708-1W-00042
Warranty:3-12 months
Payment term:T/T, Trade Assurance, Paypal and etc.
Brand:Hitachi or as require
| Appliion | Crawler excavator |
| Part name | Hydraulic Main Pump |
| Model | PC60-5 PC60-7-B PC60-7 |
| Part number | 708-21-01011 708-21-01010 708-21-10601 708-1W-00042 |
| Warranty | 3-12 months |
| Payment term | T/T, Trade Assurance, Paypal and etc. |
| Brand | Hitachi or as require |
| # | Part No | Part Name | Qty. | Price request |
| 1 | 708-21-01011 | PUMP ASS'Y,(HPV 35+35) | 1 | |
| 1 | 708-21-01010 | PUMP ASS'Y,(HPV 35+35) | 1 | |
| 1 | (708-21-10601) | PUMP ASS'Y,(HPV 35+35) | 1 | |
| 1 | (708-21-01110) | PUMP SUB ASS'Y,(BAR 16) | 1 | |
| 1 | (708-21-01210) | PUMP SUB ASS'Y | 1 | |
| 1 | (708-21-11100) | PUMP SUB ASS'Y | 1 | |
| 2 | (704-24-24401) | GEAR PUMP ASS'Y | 1 | |
| 2 | (704-24-24400) | GEAR PUMP ASS'Y,(BAR 16) | 1 | |
| 3 | 07000-02085 | O-RING,(WITHOUT FUEL LEVEL GAUGE) | 1 | |
| 4 | 07000-02018 | O-RING,(SEE FIG.1601-29?1602-17) | 1 | |
| 5 | 01010-31080 | BOLT, MOUNT STRAINER FLANGE | 3 | |
| 6 | 01602-01030 | WASHER,SPRING(SANDY?DUSTY TERRAIN S.) | 3 | |
| 7 | (708-23-14801) | VALVE ASS'Y,RELIEF | 1 | |
| 7 | (708-23-14800) | VALVE ASS'Y,RELIEF | 1 | |
| 8 | 708-23-19110 | Elbow | 1 | |
| 9 | 07042-30108 | PLUG,SEE FIG. K4010-63A0 | 1 | |
| 10 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 1 | |
| 11 | 07239-12410 | NUT (ITL) | 1 | |
| 12 | 07230-10315 | UNION,(FOR VARIABLE GIANT RIPPER) | 1 | |
| 13 | 07002-02034 | O-RING,(NOT USED WHEN (B) SPEC.) | 1 | |
| 14 | 07102-20303 | HOSE ASSEMBLY | 1 | |
| 15 | (708-21-07820) | SERVO VALVE ASS'Y | 1 | |
| 15 | 708-21-15901 | SERVO VALVE ASS'Y,FRONT | 1 | |
| 16 | (708-21-07920) | SERVO VALVE ASS'Y | 1 | |
| 16 | 708-21-16901 | SERVO VALVE ASS'Y,REAR | 1 | |
| 17 | 04020-00616 | PIN,(DOWEL) | 4 | |
| 18 | 708-25-19130 | Bolt | 8 | |
| 19 | 01602-20825 | WASHER,SPRING?FOR ADDITIONAL REAR LAM | 8 |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
Weight (kg) |
||
Rated |
Max |
Optimum speed |
Speed range |
||||
| 2P2D36-G28C09 | 28/09 | 25/4.5 | 28/10 | 1500～2500 | 800～3000 | 92 | |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
Weight (kg) |
||
Rated |
Max |
Optimum speed |
Speed range |
||||
| CBXWL-F20/B5 | 20/05 | 20/5 | 25/7 | 1500～2000 | 800～2500 | 92 | |
