Excavator Main Pump PC220-5 PC220LC-5 Hydraulic Pump 708-25-04061 708-25-04022 708-25-04021 704-24-28230

Excavator Main Pump PC220-5 PC220LC-5 Hydraulic Pump 708-25-04061 708-25-04022 708-25-04021 704-24-28230

PC220LC-5 Excavator Main Pump

708-25-04061 Excavator Main Pump

Excavator Main Pump 704-24-28230

Place of Origin:

Made in china

Brand Name:

Belparts

Model Number:

PC220-5 PC220LC-5

Contact Us
Request A Quote
Excavator Main Pump PC220-5 PC220LC-5 Hydraulic Pump 708-25-04061 708-25-04022 708-25-04021 704-24-28230
Excavator Main Pump PC220-5 PC220LC-5 Hydraulic Pump 708-25-04061 708-25-04022 708-25-04021 704-24-28230 Excavator Main Pump PC220-5 PC220LC-5 Hydraulic Pump 708-25-04061 708-25-04022 708-25-04021 704-24-28230 Excavator Main Pump PC220-5 PC220LC-5 Hydraulic Pump 708-25-04061 708-25-04022 708-25-04021 704-24-28230
Product Details
Model:
PC220-5 PC220LC-5
Part Number:
708-25-04061 708-25-04022 708-25-04021 704-24-28230
Warranty:
1 Year
Texture:
Steel
Part Name:
Hydraulic Pump
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
Negotiated price
Packaging Details
Wooden case
Delivery Time
1~7 days
Payment Terms
T/T, trade assurance,PayPal
Supply Ability
1000PCS
RELATED PRODUCTS
Good price Doosan excavator DH150 K3V63DTP-HNOW 2401-9236 2401-9236B hydraulic main pump assembly online

Doosan excavator DH150 K3V63DTP-HNOW 2401-9236 2401-9236B hydraulic main pump assembly

Get Best Price
Good price Excavator parts K3V112DT-9C32-12T hydraulic main pump R210-7 R215-7 R220-5 R225-7 31N6-10090 online

Excavator parts K3V112DT-9C32-12T hydraulic main pump R210-7 R215-7 R220-5 R225-7 31N6-10090

Get Best Price
Good price Excavator parts K3V112S-1NCJ-12T hydraulic pump EX100-2 EX100-3 EX120-2 EX120-3 9101530 hydraulic main pump OEM online

Excavator parts K3V112S-1NCJ-12T hydraulic pump EX100-2 EX100-3 EX120-2 EX120-3 9101530 hydraulic main pump OEM

Get Best Price
Good price Komatsu excavator 07040-12412 PC200-8 hydraulic main pump OEM parts online

Komatsu excavator 07040-12412 PC200-8 hydraulic main pump OEM parts

Get Best Price
Contact Us
+86 13247509480
belparts02@gmail.com
86-020-32384870
Contact Now
Product Description

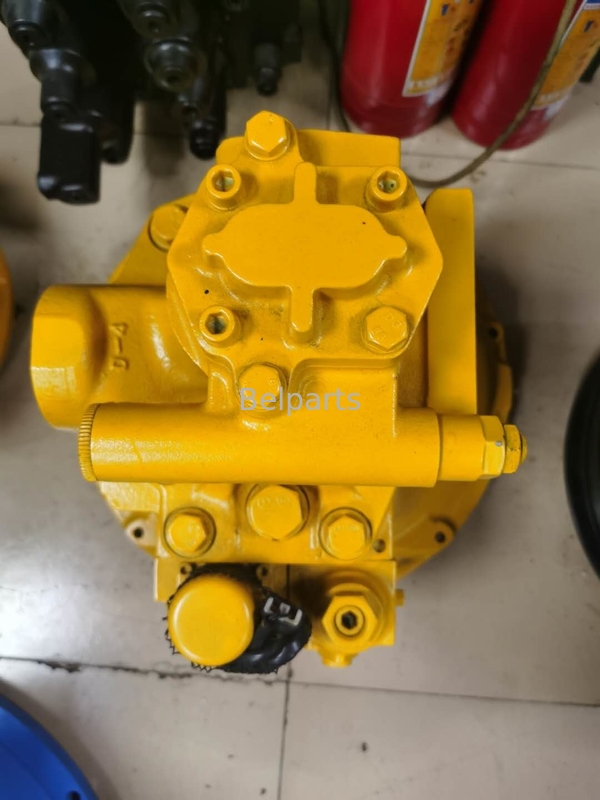

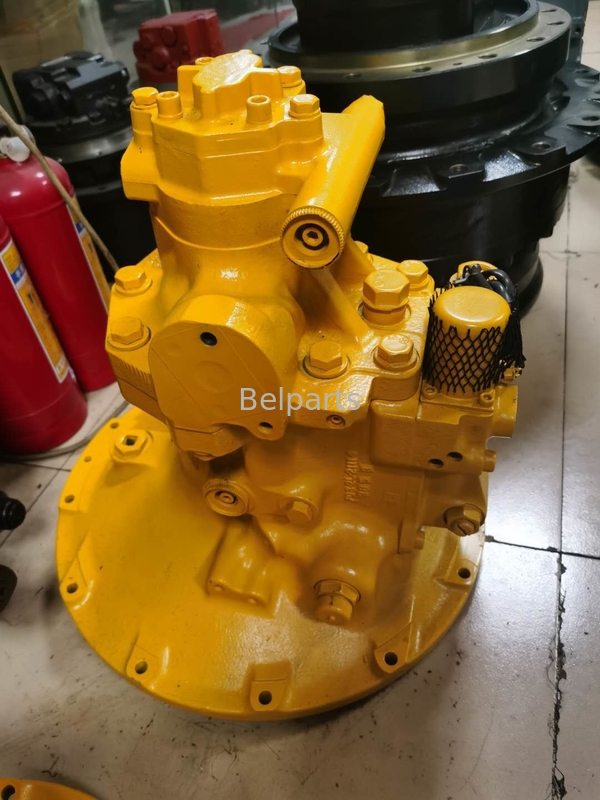

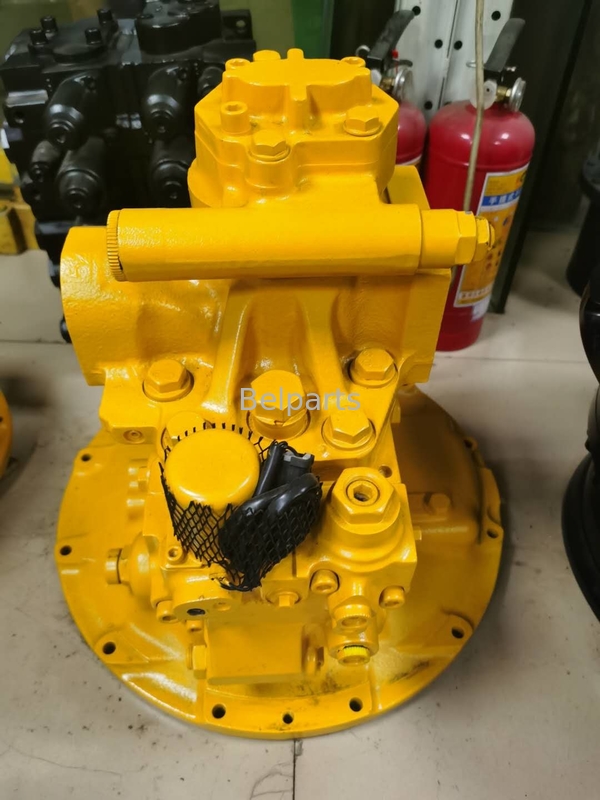

Belparts Excavator main pump PC220-5 PC220LC-5 hydraulic pump 708-25-04061 708-25-04022 708-25-04021 704-24-28230​


Appliion:Crawler excavator
Part name:Hydraulic Main Pump
Model:PC220-5 PC220LC-5
Part number:708-25-04061 708-25-04022 708-25-04021 704-24-28230
Warranty:3-12 months
Payment term:T/T, Trade Assurance, Paypal and etc.
Brand:Hitachi or as require

Appliion Crawler excavator
Part name Hydraulic Main Pump
Model PC220-5 PC220LC-5
Part number 708-25-04061 708-25-04022 708-25-04021 704-24-28230
Warranty 3-12 months
Payment term T/T, Trade Assurance, Paypal and etc.
Brand Hitachi or as require



# Part No Part Name Qty. Price request
G-1 (206-60-X1261) PUMP GROUP 1  
    ====================    
1 708-25-04061 PUMP ASS'Y 1  
1 708-25-04022 PUMP ASS'Y 1  
1 (708-25-04021) PUMP ASS'Y 1  
    THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6101 TO 6151    
1 (708-25-04151) PUMP SUB ASS'Y 1  
1 708-25-04112 PUMP SUB ASS'Y 1  
1 (708-25-04111) PUMP SUB ASS'Y 1  
2 (704-24-28230) PUMP ASS'Y 1  
3 (708-25-04311) RELIEF VALVE ASS'Y 1  
4 01010-31260 BOLT, TRUNNION CAP 2  
5 01643-31232 WASHER,(NOT USED WITH EMERGENCY STR.) 2  
6 708-25-19220 TEE 1  
7 07040-11007 PLUG,HOUSING NO.2?3?4?5?6 1  
8 07002-01023 O-RING,(F4320-61A0 -29 ) 1  
9 07002-02434 O-RING,DRAIN PLUG? R.H. HALF TANK 1  
10 07002-02034 O-RING,(NOT USED WHEN (B) SPEC.) 1  
11 07102-20404 HOSE,INLET 1  
12 07235-10422 ELBOW,(NOT USED WHEN (B) SPEC.) 1  
13 708-25-19120 Flange 1  
14 720-68-15240 Filter 1  
15 07000-02021 O-RING,WATER PIPING 1  
16 01010-30820 BOLT,(SANDY? DUSTY TERRAIN SPEC.) 2  
17 01643-50823 WASHER,(FOR SHIPPING) 2  
18 (708-25-04511) SERVO VALVE ASS'Y,FRONT 1  
19 (708-25-04621) SERVO VALVE ASS'Y,REAR 1  
20 706-46-53260 Plug 2  
21 07002-01423 O-RING,(CRUSHER?OTHER ATT.FOR PPC CON 2  
22 708-25-19140 Tube 1  
23 706-46-53180 BOLT,JOINT 2  
24 07000-02012 O-RING, BETWEEN VALVE AND PUMP 4  
25 708-25-19130 Bolt 8  
26 01602-00825 WASHER,SPRING?(SANDY AND DUSTY SPEC.) 8  
27 04020-00616 PIN,(DOWEL) 4  
28 708-25-32730 Coupling 1  
29 704-28-02710 O-ring 1  
    ====================    




Model
Nominal
displacement(ml/r)

Fore pump/
hind pump		 Pressure(MPa) Speed(r/min)
Volumetric
efficiency(≥%)

Fore pump/
hind pump		 Screw Flange L1 L
Weight
(kg)

Rated
Max
Optimum
speed
Speed range		 D D
CMF-*520-A*P* 20 16/20 20/25 1500-2500 800-3000 89 M27×2 25 102.5 169 7.3
CMF-*525-A*P* 25 104.5 173 7.4
CMF-*532-A*P* 32 M33×2 30 107.5 179 7.7
CMF-*540-A*P* 40 90 110.5 184 7.9
CMF-*545-A*P* 45 112.5 188 8.1
CMF-*550-A*P* 50 114.5 192 8.4
