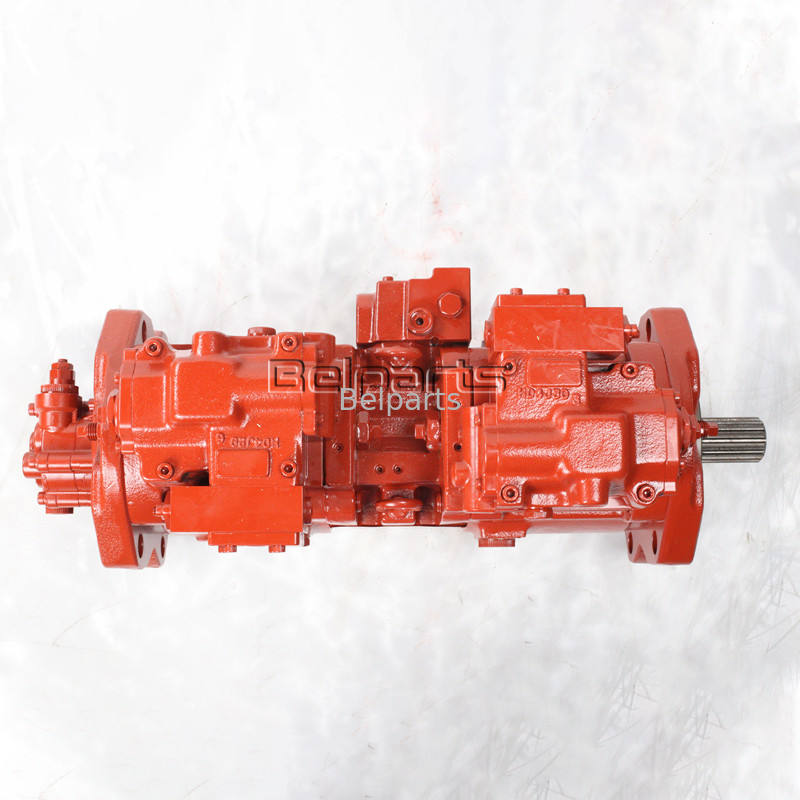

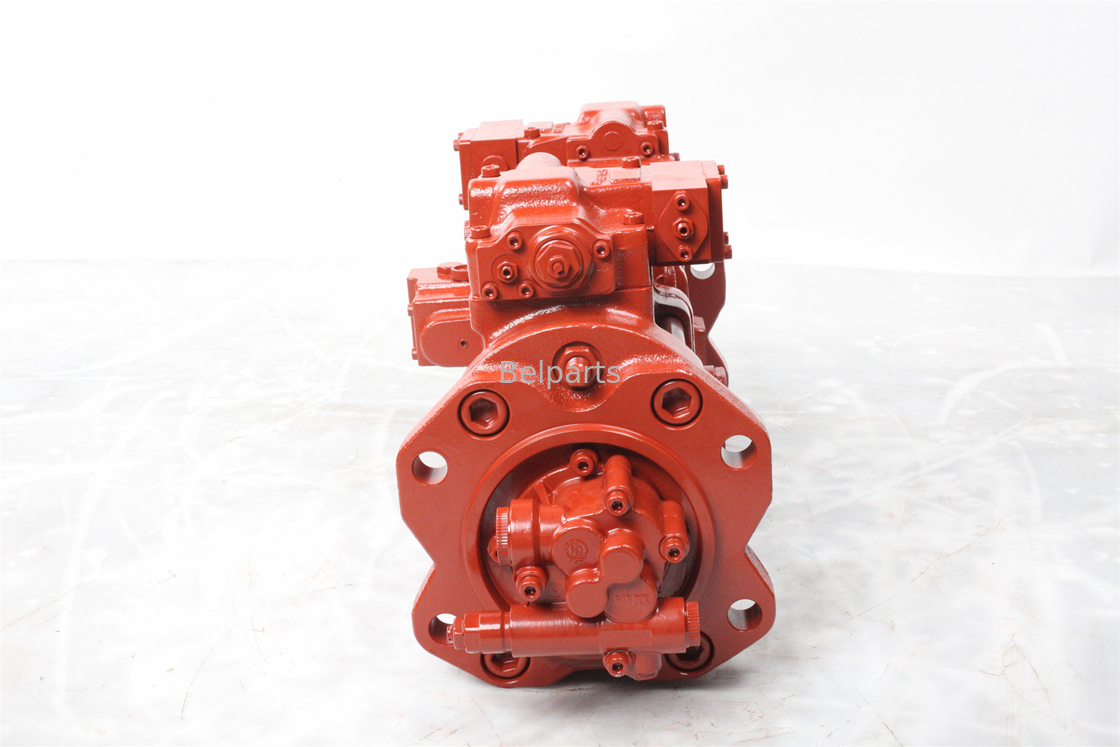

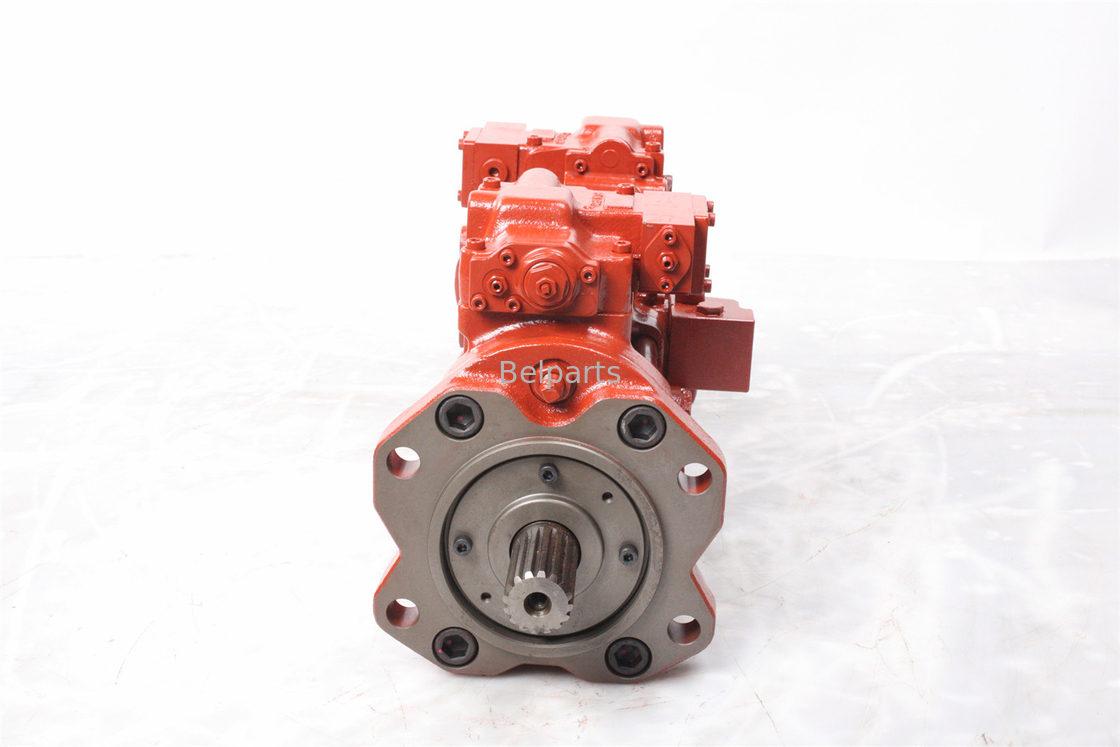

Excavator Main Pump PC200-2 Hydraulic Pump 706-46-20603 706-46-20602 705-80-10000 705-80-11000 For KOMATSU

Excavator Main Pump PC200-2 Hydraulic Pump 706-46-20603 706-46-20602 705-80-10000 705-80-11000 For KOMATSU

PC200-2 Excavator Main Pump

706-46-20602 Excavator Main Pump

Excavator Main Pump 705-80-11000

Place of Origin:

Made in china

Brand Name:

Belparts

Model Number:

PC200-2 PC200LC-2

Contact Us
Request A Quote
Product Details
Model:
PC200-2 PC200LC-2
Part Number:
706-46-20603 706-46-20602 705-80-10000 705-80-11000
Warranty:
1 Year
Texture:
Steel
Part Name:
Hydraulic Pump
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
Negotiated price
Packaging Details
Wooden case
Delivery Time
1~7 days
Payment Terms
T/T,Alibaba trade assurance,PayPal
Supply Ability
1000PCS
Product Description

Belparts excavator main pump PC200-2 hydraulic pump 706-46-20603 706-46-20602 705-80-10000 705-80-11000 for KOMATSU


Appliion:Crawler excavator
Part name:Hydraulic Main Pump
Model:PC200-2 PC200LC-2
Part number:706-46-20603 706-46-20602 705-80-10000 705-80-11000
Warranty:3-12 months
Payment term:T/T, Trade Assurance, Paypal and etc.
Brand:Hitachi or as require

Appliion Crawler excavator
Part name Hydraulic Main Pump
Model PC200-2 PC200LC-2
Part number 706-46-20603 706-46-20602 705-80-10000 705-80-11000
Warranty 3-12 months
Payment term T/T, Trade Assurance, Paypal and etc.
Brand Hitachi or as require



# Part No Part Name Qty. Price request
1 705-80-10000 PUMP ASS'Y,(IPL145-SAL020+8) 1
1 705-80-11000 PUMP ASS'Y 1
1 705-80-11510 HOUSING ASS'Y 1
1 705-80-11520 Housing 1
2 07426-71061 BEARING,NEEDLE 1
3 705-80-11110 BRACKET ASS'Y 1
3 705-80-11120 Bracket 1
4 705-80-11140 Impeller 1
5 705-80-11150 Shaft 1
6 04000-00718 Key 1
7 705-80-11160 Plate 1
8 705-17-02810 SEAL, OIL 1
9 07000-02065 O-RING,INJECTION PUMP CASE 1
10 490-22-12650 BEARING,BALL 1
11 705-80-11170 Washer 1
12 01530-03010 NUT,LOCK 1
13 01658-03018 WASHER,LOCK 1
14 01252-30625 BOLT, SEAL COVER MOUNTING 8
15 01602-20619 WASHER,SPRING (WITH EXTINGUISHER) (D31P) 8
16 01252-31030 Screw 8
17 01602-21030 WASHER, SPRING (SUPPLIED W/SPIDER ASSEMBLY) 8
18 07000-05170 O-RING,(F4320-56A0 -8 ) 1
19 705-80-11540 COUPLING ASS'Y 1
20 01010-51030 BOLT,(FOR QUICK SHIFT) (MITSUBISHI) 2
21 01643-31032 WASHER,(WITH AUTO EMERGENCY STEERING) 2
22 07000-02085 O-RING,(WITHOUT FUEL LEVEL GAUGE) 1
23 (705-51-10020) TANDEM PUMP ASS'Y 1




Model

Nominal
displacement
(ml/r)
Pressure(MPa) Speed(r/min)
Volumetric
efficiency
(≥%)

Weight
(kg)

Rated

Max

Optimum speed

Speed range
PC50-14.2/4.5-A1 14.2/4.5 20/5 25/8 1500~2500 600~3000 90




Model

Nominal
displacement(ml/r)
Pressure(MPa) Speed(r/min)
Volumetric
efficiency
(≥%)
L1 L2 L
Weight
(kg)

Rated

Max

Optimum
speed

Speed range
CBTLZT-F16/F10-AFP* 16/10 20 25 1500~2500 800~3000 92 110 189 214.5 14.5
CBTLZT-F16/F16-AFP* 16/16 196.5 222 14.8
CBTLZT-F20/F10-AFP* 20/10 115 194 219.5 14.8
CBTLZT-F20/F16-AFP* 20/16 201.5 227 15.3
CBTLZT-F25/F10-AFP* 25/10 121.5 200.5 226 15.2




Model

Nominal
displacement
(ml/r)
Pressure(MPa) Speed(r/min)
Volumetric
efficiency
(≥%)
L1 L Intet Outlet
Weight
(kg)

Rated

Max

Min

Rated

Max
a b a b
CBF-F410-AL** 10 20 25 800 2500 3000 )
J2
55 114 M22×1.5 50 M18×1.5 45 3.2
CBF-F412.5-AL** 12.5 56.3 116.5 3.3
CBF-F414-AL** 14 57.3 118.5 3.4
CBF-F416-AL** 16 58.3 120 M27×2 M22×1.5 3.5
CBF-F418-AL** 18 600 59.5 123 3.6
CBF-F420-AL** 20 93 60.5 125 3.7
CBF-F425-AL** 25 63.8 131.5 M33×2 M27×1.5 3.8
CBF-F432-AL** 32 67.5 139 4.1
CBF-E440-AL** 40     72 148 4.4
CBF-E450-AL** 50     72 148 4.7




Model

Nominal
displacement
(ml/r)
Pressure(MPa)
Speed(r/min)

Volumetric
efficiency
(≥%)
L1 L A d D
Weight
(kg)

Rated

Max

Min

Rated

Max

Intet

Outlet
CBN-F520-BF** 20 20 25 600 2500 3000 92 66.5 134 48 65 25 20 5.1
CBN-F525-BF** 25 68.5 138 5.3
CBN-F532-BF** 32 93 69 139 30 5.6
CBN-F540-BF** 40 72 145 51 76 35 5.9
CBN-F550-BF** 50 76 153 25 6.3
CBN-F563-BF** 63 81.5 164 6.8
