Place of Origin:
Made in china
Brand Name:
Belparts
Model Number:
EC55 EC55E
Video

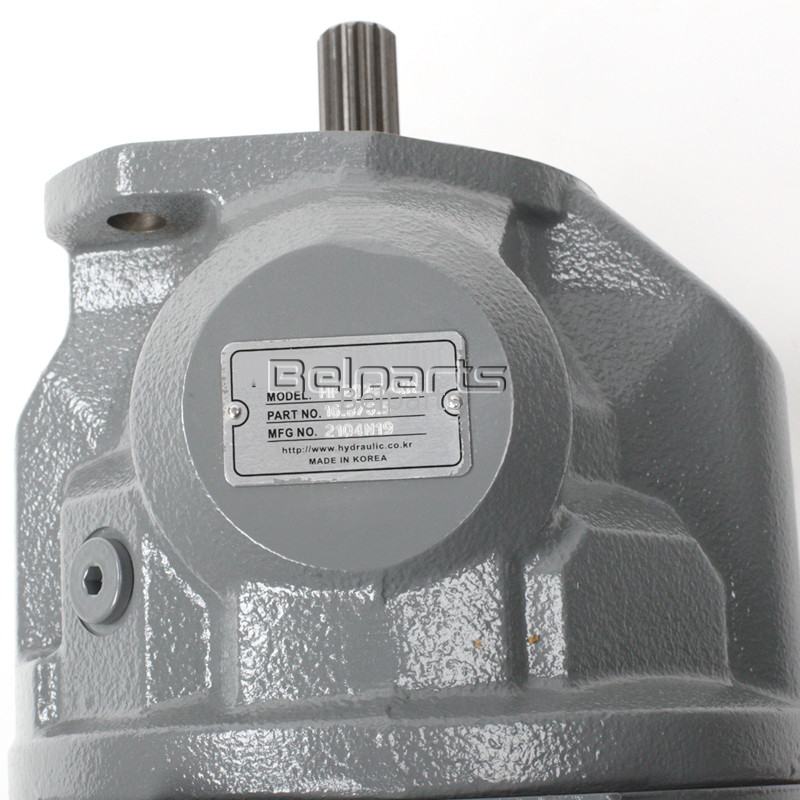

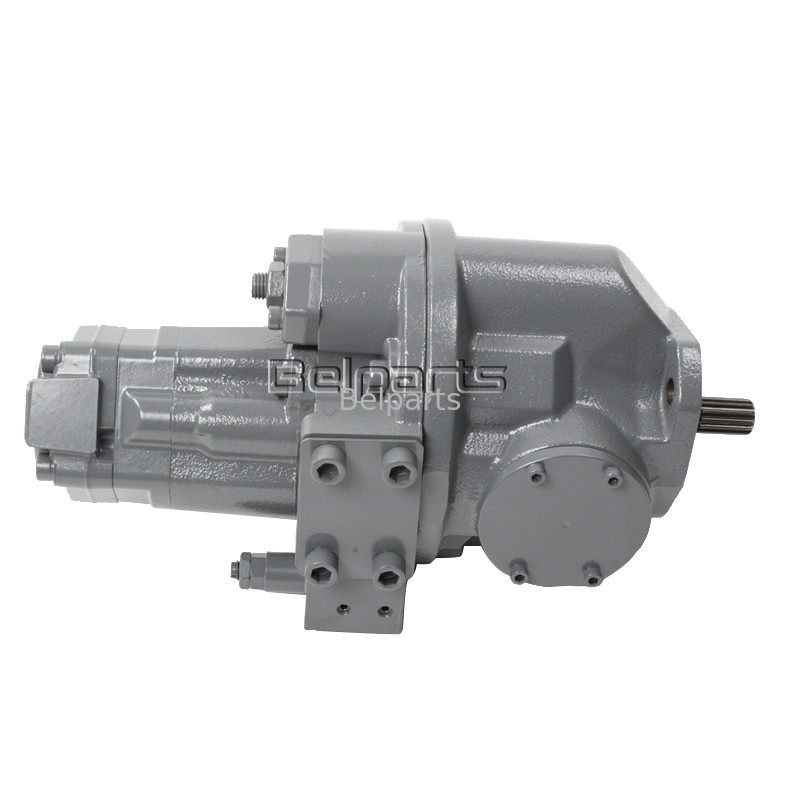

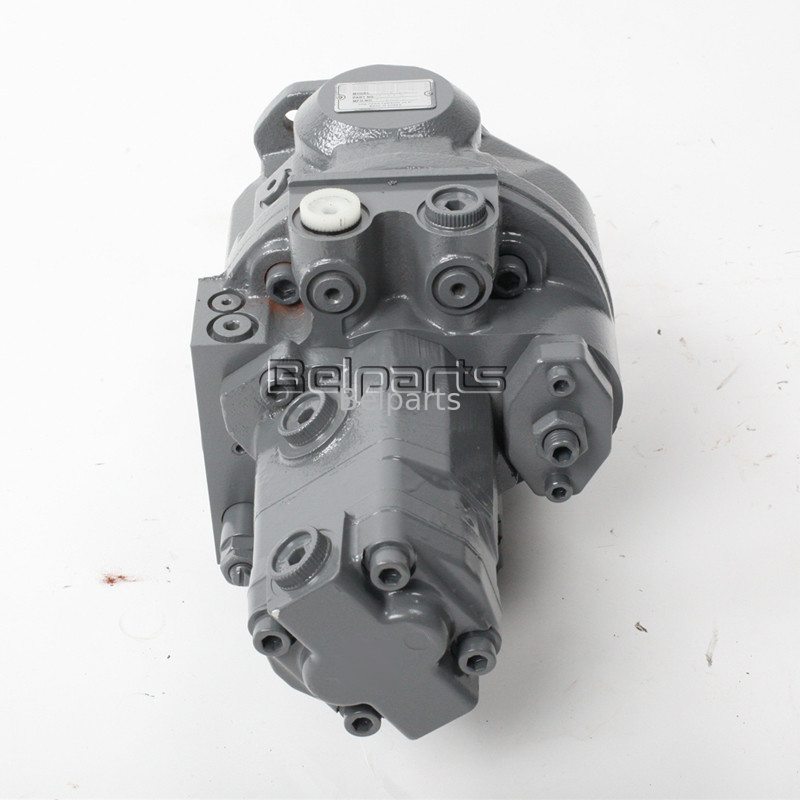

Belparts excavator main pump EC55 EC55E hydraulic pump for VOE 14503279 VOE 14507635
Appliion:Crawler excavator
Part name:Hydraulic Main Pump
Model:EC55 EC55E
Part number:VOE 14503279 VOE 14507635
Warranty:3-12 months
Payment term:T/T, Trade Assurance, Paypal and etc.
Brand:Hitachi or as require
| Appliion | Crawler excavator |
| Part name | Hydraulic Main Pump |
| Model | EC55 EC55E |
| Part number | VOE 14503279 VOE 14507635 |
| Warranty | 3-12 months |
| Payment term | T/T, Trade Assurance, Paypal and etc. |
| Brand | Hitachi or as require |
| # | Part No | Part Name | Qty. | Price request |
| VOE 14503279 | Pump | 1 | ||
| 1 | SA 8230-03190 | Shaft | 1 | |
| 2 | SA 8230-03170 | Seal | 1 | |
| 3 | SA 8230-03180 | Bearing | 1 | |
| 4 | SA 8230-03850 | Ring | 1 | |
| 5 | SA 8230-03860 | Ring | 1 | |
| 6 | SA 8230-02960 | Seal | 1 | |
| 7 | SA 8230-03730 | O-ring | 1 | |
| 8 | SA 8230-03910 | Ring | 1 | |
| 9 | SA 8230-15520 | Hanger | 1 | |
| 10 | SA 8230-15530 | Hanger | 1 | |
| 11 | SA 8230-02970 | Plate | 1 | |
| 12 | SA 8230-02990 | Seal | 1 | |
| 13 | SA 8230-02980 | Bearing | 2 | |
| 14 | SA 9016-10603 | Bolt more | 4 | |
| 15 | SA 8230-03720 | O-ring | 1 | |
| 16 | SA 8230-15610 | Rotator | 1 | |
| 17 | SA 8230-15620 | Piston | 10 | |
| 18 | SA 8230-03350 | Block | 1 | |
| 19 | SA 8230-03340 | Retainer | 1 | |
| 20 | SA 8230-03120 | Plate | 1 | |
| 21 | SA 8230-03010 | Guide | 1 | |
| 22 | SA 8230-03360 | Spring | 1 | |
| 23 | SA 8230-02950 | Pin | 3 | |
| 24 | SA 8230-03110 | Seat | 2 | |
| 25 | SA 8230-03880 | Ring | 1 | |
| 26 | SA 14504578 | Cover | 1 | |
| 27 | SA 8230-03410 | Cover | 1 | |
| 28 | SA 8230-03450 | Plate | 1 | |
| 29 | SA 8230-03890 | Pin | 2 | |
| 30 | SA 8230-03820 | Bolt | 2 | |
| 31 | SA 8230-03930 | O-ring | 1 | |
| 32 | SA 8230-06960 | O-ring | 4 | |
| 33 | SA 8230-06540 | Plug | 2 | |
| 34 | SA 8230-03080 | Orifice | 3 | |
| 35 | SA 8230-03130 | Bearing | 1 | |
| 36 | SA 8230-15450 | Plug | 2 | |
| 37 | VOE 14504579 | O-ring | 1 | |
| 38 | SA 8230-03800 | Bolt | 1 | |
| 39 | SA 8230-03310 | Filter | 1 | |
| 40 | SA 8230-03870 | Ring | 1 | |
| 41 | SA 8230-06550 | Plug | 3 | |
| 42 | SA 8230-15460 | Plug | 3 | |
| 43 | SA 14504580 | Spring | 1 | |
| 44 | VOE 14507631 | Piston | 1 | |
| 45 | SA 8230-03780 | Bolt | 2 | |
| 46 | SA 8230-03670 | O-ring | 1 | |
| 47 | SA 8230-03650 | O-ring | 1 | |
| 48 | SA 8230-03660 | O-ring | 1 | |
| 49 | VOE 14504587 | Relief valve | 1 | |
| 50 | SA 8230-06960 | O-ring | 1 | |
| 51 | SA 8230-03390 | Housing | 1 | |
| 100 | VOE 14504880 | Sealing Kit KIT |
1 |
Model |
Nominal displacement(ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
L1 | L2 | L | Weight (kg) |
||
Rated |
Max |
Optimum speed |
Speed range |
|||||||
| CBTLZT-F16/F10-AFP* | 16/10 | 20 | 25 | 1500～2500 | 800~3000 | 92 | 110 | 189 | 214.5 | 14.5 |
| CBTLZT-F16/F16-AFP* | 16/16 | 196.5 | 222 | 14.8 | ||||||
| CBTLZT-F20/F10-AFP* | 20/10 | 115 | 194 | 219.5 | 14.8 | |||||
| CBTLZT-F20/F16-AFP* | 20/16 | 201.5 | 227 | 15.3 | ||||||
| CBTLZT-F25/F10-AFP* | 25/10 | 121.5 | 200.5 | 226 | 15.2 | |||||
Model |
Nominal displacement (ml/r) |
Pressure(MPa) |
Speed(r/min) | Volumetric efficiency (≥%) |
L1 | L | Weight (kg) |
|||
Rated |
Max |
Min |
Rated |
Max |
||||||
| CBHC-F11-AL** | 11 | 20 | 25 | 500 | 2000 | 3000 | 90 | 54.5 | 118 | 3.5 |
| CBHC-F12-AL** | 12 | 55 | 119 | 3.6 | ||||||
| CBHC-F14.5-AL** | 14.5 | 57 | 123 | 3.7 | ||||||
| CBHC-F16-AL** | 16 | 58 | 125 | 3.8 | ||||||
| CBHC-F18-AL** | 18 | 59.5 | 128 | 3.9 | ||||||
| CBHC-F20-AL** | 20 | 61 | 131 | 4.0 | ||||||
