Place of Origin	Made in china
Brand Name	Belparts
Model Number	EC160B EC180B EC135B EC140B
Minimum Order Quantity	1PCS
Price	Negotiated price
Packaging Details	Wooden case
Delivery Time	1~7 days
Payment Terms	T/T,Alibaba trade assurance,PayPal
Supply Ability	1000PCS

Model	EC160B EC180B EC135B EC140B	Part Number	VOE 14531853 14508514 14508515 VOE 14514893 14531854 14533644
Warranty	1 Year	Texture	Steel
Part Name	Hydraulic Pump
High Light	Belparts excavator main pump , EC180B excavator main pump , EC135B excavator main pump

Appliion	Crawler excavator
Part name	Hydraulic Main Pump
Model	EC160B EC180B EC135B EC140B
Part number	VOE 14531853 14508514 14508515 VOE 14514893 14531854 14533644
Warranty	3-12 months
Payment term	T/T, Trade Assurance, Paypal and etc.
Brand	Hitachi or as require

#	Part No	Part Name	Qty.	Price request
#	Part No	Part Name	8278378
	VOE 14514893	Pump SER NO 10001-10755 more	1
	VOE 14531854	Pump SER NO 10756-10939 more	1
	VOE 14533644	Pump SER NO 10940- more	1
1	VOE 14508514	Piston	2
2	VOE 14508515	Piston	9
3	SA 8230-28650	Seat	9
4	VOE 14508516	Cylinder more	1
5	VOE 14508523	Block	1
6	SA 8230-30550	Plate	1
7	VOE 14508522	Cylinder more	1
8	VOE 14508523	Block	1
9	VOE 14502013	Plate	1
10	SA 8230-32190	Plate	2
11		Plate	1
12	VOE 14501609	Bushing	1
13	VOE 14508506	Shaft	1
14	VOE 14508510	Shaft	1
15	SA 8230-28280	Splined Sleeve	1
16	VOE 14501607	Bearing	2
17	VOE 14508512	Needle Bearing	2
18	VOE 14508513	Spacer more	4
19	VOE 14508521	Plate	2
20	SA 8230-32080	Valve more	1
21	SA 8230-09380	Spring	18
22	SA 8230-09420	Bolt	2
23	SA 8230-09620	Plate	2
24	SA 8230-32180	Support	2
25	VOE 14508525	Cover	1
26	SA 8230-08910	Pump Housing	2
27	SA 8230-08920	Body	1
28	SA 8230-09390	Bolt	8
29	SA 8230-25840	Bolt	4
30	SA 9415-11021	Plug more	2
31	SA 8230-26050	Plug	4
32	SA 7242-11040	Plug more	15
33	VOE 14508526	Bearing spindle	2
34	VOE 14508527	Pin	1
35		Pin	1
36	VOE 14508528	Piston	2
37	VOE 14511631	Stop	2
38	SA 8230-09410	Stop	2
39	SA 9511-22030	O-ring SER NO 10001-10755 more	2
	VOE 14528251	O-ring SER NO 10756- more	2
40	SA 9511-22085	O-ring SER NO 10001-10755 more	2
	VOE 14534033	O-ring SER NO 10756- more	2
41	SA 9511-22120	O-ring SER NO 10001-10755 more	2
	VOE 14534032	O-ring SER NO 10756- more	2
42	SA 9511-22115	O-ring SER NO 10001-10755 more	2
	VOE 14534031	O-ring SER NO 10756- more	2
43	SA 9511-12008	O-ring SER NO 10001-10755 more	18
	VOE 14534030	O-ring SER NO 10756- more	18
44	SA 9511-12011	O-ring SER NO 10001-10755 more	2
	VOE 14534029	O-ring SER NO 10756- more	2
45	SA 9511-12018	O-ring SER NO 10001-10755 more	3
	VOE 14534028	O-ring SER NO 10756- more	3
46	SA 9511-12016	O-ring SER NO 10001-10755 more	2
	VOE 14528250	O-ring SER NO 10756- more	2
47	SA 8230-26890	Seal SER NO 10001-10755 more	1
	VOE 14534027	Seal SER NO 10756- more	1
48	SA 9566-10160	Ring more	2
49	SA 9566-20300	Ring more	2
50	SA 8230-25620	Nut	4
51	SA 8230-25970	Ring more	2
52	SA 8230-26400	Pin	2
53	SA 7223-00660	Spring Pin	4
54	SA 8230-25450	Eye Bolt	2
55	SA 8230-26780	Bolt	2
56	VOE 14508524	Bushing	2
100	VOE 14508612	Sealing Kit SER NO 10001-10755 more	1
	VOE 14534508	Seal SER NO 10756- more	1

Model	Nominal displacement(ml/r)	Pressure(MPa)		Speed(r/min)		Volumetric efficiency (≥%)	L1	L2	L	Weight (kg)
		Rated	Max	Optimum speed	Speed range
CBTLZT-F16/F10-AFP*	16/10	20	25	1500～2500	800~3000	92	110	189	214.5	14.5
CBTLZT-F16/F16-AFP*	16/16							196.5	222	14.8
CBTLZT-F20/F10-AFP*	20/10						115	194	219.5	14.8
CBTLZT-F20/F16-AFP*	20/16							201.5	227	15.3
CBTLZT-F25/F10-AFP*	25/10						121.5	200.5	226	15.2

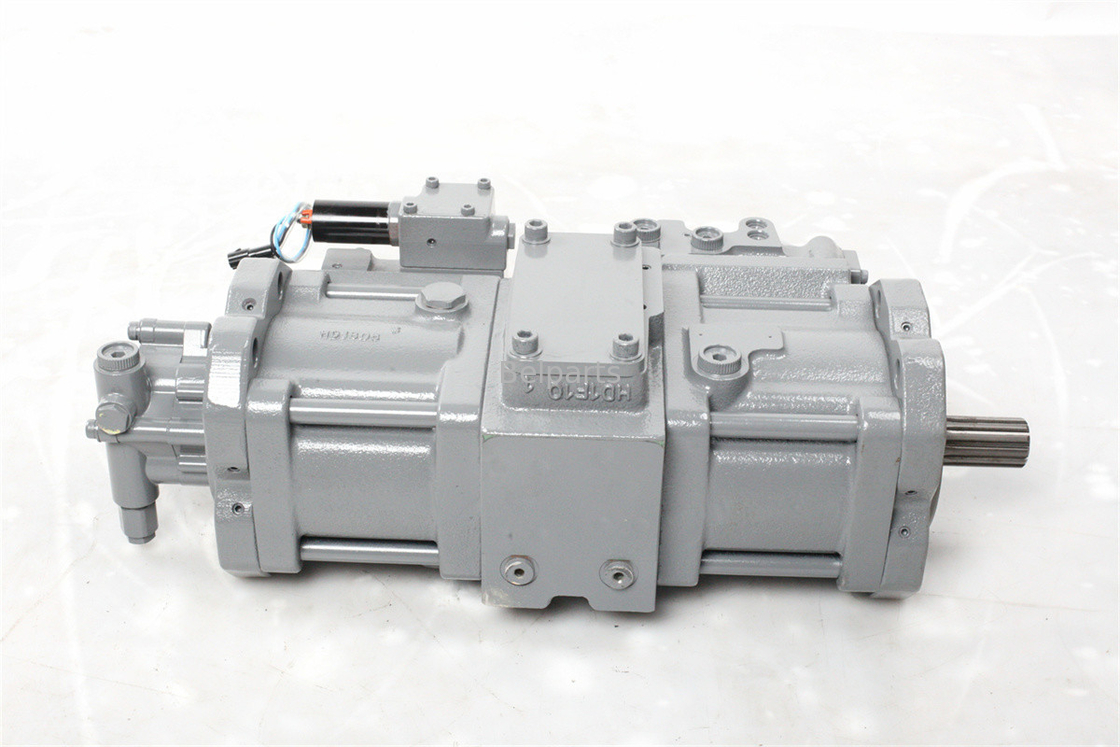

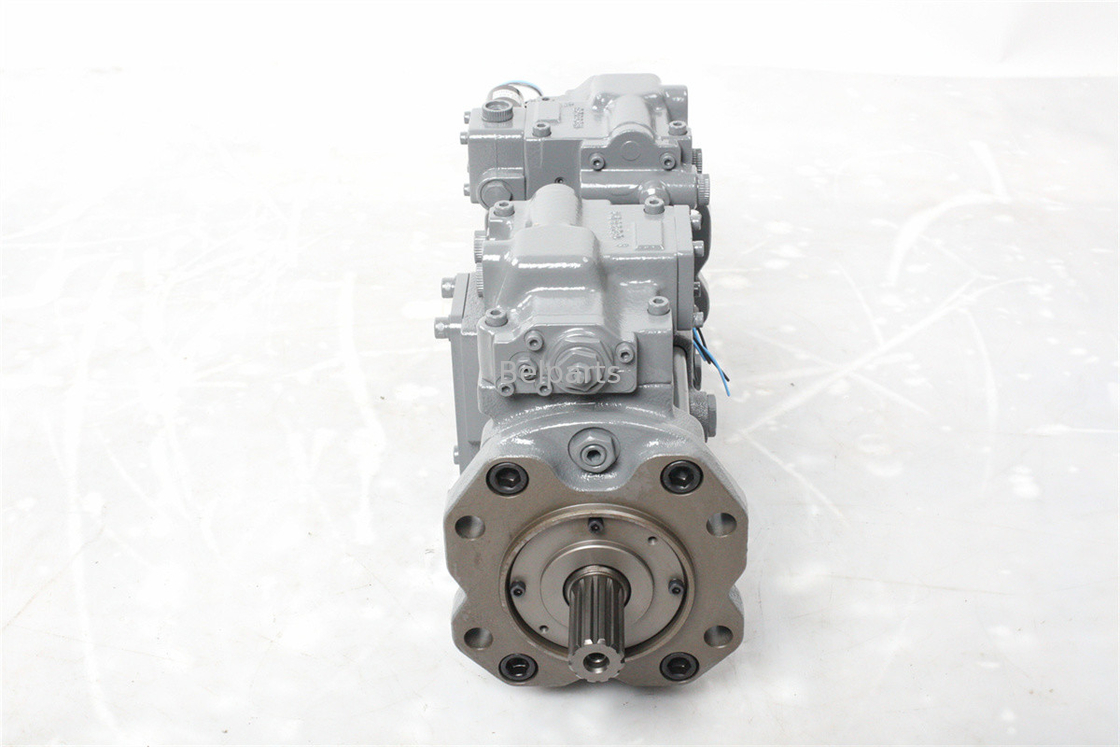

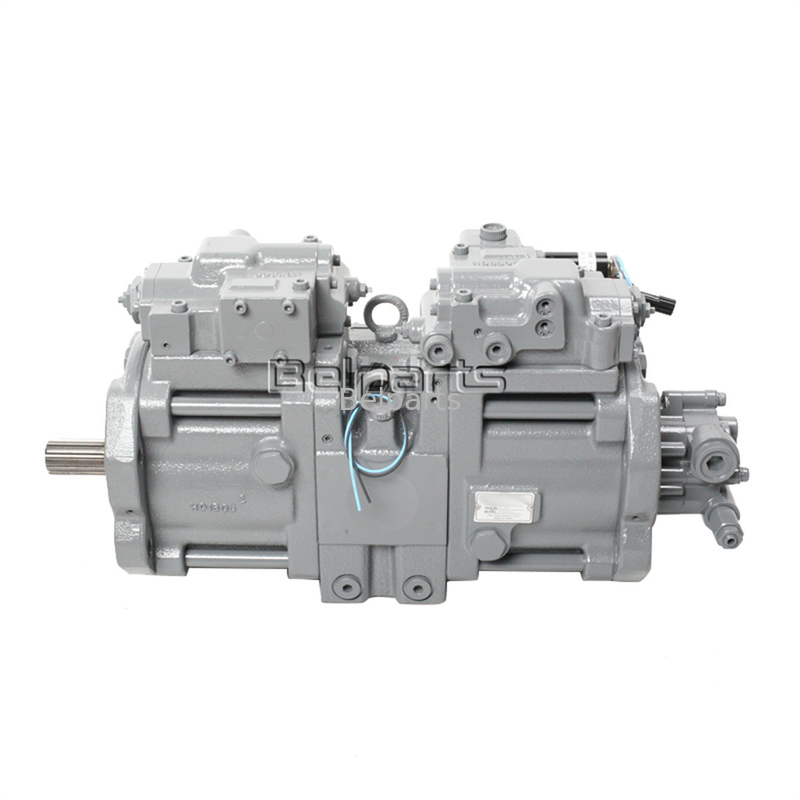

Belparts excavator main pump EC160B EC180B EC135B EC140B hydraulic pump for VOE 14531853 14508514 14508515
