EC140 EC160 hydraulic pump Belparts excavator main pump for SA 1142-05460 SA 8230-14490 VOE 14370950
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | EC140 EC160 | Part Number | SA 1142-05460 SA 8230-14490 VOE 14370950 |
|---|---|---|---|
| Warranty | 1 Year | Texture | Steel |
| Part Name | Hydraulic Pump | ||
| High Light | Belparts hydraulic pump,EC140 hydraulic pump,VOE 14370950 hydraulic pump |
||
Product Description

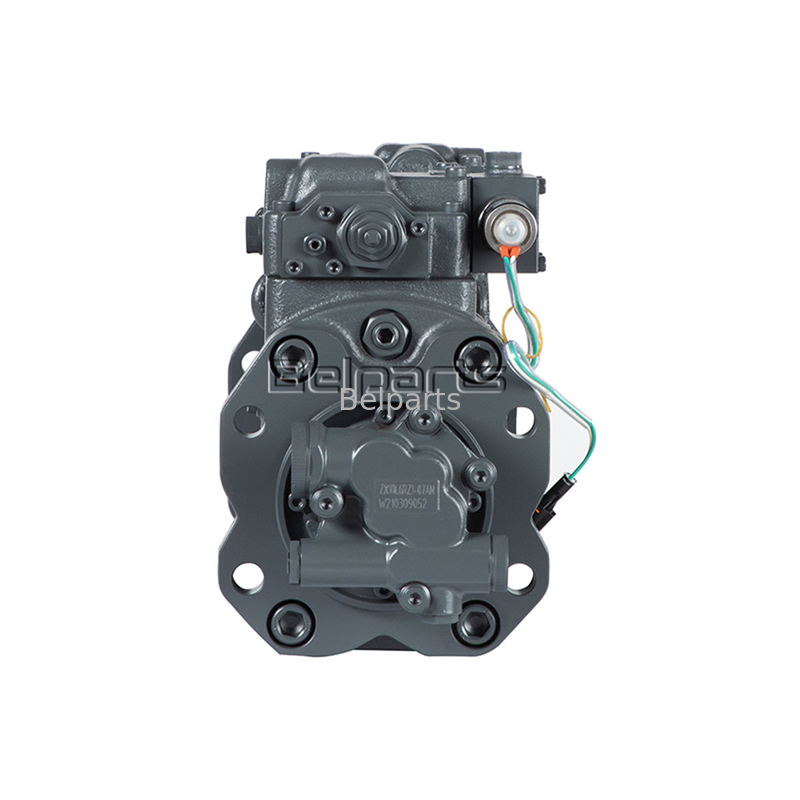

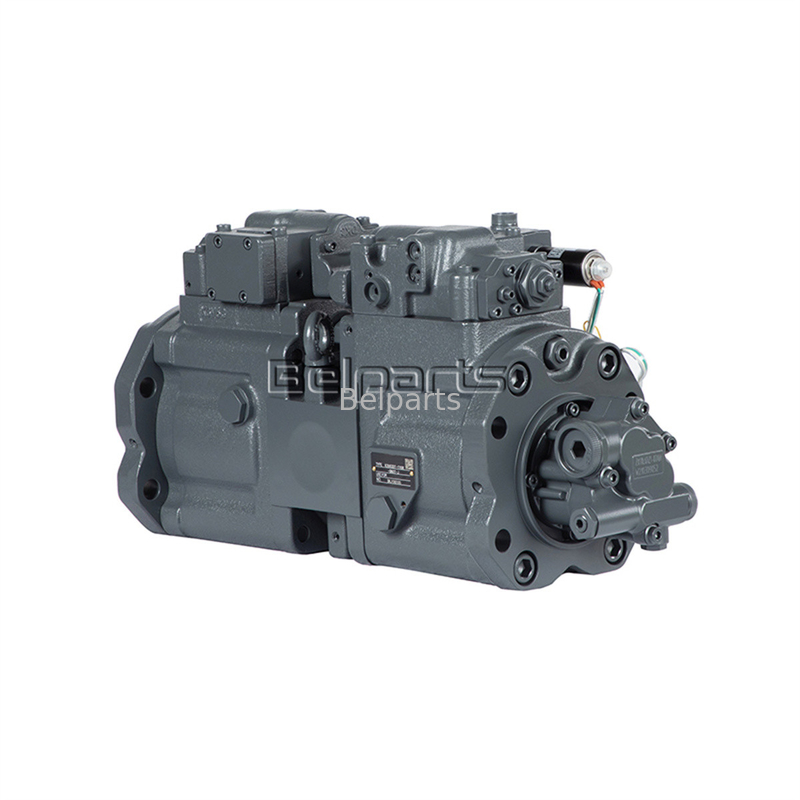

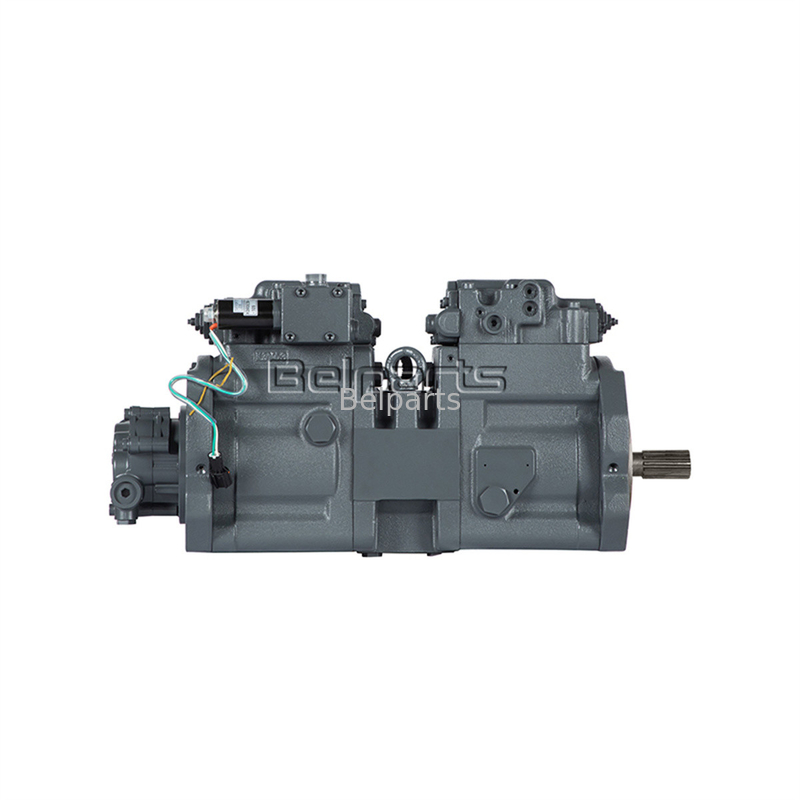

EC140 EC160 hydraulic pump Belparts excavator main pump for SA 1142-05460 SA 8230-14490 VOE 14370950
Appliion:Crawler excavator
Part name:Hydraulic Main Pump
Model:EC140 EC160
Part number:SA 1142-05460 SA 8230-14490 VOE 14370950
Warranty:3-12 months
Payment term:T/T, Trade Assurance, Paypal and etc.
Brand:Hitachi or as require
| Appliion | Crawler excavator |
| Part name | Hydraulic Main Pump |
| Model | EC140 EC160 |
| Part number | SA 1142-05460 SA 8230-14490 VOE 14370950 |
| Warranty | 3-12 months |
| Payment term | T/T, Trade Assurance, Paypal and etc. |
| Brand | Hitachi or as require |
| # | Part No | Part Name | Qty. | Price request |
| VOE 14370950 | Hydraulic Pump | 1 | ||
| 1 | VOE 11705583 | Sealing ring | 1 | |
| 2 | VOE 11037342 | Snap Ring more | 1 | |
| 3 | VOE 11705584 | Plug | 1 | |
| 4 | VOE 11704818 | Plug more | 1 | |
| 5 | VOE 11704842 | Nut | 2 | |
| 6 | VOE 11705607 | O-ring | 1 | |
| VOE 11705608 | Regulator | 1 | ||
| 7 | VOE 11705609 | O-ring | 2 | |
| 8 | VOE 11705610 | Back-up ring | 2 | |
| 9 | VOE 11704910 | O-ring | 2 | |
| 10 | VOE 11705611 | Allen Hd Screw | 4 | |
| 11 | VOE 11705612 | Plug | 1 | |
| 12 | VOE 11704908 | O-ring | 1 | |
| 13 | VOE 11705595 | Check valve | 1 | |
| 14 | VOE 11705614 | Sealing Plug | 1 | |
| 15 | VOE 11704820 | Plug | 4 | |
| 16 | VOE 11704824 | O-ring | 4 | |
| 17 | VOE 11704818 | Plug more | 6 | |
| 18 | VOE 11705613 | Nozzle | 1 | |
| 19 | VOE 11704837 | Sealing Plug | 5 | |
| 20 | VOE 11705181 | Solenoid valve Y79 more |
1 | |
| 21 | VOE 11705182 | Seal | 1 | |
| 22 | VOE 959185 | Allen Hd Screw | 1 | |
| 23 | VOE 11705605 | O-ring | 1 | |
| 24 | VOE 11705600 | O-ring | 3 | |
| 25 | VOE 11705602 | Allen Hd Screw | 3 |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
L1 | L | Weight (kg) |
|||
Rated |
Max |
Min |
Rated |
Max |
||||||
| CBHZ-F23-AL** | 23 | 20 | 25 | 600 | 2500 | 3000 | 92 | 60 | 116 | 4.1 |
| CBHZ-F25-AL** | 25 | 61.5 | 119 | 4.3 | ||||||
| CBHZ-F26.5-AL** | 26.5 | 62.5 | 121 | 4.5 | ||||||
| CBHZ-F28.2-AL** | 28.2 | 63.5 | 123 | 4.6 | ||||||
| CBHZ-F30-AL** | 30 | 64.5 | 125 | 4.8 | ||||||
| CBHZ-F32-AL** | 32 | 65.5 | 127 | 5.0 | ||||||
| CBHZ-F36-AL** | 36 | 68 | 132 | 5.4 | ||||||
