Belparts excavator main pump R160LC-3 R160LC-9 R180LC-9 hydraulic pump 31Q5-10010 31EG-10010 K3V63DT-1R0R for hyundai
Place of Origin:Made in china
Brand Name:Belparts
Model Number:R160LC-3 R160LC-9 R180LC-9
Minimum Order Quantity:1PCS
Price:Negotiated price
Payment Terms:T/T, trade assurance,PayPal
Supply Ability:1000PCS
Product Details
Highlight:
R160LC-3 hydraulic pump
,R180LC-9 hydraulic pump
,31EG-10010 hydraulic pump
Model:
R160LC-3 R160LC-9 R180LC-9
Part Number:
31Q5-10010 31EG-10010 K3V63DT-1R0R
Warranty:
1 Year
Texture:
Steel
Part Name:
Hydraulic Pump
Product Description

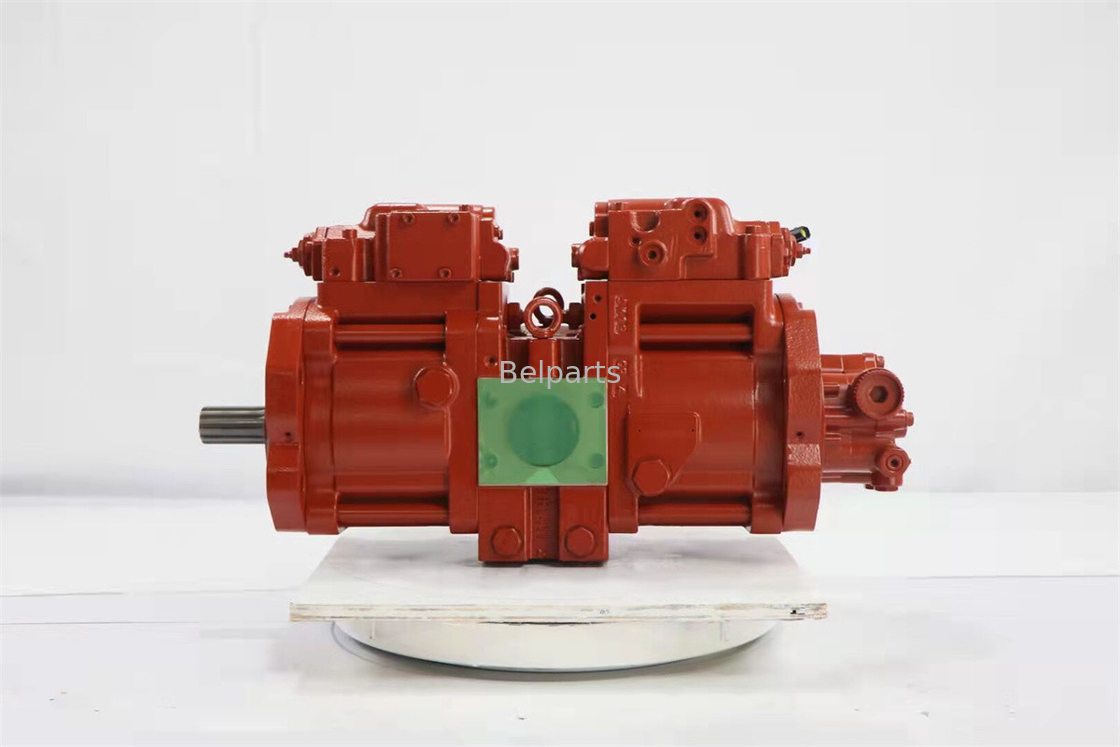

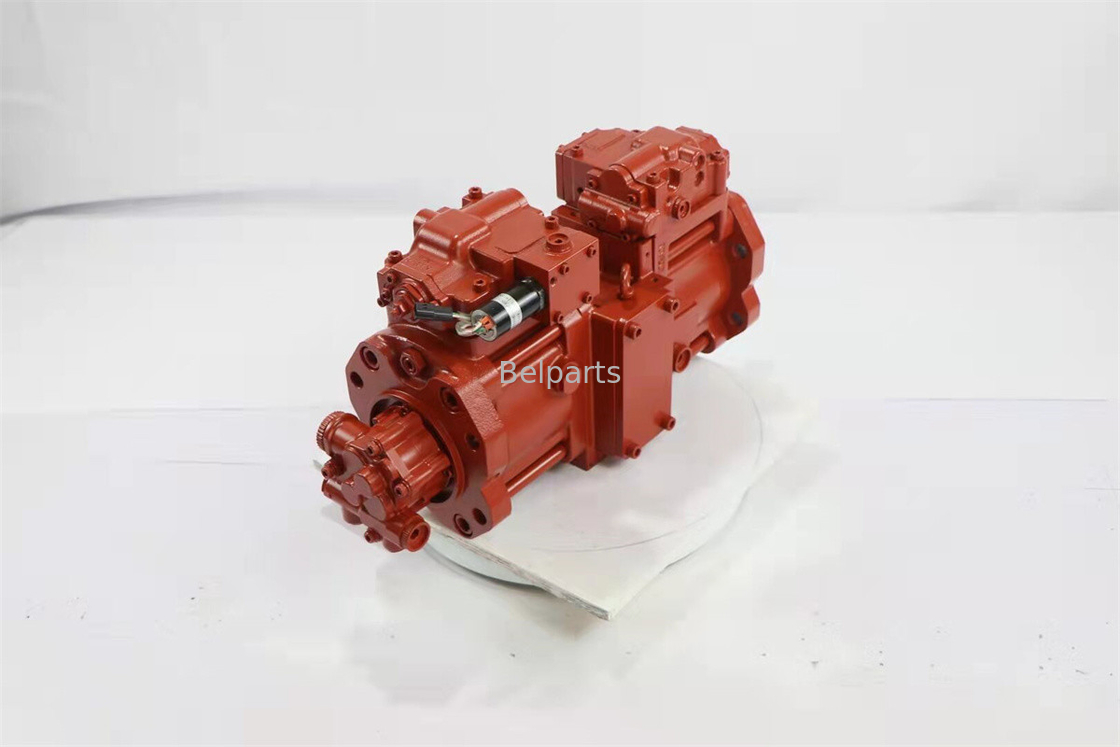

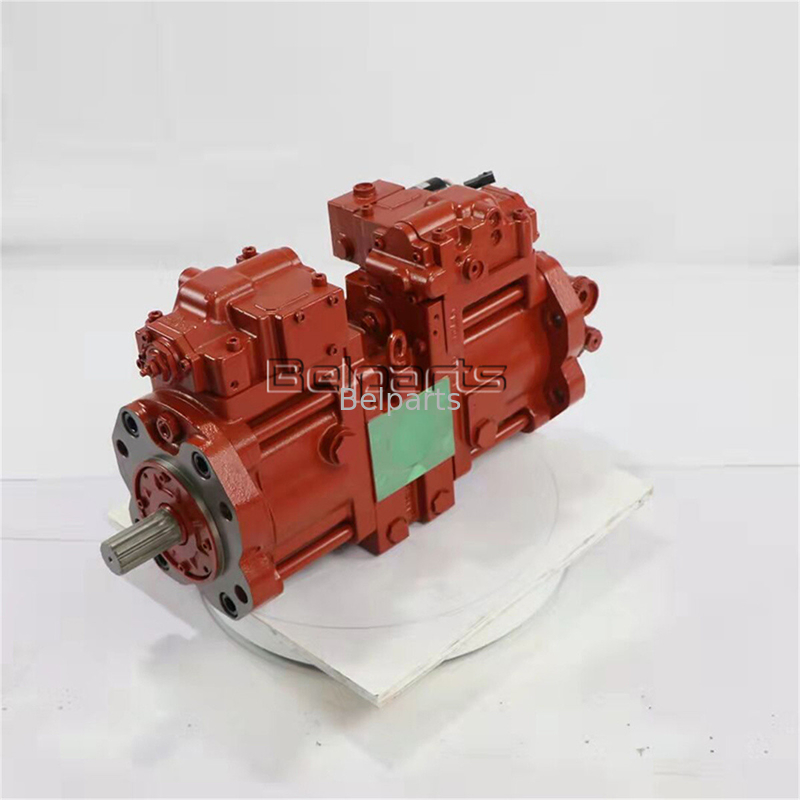

Belparts excavator main pump R160LC-3 R160LC-9 R180LC-9 hydraulic pump 31Q5-10010 31EG-10010 K3V63DT-1R0R for hyundai
Appliion:Crawler excavator
Part name:Hydraulic Main Pump
Model:R160LC-3 R160LC-9 R180LC-9
Part number:31Q5-10010 31EG-10010 K3V63DT-1R0R
Warranty:3-12 months
Payment term:T/T, Trade Assurance, Paypal and etc.
Brand:Hitachi or as require
| Appliion | Crawler excavator |
| Part name | Hydraulic Main Pump |
| Model | R160LC-3 R160LC-9 R180LC-9 |
| Part number | 31Q5-10010 31EG-10010 K3V63DT-1R0R |
| Warranty | 3-12 months |
| Payment term | T/T, Trade Assurance, Paypal and etc. |
| Brand | Hitachi or as require |
| # | Part No | Part Name | Qty. | Price request |
| * | 31Q5-10010 | MAIN PUMP | 1 | |
| *-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| 111 | XJBN-00802 | SHAFT(F)-DRIVE | 1 | |
| 113 | XJBN-00803 | SHAFT(R)-DRIVE | 1 | |
| 116 | XJBN-00804 | GEAR-1ST | 1 | |
| 123 | XJBN-00429 | BEARING-ROLLER | 2 | |
| 124 | XJBN-00805 | BEARING-NEEDLE | 2 | |
| 127 | XJBN-00806 | SPACER-BEARING | 4 | |
| S141 | XJBN-00807 | BLOCK-CYLINDER | 2 | |
| S151 | XJBN-00425 | PISTON | 18 | |
| S152 | XJBN-01278 | SHOE | 18 | |
| 153 | XJBN-00808 | PLATE-SET | 2 | |
| 156 | XJBN-00422 | BUSHING-SPHERICAL | 2 | |
| 157 | XJBN-00421 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00420 | PLATE-SHOE | 2 | |
| S212 | XJBN-00419 | PLATE-SWASH | 2 | |
| S214 | XJBN-00418 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00417 | SUPPORT | 2 | |
| 261 | XJBN-00809 | COVER-FR | 1 | |
| 271 | XJBN-01046 | CASING-PUMP | 2 | |
| 312 | XJBN-00812 | BLOCK-VALVE | 1 | |
| S313 | XJBN-01045 | PLATE(R)-VALVE | 1 | |
| S314 | XJBN-01044 | PLATE(L)-VALVE | 1 | |
| S326 | XJBN-00937 | COVER | 1 | |
| 401 | XJBN-00411 | SCREW | 8 | |
| 406 | XJBN-00813 | SCREW-HEX S H C | 8 | |
| 414 | XJBN-00160 | SCREW-SOCKET | 4 | |
| 466 | XJBN-00030 | PLUG | 2 | |
| 467 | XJBN-00487 | PLUG | 4 | |
| 468 | XJBN-00814 | PLUG | 2 | |
| 490 | XJBN-00032 | PLUG | 15 | |
| S531 | XJBN-00815 | PIN-TILTING | 2 | |
| 532 | XJBN-00407 | PISTON-SERVO | 2 | |
| 534 | XJBN-00816 | STOPPER(L) | 2 | |
| 535 | XJBN-00405 | STOPPER(S) | 2 | |
| S548 | XJBN-00360 | PIN-FEED BACK | 2 | |
| K702 | XJBN-00817 | O-RING | 2 | |
| K710 | XJBN-00387 | O-RING | 1 | |
| K711 | XJBN-00095 | O-RING | 1 | |
| K717 | XJBN-00818 | O-RING | 2 | |
| K719 | XJBN-00819 | O-RING | 2 | |
| K724 | XJBN-00044 | O-RING | 18 | |
| K725 | XJBN-00045 | O-RING | 2 | |
| K727 | XJBN-00233 | O-RING | 2 | |
| K728 | XJBN-00097 | O-RING | 4 | |
| K732 | XJBN-00820 | O-RING | 2 | |
| K774 | XJBN-01029 | SEAL-OIL | 1 | |
| K789 | XJBN-00476 | RING-BACK UP | 2 | |
| K792 | XJBN-00454 | RING BACK-UP | 2 | |
| 808 | XJBN-00101 | NUT-HEX | 4 | |
| 824 | XJBN-00821 | RING-SNAP | 2 | |
| 885 | XJBN-00394 | PIN-VALVE PLATE | 2 | |
| 886 | XJBN-00054 | PIN-SPRING | 4 | |
| 901 | XJBN-00104 | BOLT-EYE | 2 | |
| 953 | XJBN-00105 | SCREW-SET | 2 | |
| 954 | XJBN-00392 | SCREW-SET | 2 | |
| 981 | XJBN-00156 | NAME PLATE | 1 | |
| 983 | XJBN-00455 | PIN | 2 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4020 |
1 | |
| *-3 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4030 |
1 | |
| 011 | XJBN-01572 | PISTON SUB ASSY SEE ILLUST |
2 | |
| 013 | XJBN-01048 | CYLINDER SUB ASSY-RH SEE ILLUST |
1 | |
| 014 | XJBN-01047 | CYLINDER SUB ASSY-LH SEE ILLUST |
1 | |
| 030 | XJBN-00800 | SWASH PLATE SUB ASSY SEE ILLUST |
2 | |
| 530 | XJBN-00801 | TILTING PIN SUB ASSY SEE ILLUST |
2 |
Model |
Nominal displacement(ml/r) Fore pump/ hind pump |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency(≥%) Fore pump/ hind pump |
L1 | L2 | L | Weight (kg) |
|||
Rated |
Max |
Min |
Rated |
Max |
|||||||
| CBHY-G36/F3.5-ATφ* | 36/3.5 | 25/20 | 28/25 | 800 | 2500 | 3000 | 92/85 | 123 | 123 | 205 | 6.8 |
| CBHY-G36/F4.5-ATφ* | 36/4.5 | 92/90 | 208 | 7.0 | |||||||
| CBHY-G32/F3.5-ATφ* | 32/3.5 | 92/85 | 118 | 118 | 200 | 6.5 | |||||
| CBHY-G32/F4.5-ATφ* | 32/4.5 | 92/90 | 203 | 6.7 | |||||||
| CBHY-G30/F3.5-ATφ* | 30/3.5 | 92/85 | 116 | 116 | 198 | 6.1 | |||||
| CBHY-G30/F4.5-ATφ* | 30/4.5 | 92/90 | 201 | 6.4 | |||||||
| CBHY-G28/F3.5-ATφ* | 28/3.5 | 92/85 | 114 | 114 | 196 | 6.1 | |||||
| CBHY-G28/F4.5-ATφ* | 28/4.5 | 92/90 | 199 | 6.2 | |||||||
| CBHY-G25/F3.5-ATφ* | 25/3.5 | 92/85 | 110 | 110 | 192 | 5.8 | |||||
| CBHY-G25/F4.5-ATφ* | 25/4.5 | 92/90 | 195 | 5.9 | |||||||
