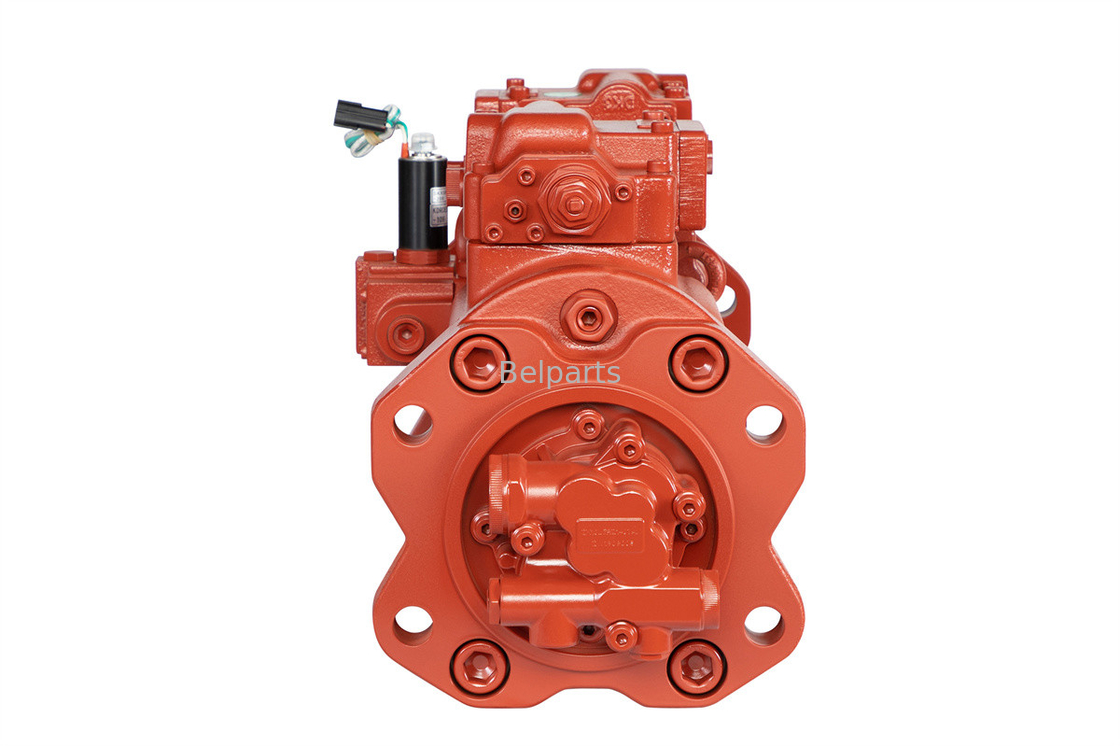

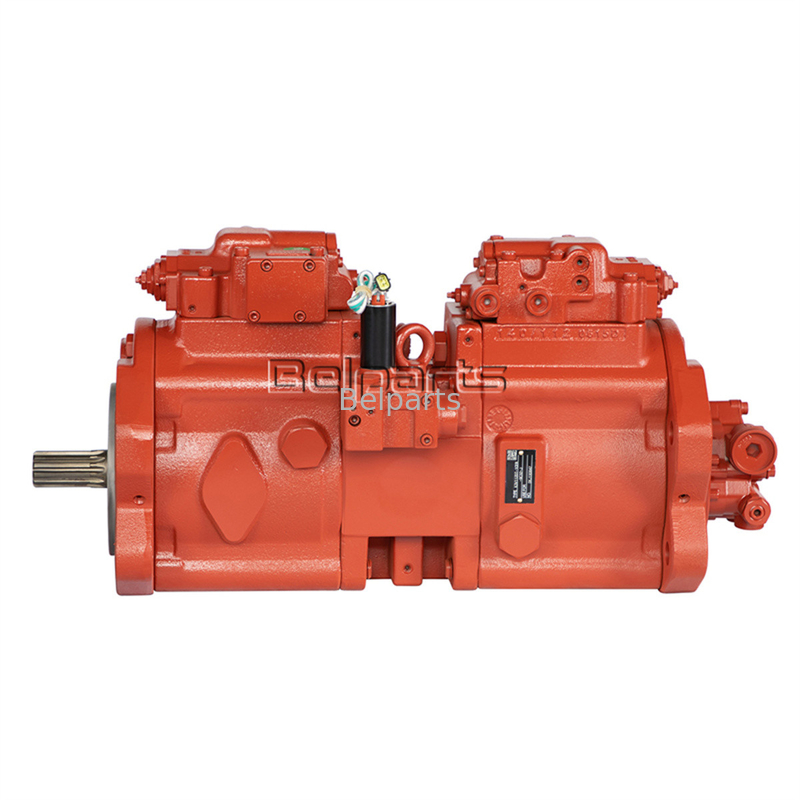

R210LC-7A R220LC-7H Belparts excavator main pump R210LC-7 hydraulic pump 31N6-10010 31N6-10051 31N6-10080 for hyundai
Place of Origin:Made in china
Brand Name:Belparts
Model Number:R210LC-7 R210LC-7A R220LC-7H
Minimum Order Quantity:1PCS
Price:Negotiated price
Payment Terms:T/T, trade assurance,PayPal
Supply Ability:1000PCS
Product Details
Highlight:
Belparts hydraulic pump
,R220LC-7H hydraulic pump
,R210LC-7A hydraulic pump
Model:
R210LC-7 R210LC-7A R220LC-7H
Part Number:
31N6-10010 31N6-10050 31N6-10051 31N6-10080 31N6-10020 31N6-10030
Warranty:
1 Year
Texture:
Steel
Part Name:
Hydraulic Pump
Product Description
R210LC-7A R220LC-7H Belparts excavator main pump R210LC-7 hydraulic pump 31N6-10010 31N6-10051 31N6-10080 for hyundai
Appliion:Crawler excavator
Part name:Hydraulic Main Pump
Model:R210LC-7 R210LC-7A R220LC-7H
Part number:31N6-10010 31N6-10050 31N6-10051 31N6-10080 31N6-10020 31N6-10030
Warranty:3-12 months
Payment term:T/T, Trade Assurance, Paypal and etc.
Brand:Hitachi or as require
| Appliion | Crawler excavator |
| Part name | Hydraulic Main Pump |
| Model | R210LC-7 R210LC-7A R220LC-7H |
| Part number | 31N6-10010 31N6-10050 31N6-10051 31N6-10080 31N6-10020 31N6-10030 |
| Warranty | 3-12 months |
| Payment term | T/T, Trade Assurance, Paypal and etc. |
| Brand | hyundai or as require |
| # | Part No | Part Name | Qty. | Price request |
| * | 31N6-10020 | MAIN PUMP ASSY SEE 4010 |
1 | |
| N*-1 | XKAH-00612 | MAIN PUMP UNIT | 1 | |
| 111 | XKAH-00562 | SHAFT-DRIVING(F) | 1 | |
| 113 | XKAH-00563 | SHAFT-DRIVING(R) | 1 | |
| 114 | XKAH-00565 | COUPLING-SPLINE | 1 | |
| 123 | XKAH-00566 | BEARING-ROLLER | 2 | |
| 124 | XKAH-00567 | BEARING-NEEDLE | 2 | |
| 127 | XKAH-00568 | SPACER-BEARING | 4 | |
| N141 | XKAH-00569 | CYLINDER-BLOCK | 2 | |
| N151 | XKAH-00570 | PISTON | 18 | |
| N152 | XKAH-00571 | SHOE | 18 | |
| 153 | XKAH-00572 | PLATE-PUSH | 2 | |
| 156 | XKAH-00573 | BUSH-SPHERICAL | 2 | |
| 157 | XKAH-00574 | SPRING-CYLINDER | 18 | |
| 158 | XKAH-00575 | SPACER | 2 | |
| 211 | XKAH-00576 | PLATE-SHOE | 2 | |
| N212 | XKAH-00577 | PLATE-SWASH | 2 | |
| N214 | XKAH-00578 | BUSH-TILTING | 2 | |
| 251 | XKAH-00579 | SUPPORT | 2 | |
| 261 | XKAH-00580 | COVER-SEAL(F) | 1 | |
| 271 | XKAH-00247 | CASING-PUMP | 2 | |
| 312 | XKAH-00581 | BLOCK-VALVE | 1 | |
| N313 | XKAH-00582 | PLATE-VALVE(R) | 1 | |
| N314 | XKAH-00583 | PLATE-VALVE(L) | 1 | |
| 401 | XKAH-00584 | BOLT-SOCKET | 8 | |
| 406 | XKAH-00210 | BOLT-SOCKET | 4 | |
| 466 | XKAH-00136 | PLUG-VP | 2 | |
| 468 | XKAH-00209 | PLUG | 3 | |
| 490 | XKAH-00208 | PLUG-PT | 18 | |
| N531 | XKAH-00585 | PIN-TILTING | 2 | |
| 532 | XKAH-00586 | PISTON-SERVO | 2 | |
| 534 | XKAH-00587 | STOPPER(L) | 2 | |
| 535 | XKAH-00588 | STOPPER(S) | 2 | |
| N541 | XKAH-00203 | SEAT | 4 | |
| N543 | XKAH-00201 | STOPPER 1 | 2 | |
| N544 | XKAH-00200 | STOPPER 2 | 2 | |
| N545 | XKAH-00199 | BALL-STEEL | 4 | |
| N548 | XKAH-00198 | PIN-FEEDBACK | 2 | |
| K702 | XKAH-00589 | O-RING | 2 | |
| K710 | XKAH-00590 | O-RING | 1 | |
| K717 | XKAH-00591 | O-RING | 4 | |
| K724 | XKAH-00194 | O-RING | 16 | |
| K725 | XKAH-00052 | O-RING | 4 | |
| K728 | XKAH-00193 | O-RING | 3 | |
| K732 | XKAH-00592 | O-RING | 2 | |
| 774 | XKAH-00593 | SEAL-OIL | 1 | |
| 789 | XKAH-00594 | RING-BACK UP | 2 | |
| 792 | XKAH-00595 | RING-BACK UP | 2 | |
| 806 | XKAH-00596 | NUT-HEX | 2 | |
| 808 | XKAH-00188 | NUT-HEX | 2 | |
| 824 | XKAH-00026 | RING-SNAP | 2 | |
| 885 | XKAH-00597 | PIN-VALVE PLATE | 2 | |
| 886 | XKAH-00185 | PIN-SPRING | 4 | |
| 901 | XKAH-00598 | BOLT-EYE | 2 | |
| 953 | XKAH-00599 | SCREW-SET | 2 | |
| 954 | XKAH-00600 | SCREW-ADJUST | 2 | |
| 981 | XKAH-00601 | PLATE-NAME | 1 | |
| 983 | XKAH-00116 | SCREW-RIVET | 2 | |
| N011 | XKAH-00559 | PISTON ASSY SEE ILLUST |
2 | |
| 013 | XKAH-00558 | CYLINDER ASSY(RH) SEE ILLUST |
1 | |
| 014 | XKAH-00557 | CYLINDER ASSY(LH) SEE ILLUST |
1 | |
| 030 | XKAH-00556 | SWASH PLATE ASSY SEE ILLUST |
2 | |
| 041 | XKAH-00237 | CHECK VALVE ASSY 1 SEE ILLUST |
2 | |
| 042 | XKAH-00555 | CHECK VALVE ASSY-2 SEE ILLUST |
2 | |
| 530 | XKAH-00554 | TILTING PIN ASSY SEE ILLUST |
2 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4020 |
2 | |
| *-3 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4030 |
1 | |
| *-4 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4040 |
1 | |
| N | @ | FUEL INJECTION PIPE & NOZZLE | AR | |
| K | XKAH-00613 | PUMP BODY SEAL KIT SEE ILLUST |
1 |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
h | D | L1 | L | Weight (kg) |
||||
Rated |
Max |
Optimum speed |
Speed range |
Rectabgle |
Oval |
Inlet |
Outlet |
||||||
| CBQ-G520-*F** | 20 | 25 | 28 | 1500-2500 | 800-3000 | 92 | 23 | 15 | 25 | 20 | 62.5 | 129 | 5.7 |
| CBQ-G525-*F** | 25 | 64.5 | 133 | 6.0 | |||||||||
| CBQ-G532-*F** | 32 | 93 | 30 | 67 | 138 | 6.3 | |||||||
| CBQ-G540-*F** | 40 | 69.5 | 143 | 6.8 | |||||||||
| CBQ-G550-*F** | 50 | 00 20 |
25 | 25 | 73 | 150 | 7.3 | ||||||
| CBQ-G563-*F* | 63 | 77.5 | 159 | 8.0 | |||||||||
