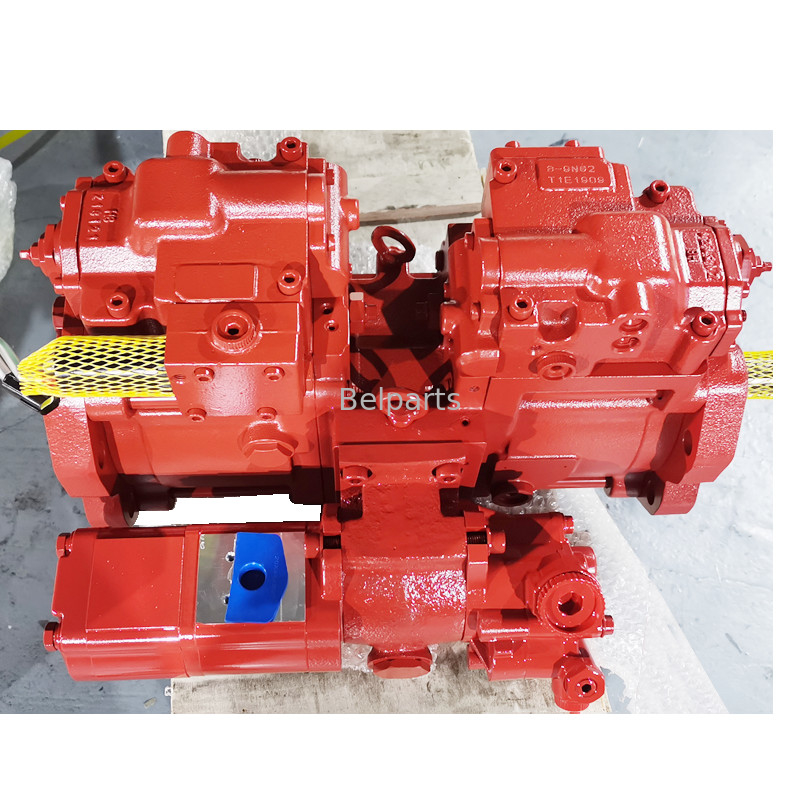

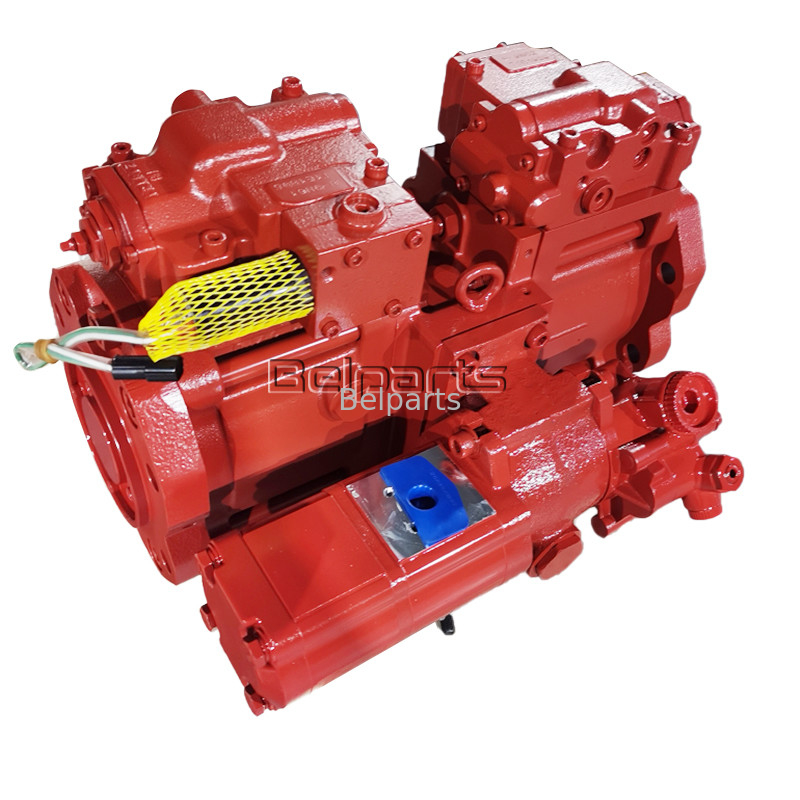

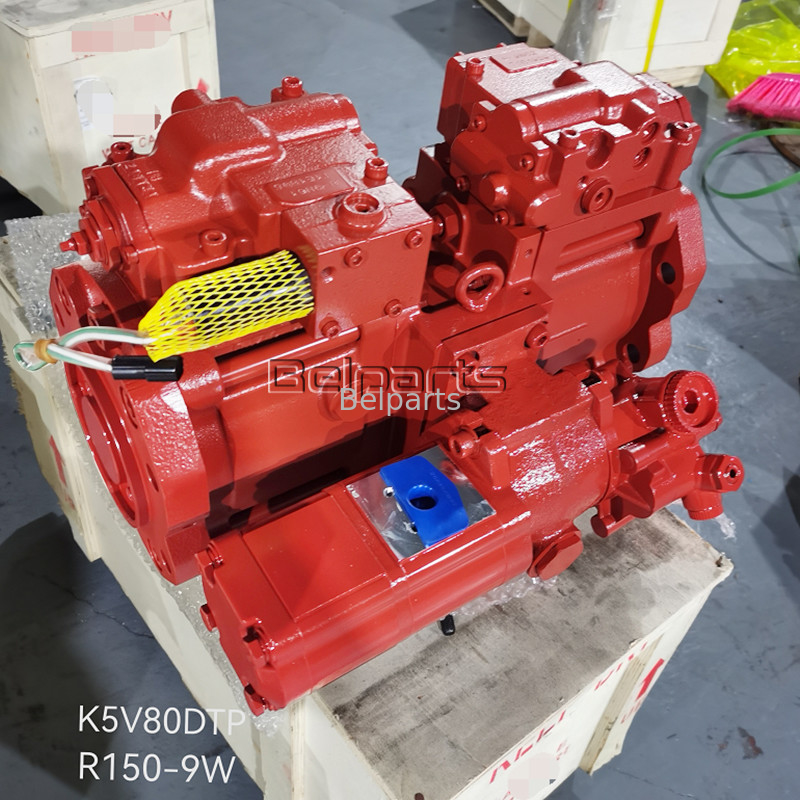

Belparts excavator main pump R145CR-9 hydraulic pump 31N4-10050 for hyundai
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | R145CR-9 | Warranty | 1 Year |
|---|---|---|---|
| Weight | 40Kg | Condition | 100% New |
| Texture | Steel | Part Name | Hydraulic Pump/Main Pump |
| Quality | High Quality | ||
| High Light | 31N4-10050 excavator main pump,hyundai excavator main pump |
||
Product Description
Belparts excavator main pump R145CR-9 hydraulic pump 31N4-10050 for hyundai
Product Description
| Product name | Excavator Hydraulic pump |
| Place of Origin: | China(mainland) |
| Model: | R145CR-9 |
| Part number: | 31N4-10050 |
| MOQ: | 1 PCS |
| Payment term: | T/T,Alibaba trade assurance,PayPal |
| Delivery time: | Within 1~7 days after receiving the payment |
| Packing: | Standard exporting packing or as required |
| # | Part No | Part Name | Qty. | Price request |
| * | 31N4-10050 | MAIN PUMP WITH PTO |
1 | |
| *-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| 111 | XJBN-01432 | SHAFT(F)-DRIVE | 1 | |
| 113 | XJBN-01433 | SHAFT(R)-DRIVE | 1 | |
| 116 | XJBN-01434 | GEAR-1ST | 1 | |
| 123 | XJBN-01435 | BEARING-ROLLER | 2 | |
| 124 | XJBN-01436 | BEARING-NEEDLE | 2 | |
| 127 | XJBN-00806 | SPACER-BEARING | 2 | |
| S141 | XJBN-01437 | BLOCK-CYLINDER | 2 | |
| S151 | XJBN-01438 | PISTON | 18 | |
| S152 | XJBN-01278 | SHOE | 18 | |
| 153 | XJBN-01439 | PLATE-SET | 2 | |
| 156 | XJBN-01440 | BUSHING-SPHERICAL | 2 | |
| 157 | XJBN-00084 | SPRING-CYLINDER | 12 | |
| 211 | XJBN-01441 | PLATE-SHOE | 2 | |
| S212 | XJBN-01442 | PLATE-SWASH | 2 | |
| S214 | XJBN-00418 | BUSHING-TILTING | 2 | |
| N251 | XJBN-01602 | SUPPORT | 2 | |
| S255 | XJBN-01603 | PIN-LOCK | 2 | |
| 261 | XJBN-01445 | COVER(F)-SEAL | 1 | |
| 263 | XJBN-01446 | COVER(R)-SEAL | 1 | |
| N271 | XJBN-01604 | CASING-FRONT PUMP | 1 | |
| N272 | XJBN-01605 | CASING-REAR PUMP | 1 | |
| 312 | XJBN-01449 | BLOCK-VALVE | 1 | |
| S313 | XJBN-01450 | PLATE(R)-VALVE | 1 | |
| S314 | XJBN-01451 | PLATE(L)-VALVE | 1 | |
| 401 | XJBN-01452 | SCREW | 2 | |
| 402 | XJBN-01453 | SCREW | 2 | |
| 406 | XJBN-00813 | SCREW-HEX S H C | 4 | |
| 415 | XJBN-00029 | SCREW-HEX | 4 | |
| 466 | XJBN-00749 | PLUG | 2 | |
| 467 | XJBN-00814 | PLUG | 2 | |
| 468 | XJBN-01219 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 9 | |
| S531 | XJBN-01458 | PIN-TILTING | 2 | |
| 532 | XJBN-01459 | PISTON-SERVO | 2 | |
| S533 | XJBN-01460 | PLUG-QMIN | 2 | |
| 534 | XJBN-00816 | STOPPER(L) | 2 | |
| S535 | XJBN-01461 | STOPPER(S) | 2 | |
| S548 | XJBN-00360 | PIN-FEED BACK | 2 | |
| 702 | XJBN-00817 | O-RING | 2 | |
| 710 | XJBN-01456 | O-RING | 1 | |
| 711 | XJBN-00900 | O-RING | 1 | |
| 717 | XJBN-01457 | O-RING | 2 | |
| 723 | XJBN-00903 | O-RING | 6 | |
| 724 | XJBN-00902 | O-RING | 12 | |
| 727 | XJBN-00912 | O-RING | 4 | |
| S728 | XJBN-01606 | O-RING | 2 | |
| S732 | XJBN-01462 | O-RING | 4 | |
| S733 | XJBN-01463 | O-RING | 2 | |
| 734 | XJBN-00899 | O-RING | 1 | |
| 774 | XJBN-01579 | OIL SEAL | 1 | |
| S789 | XJBN-01464 | RING-BACK UP | 2 | |
| 792 | XJBN-00454 | RING BACK-UP | 2 | |
| S806 | XJBN-01465 | NUT-HEX | 2 | |
| 808 | XJBN-00101 | NUT-HEX | 2 | |
| 824 | XJBN-00821 | RING-SNAP | 2 | |
| 886 | XJBN-00054 | PIN-SPRING | 4 | |
| 901 | XJBN-00104 | BOLT-EYE | 2 | |
| S953 | XJBN-01467 | SCREW-SET | 2 | |
| 954 | XJBN-00392 | SCREW-SET | 2 | |
| 981 | XJBN-00156 | NAME PLATE | 1 | |
| 983 | XJBN-00455 | PIN | 2 | |
| 5 | XJBN-01609 | PTO ASSY | 2 | |
| 5-1 | XJBN-00160 | SCREW-SOCKET | 2 | |
| 5-2 | XJBN-00725 | SOCKET-FLANGE | 4 | |
| 5-3 | XJBN-00031 | PLUG | 1 | |
| 5-4 | XJBN-00387 | O-RING | 1 | |
| 5-5 | XJBN-00046 | O-RING | 1 | |
| 5-6 | XJBN-01023 | PIN-SPRING | 1 | |
| *-3 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4030 |
1 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4020 |
2 | |
| 011 | XJBN-01424 | PISTON SUB ASSY SEE ILLUST |
2 | |
| 013 | XJBN-01425 | CYLINDER SUB ASSY-RH SEE ILLUST |
1 | |
| 014 | XJBN-01426 | CYLINDER SUB ASSY-LH SEE ILLUST |
1 | |
| 030 | XJBN-01427 | SWASH PLATE SUB ASSY SEE ILLUST |
2 | |
| 257 | XJBN-01607 | LOCK PIN SUB ASSY SEE ILLUST |
2 | |
| 530 | XJBN-01430 | TILTING PIN SUB ASSY SEE ILLUST |
2 | |
| 550 | XJBN-01431 | QMIN PLUG SUB ASSY SEE ILLUST |
2 | |
| N | @ | FUEL INJECTION PIPE & NOZZLE | AR |
Model |
Nominal displacement(ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency(≥%) |
L1 | L | Weight (kg) |
||
Rated |
Max |
Optimum speed |
Speed range |
||||||
| CMF-F306-AL** | 06 | 20 | 25 | 1500~2500 | 800~3000 | 90 | 89 | 138.5 | 4 |
| CMF-F308-AL** | 08 | 90.3 | 141 | 4.4 | |||||
| CMF-F310-AL** | 10 | 92 | 144 | 4.2 | |||||
| CMF-F316-AL** | 16 | 97 | 154 | 4.3 | |||||
| CMF-F320-AL** | 20 | 100.5 | 161 | 4.4 | |||||
| CMF-F325-AL** | 25 | 105 | 170 | 4.5 | |||||
